audio-technica

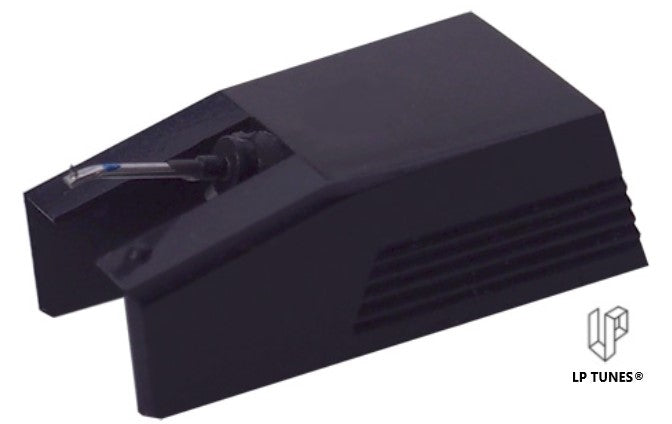

LP TUNES VIVID LINE REPLACEMENT FOR AUDIO-TECHNICA ATN142LP STYLUS

● ViVid Line Contact diamond for excellent tracing accuracy
● Diamond tip r/R radii: 6/75 µm (.0002 x .0030 inch)
● Exquisitely crafted in Japan for LP TUNES®

Designed for use with the superb AT142LP cartridge, LP Gear replacement for the Audio-Technica ATN-142LP ATN142LP needle stylus features a Vivid Line contact diamond tip with r/R radii of 6/75 µm (.0002 x .0030 inch). It is bonded to a hollow thin-wall metal alloy tube for superior tracing characteristics thus resulting in exquisite and natural sound quality reproduction of voice, music and harmonics that makes you want to play records on and on.

Upgrade Options
- For upgrades and accessories that enhance sound quality and fidelity, refer to Related Products.

LP TUNES REPLACEMENT FOR AUDIO-TECHNICA ATN-15 ATN 15 ATN15 NEEDLE STYLUS

Highest quality made in Japan replacement for Audio-Technica ATN15 ATN-15 stylus with highly polished and precision profiled Shibata diamond bonded to a thin-wall aluminum alloy cantilever tube for superlative groove tracing, musically compelling and alluringly natural sound quality.

Upgrade Options
For upgrades and accessories that enhance sound quality and fidelity, refer to Related Products.

LP TUNES REPLACEMENT FOR AUDIO-TECHNICA ATN-15E ATN15E STYLUS

● Finest quality ATN15E stylus specified for AT15E cartridge
● Lifts performance and sound quality to its high competency
● Special elliptical diamond for tracing accuracy
● Diamond tip r/R radii: 8 × 18 µm (.0003 × .0007 inch)
● Thin-all alloy cantilever for firm and sensitive response to LP grooves
● LP TUNES® stylus - Above and beyond copies and generics

The LP Tunes ATN15E stylus is specified for the Audio-Technica AT-15E and other AT-15 series phono cartridges. The stylus features a special elliptical diamond tip bonded to a thin-wall alloy cantilever for superb tracking and tracing of record grooves. It offers very fine detail and harmonic accuracy.

Upgrade Options
- For upgrade stylus and accessories that enhance sound quality and fidelity, refer to Related Products.

LP TUNES REPLACEMENT FOR AUDIO-TECHNICA ATN-15XE ATN15XE NEEDLE STYLUS

The Audio-Technica ATN-15XE ATN15XE needle stylus for the Audio-Technica AT-15XE AT15XE phono cartridge and other AT-15 AT15 series phono cartridges is out of production. The LP Tunes replacement features a special elliptical diamond with a .0003 x .0007 inch scanning radii bonded to a thin-wall aluminum alloy cantilever for excellent tracing of record grooves, long playing life and superb reproduction of voice, music and harmonics. Made in Japan especially for LP Tunes by one of the most acclaimed replacement stylus manufacturers in the world.

● Finest ATN15XE stylus specified for AT15XE cartridge
● Lifts performance and sound quality to its high competency
● Sound quality and performance beyond current production substitutes
● Special elliptical diamond for tracing accuracy
● Diamond tip r/R radii: 8 × 18 µm (.0003 × .0007 inch)
● Thin-all alloy cantilever for firm and sensitive response to LP grooves
● LP TUNES® stylus - Above and beyond copies and generics

Upgrade Options
- For upgrades and accessories that enhance sound quality and fidelity, refer to Related Products.

LP TUNES SHIBATA REPLACEMENT FOR AUDIO-TECHNICA ATN-20 ATN20 STYLUS

The LP Tunes replacement ATN-20 ATN20 needle stylus features a highly polished and precision profiled Shibata diamond bonded to a thin-wall aluminum alloy tube cantilever for superior tracing of long playing record grooves, sophisticated harmonic richness and exquisite sound quality. Made in Japan.

● Shibata diamond for flowing timbral accuracy and exquisite sound quality
● Made by Japanese takumi crafting perfection, one stylus at a time
● Diamond tip r/R radii: 6/75 µm (.0002 x .0030 inch)
● Custom aluminum alloy cantilever for sensitive response to grooves
● LP TUNES® stylus - Above and beyond copies and generics

REPLACMENT ATN-201EP ATN 201EP ATN201EP NEEDLE STYLUS

● Special elliptical diamond tip for expressive sound quality
● 0003 .0007 inch radii for precision tracing accuracy
●High strength aluminum alloy cantilever for firm contact with grooves

Made to reproduce with high fidelity and sound quality, this fine LP TUNES ATN201EP replacement stylus features a higher quality diamond tip than the original and sound accuracy tantamount to its improved performance. The stylus features a highly polished special elliptical diamond with a .0003 x .0007 inch radii. Order to enjoy listening to your records and to share music with your friends.

LP TUNES REPLACEMENT FOR AUDIO-TECHNICA ATN-20SS ATN20SS STYLUS

The LP Tunes ATN-20SS ATN20SS stylus for the Audio-Technica AT20SS cartridge features a highly polished and precision profiled Shibata diamond bonded to a thin-wall aluminum alloy tube cantilever for flowing timbral accuracy, silken harmonic richness and exquisite sound quality. Made in Japan.

● Shibata diamond for flowing timbral accuracy and exquisite sound quality
● Made by Japanese takumi crafting perfection, one stylus at a time
● Diamond tip r/R radii: 6/75 µm (.0002 x .0030 inch)
● Custom aluminum alloy cantilever for sensitive response to grooves
● LP TUNES® stylus - Above and beyond copies and generics

REPLACMENT ATN-211EP ATN 211EP ATN211EP NEEDLE STYLUS

● Special elliptical diamond tip for expressive sound quality
● 0003 .0007 inch radii for precision tracing accuracy
●High strength aluminum alloy cantilever for firm contact with grooves

Designed for high fidelity vinyl playback and recording, the LP TUNES ATN-211EP ATN211EP stylus features a highly polished special elliptical diamond with .0003 x .0007 inch radii for precision tracing of record g grooves and very good rendition of voice and music.

For a stylus replacement that offers improved sound quality and performance, refer to the Related Products.

LP TUNES REPLACEMENT FOR AUDIO-TECHNICA ATN85EP STYLUS

The ATN3472SE is specified as replacement for the Audio-Technica ATN85EP stylus. Made in Japan to reproduce with highest fidelity and sound quality, this fine stylus features a special elliptical diamond tip bonded to an alloy cantilever for sound accuracy and improved Sound quality.

● LP Gear ATN3472SE stylus specified for AT85EP, PT300 cartridges & others
● Offers wide, extended frequency response with low distortion
● Special elliptical diamond for excellent tracing accuracy
● Diamond tip r/R radii: 8 x 18 µm (.0003 x .0007 inch)
● Thin-wall tube pipe cantilever for firm contact with grooves
● Crafted by Japanese shokunin seeking perfection with each stylus
● LP GEAR® stylus - Above and beyond copies, types, and generics

Upgrade Stylus Options
- For upgrade CFNT4SE and (even better) NSS ATN3472SE stylus that enhance sound quality and fidelity, refer to Related Products.

Audio-Technica AT85EP Cartridge Specifications (for reference only)
- Frequency response: 20-20,000 Hz
- Channel separation: 20 (dB at 1 kHz)
- Vertical tracking force: 1.0-1.5 g (1.25 g standard)
- Stylus construction: Bonded round shank
- Recommended load impedance: 47,000 ohms
- Output: 3.5 mV (1 kHz, 5 cm/sec.)
- Channel balance: 2.0 dB (1 kHz)
- Stylus shape: 0.3 x 0.7 mil elliptical
- Cantilever: Aluminum pipe
- Mount: P-mount
- Replacement stylus: LP Gear ATN3472SE
- Coil impedance: 2.8 k ohms (1 kHz)
- DC resistance: 410 ohms
- Recommended load capacitance: 100 to 200 pF
- Coil inductance: 400 mH (1 kHz)
- Vertical tracking angle: 20°
- Dimensions: 15.3 mm (0.60") H × 10.0 mm (0.39") W × 35.1 mm (1.38") D
- Weight: 6.0 g (0.21 oz)

Notes: Specifications for original Audio-Technica cartridge provided for reference only.

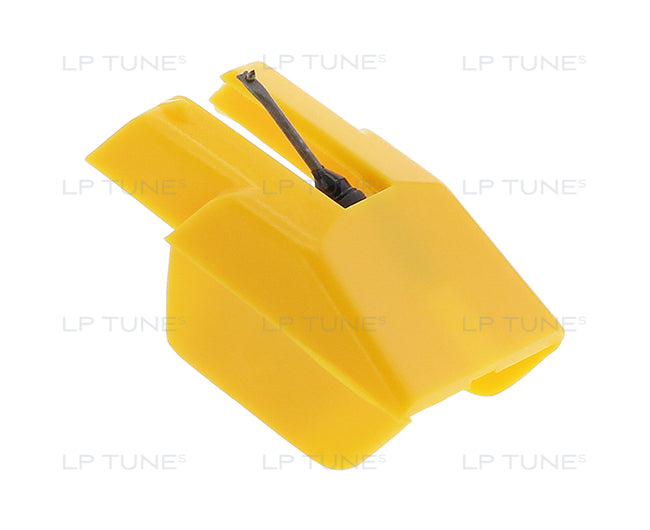

LP TUNES REPLACEMENT FOR AUDIO-TECHNICA ATS-10 ATS 10 ATS10 NEEDLE STYLUS

The LP Tunes replacement for the Audio-Technica ATS-10 ATS10 needle stylus performs well with its polished 0.6 mil conical diamond tip while providing the user with long playing life and accuracy.

The color of this stylus has changed over the years. Please be sure to compare your stylus with this stylus before ordering. Do not order this stylus if it looks different than the stylus that you have.

If you are unsure if this is the correct stylus please contact us here

For upgrades and enhancements to sound quality and fidelity please refer to the Related Products below.

REPLACEMENT FOR AUDIO-TECHNICA ATS-10 ATS10 NEEDLE STYLUS

The LP Tunes replacement for the Audio-Technica ATS-10 ATS10 needle stylus features a highly polished conical diamond for long playing life and good rendition of voice and music. The color of the stylus may vary.

● Finest quality replacement for Audio-Technica ATS10 stylus
● Crafted by Japanese shokunin creating perfection with each stylus
● Sound quality and performance beyond current production substitutes
● 0.6 mil special conical diamond tip bonded to custom alloy cantilever
● Low-mass alloy cantilever for groove tracing accuracy and fidelity
● LP TUNES® stylus - Above and beyond copies and generics

Upgrade Options
- For upgrade stylus and essentials that enhance sound quality and fidelity, refer to Related Products.

Audio-Technica AT10 Cartridge Specifications
- Generating element: VM Dual Moving Magnet
- Frequency response: 20 ~ 20,000 Hz
- Output voltage (at 1kHz, 5 cm/sec.): 4.8 mV
- Channel separation (dB 1 khz/10kHz): 25/15
- Channel balance (dB): 2.0 dB
- Stylus tip size (mils): .7
- Stylus assembly color: Red
- Tracking force: 2 ~ 3 g
- Vertical tracking angle: 20 °
- Load impedance (Ω): 47,000
- Cartridge inductance (mH): 1,000
- DC resistance (Ω): 1,200
- Dimensions: 0.63 × 1.14 × 0.79 inch
- Weight: 5.5 g
- Mounting: ½" centers
- Replacement stylus: ATS10

Notes: (1) Tracking force greater than the maximum indicated should not be used.
(2) Specifications for original Audio-Technica cartridge provided for reference only.

LP TUNES REPLACEMENT FOR AUDIO-TECHNICA ATS-12 ATS12 STYLUS

The LP Tunes ATS-12 ATS12 stylus replacement features a highly polished special elliptical diamond with .0003 x .0007 inch scanning radii. It offers very high precision tracing of record grooves and results in finer delineation of harmonics, detail and excellent musicality. The stylus is made in Japan by an eminent stylus manufacturer. The stylus replacement usually comes in various colors.

● Highest quality ATS12 stylus for Audio-Technica AT12E cartridge
● Better than original elliptical diamond for very high fidelity
● Made by Japanese shokunin seeking to create perfection with each stylus
● Special elliptical diamond tip r/R radii: .0003 × .0007 inch (.3 x .7 mils)
● Low-mass alloy cantilever for groove tracing accuracy and fidelity
● Each stylus undergoes QC and listening test as final inspection
● LP TUNES® stylus - Above and beyond copies and generics

Audio-Technica AT12E Cartridge Specifications (for reference only)
- Type: Dual moving magnet
- Frequency response: 15-26,000 Hz
- Output voltage @ 1kHz, 5 cm/s: 3.5 mV
- Recommended tracking force: 1.5 g
- Channel separation: 23 dB
- Stylus shape: 0.4 x 0.7 mil elliptical diamond
- Replacement stylus: ATS12

Notes: (1) Tracking force greater than the maximum indicated should not be used.
(2) Specifications for original Audio-Technica cartridge provided for reference only.

LP TUNES UPGRADE REPLACEMENT STYLUS FOR AUDIO-TECHNICA I-LT ILT CARTRIDGE

The LP Tunes ATN-102EP ATN102EP needle stylus for the Audio-Technica I-LT ILT phono cartridge features a highly polished special elliptical diamond with .0003 x .0007 inch radii. This is better than the original stylus tip with .0004 x .0007 inch radii. The LP Gear stylus offers improved rendition of voice, music and harmonics. The stylus is made in Japan by a world-class manufacturer with a reputation for crafting musically excellent and high-quality replacement styli. The color of the stylus may vary.

Upgrade Options
- For upgrade stylus and accessories that enhance sound quality and fidelity, refer to Related Products.

The color of this stylus has changed over the years. Please be sure to compare your stylus with this stylus before ordering. Do not order this stylus if it looks different than the stylus that you have.

⚠ If you are unsure if this is the correct stylus, please contact us here.

Stylus Upgrade Options
Better Upgrade: NSS/E Nude Elliptical Upgrade For Audio-Techncia ATN102EP & Others
Superior Upgrade:  LP Tunes Vivid Line Stylus Replacement for Audio-Technica ATN122LP
Ultimate Upgrade:  LP Tunes Shibata Stylus Replacement for Audio-Technica ATN152MLP



LP TUNES STYLUS FOR AUDIO-TECHNICA II-LT CARTRIDGE

The  ATN-3472SE stylus has enhanced accurate tracing and tracking of record grooves with its 0.3 x 0.7 mil elliptical diamond all while providing the user an outstanding listening experience.

The color of this stylus has changed over the years. Please be sure to compare your stylus with this stylus before ordering. Do not order this stylus if it looks different than the stylus that you have.

⚠ If you are unsure if this is the correct stylus please contact us here

Stylus Upgrade Options
Premium Upgrade: CFNT4PSE
Superior Upgrade: ATN3472HE
Ultimate Upgrade: ATN3472SA
For 78 RPM Records: ATN3472 78

For enhancements to sound quality and fidelity please refer to the Related Products below.

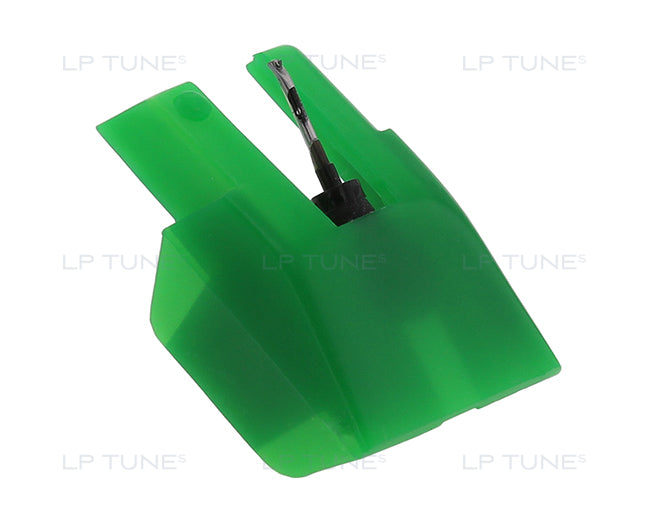

LP TUNES REPLACEMENT STYLUS FOR AUDIO-TECHNICA 1000-HP 1000HP CARTRIDGE

The ATS-11E stylus has enhanced accurate tracing and tracking of record grooves with its 0.4 x 0.7 mil elliptical diamond all while providing the user an outstanding listening experience.

The color of this stylus has changed over the years. Please be sure to compare your stylus with this stylus before ordering. Do not order this stylus if it looks different than the stylus that you have.

⚠ If you are unsure if this is the correct stylus please contact us here

Stylus Upgrade Options
Superior Upgrade: ATS12VL
Ultimate Upgrade: ATS12S

For enhancements to sound quality and fidelity please refer to the Related Products below.
