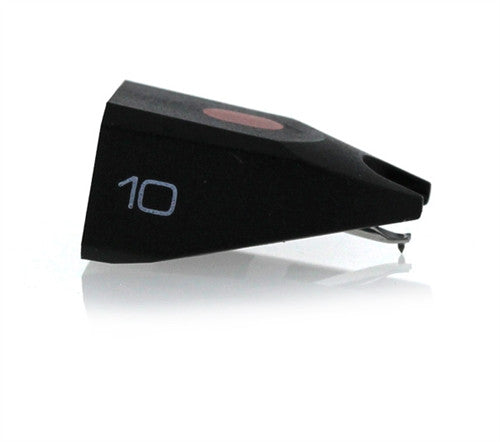

Ortofon Stylus 10
The Ortofon Stylus 10 needle stylus is the standard for the Ortofon OM-10 OM10 phono cartridge and its older siblings. The stylus features a 0.3 x 0.7 mil diamond tip.
Ortofon Stylus 10 Specifications
- Frequency range: 20-24kHz
- Frequency response: 20-20kHz +3/-1dB
- FIM distortion at recommended tracking force, DIN 45.542: < 1%
- Tracking ability @ 315Hz @ recommended tracking force: 70m
- Compliance, dynamic, lateral: 25m/mN
- Stylus type: Elliptical
- Stylus tip radius: 0.3 x 0.7 mil
- Tracking force range: 1.25-1.75g (12.5-17.5mN)
- Tracking force, recommended: 1.5g (15mN)
- Color: Black
How to Upgrade Sound Quality
You can easily upgrade to a higher level of performance by replacing the Ortofon Stylus 10 with a Stylus
20, 30 or 40.
