Headshells & Mounts

CARTRIDGE MOUNTING SCREW SET BY LP GEAR

Non-magnetic and light weight, this headshell mounting screw set is essential for mounting cartridges on the headshell. The set consists of six screws, two washers and two nuts. It is not designed for use in T4P and P-mounts.

HEADSHELL LEAD WIRE SET - GOLD PLATED

LP-Fi Sonic headshell wires with gold plated plugs for best connection and transfer of micro voltage from phono cartridge.

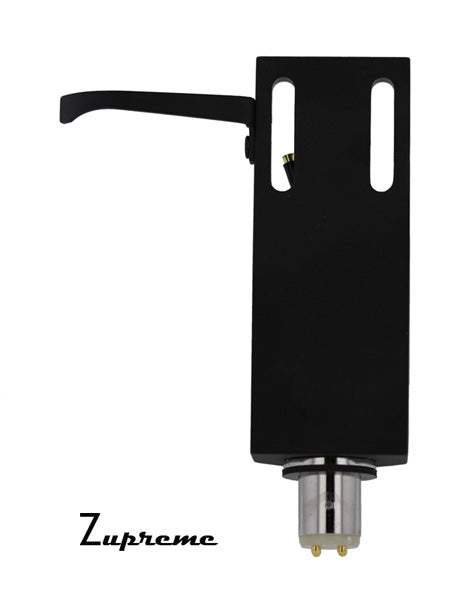

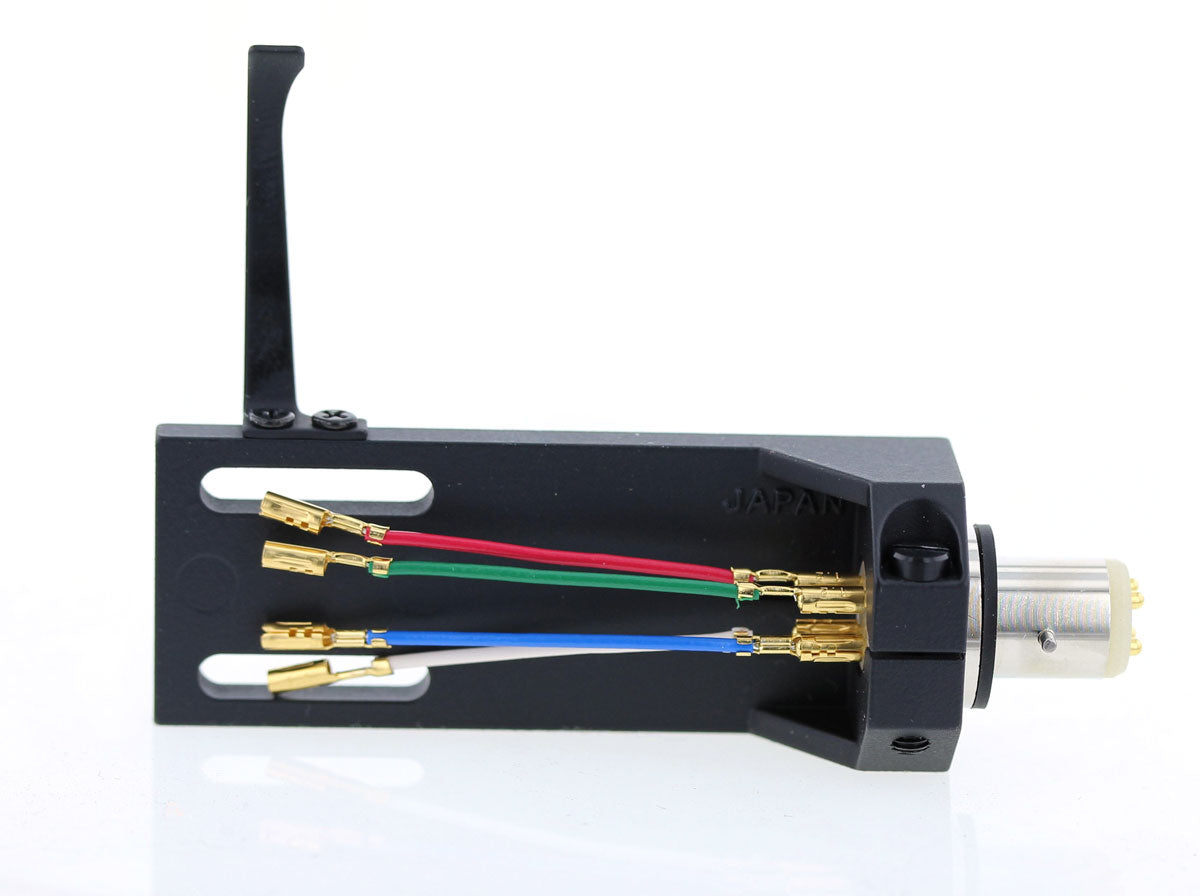

LP GEAR ZUPREME HEADSHELL

The LP Gear Zupreme headshell is the finest half-inch mount headshell available. Engineered and then hand-assembled and polished to crispness by artisans in Japan, each LP Gear Z headshell is holistically designed to achieve highest fidelity.

For strength, lightness and structural solidity, the LP Gear Zupreme headshell uses an aerospace construction metal alloy we call Zupreme. A similar metal alloy is used in high grade engine components and engine blocks by Porsche, Volkswagen and BMW.

For supreme electrical connectivity, heavily plated gold plugs and high purity copper wires are used as base material.

The LP Gear Zupreme headshell is also horizontally adjustable. This is a critical feature. It enables the user to horizontally align the diamond tip of a stylus for correct tracing of record grooves thus resulting in highest fidelity.

Now there's a headshell for the supreme listener - the LP Gear Zupreme headshell.

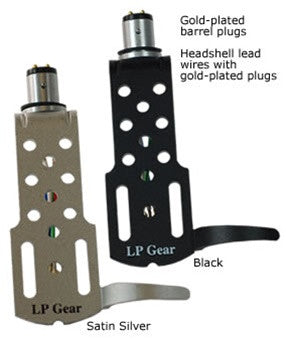

AUDIOPHILE QUALITY UNIVERSAL HEADSHELL - CURRENTLY OUT OF STOCK!

Half-inch mount headshell for use when high fidelity is a critical goal of the end-user. Made of special aluminum for lightness and durability, this headshell is designed for optimal electrical and sonic transfer of groove output with the use of gold connectors and plugs. High sonic quality headshell wires with gold plated clips are included.

Note: The headshell is available in black or satin silver. Please state your preference.

Dimensions (inches)
Thickness: 0.094
Width at widest point: 0.80 (sans finger lift)
Length (sans male connectors): 2.50
Length with male connectors: 2.53
Weight with lead wires: 8 grams

HEADSHELL FOR STRAIGHT TONEARMS ADC TYPE

High quality ADC-type headshell fits most straight tonearm turntables. It comes complete with high quality headshell lead wires. The headshell for straight tonearms ADC type is made in Japan.

For the original and genuine ADC headshell refer to Related Products.

Hi-Q HEADSHELL LEAD WIRES

Hi-Q Headshell Lead Wires with high conductivity copper wires and nickel plated plugs for very good transfer of microvolts from the phono cartridge.

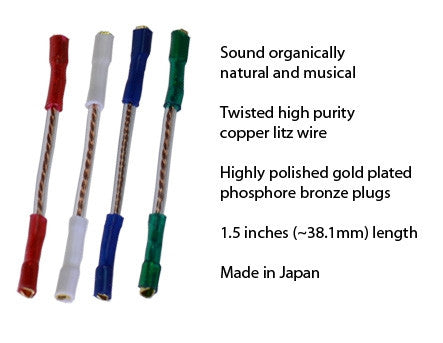

LP TUNES SOAR HD-5 HD 5 HD5 HEADSHELL WIRES SET
-- Serious improvement with these wires

The first thing that electrically connects to the cartridge are the headshell lead wires hence their critical importance in the audio chain. The LP Tunes SOAR HD5 headshell wires are designed to do nothing else but to faithfully transfer what comes out from the cartridge without coloration, signal loss or distortion. They sound organically natural and musical.

"Holy crap, these are the real deal! I am hearing some serious improvement with these wires... bass is extended and more detailed, transients are more dynamic, imaging has popped into more vivid 3D, recordings that previously sounded smeared now have nuance and depth, etc. etc. etc.

If your tonearm has a detachable headshell, do yourself a favor and spend $25 on a set of these wires. You can thank me later..." stated a customer in one of the forums.¹

LP Tunes Soar HD5 Features
- Twisted very high purity copper Litz wires mitigate proximity and skin effects
- Highly polished gold plated phosphor bronze plugs
- 1.5 inches (~38.1 mm) length
- Artisan quality and durability
- Made in Japan

_________________________________
Footnote 1: Entire thread can be found at an Audiokarma forum discussion: LP Gear's SOAR HD5 headshell wires are excellent and cheap.

DENON PCL-310BK PCL 310BK PCL310BK HEADSHELL

The Denon PCL-310BK PCL 310BK PCL310BK headshell for the Denon DP-300F DP 300F DP300F turntable comes complete with high-quality lead wires.

P-MOUNT CARTRIDGE SCREW AND NUT SET
- Mounting screw and nut set for P-mount T4P cartridges

Special screw and nut set to securely install a P-mount T4P cartridge to the tonearm or to a P-mount adapter.

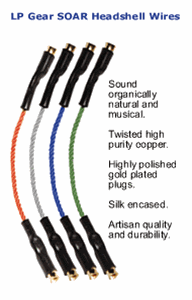

LP GEAR SOAR HD-4 HD 4 HD4 HEADSHELL LEAD WIRES SET

The first thing that electrically connects to the cartridge are the headshell lead wires hence their critical placement in the audio chain. The LP Gear SOAR HD4 headshell lead wires are designed to do nothing else but to faithfully transfer what comes out from the cartridge without coloration, signal loss or distortion. They sound organically natural and musical.

Features
- Twisted high purity copper Litz wires mitigate proximity and skin effects
- Highly polished gold plated plugs
- Silk wrapped
- Japanese-artisan quality and durability

LP GEAR ULTIMATE HEADSHELL

The LP Gear Ultimate headshell is one of the finest half-inch mount headshells in the world. Exquisitely hand-assembled in Japan using selected parts and materials, each LP Gear HD headshell is designed to deliver high-definition audio. The LP Gear HD headshell with headshell wires included weighs 7.6 grams.

For tensile strength, lightness and structural integrity, the LP Gear HD headshell uses a special ultimate aluminum alloy. A similar metal alloy is used in the aerospace industry.

For pure connectivity, the LP Gear Ultimate headshell comes with heavily plated gold plugs and very high purity oxygen free copper Litz wires. Each twisted wire is exquisitely encased in clear insulation. Terminal tips are gold plated phosphor bronze.

Now here's a headshell for the High-Definition listener - the LP Gear Ultimate headshell.

UNIVERSAL HALF-INCH MOUNT HEADSHELL - BLACK COLOR

This black anodized aluminum headshell fits most standard-type tonearms with collar lock. The barrel dimensions are 8 mm diameter x 12 mm length. It comes complete with headshell lead wires.

P-MOUNT T4P ADAPTER

This adapter allows P-Mount T4P cartridges to be fitted to standard, half-inch mount headshells. Set side screw included.

DUAL TK14 TK24 236-242 236242 CARTRIDGE CARRIER

Genuine Dual 236-242 236242 cartridge carrier adapter for enabling specific Dual turntables to use standard industry half-inch mount phono cartridges. The cartridge carrier comes with color coded headshell wires.

The Dual TK-24 Dual part number 236-242 cartridge carrier adapter is also used to replace the the Dual TK-14 215-430 cartridge carrier. These cartridge carriers are for specific use in the following models:

Dual CS 461 turntable
Dual CS 481 turntable
Dual CS 491 turntable
Dual 502 CS 502 turntable
Dual 504 CS 504 turntable
Dual 510 CS 510 turntable
Dual 521 CS 521 turntable
Dual 601 CS 601 turntable
Dual 604 CS 604 turntable
Dual 621 CS 621 turntable
Dual 701 CS 701 turntable
Dual 704 CS 704 turntable
Dual 714 CS 714 turntable, but not the 714 Q
Dual 721 CS 721 turntable
Dual 731 CS 731 turntable, but not the 731 Q
Dual 1209 turntable
Dual 1210 turntable
Dual 1211 turntable
Dual 1212 turntable
Dual 1214 turntable
Dual 1215 turntable
Dual 1215S turntable
Dual 1216 turntable
Dual 1218 turntable
Dual 1219 turntable
Dual 1220 turntable
Dual 1222 turntable
Dual 1224 turntable
Dual 1225 turntable
Dual 1226 turntable
Dual 1228 turntable
Dual 1229 turntable
Dual 1229Q turntable
Dual 1234 turntable
Dual 1234A turntable
Dual 1235 turntable
Dual 1236 turntable
Dual 1237 turntable
Dual 1239 turntable
Dual 1241 turntable
Dual 1242 turntable
Dual 1245 turntable
Dual 1246 turntable
Dual 1249 turntable

HEADSHELL SCREW WEIGHTS 2 GRAMS

Dual purpose high quality screws for mounting phono cartridges to headshell and as headshell weights. Each pair of screws and nuts will add an additional 2 grams.
