audio-technica

The Audio-Technica ATN-221EP ATN221EP needle stylus features a highly polished nude square shank bi-radial diamond with a .0002 x .0007 inch radii. It offers long playing life, superior tracing and tracking of record grooves and superbly accurate rendition of voice, music and harmonics. The color of the stylus varies. The stylus is made in Japan by Audio-Technica.

The Audio-Technica ATN-30E ATN30E needle stylus is designed for the highly regarded low-output moving coil Audio-Technica AT-30E AT30E phono cartridge and its private label equivalents. However, it is deactivated and is no longer available. The stylus was made in Japan by Audio-Technica.

For the Audio-Technica ATN-31E ATN31E needle stylus, refer to the Related Products.

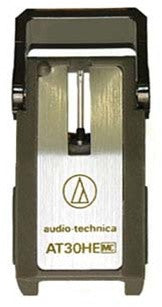

The Audio-Technica ATN-30HE ATN30HE needle stylus for the highly regarded high-output moving coil Audio-Technica AT-30HE AT30HE phono cartridge and its private label equivalents features a highly polished elliptical diamond with a .0003 x .0007 inch scanning radii. It offers superb tracing of record grooves, long playing life and excellent reproduction and rendition of voice, music and harmonics. The stylus assembly may be disconnected and replaced more than 2,000 times with no appreciable increase in output noise. The stylus is made in Japan by Audio-Technica.

Audio-Technica ATN30HE Stylus Specifications
- Frequency response: 15Hz-25kHz
- Output voltage @ 1kHz,5cm/sec: 2mV
- Channel separation @ 1kHz: Minimum 29dB
- Channel balance @ 1kHz: Within 1dB
- Tracking force: 1.4-1.8g (nominal force 1.5g)
- Static compliance: 32 x 10-6 cm/dyne
- Load resistance: 47k ohms

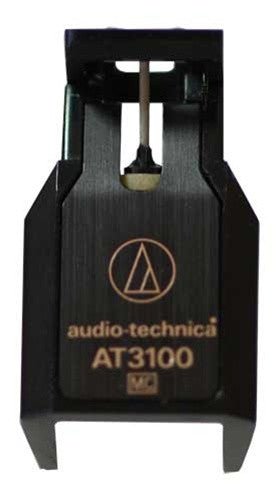

The Audio-Technica ATN-3100 ATN3100 MC stylus features a highly polished conical diamond. It offers excellent sound quality and harmonic detail. The stylus is made in Japan by Audio-Technica.

The Audio-Technica ATN-3100E ATN3100E MC needle stylus features a highly polished special elliptical diamond with .0003 x .0007 inch scanning radii. It offers superior tracing characteristic and excellent rendition of voice, music and harmonic detail. The stylus is made in Japan by Audio-Technica.

The Audio-Technica ATN-312EP ATN312EP needle stylus features a highly polished elliptical diamond for superb tracking and tracing of record grooves. It results in finer detail and harmonically complete sound quality. The stylus is made in Japan by Audio-Technica.

Audio-Technica ATN312EP Specifications
- Type: Moving Coil
- Frequency response: 15 ~ 50,000 Hz
- Output voltage: 0.4 mV
- Output impedance: 10 Ω
- Stylus: Elliptical 0.3 x 0.7 mil
- Dynamic compliance: 10 10-6 cm/dyne
- Tracking force: 1.0-1.5g (1.25g standard)

The Audio-Technica ATN-31E ATN31E needle stylus for the highly regarded low-output moving coil Audio-Technica AT-31E AT31E phono cartridge features a nude elliptical diamond with a .0003 x .0007 inch scanning radii. It offers superb tracing of record grooves, long playing life and excellent reproduction and rendition of voice, music and harmonics. The stylus assembly may be disconnected and replaced more than 2,000 times with no appreciable increase in output noise. The stylus is made in Japan by Audio-Technica.

Audio-Technica ATN31E Stylus Specifications
- Frequency response: 15Hz-50kHz
- Output voltage @ 1kHz, 5 cm/sec: 0.4mV
- Channel separation @ 1kHz: Minimum 30dB
- Channel balance @ 1kHz: Within 1.0dB
- Tracking force: 1.2 - 1.8 g (Nominal force 1.5 g)
- Dynamic compliance: 8.5 x 10-6 cm/dyne (100 Hz)
- Static compliance: 32 x 10-6 cm/dyne
- Load resistance: More than 10 ohms
- Load capacitance: 100 - 200 pf
- Stylus: 0.15 mm nude square, 0.3 x 0.7 mil elliptical diamond

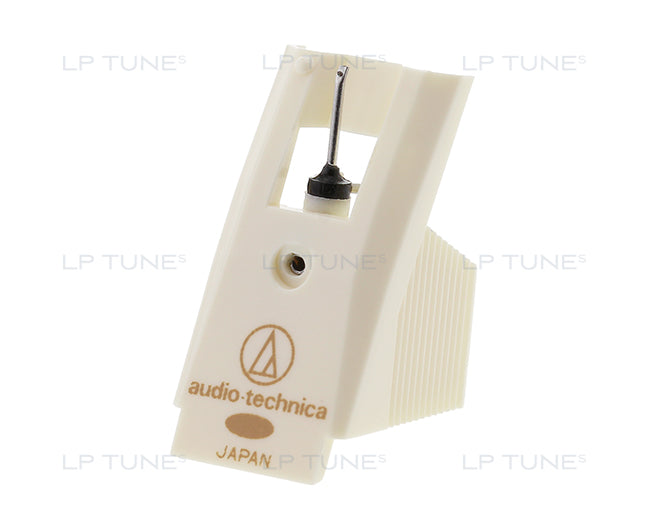

The ATN-3472BE stylus has enhanced accurate tracing and tracking of record grooves with its 0.4 x 0.7 mil elliptical diamond all while providing the user an outstanding listening experience.

The color of this stylus has changed over the years. Please be sure to compare your stylus with this stylus before ordering. Do not order this stylus if it looks different than the stylus that you have.

⚠ If you are unsure if this is the correct stylus please contact us here

Stylus Upgrade Options
Premium Upgrade: ATN3472SE
Superior Upgrade: ATN3472HE
Ultimate Upgrade: ATN3472SA
For 78 RPM Records: ATN3472 78

For enhancements to sound quality and fidelity please refer to the Related Products below.

The Audio-Technica ATN-35E ATN35E needle stylus for the low-output moving coil Audio-Technica AT-35E AT35E phono cartridge features a square-shank nude special elliptical diamond with a .0002 x .0007 inch scanning radii. It offers natural sound reproduction, long playing life, very high fidelity, dynamics and very high resolution. The stylus is made in Japan by Audio-Technica.

Audio-Technica ATN35E Stylus Specifications
- Frequency response: 15Hz-30kHz
- Output voltage @ 1kHz,5cm/sec: 0.4mV
- Channel separation @ 1kHz: Minimum 30dB
- Channel balance @ 1kHz: 1dB
- Tracking force: 1.2-1.8g (nominal force 1.5g)
- Load resistance: >10 ohms
- Load capacitance: 100-200pf
-Stylus: 0.15 mm nude square, 0.2 x 0.7 mil elliptical diamond

The Audio-Technica ATN-51E ATN51E needle stylus features a highly polished elliptical diamond for superb tracking and tracing of record grooves. It results in finer detail and harmonically complete sound quality. The stylus is made in Japan by Audio-Technica.

The Audio-Technica ATN-52E ATN52E needle stylus features a highly polished elliptical diamond for long playing life, excellent tracing of record grooves and superb rendition of voice and music. The stylus is made in Japan by Audio-Technica.

The Audio-Technica ATN-53E ATN53E needle stylus features a highly polished elliptical diamond for long playing life, excellent tracing of record grooves and superb rendition of voice and music. The stylus is made in Japan by Audio-Technica.

The Audio-Technica ATN-55XE ATN55XE needle stylus is used with the Audio-Technica AT-55XE, AT-57XE and AT-59XE phono cartridges. The stylus features a highly polished nude round shank elliptical diamond with a .0003 x .0007 inch radii. It offers long playing life, less record wear and excellent tracing of record grooves. It delivers superb rendition of voice and music. The stylus is made in Japan by Audio-Technica.

AUDIO-TECHNICA ATN-71E ATN 71E ATN71E NEEDLE STYLUS

Discontinued, see the 100% compatible LP Tunes Elliptical Upgrade ATN71E Stylus

The Audio-Technica ATN-71E ATN71E needle stylus features a highly polished elliptical diamond with a .0004 x .0007 inch scanning radii. It offers very accurate tracing of record grooves and excellent reproduction of voice and music. The stylus is made in Japan by Audio-Technica.

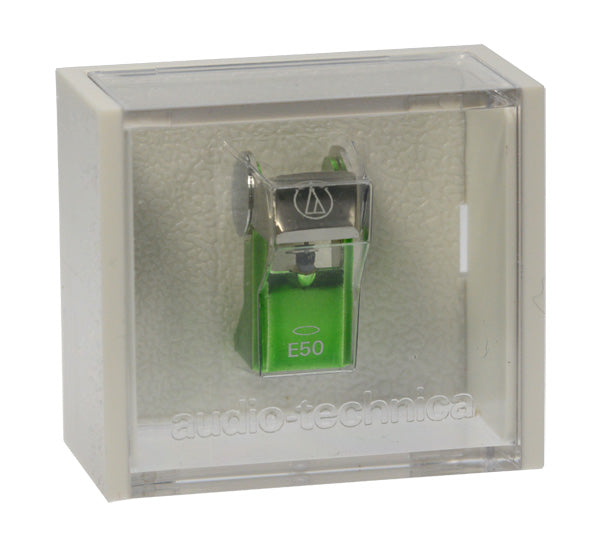

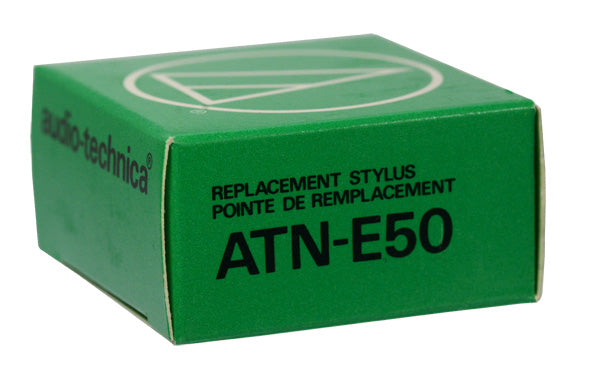

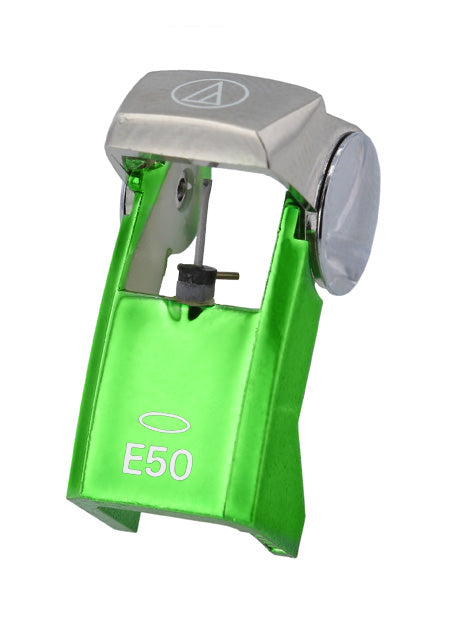

AUDIO-TECHNICA ATN-E50 STYLUS FOR AUDIO-TECHNICA AT E50 AT-E50 CARTRIDGE

Audio-Technica ATNE50 ATN-E50 stylus is specified for the fabulous Audio-Technica ATE50 AT-E50 cartridge. It will restore performance to original specifications.
