Ortofon

ORTOFON DUAL DN-165E DN165E STYLUS / STYLUS 5E

Ortofon made many styli for Dual. The Ortofon Dual DN-165E DN165E Stylus / Stylus 5E for the Dual ULM-65E ULM65E and TKS-65E TKS65E phono cartridges features a highly polished elliptical diamond for superb tracking and tracing of record grooves. It results in finer detail and harmonically complete sound quality.

If you seek further discernment and improved sound quality, you can easy upgrade to a higher level of performance by simply replacing the Ortofon Stylus 5E stylus with an Ortofon Stylus 10, 20, 30 or 40 stylus.

Ortofon Stylus 5E Specifications
- Frequency range: 20Hz-25kHz
- Frequency response: 20Hz-20kHz +2dB
- FIM distortion at recommended tracking force, DIN 45.542: < 1%
- Tracking ability @ 315Hz @ recommended tracking force: 65µm
- Compliance, dynamic, lateral: 20µm/mN
- Stylus type: Elliptical
- Stylus tip radius: 0.3 x 0.7 mil
- Tracking force range: 1.5-2.0g (15-20mN)
- Tracking force, recommended: 1.75g (17.5mN)
- Color: Black

ORTOFON DUAL DN-166E DN166E STYLUS / STYLUS 5E

Ortofon made many styli for Dual. The Ortofon Dual DN-166E DN166E Stylus / Stylus 5E is the standard stylus replacement for the Dual ULM-65E ULM65E and TKS-65E TKS65E phono cartridges. The stylus features an elliptical diamond for long playing life and very good rendition of voice, music and harmonics. The Ortofon Stylus 10 and Ortofon Stylus 20 are perfect for an upgraded performance.

Ortofon Stylus 5E Specifications
- Frequency range: 20Hz-25kHz
- Frequency response: 20Hz-20kHz +2dB
- FIM distortion at recommended tracking force, DIN 45.542: < 1%
- Tracking ability @ 315Hz @ recommended tracking force: 65µm
- Compliance, dynamic, lateral: 20µm/mN
- Stylus type: Elliptical
- Stylus tip radius: 0.3 x 0.7 mil
- Tracking force range: 1.5-2.0g (15-20mN)
- Tracking force, recommended: 1.75g (17.5mN)
- Color: Black

ORTOFON DUAL DN-167 DN 167 DN167 / Stylus 78 78 RPM NEEDLE STYLUS

This genuine Ortofon Stylus 78 is a 78 RPM needle stylus designed as a replacement for the Dual DN-167 DN 167 DN167 stylus, and is for use with the Ortofon Dual TKS-65E TKS 65E TKS65E, the Ortofon Dual ULM-65E ULM 65E ULM65E, the Ortofon Dual TKS-66E TKS 66E TKS66E, and the Ortofon Dual ULM-66E ULM 66E ULM66E phono cartridges.

To play a 78 RPM record, you need a stylus (needle) specially designated for 78 RPM records. Otherwise with just a single playing, you could ruin the fidelity of the record grooves. This stylus replacement is designed specifically for the correct tracing of the wide grooves of 78 RPM records, thus resulting in minimal groove wear, and an accurate rendition of voice and music.

ORTOFON DUAL DN-168E DN168E STYLUS / STYLUS 5E

Ortofon made many styli for Dual. The Ortofon Dual DN-168E DN168E Stylus / Stylus 5E for the Dual ULM-68E ULM68E and TKS-68E TKS68E phono cartridges features a highly polished elliptical diamond for superb tracking and tracing of record grooves. It results in finer detail and harmonically complete sound quality.

If you seek further discernment and improved sound quality, you can easy upgrade to a higher level of performance by simply replacing the Ortofon Stylus 5E stylus with an Ortofon Stylus 10, 20, 30 or 40 stylus.

Ortofon Stylus 5E Specifications
- Frequency range: 20Hz-25kHz
- Frequency response: 20Hz-20kHz +2dB
- FIM distortion at recommended tracking force, DIN 45.542: < 1%
- Tracking ability @ 315Hz @ recommended tracking force: 65µm
- Compliance, dynamic, lateral: 20µm/mN
- Stylus type: Elliptical
- Stylus tip radius: 0.3 x 0.7 mil
- Tracking force range: 1.5-2.0g (15-20mN)
- Tracking force, recommended: 1.75g (17.5mN)
- Color: Black

ORTOFON DUAL DN-150E DN150E DN 150 E STYLUS

This stylus is a genuine replacement elliptical stylus by Ortofon. This is a stylus replacement for the Dual ULM50E ULM-50E and TKS-50E TKS50E phono cartridges. The stylus replacement can also be used with the TKS-52E TKS52E and TKS-55E TKS55E phono cartridges.

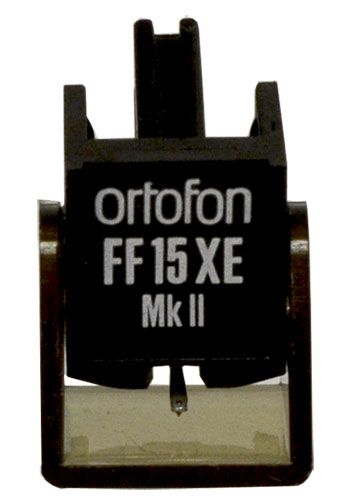

ORTOFON NF-15XE-MKII NF15XE MKII STYLUS

Out of stock. Please see the 100% compatible LP Tunes Elliptical Replacement for the Ortofon NF-15XE II / FF-15XE II Stylus or the Stylus Alternatives below.

The Ortofon NF15XE MKII NF15XEMKII stylus features a highly polished elliptical diamond for excellent rendition of voice, music and harmonic detail.

Stylus Alternatives
- Entry Stylus: LP Tunes Elliptical Replacement for the Ortofon NF-15XE II / FF-15XE II Stylus
- Upgrade Stylus: LP Tunes Nude Elliptical Replacement for F/FF/VMS/M15/M20 Ortofon Cartridges
- Supreme Stylus: LP Tunes Shibata Replacement for F/FF/VMS/M15/M20 Ortofon Cartridges

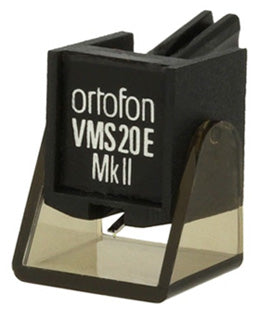

ORTOFON NF15DMKII STYLUS FOR ORTOFON VMS 20E VMS20E CARTRIDGE

Ortofon NF15D MKII stylus as replacement for the D20E with hour glass shank that was used for the Ortofon VMS-20E VMS20E phono cartridge.

"The Ortofon OM3E outperforms the Ortofon 2M Red by a wide margin on my system to which I owe you very many thanks. In addition, the token of quality inspection as per shipping document makes me feeling good."
- TO, customer from Japan

The Ortofon OM3E OM 3E phono cartridge is the least expensive cartridge that Ortofon offers. It uses the same high performance cartridge body as its sibling up the line and it comes with a special elliptical diamond stylus. As in other Ortofon OM series cartridges, it portrays music naturally across the frequency spectrum.

And when its time for you to seek more discernment, you can easily upgrade to a higher level of performance by simply replacing the stylus to a Stylus 5E, 10, 20, 30 and 40. You can enjoy music now and even further later on when you choose to.

Ortofon OM3E Specifications
- Frequency range: 20 - 22,000 Hz
- Output voltage at 1 kHz, 5cm/sec.: 4.0 mV
- Channel balance at 1 kHz: 2.0 dB
- Channel separation at 1 kHz / 15 kHz: 22 / 15 dB
- Tracking ability: 60 m
- Dynamic compliance: 20 m/mN
- Stylus: .0003 x .0007 inch special elliptical diamond
- Equivalent stylus tip mass: 0.5 mg
- Tracking force range: 1.5 - 2.0 g
- Tracking force, recommended: 1.75 g
- Tracking angle: 20
- Internal impedance, DC resistance: 750 Ohm
- Internal inductance: 450 mH
- Recommended load resistance: 47 K
- Recommended load capacitance: 200-600 pF
- Color: Black
- Weight: 5 g
- Stylus replacement: Ortofon Stylus 3E

The Ortofon OM5E OM 5E phono cartridge is the least expensive cartridge that Ortofon offers. It uses the same high performance cartridge body as its sibling up the line and it comes with a special elliptical diamond stylus. As in other Ortofon OM series cartridges, it portrays music naturally across the frequency spectrum.

And when its time for you to seek more discernment, you can easily upgrade to a higher level of performance by simply replacing the stylus to a Stylus 10, 20, 30 and 40. You can enjoy music now and even further later on when you choose to.

Ortofon OM5E Specifications
- Frequency range: 20 - 25,000 Hz
- Output voltage at 1 kHz, 5cm/sec.: 4.0 mV
- Channel balance at 1 kHz: 2.0 dB
- Channel separation at 1 kHz / 15 kHz: 22 / 15 dB
- Tracking ability: 60 m
- Dynamic compliance: 20 m/mN
- Stylus: .0003 x .0007 inch special elliptical diamond
- Tracking force range: 1.5 - 2.0 g
- Tracking force, recommended: 1.75 g
- Tracking angle: 20
- Internal impedance, DC resistance: 750 Ω
- Internal inductance: 450 mH
- Recommended load resistance: 47 KΩ
- Recommended load capacitance: 200-600 pF
- Color: Black
- Weight: 5 g
- Stylus replacement: Ortofon Stylus 5E

ORTOFON OMB 10 OMB10 CARTRIDGE
- New old stock in plastic case and LP Tunes packaging. Screws, nuts, and stylus guard included.

The Ortofon OMB 10 OMB-10 phono cartridge is the version of the OM 10 cartridge offered to turntable manufacturers for their use as original equipment with their turntables. Their popularity stems from three compelling reasons: (1) it plays music with authenticity, refinement, and artful competence that makes it endearing; (2) it is sensibly priced; and (3) it offers an upgrade path to highest fidelity. By simply replacing the stylus, an Ortofon OMB 10 owner can upgrade its performance to the highly rated Ortofon OM20, OM30 or OM40 cartridge.

There is a discontinued Super OM cartridge version. The current 2M is a further extension of it. Both illuminate the high frequencies to make it sound livelier — hotter. We prefer the original OM as it delivers an organic, natural, faithful, and honest sound of the recorded material.

Super Upgradeable
All OM models have the same body, construction, and magnetic circuitry. The only difference is the interchangeable stylus unit. Thus, when your level of musical sophistication improves, you can simply switch the existing stylus to the Ortofon Stylus 20, 30 or for pinnacle performance the Ortofon Stylus 40. The Ortofon Stylus 40 offers pinnacle performance for the most demanding listener.

Ortofon OMB 10/ OM 10  Phono Cartridge Specifications
- Output voltage @ 1kHz: 4mV
- Channel balance @ 1kHz: 2.0dB
- Channel separation: 22dB @ 1kHz; 15dB @ 15kHz
- Frequency range: 20Hz-22kHz
- Frequency response: 20Hz-20kHz +3/-1dB
- FIM distortion @ recommended tracking force, DIN 45.542: <1%
- Tracking ability @ 315Hz @ recommended tracking force: 70 µm
- Compliance dynamic lateral: 25 µm/mN
- Stylus type: Elliptical
- Stylus tip radius: r/R 8/18 µm
- Stylus tip mass: 0.5 mg
- Tracking force: 1.25 - 1.75 g (12.5 - 17.5 mN)
- Recommended tracking force: 1.5 g (15 mN)
- Tracking angle: 20°
- Internal impedance DC resistance: 750 ohms
- Internal inductance: 450 mH
- Recommended load resistance: 47k ohms
- Recommended load capacitance: 200 - 500 pF
- Color: Black
- Weight: 5 g

Stylus Replacements
- Standard stylus: Ortofon Stylus 10
- Upgrade stylus: Ortofon Stylus 20

The Ortofon Stylus 10 needle stylus is the standard for the Ortofon OM-10 OM10 phono cartridge and its older siblings. The stylus features a 0.3 x 0.7 mil diamond tip.

Ortofon Stylus 10 Specifications
- Frequency range: 20-24kHz
- Frequency response: 20-20kHz +3/-1dB
- FIM distortion at recommended tracking force, DIN 45.542: < 1%
- Tracking ability @ 315Hz @ recommended tracking force: 70m
- Compliance, dynamic, lateral: 25m/mN
- Stylus type: Elliptical
- Stylus tip radius: 0.3 x 0.7 mil
- Tracking force range: 1.25-1.75g (12.5-17.5mN)
- Tracking force, recommended: 1.5g (15mN)
- Color: Black

How to Upgrade Sound Quality
You can easily upgrade to a higher level of performance by replacing the Ortofon Stylus 10 with a Stylus 20, 30 or 40.

ORTOFON STYLUS 14 NEEDLE STYLUS

Out of stock. Please see the 100% compatible Ortofon Stylus 10 Replacement Needle ($74.99).

The Ortofon Stylus 14 needle stylus is the standard replacement stylus for the Ortofon TM-14 TM 14 TM14 and TM-14U TM 14U TM14U phono cartridges and their siblings.

If you seek further discernment and improved sound quality, you can easily upgrade to a higher level of performance by simply replacing the Ortofon Stylus 14 stylus with an Ortofon Stylus 20, 30, or 40 stylus.

The Ortofon Stylus 20 is the standard stylus for the Ortofon OM-20 OM20 OMP20 phono cartridge and its older siblings.

Ortofon Stylus 20 Specifications
- Frequency range: 20-27kHz
- Frequency response: 20-20kHz +/-2dB
- FIM distortion at recommended tracking force, DIN 45.542: < 1%
- Tracking ability @ 315Hz @ recommended tracking force: 80m
- Compliance, dynamic, lateral: 25m/mN
- Stylus type: Nude elliptical
- Stylus tip radius: 0.3 x 0.7 mil
- Tracking force range: 1.25-1.75g (12.5-17.5mN)
- Tracking force, recommended: 1.5g (15mN)
- Color: Black

How to Upgrade Sound Quality
You can easily upgrade to a higher level of performance by simply replacing the Ortofon Stylus 20 stylus with a Stylus 30 or Stylus 40.

For upgrades and accessories that enhance sound quality and fidelity, refer to Related Products.

The Ortofon Stylus 30 is the standard stylus the Ortofon OM-30 OM30 cartridge and its older siblings.

Ortofon Stylus 30 Specifications
- Frequency range: 20-29kHz
- Frequency response: 20-20kHz +/-2dB
- FIM distortion at recommended tracking force, DIN 45.542: < 1%
- Tracking ability @ 315Hz @ recommended tracking force: 90m
- Compliance, dynamic, lateral: 25m/mN
- Stylus type: Nude fine line
- Stylus tip radius: 0.31 x 1.57 mil
- Tracking force range: 1.25-1.75g (12.5-17.5mN)
- Tracking force, recommended: 1.5g (15mN)
- Color: Black

How to Upgrade Sound Quality
- Upgrade stylus: Stylus 40
