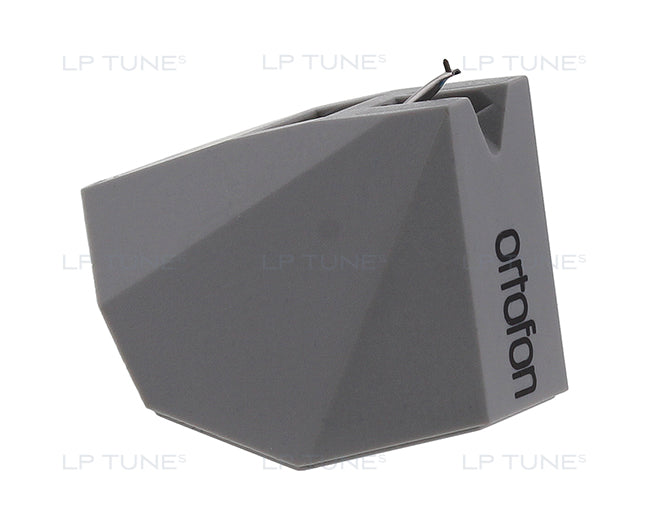

Ortofon 2M 78 Stylus

The Ortofon 2M 78 Stylus is designed specifically for use with 78 RPM records.

2M 78 Stylus Details
- Output Voltage (at 1kHz, 5cm/sec): 4mV
- Frequency range at -3 dB: 20-22,000 Hz
- Frequency response: 20-20,000 Hz + 3 / - 1 dB
- Tracking ability at 315Hz: 70 µm
- Compliance, dynamic, lateral: 18 µm/mN - Stylus type: Spherical, R 65 µm (.0025 inch)
- Tracking force range: 1.6 - 2.0 g (16-20 mN)
- Tracking force, recommended: 1.8 g (18 mN)
- Tracking angle: 20°
- Stylus color: Grey

Do not order this stylus if it looks different than the stylus that you have.

If you are unsure if this is the correct stylus please contact us here

For upgrades and enhancements to sound quality and fidelity please refer to the Related Products below.

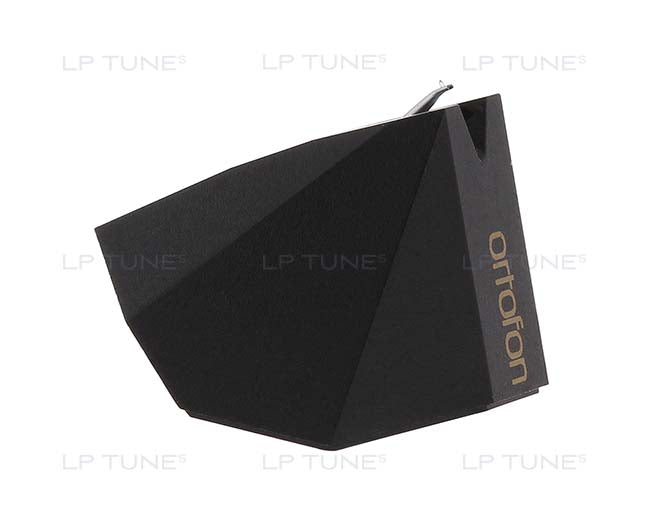

Ortofon 2M Black Stylus

The Ortofon 2M Black Stylus is equipped with a nude Shibata diamond tip for superior tracing and tracking of the record grooves with reduced distortion and record wear.

Ortofon 2M Black Specifications
- Output voltage @ 1kHz,5cm/sec.: 5mV
- Frequency response: 20Hz-20kHz +2/-0dB
- Stylus type: Nude Shibata
- Stylus tip radius: .0002 x .002 inch
- Tracking force range: 1.4 - 1.7 g
- Tracking force recommended: 1.5 g

Do not order this stylus if it looks different than the stylus that you have.

If you are unsure if this is the correct stylus please contact us here

For upgrades and enhancements to sound quality and fidelity please refer to the Related Products below.

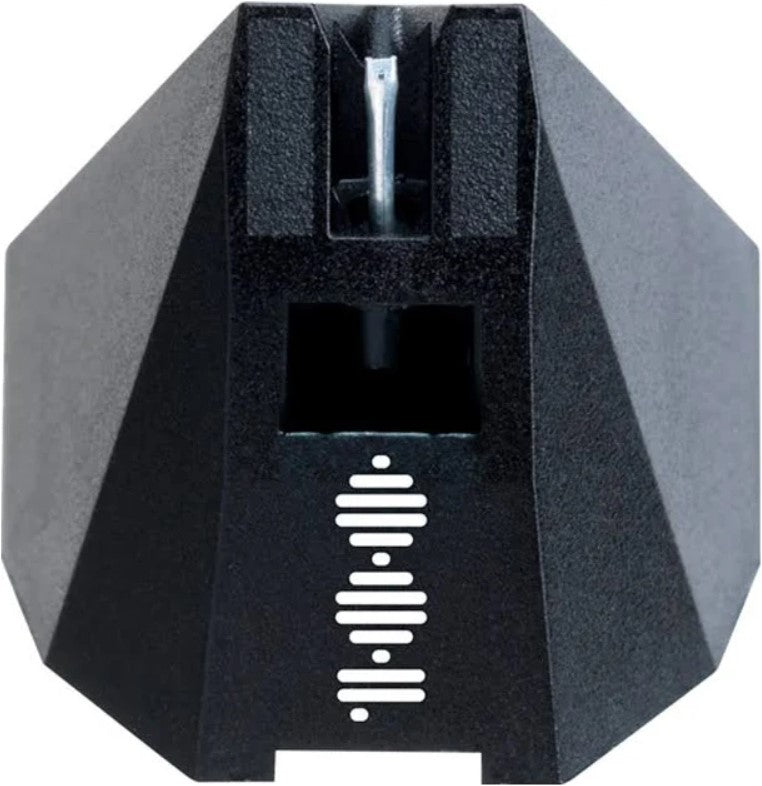

2M BLACK STYLUS 100 / STYLUS 2M BLACK 100

The Stylus 2M Black 100 is a special edition production run of the Stylus 2M Black, and features Ortofon's 100th Anniversary logo. Featuring the same technical specifications as the original 2M Black, the model has been released to promote stylus upgrades for existing Ortofon customers throughout the company’s centenary year.

With thousands of 2M cartridges sold and many more supplied as standard on high-quality turntables from a multitude of manufacturers the world-over, an upgrade to the Stylus 2M Black has the potential to lift the musical experience of tens of thousands customers around the world, and the Stylus 2M Black 100 aims to achieve that in the most cost-effective way possible.

Though it boasts all the same features as the standard 2M Black, including the Nude Shibata diamond, proprietary suspension system and broad frequency range, the Stylus 2M Black 100 is available for a special price.

There has never been a better time to upgrade your vinyl listening experience with the Stylus 2M Black 100.

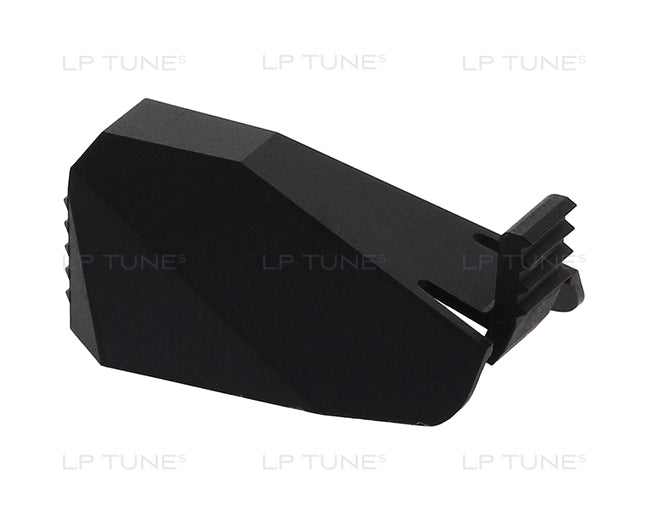

If you have lost or broken your stylus guard, we're selling replacements!

Compatible with all Ortofon 2M Series cartridges & styli.

Have a question? Contact us here!

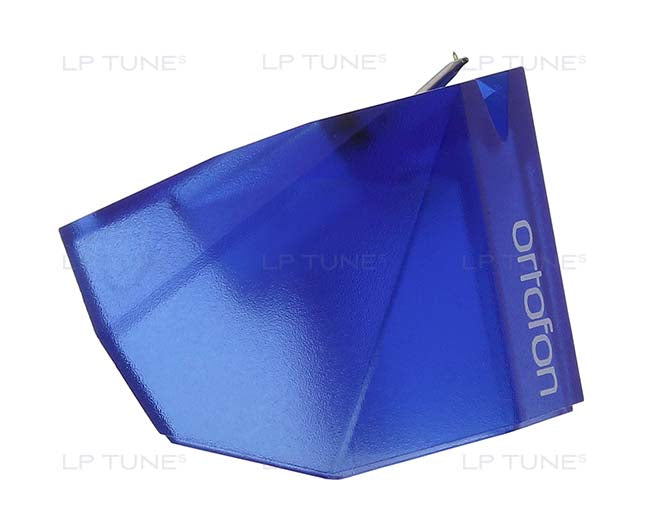

ORTOFON 2M BLUE STYLUS

The Ortofon 2M Blue Stylus is equipped with a nude elliptical diamond tip for advanced tracing and tracking of the record grooves.

Ortofon 2M Blue Specifications
- Output voltage @ 1kHz,5cm/sec.: 5.5mV
- Frequency response: 20Hz-20kHz +2/-1dB
- Stylus type: Nude elliptical
- Stylus tip radius: .0003 x .0007 inch
- Tracking force range: 1.6 - 2.0 g
- Tracking force recommended: 1.8 g

Do not order this stylus if it looks different than the stylus that you have.

If you are unsure if this is the correct stylus please contact us here

For upgrades and enhancements to sound quality and fidelity please refer to the Related Products below.

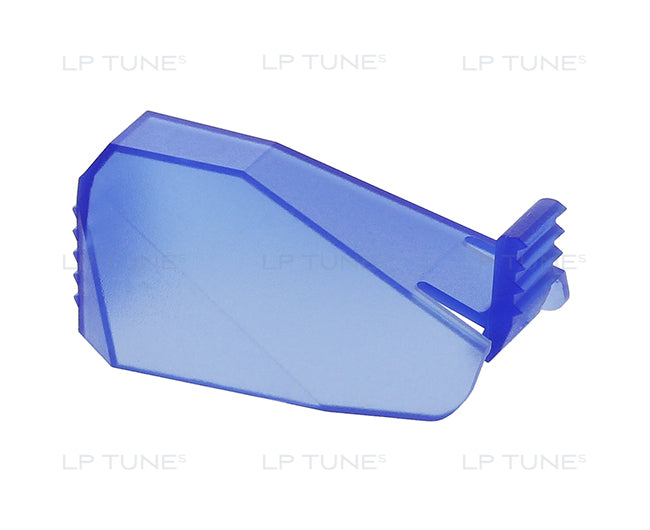

If you have lost or broken your stylus guard, we're selling replacements!

Compatible with all Ortofon 2M Series cartridges & styli.

Have a question? Contact us here!

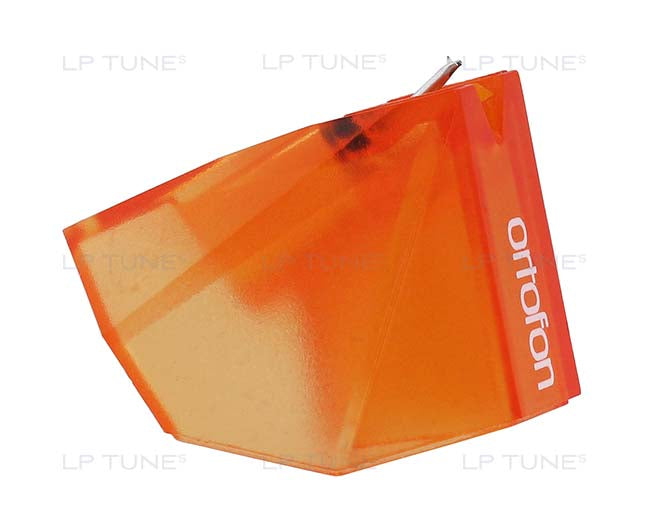

Ortofon 2M Bronze Stylus

The Ortofon 2M Bronze Stylus is equipped with a nude fine line diamond tip for advanced tracing and tracking of the record grooves with reduced distortion and record wear.

Ortofon 2M Bronze Specifications
- Output voltage @ 1kHz,5cm/sec.: 5mV
- Frequency response: 20Hz-20kHz +2/-0dB
- Stylus type: Nude fine line
- Stylus tip radius: .0003 x .0002 inch
- Tracking force range: 1.4 - 1.7 g
- Tracking force recommended: 1.5 g
- Upgrade stylus replacement: 2M Black stylus

Do not order this stylus if it looks different than the stylus that you have.

If you are unsure if this is the correct stylus please contact us here

For upgrades and enhancements to sound quality and fidelity please refer to the Related Products below.

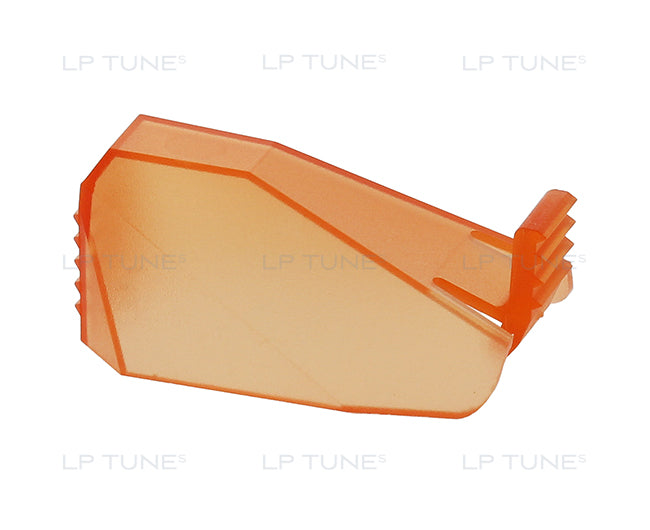

If you have lost or broken your stylus guard, we're selling replacements!

Compatible with all Ortofon 2M Series cartridges & styli.

Have a question? Contact us here!

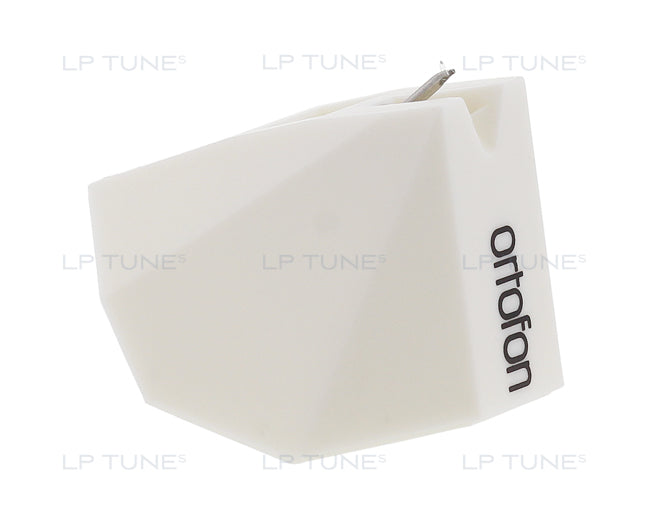

Ortofon 2M Mono Stylus

The Ortofon 2M Mono Stylus is equipped with a nude conical diamond tip for tracing and tracking of mono microgroove vinyl records.

2M Mono Stylus Details
- Output Voltage (at 1kHz, 5cm/sec): 4mV
- Channel balance at 1 kHz: Not applicable
- Channel separation at 1 kHz: Not applicable
- Channel separation at 15 kHz: Not applicable
- Frequency range at -3 dB: 20-22,000 Hz
- Frequency response: 20-20,000 Hz + 3 / - 1 dB
- Tracking ability at 315Hz: 70 µm
- Compliance, dynamic, lateral: 18 µm
- Stylus type: Spherical, R 18 µm (.0007 inch)
- Tracking force range: 1.6 - 2.0 g (16-20 mN)
- Tracking force, recommended: 1.8 g (18 mN)
- Tracking angle: 20°
- Stylus color: White

Do not order this stylus if it looks different than the stylus that you have.

If you are unsure if this is the correct stylus please contact us here

For upgrades and enhancements to sound quality and fidelity please refer to the Related Products below.

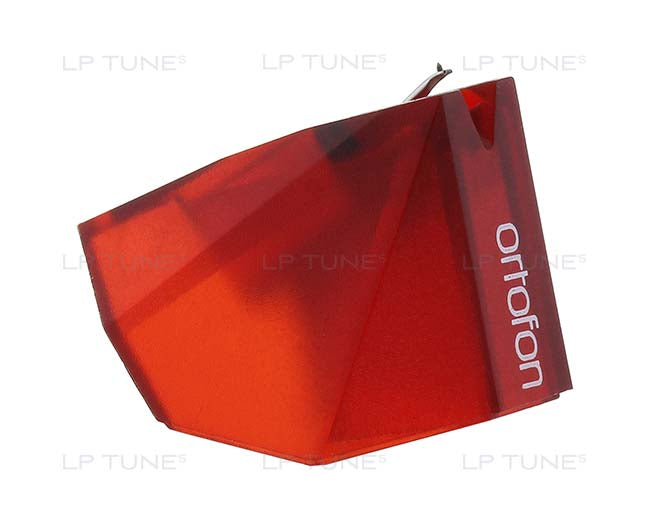

Ortofon 2M Red Stylus

The Ortofon 2M Red Stylus is equipped with a bonded elliptical diamond tip for advanced tracing and tracking of the record grooves.

Ortofon 2M Red Stylus Specifications
- Output voltage @ 1kHz,5cm/sec.: 5.5mV
- Frequency response: 20Hz-20kHz + 3/-1dB
- Stylus type: Elliptical
- Stylus tip radius: .0003 x .0007 inch
- Tracking force range: 1.6-2.0g
- Tracking force, recommended: 1.8g
- Upgrade stylus replacement: 2M Blue stylus

Do not order this stylus if it looks different than the stylus that you have.

If you are unsure if this is the correct stylus please contact us here

For upgrades and enhancements to sound quality and fidelity please refer to the Related Products below.

If you have lost or broken your stylus guard, we're selling replacements!

Compatible with all Ortofon 2M Series cartridges & styli.

Have a question? Contact us here!

ORTOFON 2M SILVER STYLUS

The stylus 2M Silver is an upgrade compared to the Sylus 2M Red due to a special suspension and silver plated copper wire material. The stylus 2M Blue is an upgrade compared to both 2M Blue is an upgrade compared to both 2M Red and 2M Silver thanks to its Nude Elliptical diamond which retrieves information from the groove with a higher accuracy.

"The Ortofon OM3E outperforms the Ortofon 2M Red by a wide margin on my system to which I owe you very many thanks. In addition, the token of quality inspection as per shipping document makes me feeling good."
- TO, customer from Japan

The Ortofon OM3E OM 3E phono cartridge is the least expensive cartridge that Ortofon offers. It uses the same high performance cartridge body as its sibling up the line and it comes with a special elliptical diamond stylus. As in other Ortofon OM series cartridges, it portrays music naturally across the frequency spectrum.

And when its time for you to seek more discernment, you can easily upgrade to a higher level of performance by simply replacing the stylus to a Stylus 5E, 10, 20, 30 and 40. You can enjoy music now and even further later on when you choose to.

Ortofon OM3E Specifications
- Frequency range: 20 - 22,000 Hz
- Output voltage at 1 kHz, 5cm/sec.: 4.0 mV
- Channel balance at 1 kHz: 2.0 dB
- Channel separation at 1 kHz / 15 kHz: 22 / 15 dB
- Tracking ability: 60 m
- Dynamic compliance: 20 m/mN
- Stylus: .0003 x .0007 inch special elliptical diamond
- Equivalent stylus tip mass: 0.5 mg
- Tracking force range: 1.5 - 2.0 g
- Tracking force, recommended: 1.75 g
- Tracking angle: 20
- Internal impedance, DC resistance: 750 Ohm
- Internal inductance: 450 mH
- Recommended load resistance: 47 K
- Recommended load capacitance: 200-600 pF
- Color: Black
- Weight: 5 g
- Stylus replacement: Ortofon Stylus 3E

ORTOFON CONCORDE AND OM STYLUS GUARD

Stylus guard for Ortofon Concorde and OM series cartridges

ORTOFON D-25M / D 25M / D25-M / D25 M / D25M / D 25 M NEEDLE STYLUS

This is a mono stylus. For stereo options, see the recommended upgrades below.

The Ortofon D-25M / D 25M / D25-M / D25 M / D25M / D 25 M stylus is the standard mono micro-groove replacement stylus for all Ortofon Super OM, OM, OMB, OMP, TM, and Concorde phono cartridges.

● Ortofon stylus specified for OM D25M cartridge
● Restores cartridge to its original factory specifications
● Special conical diamond tip for good fidelity
● 0.000984 inch (R 25 µm) radius for tracing accuracy
● Genuine, 100% authentic Ortofon stylus
