"The Ortofon OM3E outperforms the Ortofon 2M Red by a wide margin on my system to which I owe you very many thanks. In addition, the token of quality inspection as per shipping document makes me feeling good."
- TO, customer from Japan

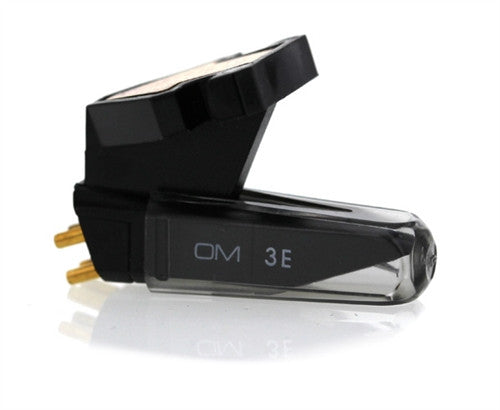

The Ortofon OM3E OM 3E phono cartridge is the least expensive cartridge that Ortofon offers. It uses the same high performance cartridge body as its sibling up the line and it comes with a special elliptical diamond stylus. As in other Ortofon OM series cartridges, it portrays music naturally across the frequency spectrum.

And when its time for you to seek more discernment, you can easily upgrade to a higher level of performance by simply replacing the stylus to a Stylus 5E, 10, 20, 30 and 40. You can enjoy music now and even further later on when you choose to.

Ortofon OM3E Specifications
- Frequency range: 20 - 22,000 Hz
- Output voltage at 1 kHz, 5cm/sec.: 4.0 mV
- Channel balance at 1 kHz: 2.0 dB
- Channel separation at 1 kHz / 15 kHz: 22 / 15 dB
- Tracking ability: 60 m
- Dynamic compliance: 20 m/mN
- Stylus: .0003 x .0007 inch special elliptical diamond
- Equivalent stylus tip mass: 0.5 mg
- Tracking force range: 1.5 - 2.0 g
- Tracking force, recommended: 1.75 g
- Tracking angle: 20
- Internal impedance, DC resistance: 750 Ohm
- Internal inductance: 450 mH
- Recommended load resistance: 47 K
- Recommended load capacitance: 200-600 pF
- Color: Black
- Weight: 5 g
- Stylus replacement: Ortofon Stylus 3E

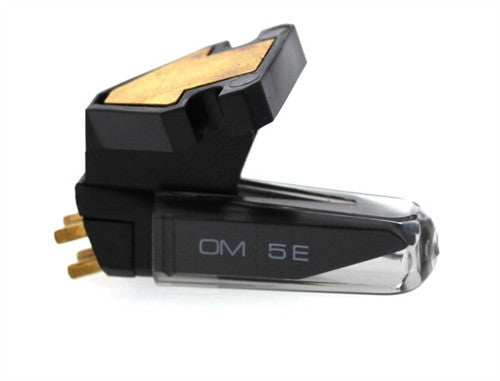

The Ortofon OM5E OM 5E phono cartridge is the least expensive cartridge that Ortofon offers. It uses the same high performance cartridge body as its sibling up the line and it comes with a special elliptical diamond stylus. As in other Ortofon OM series cartridges, it portrays music naturally across the frequency spectrum.

And when its time for you to seek more discernment, you can easily upgrade to a higher level of performance by simply replacing the stylus to a Stylus 10, 20, 30 and 40. You can enjoy music now and even further later on when you choose to.

Ortofon OM5E Specifications
- Frequency range: 20 - 25,000 Hz
- Output voltage at 1 kHz, 5cm/sec.: 4.0 mV
- Channel balance at 1 kHz: 2.0 dB
- Channel separation at 1 kHz / 15 kHz: 22 / 15 dB
- Tracking ability: 60 m
- Dynamic compliance: 20 m/mN
- Stylus: .0003 x .0007 inch special elliptical diamond
- Tracking force range: 1.5 - 2.0 g
- Tracking force, recommended: 1.75 g
- Tracking angle: 20
- Internal impedance, DC resistance: 750 Ω
- Internal inductance: 450 mH
- Recommended load resistance: 47 KΩ
- Recommended load capacitance: 200-600 pF
- Color: Black
- Weight: 5 g
- Stylus replacement: Ortofon Stylus 5E

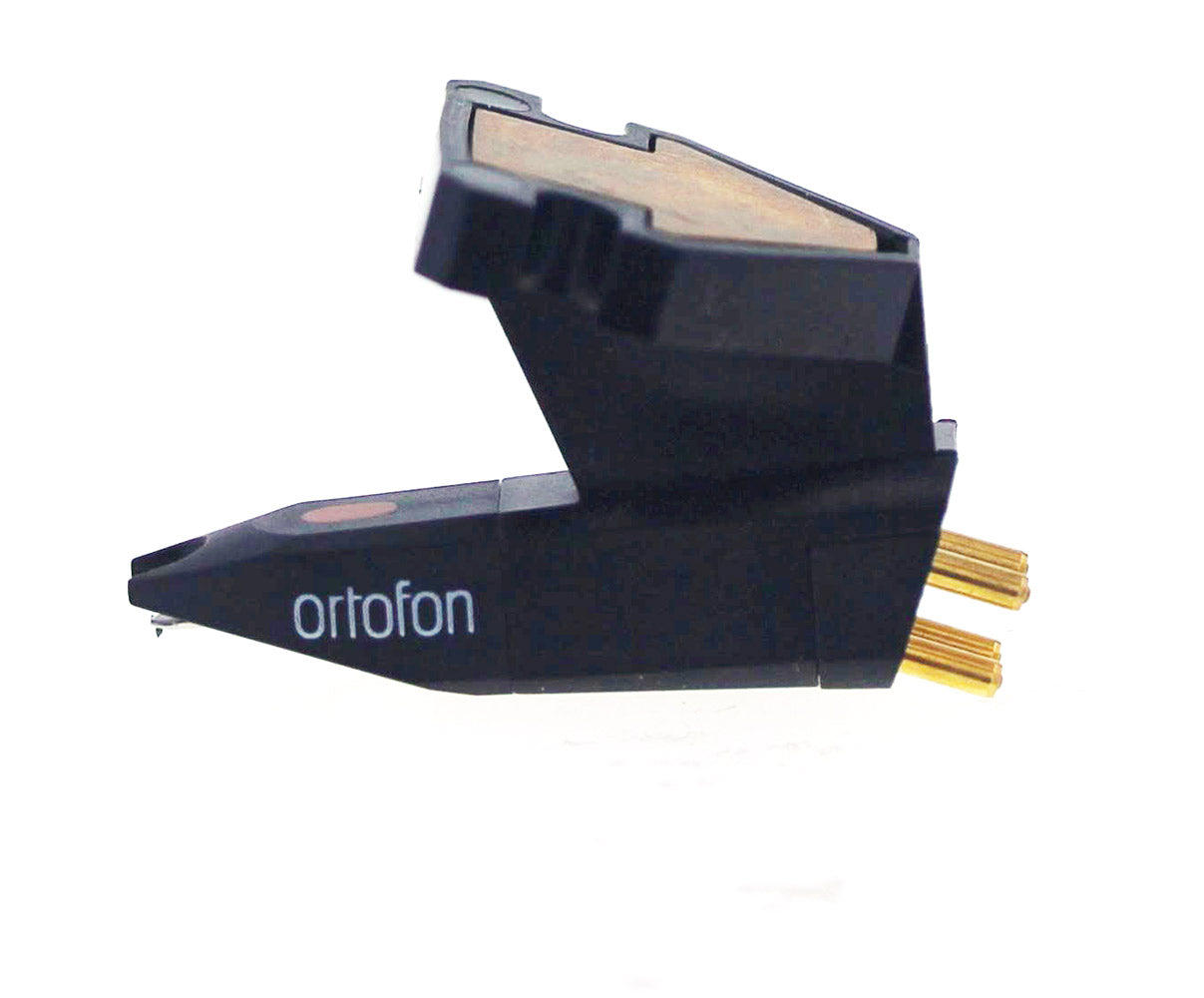

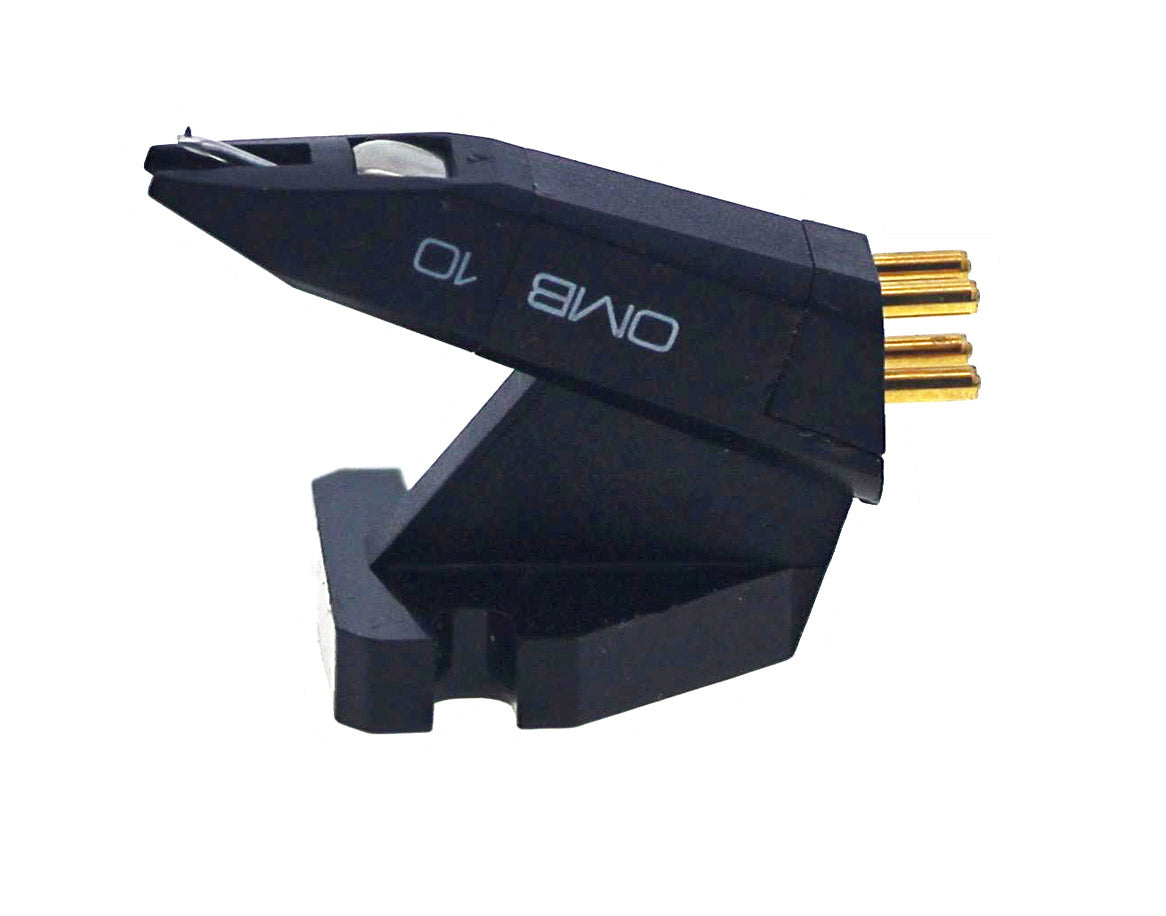

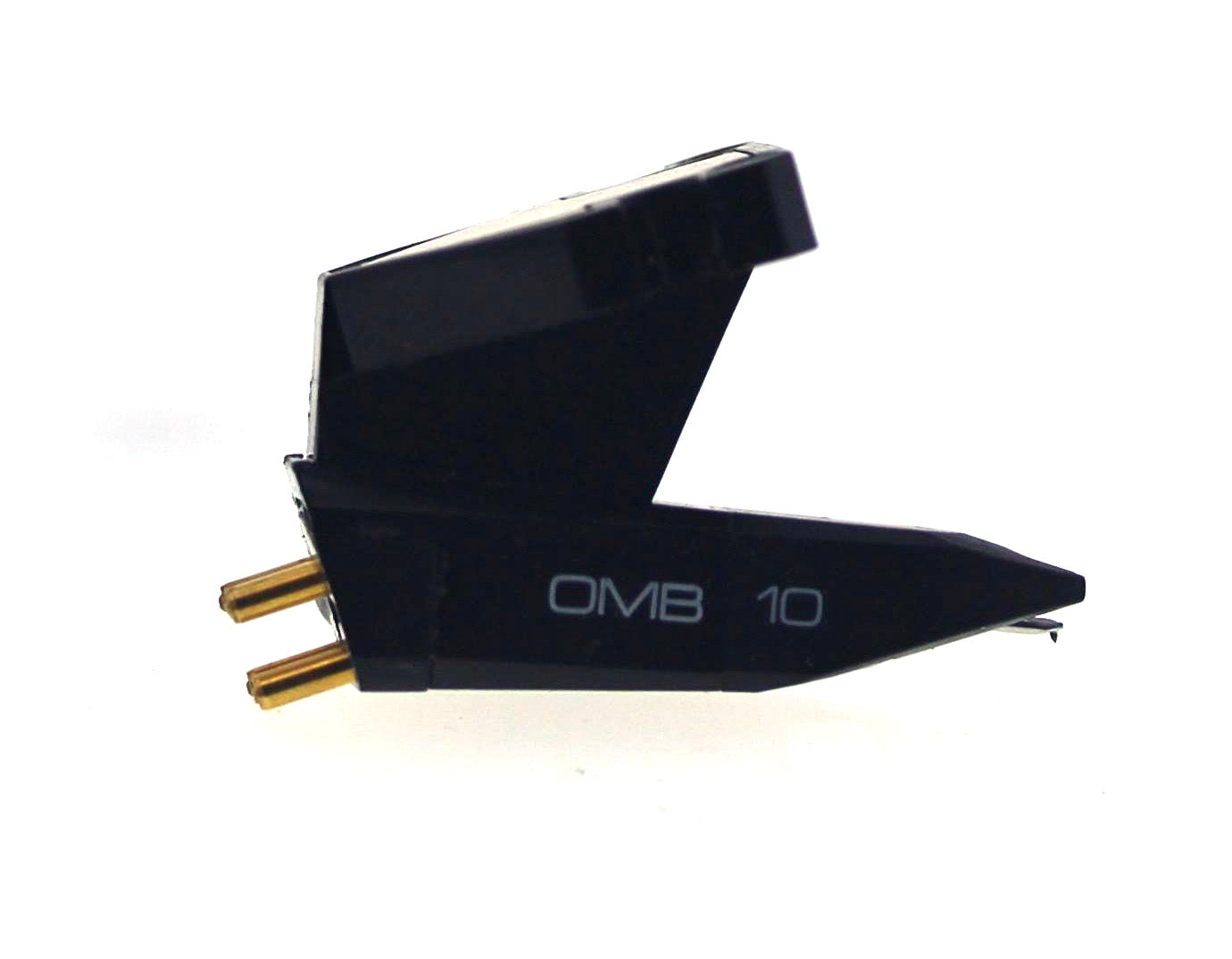

ORTOFON OMB 10 OMB10 CARTRIDGE
- New old stock in plastic case and LP Tunes packaging. Screws, nuts, and stylus guard included.

The Ortofon OMB 10 OMB-10 phono cartridge is the version of the OM 10 cartridge offered to turntable manufacturers for their use as original equipment with their turntables. Their popularity stems from three compelling reasons: (1) it plays music with authenticity, refinement, and artful competence that makes it endearing; (2) it is sensibly priced; and (3) it offers an upgrade path to highest fidelity. By simply replacing the stylus, an Ortofon OMB 10 owner can upgrade its performance to the highly rated Ortofon OM20, OM30 or OM40 cartridge.

There is a discontinued Super OM cartridge version. The current 2M is a further extension of it. Both illuminate the high frequencies to make it sound livelier — hotter. We prefer the original OM as it delivers an organic, natural, faithful, and honest sound of the recorded material.

Super Upgradeable
All OM models have the same body, construction, and magnetic circuitry. The only difference is the interchangeable stylus unit. Thus, when your level of musical sophistication improves, you can simply switch the existing stylus to the Ortofon Stylus 20, 30 or for pinnacle performance the Ortofon Stylus 40. The Ortofon Stylus 40 offers pinnacle performance for the most demanding listener.

Ortofon OMB 10/ OM 10  Phono Cartridge Specifications
- Output voltage @ 1kHz: 4mV
- Channel balance @ 1kHz: 2.0dB
- Channel separation: 22dB @ 1kHz; 15dB @ 15kHz
- Frequency range: 20Hz-22kHz
- Frequency response: 20Hz-20kHz +3/-1dB
- FIM distortion @ recommended tracking force, DIN 45.542: <1%
- Tracking ability @ 315Hz @ recommended tracking force: 70 µm
- Compliance dynamic lateral: 25 µm/mN
- Stylus type: Elliptical
- Stylus tip radius: r/R 8/18 µm
- Stylus tip mass: 0.5 mg
- Tracking force: 1.25 - 1.75 g (12.5 - 17.5 mN)
- Recommended tracking force: 1.5 g (15 mN)
- Tracking angle: 20°
- Internal impedance DC resistance: 750 ohms
- Internal inductance: 450 mH
- Recommended load resistance: 47k ohms
- Recommended load capacitance: 200 - 500 pF
- Color: Black
- Weight: 5 g

Stylus Replacements
- Standard stylus: Ortofon Stylus 10
- Upgrade stylus: Ortofon Stylus 20

The Ortofon Stylus 10 needle stylus is the standard for the Ortofon OM-10 OM10 phono cartridge and its older siblings. The stylus features a 0.3 x 0.7 mil diamond tip.

Ortofon Stylus 10 Specifications
- Frequency range: 20-24kHz
- Frequency response: 20-20kHz +3/-1dB
- FIM distortion at recommended tracking force, DIN 45.542: < 1%
- Tracking ability @ 315Hz @ recommended tracking force: 70m
- Compliance, dynamic, lateral: 25m/mN
- Stylus type: Elliptical
- Stylus tip radius: 0.3 x 0.7 mil
- Tracking force range: 1.25-1.75g (12.5-17.5mN)
- Tracking force, recommended: 1.5g (15mN)
- Color: Black

How to Upgrade Sound Quality
You can easily upgrade to a higher level of performance by replacing the Ortofon Stylus 10 with a Stylus 20, 30 or 40.

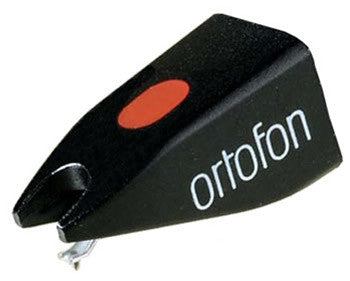

ORTOFON STYLUS 14 NEEDLE STYLUS

Out of stock. Please see the 100% compatible Ortofon Stylus 10 Replacement Needle ($74.99).

The Ortofon Stylus 14 needle stylus is the standard replacement stylus for the Ortofon TM-14 TM 14 TM14 and TM-14U TM 14U TM14U phono cartridges and their siblings.

If you seek further discernment and improved sound quality, you can easily upgrade to a higher level of performance by simply replacing the Ortofon Stylus 14 stylus with an Ortofon Stylus 20, 30, or 40 stylus.

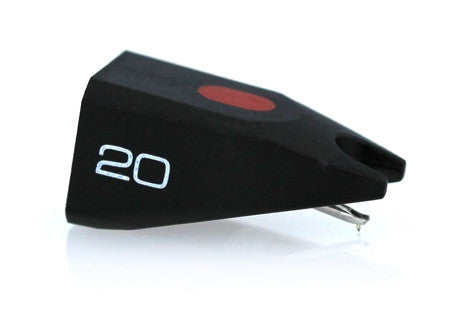

The Ortofon Stylus 20 is the standard stylus for the Ortofon OM-20 OM20 OMP20 phono cartridge and its older siblings.

Ortofon Stylus 20 Specifications
- Frequency range: 20-27kHz
- Frequency response: 20-20kHz +/-2dB
- FIM distortion at recommended tracking force, DIN 45.542: < 1%
- Tracking ability @ 315Hz @ recommended tracking force: 80m
- Compliance, dynamic, lateral: 25m/mN
- Stylus type: Nude elliptical
- Stylus tip radius: 0.3 x 0.7 mil
- Tracking force range: 1.25-1.75g (12.5-17.5mN)
- Tracking force, recommended: 1.5g (15mN)
- Color: Black

How to Upgrade Sound Quality
You can easily upgrade to a higher level of performance by simply replacing the Ortofon Stylus 20 stylus with a Stylus 30 or Stylus 40.

For upgrades and accessories that enhance sound quality and fidelity, refer to Related Products.

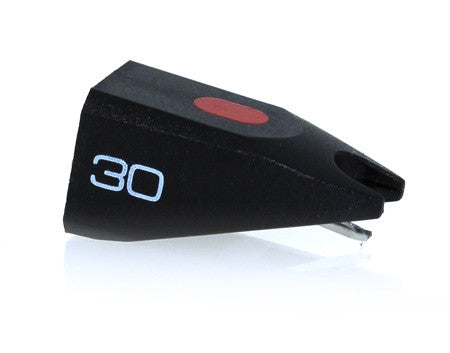

The Ortofon Stylus 30 is the standard stylus the Ortofon OM-30 OM30 cartridge and its older siblings.

Ortofon Stylus 30 Specifications
- Frequency range: 20-29kHz
- Frequency response: 20-20kHz +/-2dB
- FIM distortion at recommended tracking force, DIN 45.542: < 1%
- Tracking ability @ 315Hz @ recommended tracking force: 90m
- Compliance, dynamic, lateral: 25m/mN
- Stylus type: Nude fine line
- Stylus tip radius: 0.31 x 1.57 mil
- Tracking force range: 1.25-1.75g (12.5-17.5mN)
- Tracking force, recommended: 1.5g (15mN)
- Color: Black

How to Upgrade Sound Quality
- Upgrade stylus: Stylus 40

ORTOFON STYLUS 305 NEEDLE STYLUS

The Ortofon Stylus 305 needle stylus is the standard replacement stylus for the Ortofon 305 and 305U phono cartridges and its older siblings.

● Crystal clean sound quality
● Spherical 0.7 mil diamond tip for tracing accuracy
● Genuine, original Ortofon stylus

Upgrade Options
If you seek further discernment and improved sound quality, you can easily upgrade to higher level of performance by simply replacing the Ortofon Stylus 305 Stylus with an Ortofon Stylus 310 or for superior sound quality, the Stylus 320.

For a stylus replacement that offers improved sound quality and performance, refer to the Related Products below.

Ortofon Stylus 305 Specifications
- Frequency range: 20-20kHz
- Frequency response: 20-18kHz +/-2dB
- FIM distortion @ recommended tracking force, DIN 45.542: <1%
- Tracking ability @ 315Hz @ recommended tracking force: 60µm
- Compliance, dynamic, lateral: 20µm/mN
- Stylus type: Spherical
- Stylus tip radius: 0.7 mil
- Tracking force range: 1.25-2.0g
- Tracking force, recommended: 1.5g
- Color: Grey

ORTOFON STYLUS 310 STYLUS REPLACEMENT

The Ortofon Stylus 310 needle stylus is the standard replacement stylus for the Ortofon 310 and 310U phono cartridges and its older siblings.

If you seek further discernment and improved sound quality, you can easily upgrade your Ortofon 305 cartridge to higher level of performance by simply replacing the Ortofon Stylus 305 Stylus with a Ortofon Stylus 310 stylus.

Ortofon Stylus 310 Specifications
-Frequency range: 20-20kHz
-Frequency response: 20-18kHz +/-2dB
-FIM distortion @ recommended tracking force, DIN 45.542: <1%
-Tracking ability @ 315Hz @ recommended tracking force: 60µm
-Compliance, dynamic, lateral: 20µm/mN
-Stylus type: Elliptical
-Stylus tip radius: 0.3 x 0.7 mil
-Tracking force range: 1.25-1.75g
-Tracking force, recommended: 1.5g
-Color: Grey

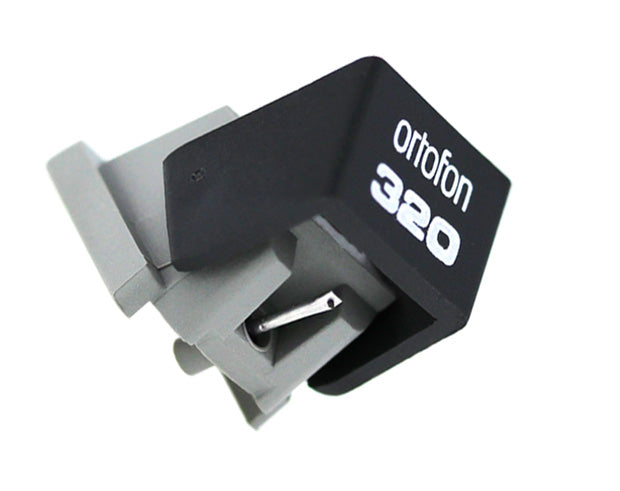

ORTOFON STYLUS 320

Out of stock. Please see the 100% compatible Ortofon 310 Replacement Stylus ($99.99).

The Ortofon Stylus 320 needle stylus is the standard replacement stylus for the Ortofon 320 and 320U phono cartridges and is the best stylus within its series.

● Ortofon Stylus 320 specified for Ortofon 320 cartridge
● Restores cartridge to its original factory specifications
● Fine Line diamond tip for excellent fidelity
● 0.3 x 1.57 mil radius diamond tip for tracing excellent
● Special alloy cantilever for firm and responsive contact with groove
● Genuine, 100% authentic Ortofon stylus

Ortofon Stylus 320 Specifications
- Frequency range: 20-20kHz
- Frequency response: 20-18kHz +/-1.5dB
- FIM distortion @ recommended tracking force, DIN 45.542: <1%
- Tracking ability @ 315Hz @ recommended tracking force: 70µm
- Compliance, dynamic, lateral: 25µm/mN
- Stylus type: Fine line
- Stylus tip radius: 0.3 x 1.57 mil
- Tracking force range: 1.25-1.75g
- Tracking force, recommended: 1.5g
- Color: Grey

ORTOFON STYLUS 3E NEEDLE STYLUS

The Ortofon Stylus 3E needle stylus is the standard replacement stylus for the Ortofon OM3E OM3 E OMP3E phono cartridge and its older siblings.

If you seek further discernment and improved sound quality, you can easily upgrade to a higher level of performance by simply replacing the Ortofon Stylus 3E stylus with an Ortofon Stylus 5E, 10, 20, 30 or 40 stylus.

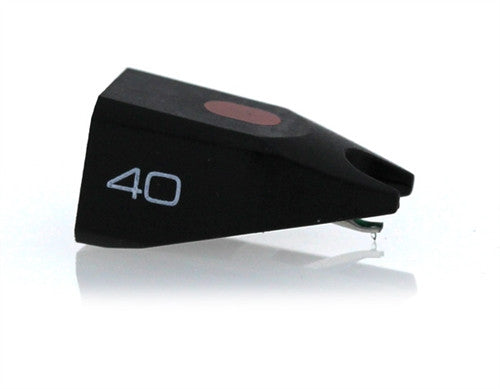

ORTOFON STYLUS 40

The Ortofon Stylus 40 needle stylus is the standard stylus replacement for the Ortofon Super OM-40 OM40 phono cartridge and its older siblings. It is the best stylus within the Ortofon OM series.

Ortofon Stylus 40 Specifications
- Frequency range: 20Hz-30kHz
- Frequency response: 20-20kHz +2/-0dB
- FIM distortion at recommended tracking force, DIN 45.542: < 1%
- Tracking ability @ 315Hz @ recommended tracking force: 90m
- Compliance, dynamic, lateral: 25m/mN
- Stylus type: Nude FG70
- Stylus tip radius: 0.2 x 2.8 mil
- Tracking force range: 1.25-1.75g (12.5-17.5mN)
- Tracking force, recommended: 1.5g (15mN)
- Color: Black

ORTOFON STYLUS 40 FOR ORTOFON OM40 OM 40 CARTRIDGE

The Ortofon Stylus 40 for the Ortofon OM-40 OM40 cartridge features a nude FG 70 diamond for superlative tracing of record grooves. It results in exquisite and accurate rendition of voice, music and harmonics.

For the renowned Shibata stylus replacement, refer to the Related Products below.

ORTOFON STYLUS 40 FOR ORTOFON OM40 OM 40 GOLD CARTRIDGE

The Ortofon Stylus 40 for the Ortofon OM-40 OM40 Gold cartridge features a nude FG 70 diamond for superlative tracing of record grooves. It results in exquisite and accurate rendition of voice, music and harmonics.

For the renowned Shibata stylus replacement, refer to the Related Products below.
