AUDIO-TECHNICA ATN-ML150/OCC ATN ML150/OCC ATNML150/OCC NEEDLE STYLUS

The Audio-Technica ATN-ML150/OCC ATNML150/OCC needle stylus is a genuine Microline stylus precision manufactured in Japan by Audio-Technica specifically for use with the AT-ML150/OCC phono cartridge. However, the Audio-Technica ATN-ML150/OCC needle stylus is no longer in production. We have a few units available to go along with the gorgeous sounding AT-ML150/OCC phono cartridge, which is considered one of the best cartridges Audio-Technica ever made.

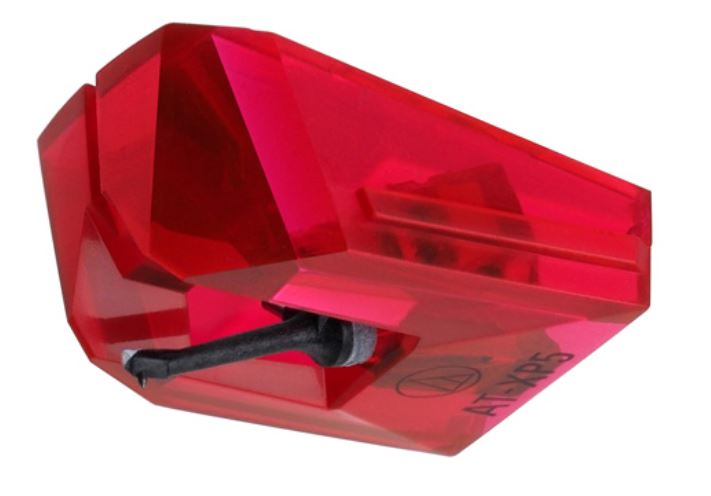

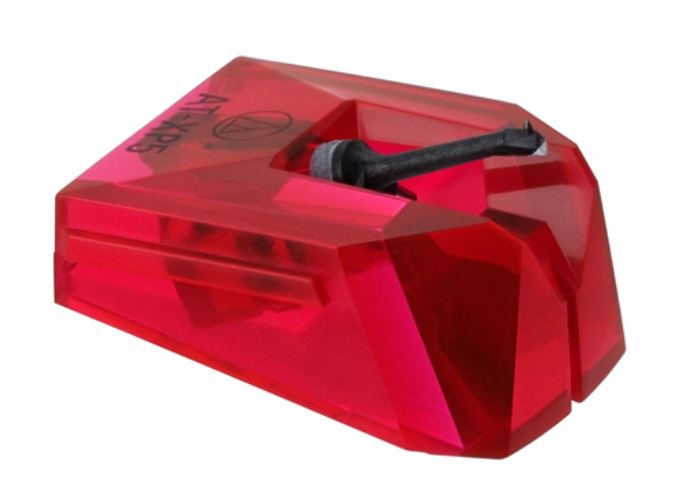

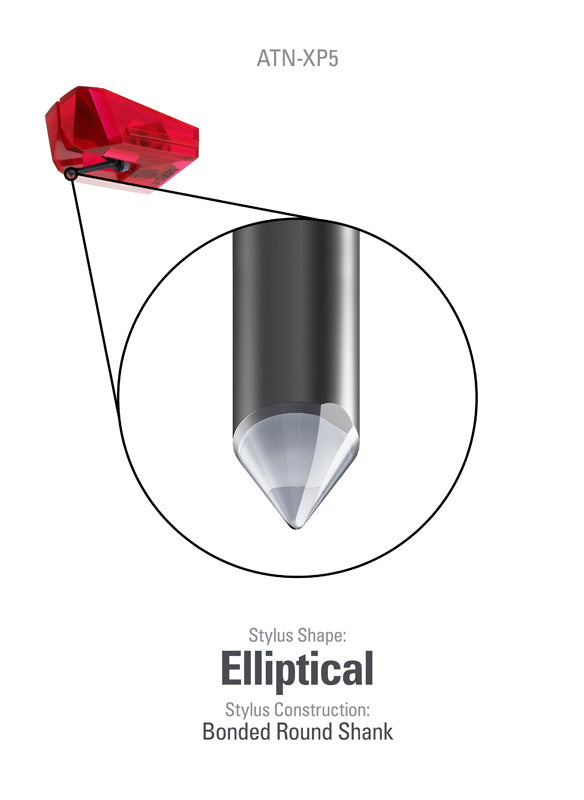

AUDIO-TECHNICA ATN-XP5 STYLUS

The ATN-XP5 stylus brings back the optimal performance of the AT-XP5 cartridge. Its 0.3 x 0.7 mil elliptical stylus bonded to the carbon fiber-reinforced cantilever tracks the record groove with high accuracy for outstanding audio reproduction.

Audio-Technica AT-XP5 DJ Cartridge Specifications
- Frequency response: 20-18,000 Hz
- Channel separation: 20 (dB at 1 kHz)
- Vertical tracking force: 2.0-4.0 g (3.0 g standard)
- Stylus construction: Bonded round shank
- Recommended load impedance: 47 kΩ
- Output: 5.5 mV (1 kHz, 5 cm/sec.)
- Channel balance: 2.0 dB (1 kHz)
- Stylus shape: 0.3 × 0.7 mil elliptical
- Cantilever: Carbon fiber-reinforced ABS
- Mount: Half-inch
- Replacement stylus: ATN-XP5
- Coil impedance: 6.7 kΩ (1 kHz)
- DC resistance: 990 Ω
- Recommended load capacitance: 100 to 200 pF
- Coil inductance: 1.0 H (1 kHz)
- Vertical tracking angle: 20°
- Dimensions: 17.2 mm (0.68") H × 17.8 mm (0.67") W × 28.3 mm (1.20") D
- Weight: 6.2 g (0.22 oz)

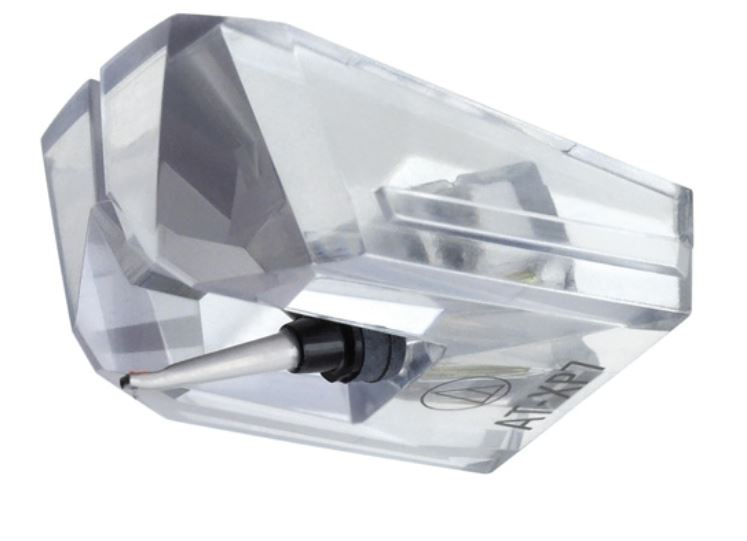

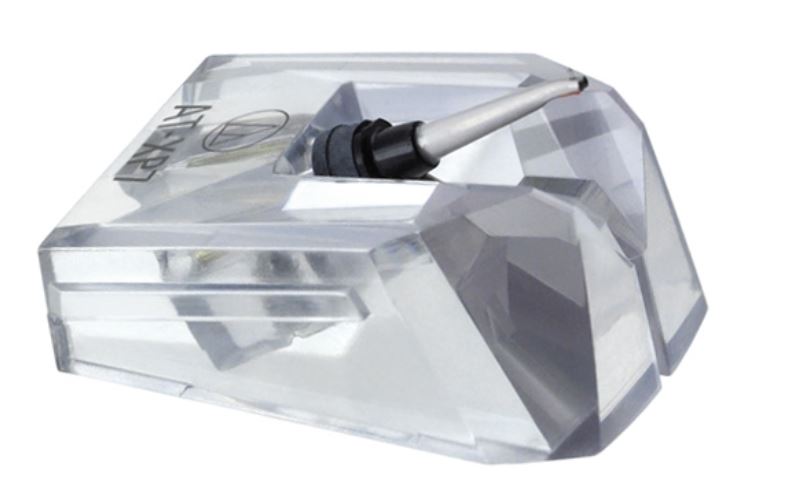

AUDIO-TECHNICA ATN-XP7 STYLUS

The ATN-XP7 stylus brings back the high accuracy for outstanding audio reproduction of the Audio-Technica AT-XP7 cartridge. Always have one as back-up.

Audio-Technica AT-XP5 DJ Cartridge Specifications
- Frequency response: 20-20,000 Hz
- Channel separation: 22 (dB at 1 kHz)
- Vertical tracking force: 2.0-4.0 g (3.0 g standard)
- Stylus construction: Bonded round shank
- Recommended load impedance: 47 kΩ
- Output: 6.0 mV (1 kHz, 5 cm/sec.)
- Channel balance: 2.0 dB (1 kHz)

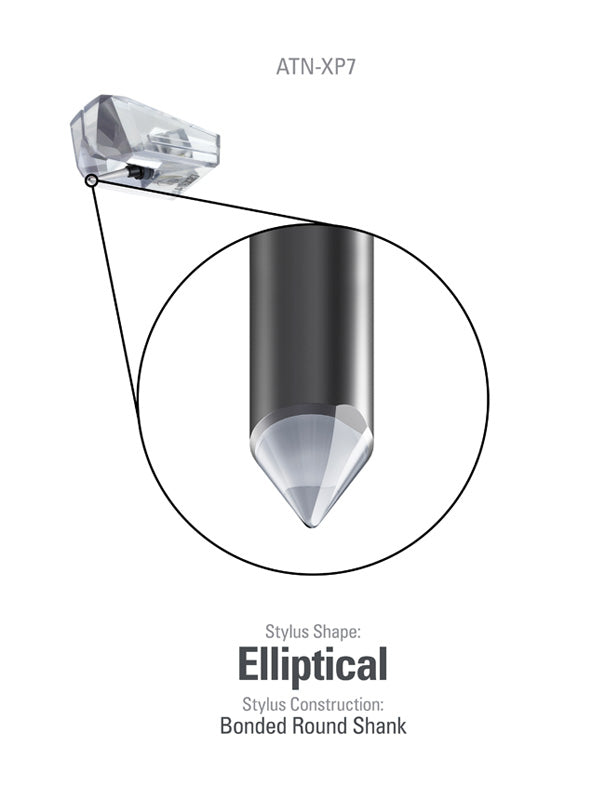

- Stylus shape: 0.3 × 0.7 mil elliptical
- Cantilever: Aluminum tapered pipe
- Mount: Half-inch
- Replacement stylus: ATN-XP7
- Coil impedance: 6.7 kΩ (1 kHz)
- DC resistance: 990 Ω
- Recommended load capacitance: 100 to 200 pF
- Coil inductance: 1.0 H (1 kHz)
- Vertical tracking angle: 20°
- Dimensions: 17.2 mm (0.68") H × 17.8 mm (0.67") W × 28.3 mm (1.20") D
- Weight: 6.2 g (0.22 oz)

AUDIO-TECHNICA ATN10G ATN 10G ATN-10G STYLUS

The Audio-Technica ATN10G stylus is specified for the AT10G cartridge. It comes with a conical diamond tip for long playing life, reduced record and precision tracing of record grooves for accurate reproduction of recorded material.

We, like Art Dudley of Stereophile, like the sound quality of conical tip styli: It offers a raw and simple sound quality. "It emphasizes musical content over air, allowing instruments and voices to sound more substantial, and music to sound, overall, less fussy than with other tip types." It raises the beauty of simplicity above complexity.

Audio-Technica AT-10G Cartridge Specifications
- Type: VM
- Frequency response: 20-20,000 Hz
- Output voltage @ 1kHz,5 cm/sec: 5.0 mV
- Channel separation @ 1kHz: 28 dB
- Channel balance @ 1kHz: within 1.5 dB
- Tracking force: 1.5-2.5 g (2.0 g standard)
- Load resistance: 47 kΩ
- Vertical tracking angle: 20°
- Stylus shape: Conical
- Stylus construction: Bonded
- Replacement stylus: ATN10G (knob color: Tender green)

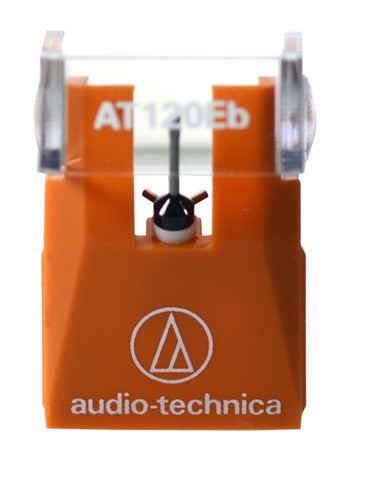

AUDIO-TECHNICA ATN120EB STYLUS FOR AUDIO-TECHNICA AT-140E AT140E CARTRIDGE

The Audio-Technica ATN-120Eb ATN120Eb stylus for the Audio-Technica AT-140E AT140E phono cartridge features high-performance capability, thus making it a very good replacement for the discontinued ATN140E stylus.

For a stylus replacement that offers improved sound quality and performance, refer to the Related Products.

Audio-Technica ATN120E Stylus Specifications
- Frequency response: 15Hz-25kHz
- Output voltage @ 1kHz,5cm/sec.: 5mV
- Channel balance: 1dB
- Channel separation @ 1kHz/10kHz: 29/20dB
- Stylus type: 0.3 x 0.7 mil elliptical
- Cantilever: Thin-wall tube
- Tracking force range: 1.0-1.8g
- Color: Orange

AUDIO-TECHNICA AT-150MLX AT 150MLX AT150MLX NEEDLE STYLUS

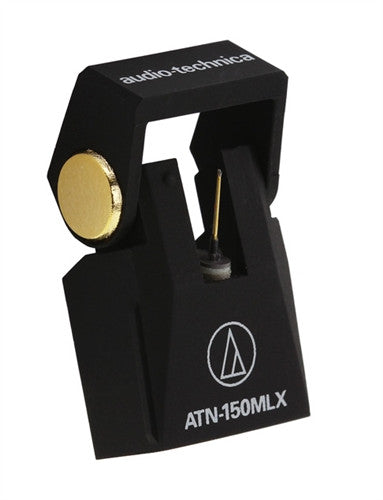

The Audio-Technica ATN-150MLX ATN150MLX needle stylus is the most advanced design for the Audio-Technica AT-150MLX AT150MLX phono cartridge. The stylus features a gold-plated boron cantilever and a MicroLine diamond for exemplary tracing of record grooves and superlative accuracy with less wear and distortion than elliptical or conventional linear contact styli. Its tiny, gold plated boron cantilever provides an extremely rigid yet lightweight platform to which the stylus is mounted. The gold plating also acts to dampen the nano resonance that the boron may produce. The small curving rate of the stylus enables it to track and playback the inner part of the record groove that other styli can hardly maintain. Accordingly, the stylus has a much longer average playing life. The stylus is made in Japan by Audio-Technica.

ATN150MLX STYLUS FOR AUDIO-TECHNICA AT-150ANV AT150ANV CARTRIDGE

● Recommended replacement stylus for AT150ANV cartridge
● Nude 0.12 mil Microline diamond tip for superior fidelity
● Gold-plated boron cantilever for supreme tracing accuracy
● Genuine, unsurpassed, original Audio-Technica stylus

The ATN150ANV stylus is a very limited production stylus that is no longer available. In its lieu, the ATN150MLX stylus is the Audio-Technica recommended replacement stylus for the AT150ANV cartridge.

The ATN150MLX stylus features a gold-plated boron cantilever and a MicroLine diamond for exemplary tracing of record grooves and superlative accuracy with less wear and distortion than elliptical or conventional linear contact styli. Its tiny, gold plated boron cantilever provides an extremely rigid yet lightweight platform to which the stylus is mounted. The gold plating also acts to dampen the nano resonance that the boron may produce. The small curving rate of the stylus enables it to track and playback the inner part of the record groove that other styli can hardly maintain. Accordingly, the stylus has a much longer average playing life.

Audio-Technica ATN150MLX Stylus Specifications
- Frequency response: 10Hz-30kHz
- Output voltage @ 1kHz,5cm/sec.: 4.0mV
- Channel balance: 0.8dB
- Channel separation @ 1kHz/10kHz: 30/20dB
- Stylus construction: Nude square shank
- Stylus type: 0.12 mil nude square MicroLine stylus
- Cantilever: Gold-plated boron
- Tracking force range: 0.75-1.75g

STYLUS FOR AUDIO-TECHNICA AT-150MLX AT150MLX CARTRIDGE

The Audio-Technica ATN-150MLX ATN150MLX needle stylus is the most advanced design for the Audio-Technica AT-150MLX AT150MLX phono cartridge. The stylus features a gold-plated boron cantilever and a MicroLine diamond for exemplary tracing of record grooves and superlative accuracy with less wear and distortion than elliptical or conventional linear contact styli. Its tiny, gold plated boron cantilever provides an extremely rigid yet lightweight platform to which the stylus is mounted. The gold plating also acts to dampen the nano resonance that the boron may produce. The small curving rate of the stylus enables it to track and playback the inner part of the record groove that other styli can hardly maintain. Accordingly, the stylus has a much longer average playing life. The stylus is made in Japan by Audio-Technica.

For the Audio-Technica AT-150MLX AT150MLX phono cartridge complete with a stylus, refer to the Related Products.

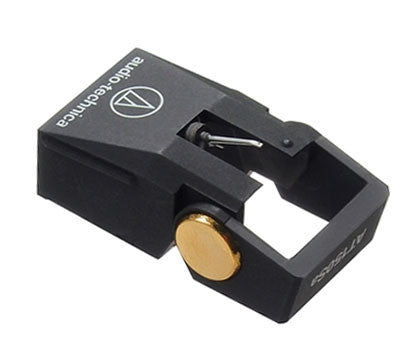

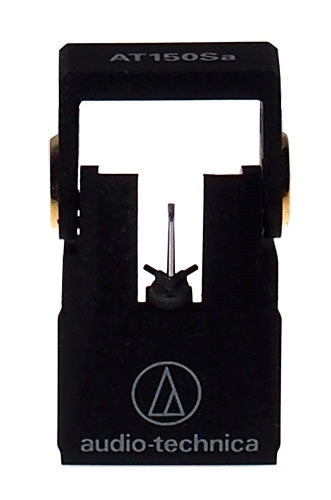

AUDIO-TECHNICA ATN150SA STYLUS
- Genuine, unsurpassed original, 100% authentic stylus by Audio-Technica

The ATN150Sa is the stylus for the Audio-Technica AT150Sa cartridge. It can also be used with its progenitors. The progenitors of the new AT150SA, the AT150MLX and AT150ANV cartridges offer exceptional accuracy and for the AT150ANV - supreme fidelity. Within this constellation, the ATN150SA with its Nude Shibata stylus also convey delicacy. Graced with a Nude Shibata stylus on a tapered pipe aluminum cantilever, the ATN150SA through technical expertise and artisanship lifts from the record grooves sublime music. Music you'll want to keep enjoying.

Audio-Technica ATN150SA specifications
- Type: Moving Magnet VM Dual Magnet Stereo
- Frequency response: 10 ~ 25,000 Hz
- Output voltage: 4.0 mV (1kHz, 5 cm/sec.)
- Channel separation: 30 dB (1kHz)
- Output balance: 1.0 dB (1kHz)
- Tracking force: 1.0 ~ 1.8 g (1.4 g standard)
- Static compliance: 40 10-6 cm/dyne
- Dynamic compliance: 10 10-6 cm/dyne (100Hz)
- Vertical tracking angle: 23
- Stylus: Nude Shibata
- Cantilever: Aluminum, taper pipe

____________________________________

Music listening equipment: Graham Slee Reflex M phono preamp, Graham Slee Elevator EXP headamp, Denon AU-300LC Step-up transformer, Graham Slee Proprius mono amps, Odsssey Kismet Reference Amp, Quicksilver Silver 88 mono amps, Roadrunner Digital Turntable Tachometer, Sota Sapphire turntable, Audience SE Phono Cable, Audience Ohno speaker cables, Rogers LS3/5A speakers, Audience ClairAudient 1+1 Loudspeakers, Krell LAT 2 speakers, Yamaha NS1000M speakers, LP Gear CF3600LE cartridge, Ortofon 2M Red cartridge, Ortofon 2M Blue cartridge, Ortofon 2M Bronze cartridge, Ortofon 2M Black cartridge, Rega Carbon cartridge, Supex SD 901 Super cartridge, Denon DL-103 cartridge, Denon DL-110 cartridge, Grace F-9E cartridge.

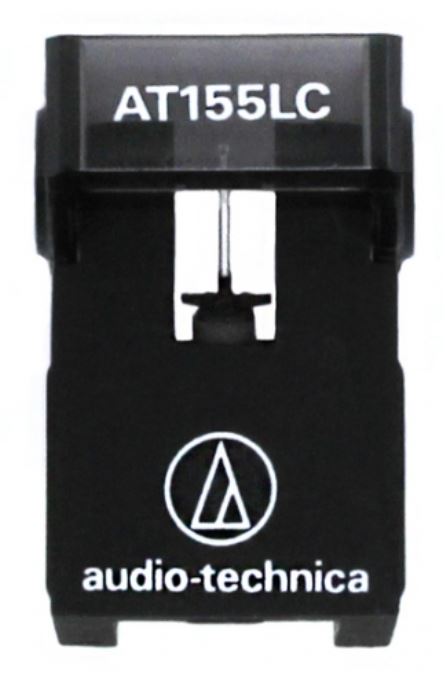

AUDIO-TECHNICA ATN155LC STYLUS

Discontinued, please see the 100% compatible LP Tunes ATN150SS

Genuine Audio-Technica ATN-155LC stylus with beryllium cantilever and Nude Square shank Line Contact diamond tip designed specifically for use with the Audio-Technica AT155LC cartridge.

Upgrade Options
- For upgrade stylus and essentials that enhance sound quality and fidelity, refer to Related Products.

Audio-Technica AT155LC Cartridge Specifications
- Type: Moving Magnet VM Dual Magnet Stereo
- Frequency response: 5 - 35,000 Hz
- Output voltage: 5.0 mV (1kHz, 5 cm/sec.)
- Channel separation (dB at 1 kHz/10 kHz): 32/21
- Channel balance (dB): 0.5 dB
- Vertical Tracking force range, VTF (grams): 0.8 - 1.6
- Tracking ability (microns): 80 - 90
- Coil impedance: 2.3 kΩ (1kHz)
- Load impedance: 47 kΩ
- Load capacitance (pF): 100 - 200
- Stylus: Line Contact (LC)
- Stylus construction: Nude square
- Cantilever: Beryllium
- Vertical tracking angle: 20 °
- Weight (grams): 8.3
- Dimensions: 17.3(H) × 17.0(W) × 29.0(D) mm
- Replacement stylus: ATN155LC

Note: Specifications are subject to change without notice and are provided for reference only.

AUDIO-TECHNICA ATN-15XE ATN15XE NEEDLE STYLUS

Discontinued, please see the 100% compatible LP Tunes ATN15XE

The Audio-Technica ATN-15XE ATN15XE needle stylus for the Audio-Technica AT-15XE AT15XE phono cartridge and other AT-15 AT15 series phono cartridges features a nude elliptical diamond with a .0002 x .0007 inch scanning radii. It offers excellent tracing of record grooves, long playing life and accurate reproduction of voice, music and harmonics.

AUDIO-TECHNICA ATN-20 ATN20 NEEDLE STYLUS

Discontinued, see the 100% compatible LP Tunes Shibata ATN20 Stylus

The Audio-Technica ATN-20 ATN20 needle stylus is no longer available from Audio-Technica, but we have a few units available for those committed to the exquisite sound of the Audio-Technica AT-20SL AT20SL and Audio-Technica AT-20SLA AT20SLA phono cartridges. The stylus featured a nude Shibata diamond mounted on a tapered aluminum alloy cantilever for superior tracking and tracing of record grooves. It offered excellent rendition of voice and music with harmonically complete sound quality. The stylus was made in Japan by Audio-Technica.

Audio-Technica Stylus Specifications
- Generating element: Dual moving magnet
- Frequency response: 5Hz-50kHz
- Output voltage @ 1kHz,5cm/sec: 2.7mV
- Channel separation @ 1kHz/10kHz: 30/25dB
- Channel balance: 0.75dB
- Stylus shape: Shibata
- Stylus construction: Nude
- Cantilever: Tapered
- Tracking force: 0.75-1.75 g

AUDIO-TECHNICA ATN-201EP ATN201EP NEEDLE STYLUS

Discontinued, see the 100% compatible LP Tunes ATN201EP Replacement

The Audio-Technica ATN-201EP ATN201EP needle stylus features a highly polished elliptical diamond with a .0004 x .0007 inch radii for precision tracing of record grooves and very good rendition of voice and music. The color of the stylus varies. The stylus is made in Japan by Audio-Technica.

AUDIO-TECHNICA ATN-211EP ATN211EP NEEDLE STYLUS

Discontinued, see the 100% compatible LP Tunes Elliptical ATN211EP Replacement

The Audio-Technica ATN-211EP ATN211EP needle stylus features a highly polished elliptical diamond with a .0003 x .0007 inch radii for precision tracing of record g grooves and very good rendition of voice and music. The color of the stylus varies. The stylus is made in Japan by Audio-Technica.

Upgrade Options
- For upgrades and accessories that enhance sound quality and fidelity, refer to Related Products.

Audio Technica ATN211EP Stylus Specifications
- Output voltage: 5.0 mV
- Frequency response: 15Hz - 25kHz
- Stylus shape: 0.3 x 0.7 mil BiRadial diamond
- Stylus construction: Bonded
- Cantilever: Thin-wall alloy tube
- Vertical tracking force: 1.0 - 1.5 g

AUDIO-TECHNICA ATN-3401 ATN3401 STYLUS

The Audio-Technica ATN3401 stylus for the Audio-Technica AT-3401 AT3401 phono cartridge features a highly polished conical diamond bonded to a special carbon fiber cantilever for excellent tactile acuity to the grooves, tracing accuracy and very good rendition of voice and music. The ATN3401 stylus may be used to replace Sanyo ST-35D, Yamaha N6700, Panasonic Technics EPS-75ST, Pioneer PN-220, Sharp STY-118, Sony ND-147G, Toshiba N293DY, N71D stylus.

● Original, genuine Audio-Technica ATN3401 stylus
● Made by Japanese shokunin seeking to create perfection with each stylus
● Special conical diamond tip for good fidelity
● .0006 inch radius for tracing accuracy and reduced record wear
● Carbon Fiber cantilever for excellent tactile acuity to grooves
● Genuine, unsurpassed Audio-Technica stylus
