Audio-Technica

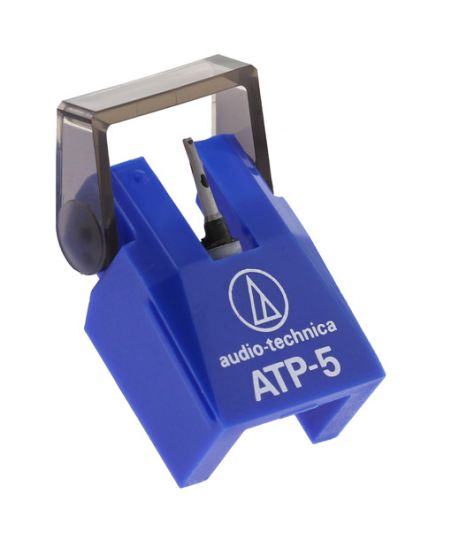

AUDIO-TECHNICA ATP-N5 ATPN5 STYLUS

Audio Technica ATP-N5 Stylus Details
- Frequency response: 15Hz-22kHz
- Output voltage at 5 cm/sec: 6.0 mV
- Channel separation (1 kHz/ 10kHz): 23/17 dB
- Channel balance @ 1kHz: 1.5dB
- Stylus shape: .4 x .7 mil Elliptical diamond
- Stylus construction: Bonded
- Stylus assembly color: Blue
- Cantilever: Thin-wall alloy tube
- Tracking force (grams): 2-4
- Vertical tracking angle: 20 degrees

AUDIO-TECHNICA ATP-N5 STYLUS FOR AUDIO-TECHNICA ATP-5 ATP5 CARTRIDGE

● Genuine Audio-Technica ATP-N5 stylus for ATP-5 cartridge
● Restores cartridge to its original factory specifications
● Elliptical diamond tip for very good fidelity and sound quality
● Diamond tip r/R radii: 10 × 18 µm (.0004 × .0007 inch)
● Special alloy tapered cantilever for firm and sensitive response to grooves

The Audio-Technica ATP-N5 ATPN5 needle stylus for the Audio-Technica ATP-5 ATP5 phono cartridge features a highly polished elliptical diamond with a .0004 x .0007 inch scanning radii. It offers accurate tracing of record grooves, higher fidelity, finer detail, extended frequency extension and harmonically excellent rendition of voice and music. The stylus is made in Japan by Audio-Technica.

Audio Technica ATP-5 Cartridge Details
- Generating element: Dual moving magnet
- Frequency response: 15Hz-22kHz
- Output voltage at 5 cm/sec: 6.0 mV
- Channel balance: 1.5dB
- Channel separation (1 kHz/10 kHz): 21/17 dB
- Stylus shape: .4 × .7 mil Elliptical diamond
- Stylus construction: Bonded
- Stylus assembly color: Blue
- Cantilever: Tapered alloy tube
- Tracking force: 2-4 g
- Vertical tracking angle: 20 degrees
- Recommended loan impedance: 47k ohms
- Cartridge inductance: 630 mH
- DC resistance: 740 ohms
- Terminals: .050 inch diameter
- Cartridge weight: 6.5 g
- Mounting: Half-inch centers

AUDIO-TECHNICA ATP-N5 STYLUS FOR AUDIO-TECHNICA ATP-6 ATP6 CARTRIDGE

● Genuine Audio-Technica ATP-N5 stylus for ATP-6 cartridge
● Elliptical diamond tip for very good fidelity and sound quality
● Diamond tip r/R radii: 10 × 18 µm (.0004 × .0007 inch)
● Special alloy tapered cantilever for firm and sensitive response to grooves

The Audio-Technica ATP-N5 ATPN5 needle stylus for the Audio-Technica ATP-6 ATP 6 ATP6 phono cartridge features a highly polished elliptical diamond with a .0004 x .0007 inch scanning radii. It offers accurate tracing of record grooves, higher fidelity, finer detail, extended frequency extension and harmonically excellent rendition of voice and music. The stylus is made in Japan by Audio-Technica.

Audio Technica ATP-6 Cartridge Details
- Generating element: Dual moving magnet
- Frequency response: 15Hz-25kHz
- Output voltage at 5 cm/sec: 6.0 mV
- Channel balance: 1.5dB
- Channel separation (1 kHz/10 kHz): 23/17 dB
- Stylus shape: .2 × .7 mil Nude Elliptical diamond
- Stylus construction: Bonded
- Stylus assembly color: Bronze
- Cantilever: Tapered alloy tube
- Tracking force: 2-4 g
- Vertical tracking angle: 20 degrees
- Recommended loan impedance: 47k ohms
- Cartridge inductance: 630 mH
- DC resistance: 740 ohms
- Terminals: .050 inch diameter
- Cartridge weight: 6.5 g
- Mounting: Half-inch centers

Note: Details provided for reference only.

AUDIO-TECHNICA ATR60C OMNIDIRECTIONAL COMPUTER AND LAV MICROPHONE - GIVEAWAY

The ATR60C is ideal for all multimedia applications including podcasting and video conferencing. Provided with both a lapel and monitor mount, this hands-free microphone features an omnidirectional pickup pattern with full area coverage on or off axis. Just plug into your computer's standard microphone input. Limited (2) per customer.

Features

• Hands-free mic plugs into your computer's standard microphone input
• Ideal for all multimedia applications - recording, podcasting and video conferencing
• Lapel or monitor mount
• Omnidirectional pickup pattern offers full 360 coverage to simplify microphone placement
• 6' (1.8 m) cable terminated with 3.5 mm mini-plug

Audio-Technica ATR Microphone Specifications

• Element: Condenser
• Color: White
• Body Material: Plastic
• Polar Pattern: Omnidirectional 360 pattern
• Frequency Response: 50-13,000 Hz
• Open Circuit Sensitivity: -48 dB +/- 3 dB, 1 kHz at 1 Pa
• Operating Voltage: 1-10V DC
• Connectivity Technology: Wired
• Cable: Integrated 6.0' (1.8 m) terminated with 3.5 mm stereo mini-plug
• Mounting: Lapel mount, monitor mount
• Manufacturer Warranty: Lifetime Limited Warranty

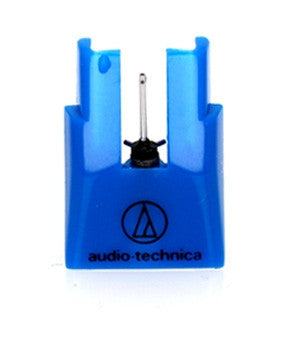

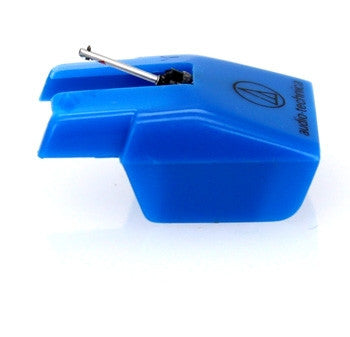

AUDIO-TECHNICA ATS-12 ATS 12 ATS12 STYLUS

Discontinued, see the 100% compatible LP Tunes ATS12 Elliptical Replacement

The Audio-Technica ATS-12 ATS12 needle stylus features a highly polished elliptical diamond with a .0004 x .0007 inch scanning radii. It offers precision tracing of record grooves and results in finer delineation of harmonics, high accuracy and excellent musicality. The stylus is made in Japan by Audio-Technica.

For a stylus replacement that offers improved sound quality and performance, refer to the Related Products.

Audio-Technica ATS12 Stylus Specifications
- Generating element: Dual moving magnet
- Frequency response: 15Hz-26kHz
- Output voltage @ 1kHz,5cm/sec.: 4.2mV
- Channel balance: 1.5dB
- Channel separation @ 1kHz/10kHz: 23/17dB
- Stylus shape: .0004 x .0007 inch elliptical
- Cantilever: Thin wall
- Tracking force range: 1.0-2.0g

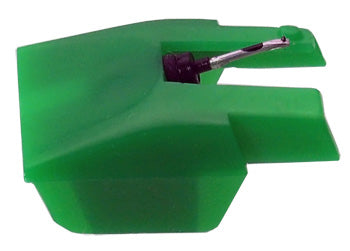

AUDIO-TECHNICA ATS-90E ATS90E NEEDLE STYLUS

The Audio-Technica ATS-90E ATS90E needle stylus features a highly polished elliptical diamond for superb tracking and tracing of record grooves. It results in finer detail and harmonically complete sound quality. The stylus is made in Japan by a world-class manufacturer with a reputation for crafting musically excellent and high-quality replacement styli.

For a stylus replacement that offers improved sound quality and performance, refer to the Related Products below.

Audio-Technica ATS90E Stylus Specifications
- Generating element: Dual moving magnet
- Frequency response: 15-25kHz
- Output voltage @ 1kHz,5cm/sec: 4.8mV
- Channel separation @ 1kHz/10kHz): 21/16dB
- Channel balance: 1.5dB
- Stylus shape: .0004 x .0007 inch elliptical
- Stylus construction: Bonded
- Cantilever: Thin wall
- Tracking force: 1.5-2.5g

AUDIO-TECHNICA ATS-10 ATS 10 ATS10 NEEDLE STYLUS

The Audio-Technica ATS-10 ATS10 needle stylus performs well with its polished 0.7 mil conical diamond tip while providing the user with long playing life and accuracy.

The color of this stylus has changed over the years. Please be sure to compare your stylus with this stylus before ordering. Do not order this stylus if it looks different than the stylus that you have.

If you are unsure if this is the correct stylus please contact us here

For upgrades and enhancements to sound quality and fidelity please refer to the Related Products below.

AUDIO-TECHNICA ATS-11E ATS11E NEEDLE STYLUS
- Genuine, original, 100% authentic stylus by Audio-Technica

Discontinued, see the 100% compatible LP Tunes ATS11E Elliptical Replacement Stylus

The Audio-Technica ATS11E stylus features a highly polished elliptical diamond for superb tracking and tracing of record grooves. It results in finer detail and harmonically complete sound quality. The stylus is made in Japan by a world-class manufacturer with a reputation for crafting musically excellent and high-quality replacement styli.

Stylus Alternatives
- Standard stylus: ATS11E Stylus
- Excellent upgrade stylus: ATS12VL Stylus
- Superior upgrade stylus: ATS12S Stylus

Audio-Technica AT11E cartridge specifications
- Generating element: VM Dual Moving Magnet
- Frequency response: 15 ~ 25,000 Hz
- Output voltage (at 1kHz, 5 cm/sec.): 4.8 mV
- Channel separation (dB 1 khz/10kHz): 26/17
- Channel balance (dB): 1.5 dB
- Stylus tip size (mils): .4 ×.7 Elliptical
- Stylus assembly color: Green
- Tracking force: 1.5 ~ 2.5 g
- Vertical tracking angle: 20 °
- Load impedance (Ω): 47,000
- Cartridge inductance (mH): 1,000
- DC resistance (Ω): 1,200
- Dimensions: 0.63 × 1.14 × 0.79 inch
- Weight: 5.5 g
- Mounting: ½" centers
- Replacement stylus: ATS11E

Note: Specifications provided for reference to the original product only.

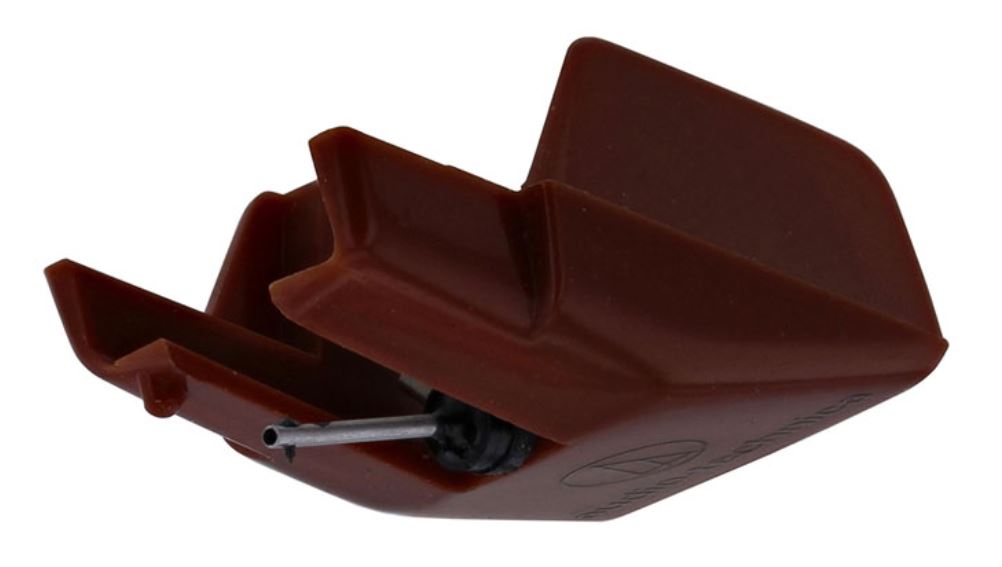

AUDIO-TECHNICA ATS12C STYLUS

The Audio-Technica ATS12C needle stylus features a highly polished conical diamond for long playing life and good rendition of voice and music. The stylus is made in Japan by Audio-Technica. The color of the stylus may vary from photo.

● Designed for Audio-Technica AT10 cartridges and more
● 0.7 mil conical diamond for precision tracing accuracy
● Genuine, 100% original Audio-Technica stylus

AUDIO-TECHNICA ATS-13 STYLUS
- Discontinued, no substitute available. For new cartridge (with stylus included) alternatives see Related Products below. For more cartridge suggestions please contact us.

The Audio-Technica ATS13 stylus for the Audio-Technica AT-13E phono cartridge features a highly polished elliptical diamond with a .0002 x .0007 inch scanning radii. It offers excellent tracing of record grooves, long playing life and accurate reproduction of voice, music and harmonics. The stylus is made in Japan by Audio-Technica.

For a stylus replacement that offers improved sound quality and performance, refer to the Related Products.

AUDIO-TECHNICA ATS-14 ATS 14 ATS14 NEEDLE STYLUS
- Out of stock, discontinued. For alternative stylus replacement, refer to Related Products below.

The Audio-Technica ATS-14 ATS14 needle stylus features a Shibata diamond for superlative tracing of record grooves and reduced distortion and record wear. It results in excellent musical accuracy, naturally sweet tone and complete harmonic integrity. The stylus is made in Japan by Audio-Technica.

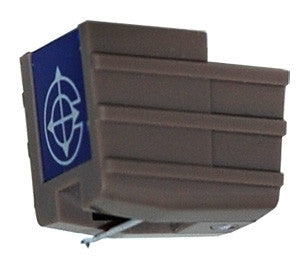

AUDIO-TECHNICA ATXN3 NEEDLE STYLUS

The Audio-Technica ATX-N3 ATXN3 needle stylus features a highly polished elliptical diamond with a .0004 x .0007 inch scanning radii bonded to an alloy cantilever. It offers very accurate tracing of record grooves and excellent reproduction of voice and music. This is a genuine made in Japan original Audio-Technica stylus.

AUDIO-TECHNICA CN-5625AL CN 5625AL CN5625AL PHONO CARTRIDGE

The half-inch standard mount Audio-Technica CN5625AL phono cartridge is a solid performer and a step above the ordinary entry-level cartridge. Manufactured to Audio-Technica's world class quality standards, it renders music smoothly, dynamically and cleanly. You'll discover the joy of listening to LPs.

Audio Technica CN5625AL Phono Cartridge Specifications
- Output voltage: 5.3mV
- Frequency response: 20Hz-20kHz
- Channel balance: 1.5dB
- Channel separation: 24/15 (dB at 1kHz/10kHz)
- Stylus type: Conical
- Stylus construction: Bonded round shank
- Cantilever construction: Alloy tube

AUDIO-TECHNICA IMPROVED REPLACEMENT FOR AUDIO-TECHNICA PRECEPT PCN-110 PCN 110 PCN110 STYLUS

The Audio-Technica improved replacement for the Audio-Technica Precept PCN-110 PCN110 stylus is no longer available. As a substitute, we offer the much more adept and capable Audio-Technica PCN-110E PCN110E stylus which features a highly polished elliptical diamond. It is bonded to an alloy tube cantilever for long playing life, accurate extraction and reproduction of groove recorded material and compelling performance. The stylus is compatible with the Audio-Technica Precept PC-100E, PC-110, PC-110E, PC-220, PC-220XE, PC-330LCU, PC-440, PC-440LC and PC-550ML phono cartridges. The stylus is made in Japan by Audio-Technica.

For a stylus replacement that offers improved sound quality and performance, refer to the Related Products.

AUDIO-TECHNICA IMPROVED REPLACEMENT FOR AUDIO-TECHNICA PRECEPT PCN-220 PCN220 STYLUS

The Audio-Technica improved replacement for the Audio-Technica Precept PCN-220 PCN220 needle stylus is no longer available. As a substitute, we offer the Audio-Technica PCN-220XE PCN220XE needle stylus which features a highly polished nude square shank special elliptical diamond with a .0002 x .0007 inch scanning radii. It is mounted on a tapered alloy tube cantilever for minimum mass and excellent rigidity. The stylus is designed to offer excellent sound quality, long playing life, superb extraction and reproduction of groove embedded material. The stylus is also compatible with the Audio-Technica Precept PC-100, PC-110E, PC-220, PC-330LCU, PC-440, PC-440LC and PC-550ML phono cartridges. The stylus is made in Japan by Audio-Technica.
