Stanton D6800EEE MKIII Stylus - View Details

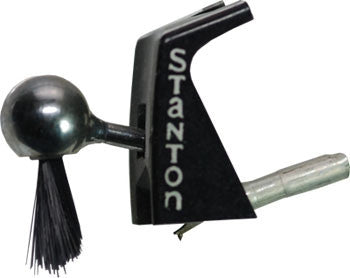

STANTON D6800-EEE MKIII D6800EEE MKIII STYLUS
Out of stock and out of production. We will likely not see this stylus again. Please see below for the recommended replacements. The Stanton D6800-EEE MKIII D6800EEE MKIII needle stylus is designed for the Stanton 681EEE MKIII phono cartridge. The stylus features a highly polished special elliptical diamond with a .0003 x .0007 inch scanning radii. It is mounted on a thin-wall metal alloy tube cantilever for excellent tracing of record grooves and results in very accurate rendition of voice and music.
Stylus Replacements
- Entry Level Replacement: LP Tunes Elliptical Stylus Repalcement for Stanton D6800EE & Others ($97.97)
- Higher Quality Upgrade: LP Tunes ViVid Line Upgrade Stylus for Stanton D6800EEE & Others ($158.00)
- Ultimate Quality Upgrade: LP Tunes Shibata Upgrade Stylus for Stanton D6800EEE & OThers ($178.00)
- 78 RPM: LP Tunes D6827 78 RPM Replacement for Stanton D6800EEE & Others ($49.98)
Stanton D6800EEE MKIII Stylus Specifications
- Frequency response: 10Hz-22kHz
- Output voltage @ 1kHz,5cm/sec.: 0.7mV
- Channel balance @ 1kHz: 2.0dB
- Channel separation @ 1kHz: 35dB
- Stylus type: 0.3 x 0.7 mil special elliptical
- Cantilever: Alloy tube
- Tracking force range: 0.75 - 1.5 g
- Color: Black
Special Notes
(1) The cartridge needs to be aligned and set-up properly using an alignment protractor. Due to its special ability to reveal detail, if the cartridge is improperly aligned, you will hear distortion.
(2) We recommend that you detach the supplied brush. It's easier to align and optimize and it delivers better sound quality.
