stanton

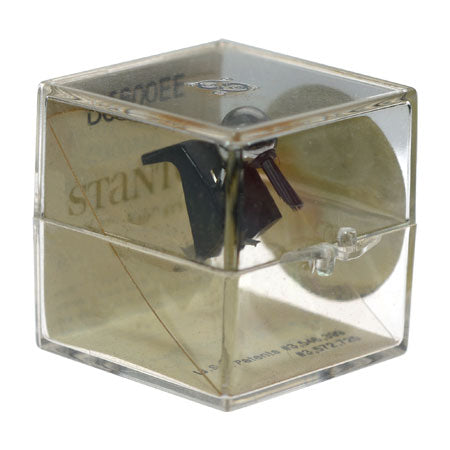

STANTON D6800EE STYLUS
- Genuine, original Stanton stylus for Stanton 681EE cartridge

Out of stock and out of production. We will likely not see this stylus again. Please see below for the recommended replacements.

Stylus Replacements
- Entry Level Replacement: LP Tunes Elliptical Stylus Repalcement for Stanton D6800EE & Others ($97.97)
- Higher Quality Upgrade: LP Tunes ViVid Line Upgrade Stylus for Stanton D6800EEE & Others ($158.00)
- Ultimate Quality Upgrade: LP Tunes Shibata Upgrade Stylus for Stanton D6800EEE & OThers ($178.00)
- 78 RPM: LP Tunes D6827 78 RPM Replacement for Stanton D6800EEE & Others ($49.98)

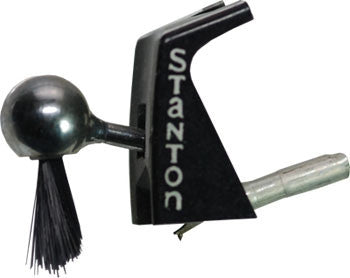

STANTON D6800-EEE MKIII D6800EEE MKIII STYLUS

Out of stock and out of production. We will likely not see this stylus again. Please see below for the recommended replacements. The Stanton D6800-EEE MKIII D6800EEE MKIII needle stylus is designed for the Stanton 681EEE MKIII phono cartridge. The stylus features a highly polished special elliptical diamond with a .0003 x .0007 inch scanning radii. It is mounted on a thin-wall metal alloy tube cantilever for excellent tracing of record grooves and results in very accurate rendition of voice and music.

Stylus Replacements
- Entry Level Replacement: LP Tunes Elliptical Stylus Repalcement for Stanton D6800EE & Others ($97.97)
- Higher Quality Upgrade: LP Tunes ViVid Line Upgrade Stylus for Stanton D6800EEE & Others ($158.00)
- Ultimate Quality Upgrade: LP Tunes Shibata Upgrade Stylus for Stanton D6800EEE & OThers ($178.00)
- 78 RPM: LP Tunes D6827 78 RPM Replacement for Stanton D6800EEE & Others ($49.98)

Stanton D6800EEE MKIII Stylus Specifications
- Frequency response: 10Hz-22kHz
- Output voltage @ 1kHz,5cm/sec.: 0.7mV
- Channel balance @ 1kHz: 2.0dB
- Channel separation @ 1kHz: 35dB
- Stylus type: 0.3 x 0.7 mil special elliptical
- Cantilever: Alloy tube
- Tracking force range: 0.75 - 1.5 g
- Color: Black

Special Notes
(1) The cartridge needs to be aligned and set-up properly using an alignment protractor. Due to its special ability to reveal detail, if the cartridge is improperly aligned, you will hear distortion.

(2) We recommend that you detach the supplied brush. It's easier to align and optimize and it delivers better sound quality.

Genuine Stanton D-6800 HP D6800 HP D6800HP stylus provisioned with a highly polished and precision profiled 0.7 mil spherical diamond for long playing life, reduced record wear and good reproduction of recorded music.

The D6800HP's spherical stylus is superb for scratching given its higher output and a sturdier suspension. In terms of construction, the D6800 HP stylus is known for its durability and design for heavy use.

Stanton D6800HP Stylus Specifications
- Frequency response: 20-20khz
- Output @ 1kHz: 8.0mV
- Channel separation: >30dB
- Channel balance: within 2dB
- Tracking force: 2-5 grams
- Stylus tip: Spherical 0.7 mil high-polish
- DC resistance (approx.): 1300 Ohms
- Inductance (approx.): 930 mH
- Recommended load: 275pF-47k Ohms
- Tracking ability: 90u @ 2 grams

We apologize, but this item is currently unavailable and we're not sure if and when we will receive more.

The Stanton D-6827 D6827 stylus is the 78 RPM stylus used with all Stanton 680 series cartridges. The Stanton 680 series cartridges include: 681EEE, 681EE, 681A, 681SE, 681BPS, 680E, 680.V3, 680EL and 680EE. The stylus features a 2.7 mil diamond designed specifically for the correct tracing of the wide grooves of 78 RPM records. It results in minimal groove wear and accurate rendition of voice and music.

A very common misconception is that you can use an LP stylus for playing 78 RPM records. This is one quick and sure way to damage the 78 RPM record grooves. To maintain the playback fidelity of your 78 record, you really need to use a stylus designed for 78 RPM records, otherwise with just a single playing, you could ruin the fidelity of the record grooves. Moreover, the LP stylus is much narrower than the 78 RPM record groove hence the tip will slide to the bottom of the groove where debris has collected for many decades. This results in extraordinarily high-surface noise.

The Stanton D71-2E needle stylus was discontinued decades ago and is no longer available. As a substitute, we recommend the Pickering DE needle stylus which features a highly polished elliptical diamond for superb tracing of record grooves. It results in finer detail, clarity and harmonically complete sound quality.

STANTON D71EE STYLUS FOR STANTON L720EE CARTRIDGE

Discontinued. See replacements below and in Related Items section.

The made in the USA Stanton D71EE stylus stylus is specified for the Stanton L720EE phono cartridge. The genuine Stanton stylus features features a highly polished and precision profiled .0004 x .0007 inch special elliptical diamond for very accurate tracing and tracking of record grooves, long playing life and high definition reproduction of recorded voice, music and harmonics.

Stylus Alternatives
- Entry Stylus: LP Tunes Conical Stylus Replacement for Stanton D71EE, D71-2E, & Others
- Superior Stylus: NSS/E Nude Elliptical Upgrade Stylus Replacement for Stanton D71EE, D71-2E, & Others
- Premier Stylus: LP Tunes Vivid Line D71VL Upgrade Stylus Replacement for Stanton D71EE, D71-2E, & Others

STANTON DL-2E STYLUS FOR STANTON L725E CARTRIDGE

Discontinued. See Stylus Alternatives below and in Related Items section.

The Stanton D71-2E needle stylus for the Stanton L725E phono cartridge was discontinued decades ago and is no longer available. As a substitute, we recommend the Pickering DL-2E stylus which features a highly polished elliptical diamond for superb tracing of record grooves. It results in finer detail, clarity and harmonically complete sound quality.

Stylus Alternatives
- Entry Stylus: LP Tunes Conical Stylus Replacement for Stanton D71EE, D71-2E, DL-2E, & Others
- Superior Stylus: NSS/E Nude Elliptical Upgrade Stylus Replacement for Stanton D71EE, D71-2E, DL-2E, & Others
- Premier Stylus: LP Tunes Vivid Line D71VL Upgrade Stylus Replacement for Stanton D71EE, D71-2E, DL-2E, & Others

Stanton Gyropoise 8004 turntable belt replacement

Stanton Gyropoise 8005 turntable belt replacement

Stanton headshell for professional turntables complete with headshell wires, screws and screw-on weights (2g and 4g).

Dimensions (inches)
Thickness w/o weight: 0.525
Thickness w/ weight: 0.540
Width at widest point: 0.81 (sans finger lift)
Width at widest point: 1.50 (with finger lift)
Length sans male connectors: 2.50
Length with male connectors): 2.56
Weight with headshell wires: 8 grams

The Stanton D5100-AL-II needle stylus for the Stanton 500AL II phono cartridge features a highly polished spherical diamond for long playing life, reduced record wear and good rendition of voice and music. The stylus is packaged in the original Stanton plastic cube.

Please note that the Stanton D71EE and its Pickering stylus equivalent are upgrade stylus alternatives for higher fidelity and improved sound quality (not for DJing).

Genuine Stanton D-6800 HP D6800 HP D6800HP stylus provisioned for the Stanton 680HP cartridge. The Stanton D6800 HP stylus comes with a highly polished and precision profile spherical diamond for long playing life, reduced record wear and good reproduction of recorded music.

Stanton's 680 HP cartridge has been trusted and sought after by club DJs for many years. It offers high-energy record playback with the extra punch needed to quake the dance floor. The 680HP delivers a loud, full sound - rich in detail, robust bass and silky smooth highs, along with precise stylus tracking and backcueing performance. The 680 HP was recently improved, giving it a spherical stylus which is better for scratching. It was also given a higher output and a sturdier suspension for the stylus. In terms of construction, the D6800 HP stylus is known for its durability and built for heavy use.

Stanton D6800HP Stylus Specifications
- Frequency response: 20-20khz
- Output @ 1kHz: 8.0mV
- Channel separation: >30dB
- Channel balance: within 2dB
- Tracking force: 2-5 grams
- Stylus tip: Spherical 0.7 mil high-polish
- DC resistance (approx.): 1300 Ohms
- Inductance (approx.): 930 mH
- Recommended load: 275pF-47k Ohms
- Tracking ability: 90u @ 2 grams

Upgrade Options
For upgrades and accessories that enhance sound quality and fidelity, refer to Related Products.

Stanton T.50 T 50 T50 turntable belt replacement

The stylus for the Stanton 500 phono cartridge features a highly polished conical diamond for long playing life and accurate replay of voice, music and harmonic detail.

For the original Stanton stylus refer to Related Products. Please note that the Stanton D71EE and its Pickering stylus equivalents are upgrade stylus alternatives for higher fidelity and improved sound quality.

The stylus for the Stanton 500 MKII phono cartridge features a highly polished conical diamond for long playing life and accurate replay of voice, music and harmonic detail. The color of the stylus varies.

For the original Stanton stylus refer to Related Products. Please note that the Stanton D71EE and its Pickering stylus equivalents are upgrade stylus alternatives for higher fidelity and improved sound quality.
