ORTOFON STYLUS 40 FOR ORTOFON OM40 OM 40 SUPER CARTRIDGE

The Ortofon Stylus 40 for the Ortofon OM-40 OM40 Super cartridge features a nude FG 70 diamond for superlative tracing of record grooves. It results in exquisite and accurate rendition of voice, music and harmonics.

For the renowned Shibata stylus replacement, refer to the Related Products below.

ORTOFON STYLUS 510II 510 MKII 510 MK II NEEDLE STYLUS

The Ortofon Stylus 510II 510 MKII 510 MK II Stylus is the standard replacement stylus for the Ortofon 510-II 510 II 510II, Ortofon 510-MKII 510 MKII 510MKII, or Ortofon 510 MK II phono cartridge and is compatible with the Ortofon 510, Ortofon 520, Ortofon 530, and Ortofon 540 phono cartridges.

For a stylus that delivers higher level of discernment and musical performance than that offered by the Ortofon 510 MK II stylus, choose the Ortofon Stylus 520 MK II, the Ortofon Stylus 530 MK II or even better the Ortofon Stylus 540 MK II stylus.

Ortofon Stylus 510 MKII Specifications
- Frequency range: 20Hz-23kHz
- Frequency response: 20Hz-kHz +/-2 dB
- FIM distortion @ recommended tracking force, DIN 45.542:< 1%
- Tracking ability @ 315Hz @ recommended tracking force: 70µm
- Compliance, dynamic, lateral: 25µm/mN
- Stylus type: Elliptical
- Stylus tip radius: 0.3 x 0.7 mil
- Tracking force range: 1.25-1.75g (1.25-1.75mN)
- Tracking force, recommended: 1.5g (15mN)
- Color: Black

ORTOFON STYLUS 520 MKII STYLUS

The Ortofon Stylus 520 MKII stylus is the standard stylus replacement for the Ortofon 520 MKII phono cartridge. It is also compatible with the Ortofon 510, 520, 530 and 540 phono cartridges.

For a stylus that delivers higher level of discernment and musical performance, refer to the Related Products below.

Ortofon Stylus 520 MKII Specifications
- Frequency range: 20Hz-23kHz
- Frequency response: 20Hz-20kHz +/-1.5dB
- FIM distortion @ recommended tracking force, DIN 45.542: <1%
- Tracking ability @ 315Hz @ recommended tracking force: 70µm
- Compliance, dynamic, lateral: 25µm/mN
- Stylus type: Elliptical
- Stylus tip radius: 0.3 x 0.7 mil
- Tracking force range: 1.25-1.75g
- Tracking force, recommended: 1.5g
- Color: Black

ORTOFON STYLUS 530 MKII STYLUS

The Ortofon Stylus 530 MKII stylus is the standard stylus replacement for the Ortofon 530 MKII phono cartridge. It is also compatible with the Ortofon 510, 520, 530 and 540 phono cartridges.

For a stylus that delivers higher level of discernment and musical performance, refer to the Related Products below.

Ortofon Stylus 530 MKII Specifications
- Frequency range: 20Hz-25kHz
- Frequency response: 20Hz-20kHz +/-1.5dB
- FIM distortion @ recommended tracking force, DIN 45.542: <1%
- Tracking ability @ 315Hz @ recommended tracking force: 80µm
- Compliance, dynamic, lateral: 30µm/mN
- Stylus type: Nude fine line
- Stylus tip radius: 0.3 x 1.575 mil
- Tracking force range: 1.25-1.75g
- Tracking force, recommended: 1.5g
- Color: Black

ORTOFON STYLUS 540 MKII STYLUS

The Ortofon Stylus 540 MKII stylus is the standard stylus replacement for the Ortofon 540 MKII, 540, 540 P phono cartridges. Please note, all cartridges within the 500 range have the same stylus-fitting, so they can all fit the Stylus 510, Stylus 520, Stylus 530 and Stylus 540. The Ortofon Alpha, as found on some Pro-Ject turntables, can be replaced by one of the 500 range as well.

Ortofon Stylus 540 MK II Specifications
- Frequency range: 20Hz-27kHz
- Frequency response: 20Hz-20kHz +/-1.5dB
- FIM distortion @ recommended tracking force, DIN 45.542: <1%
- Tracking ability @ 315Hz @ recommended tracking force: 90µm
- Compliance, dynamic, lateral: 30µm/mN
- Stylus type: Nude FG 70
- Stylus tip radius: 0.2 x 2.7 mil
- Tracking force range: 1.25-1.75g
- Tracking force, recommended: 1.5g
- Color: Black

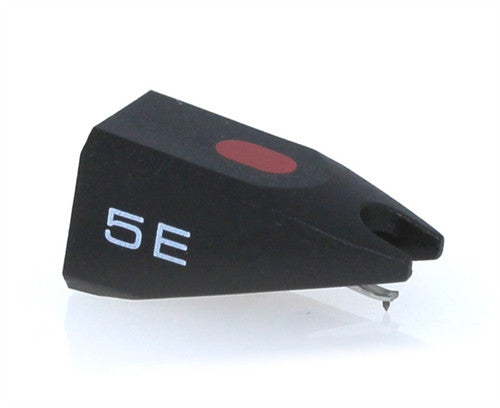

The Ortofon Stylus 5E needle stylus is designed for the Ortofon OM5E OM-5E phono cartridge and its siblings. The stylus features a highly polished elliptical diamond for superb tracking and tracing of record grooves. It results in finer detail and harmonically complete sound quality.

Ortofon Stylus 5E Specifications
- Frequency range: 20Hz-25kHz
- Frequency response: 20Hz-20kHz +2dB
- FIM distortion at recommended tracking force, DIN 45.542: < 1%
- Tracking ability @ 315Hz @ recommended tracking force: 65m
- Compliance, dynamic, lateral: 20m/mN
- Stylus type: Elliptical
- Stylus tip radius: 0.3 x 0.7 mil
- Tracking force range: 1.5-2.0g (15-20mN)
- Tracking force, recommended: 1.75g (17.5mN)
- Color: Black

How to Upgrade Sound Quality
You can easily upgrade to a higher level of performance by replacing the Ortofon Stylus 5E stylus with a Stylus 10, 20, 30 or 40 stylus.

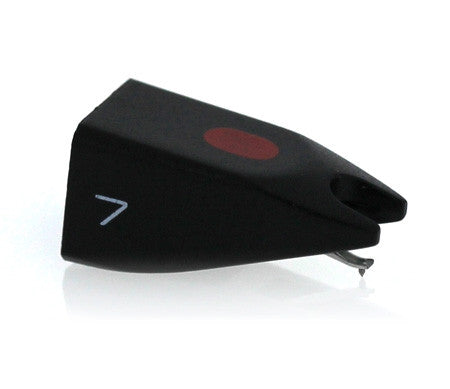

The Ortofon Stylus 7 stylus is designed for the Ortofon TM7 TM7U phono cartridge and its siblings. The stylus features a highly polished elliptical diamond for superb tracking and tracing of record grooves. It results in finer detail and harmonically complete sound quality.

How to Upgrade Sound Quality
You can easily upgrade to a higher level of performance by replacing the Ortofon Stylus 7 with an Ortofon Stylus 10, 20, 30 or 40 stylus.

Ortofon Stylus 7 Specifications
- Frequency range: 20Hz-20kHz
- Tracking ability @ 315Hz @ recommended tracking force: 60m
- Compliance, dynamic, lateral: 25m/mN
- Stylus type: Elliptical
- Stylus tip radius: 0.3 x 0.7 mil
- Tracking force range: 1.0-1.5g (10-15mN)
- Tracking force, recommended: 1.25g (12.5mN)
- Color: Black

The Ortofon Stylus 78 needle stylus is the standard 78 RPM replacement stylus for all Ortofon Super OM, OM, OMB, OMP, TM, Concorde phono cartridges. The stylus features a 2.5 mil diamond designed specifically for the correct tracing of the wide grooves of 78 RPM records. It results in minimal groove wear and accurate rendition of voice and music. The stylus is made in Japan by a world-class manufacturer with a reputation for crafting musically excellent and high-quality replacement styli.

A very common misconception is that you can use an LP stylus for playing 78 RPM records. This is one quick and sure way to damage the 78 RPM record grooves. To maintain the playback fidelity of your 78 record, you really need to use a stylus designed for 78 RPM records, otherwise with just a single playing, you could ruin the fidelity of the record grooves. Moreover, the LP stylus is much narrower than the 78 RPM record groove hence the tip will slide to the bottom of the groove where debris has collected for many decades. This results in extraordinarily high-surface noise.

Ortofon Stylus 78 Specifications
- Frequency range: 20Hz-15kHz
- Frequency response: 20-12k Hz +/-2dB
- FIM distortion @ recommended tracking force, DIN 45.542: <1%
- Tracking ability @ 315Hz @ recommended tracking force: 60µm
- Compliance, dynamic, lateral: 15µm/mN
- Stylus type: Spherical
- Stylus tip radius: 2.5 mil
- Tracking force range: 1.75-2.25g (17.5-22.5mN)
- Tracking force, recommended: 2g (2mN)
- Color: Black

ORTOFON STYLUS F / FF STYLUS | FF 15 X MKII STYLUS
- May be substituted with Ortofon FF15X MKII stylus

The Ortofon FF15X MKII stylus features a spherical diamond for long playing life and very good rendition of voice and music.

Ortofon Stylus FF15X MKII Stylus Specifications
-Frequency range: 20Hz-20kHz
-FIM distortion @ recommended tracking force, DIN 45.542: <1%
-Tracking ability @ 315Hz @ recommended tracking force: 60µm
-Compliance, dynamic, lateral: 10µm/mN
-Stylus type: Spherical
-Stylus tip radius: 0.6 mil
-Tracking force range: 1.5-3.0g (15-30mN)
-Tracking force, recommended: 2.5g (20mN)
-Color: Yellow

ORTOFON STYLUS FOR ALL ORTOFON FF & F, MKI, & MKII CARTRIDGES

Out of stock. Please see the 100% compatible LP Tunes Elliptical Replacement for the Ortofon FF15 XE MKII / NF15 XE MK II Stylus ($47.40).

The Ortofon F/FF or D3E stylus can be used with all Ortofon FF & F, MKI, & MKII phono cartridges.

ORTOFON STYLUS FOR ORTOFON 510 CARTRIDGE

The Ortofon Stylus 510 MKII stylus for the Ortofon 510 phono cartridge features a highly polished elliptical diamond for superb tracking and tracing of record grooves. It results in finer detail and harmonically complete sound quality.

For a stylus that delivers higher level of discernment and musical performance, refer to the Related Products below.

ORTOFON STYLUS FOR ORTOFON 510 MKII CARTRIDGE

The Ortofon Stylus 510 MKII stylus for the Ortofon 510 MKII phono cartridge features a highly polished elliptical diamond for superb tracking and tracing of record grooves. It results in finer detail and harmonically complete sound quality.

For a stylus that delivers higher level of discernment and musical performance, refer to the Related Products below.

ORTOFON STYLUS FOR ORTOFON 510P CARTRIDGE

The Ortofon Stylus 510 MKII stylus for the Ortofon 510P phono cartridge features a highly polished elliptical diamond for superb tracking and tracing of record grooves. It results in finer detail and harmonically complete sound quality.

For a stylus that delivers higher level of discernment and musical performance, refer to the Related Products below.

ORTOFON STYLUS FOR ORTOFON 520 CARTRIDGE

The Ortofon Stylus 520 MKII stylus for the Ortofon 520 phono cartridge features a highly polished elliptical diamond for superb tracking and tracing of record grooves. It results in finer detail and harmonically complete sound quality.

For a stylus that delivers higher level of discernment and musical performance, refer to the Related Products below.

ORTOFON STYLUS FOR ORTOFON 520 MKII CARTRIDGE

The Ortofon Stylus 520 MKII stylus for the Ortofon 520 MKII phono cartridge features a highly polished elliptical diamond for superb tracking and tracing of record grooves. It results in finer detail and harmonically complete sound quality.

For a stylus that delivers higher level of discernment and musical performance, refer to the Related Products below.
