ortofon

ORTOFON STYLUS FOR ORTOFON FF-15EO MKII FF15EO MKII CARTRIDGE

The Ortofon F/FF or D3E stylus is used with the Ortofon FF-15EO MKII FF15EO MKII phono cartridge.

The Ortofon D 3 E stylus for the Ortofon VMS-10E MKII VMS10E MKII phono cartridge features an elliptical diamond for superb tracking and tracing of record grooves. It results in finer detail and harmonically complete sound quality.

ORTOFON STYLUS FOR ORTOFON FF-15 FF15 CARTRIDGE

The Ortofon NF-15D MKII NF15D MKII stylus for the Ortofon F-15 F15 phono cartridge is supplied above. It features a conical diamond tip.

ORTOFON STYLUS FOR ORTOFON FF-15 MKII FF15 MKII CARTRIDGE

The Ortofon F/FF or D3E stylus is used with the Ortofon FF-15 MKII FF15 MKII phono cartridge.

The Ortofon D 3 E stylus for the Ortofon VMS-10E MKII VMS10E MKII phono cartridge features an elliptical diamond for superb tracking and tracing of record grooves. It results in finer detail and harmonically complete sound quality.

ORTOFON STYLUS FOR ORTOFON FF-15D MKII FF15D MKII CARTRIDGE

The Ortofon NF15D MKII stylus for the Ortofon FF-15D MKII FF15D MKII phono cartridge is supplied above.

ORTOFON STYLUS FOR ORTOFON FF-15O FF15O CARTRIDGE

The Ortofon F/FF or D3E stylus is used with the Ortofon FF-15O FF15O phono cartridge.

The Ortofon D 3 E stylus for the Ortofon VMS-10E MKII VMS10E MKII phono cartridge features an elliptical diamond for superb tracking and tracing of record grooves. It results in finer detail and harmonically complete sound quality.

ORTOFON STYLUS FOR ORTOFON FF-15S FF15S CARTRIDGE

The Ortofon NF-15D MKII NF15D MKII stylus for the Ortofon FF-15S FF15S phono cartridge is supplied above. It features a conical diamond tip.

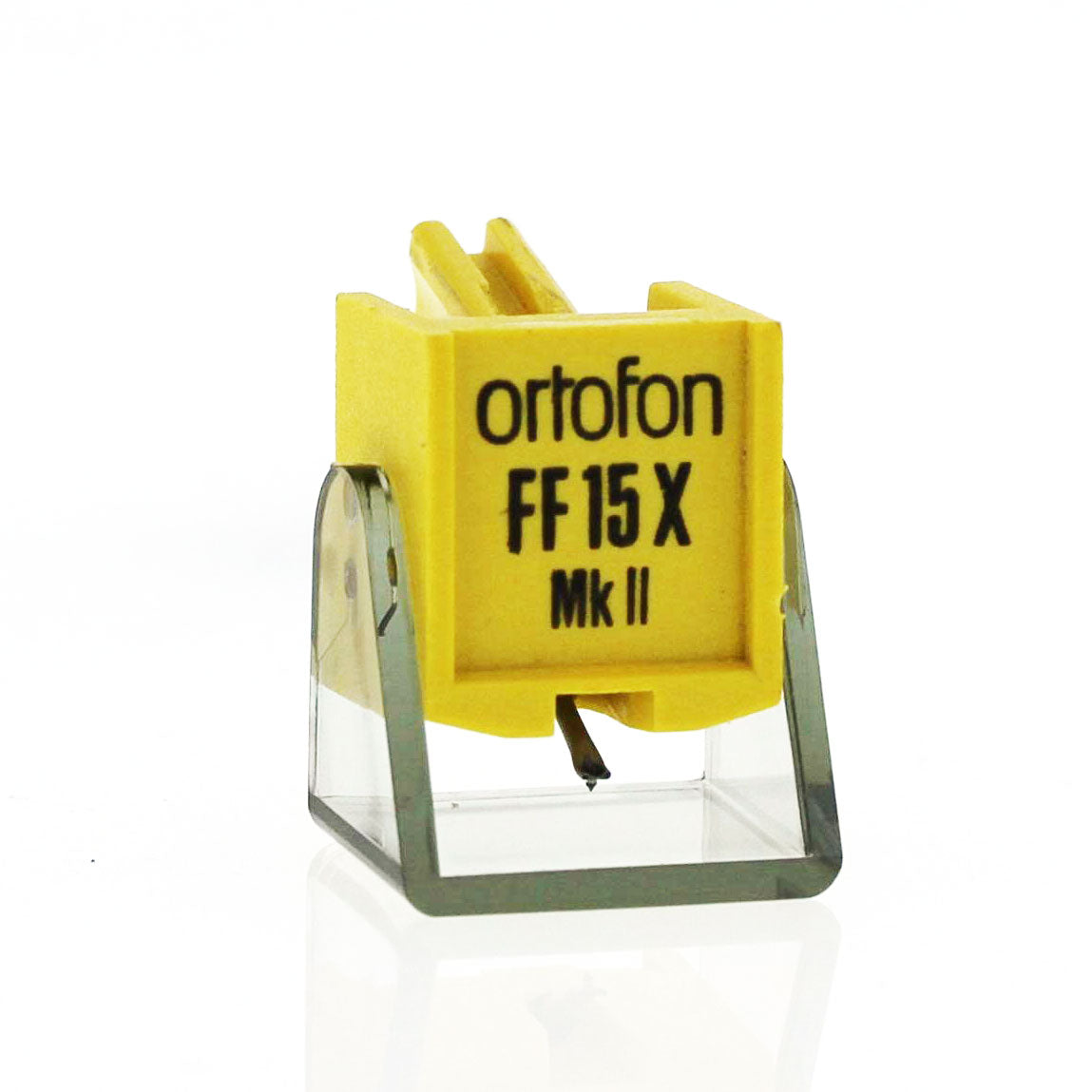

ORTOFON STYLUS FOR ORTOFON FF-15X MKII FF15X MKII CARTRIDGE

The Ortofon F/FF stylus is used with the Ortofon FF-15X MKII FF15X MKII phono cartridge.

The Ortofon FF15X MKII stylus features a spherical diamond for long playing life and very good rendition of voice and music.

Ortofon Stylus FF15X MKII Stylus Specifications
-Frequency range: 20Hz-20kHz
-FIM distortion @ recommended tracking force, DIN 45.542: <1%
-Tracking ability @ 315Hz @ recommended tracking force: 60µm
-Compliance, dynamic, lateral: 10µm/mN
-Stylus type: Spherical
-Stylus tip radius: 0.6 mil
-Tracking force range: 1.5-3.0g (15-30mN)
-Tracking force, recommended: 2.5g (20mN)
-Color: Yellow

ORTOFON STYLUS FOR ORTOFON LMA-5 LMA5 CARTRIDGE

The Ortofon Stylus 5E needle stylus for the Ortofon LMA-5 LMA5 phono cartridge features a highly polished elliptical diamond for superb tracking and tracing of record grooves. It results in finer detail and harmonically complete sound quality.

If you seek further listening pleasure and improved sound quality, you can easily upgrade to a higher level of performance by replacing the Ortofon Stylus 5E stylus with an Ortofon Stylus 10, 20, 30 or 40 stylus.

Ortofon Stylus 5E Specifications
- Frequency range: 20Hz-25kHz
- Frequency response: 20Hz-20kHz +2dB
- FIM distortion at recommended tracking force, DIN 45.542: < 1%
- Tracking ability @ 315Hz @ recommended tracking force: 65µm
- Compliance, dynamic, lateral: 20µm/mN
- Stylus type: Elliptical
- Stylus tip radius: 0.3 x 0.7 mil
- Tracking force range: 1.5-2.0g (15-20mN)
- Tracking force, recommended: 1.75g (17.5mN)
- Color: Black

ORTOFON STYLUS FOR ORTOFON OM-3E OM3E CARTRIDGE

Ortofon Stylus 3E stylus for Ortofon OM-3E OM3E cartridge with higly polished .0003 x .0007 inch special elliptical diamond for long playing life and natural sound quality across the frequency spectrum.

Ortofon Stylus 3E Specifications
- Frequency range: 20 - 22,000 Hz
- Output voltage at 1 kHz, 5cm/sec.: 4.0 mV
- Channel balance at 1 kHz: 2.0 dB
- Channel separation at 1 kHz: 22 dB
- Channel separation at 15 kHz: 15 dB
- Tracking ability: 60 µm
- Dynamic compliance: 20 µm/mN
- Stylus: .0003 x .0007 inch special elliptical diamond
- Tracking force range: 1.5 - 2.0 g
- Tracking force, recommended: 1.75 g
- Tracking angle: 20°
- Internal impedance, DC resistance: 750 Ohm
- Internal inductance: 450 mH
- Recommended load resistance: 47 K
- Recommended load capacitance: 200-600 pF

ORTOFON STYLUS FOR ORTOFON OM-5 OM5 CARTRIDGE

The Ortofon Stylus 5E needle stylus for the Ortofon OM-5 OM5 phono cartridge features a highly polished elliptical diamond for superb tracking and tracing of record grooves. It results in finer detail and harmonically complete sound quality.

If you seek further listening pleasure and improved sound quality, you can easily upgrade to a higher level of performance by replacing the Ortofon Stylus 5E stylus with an Ortofon Stylus 10, 20, 30 or 40 stylus.

Ortofon Stylus 5E Specifications
- Frequency range: 20Hz-25kHz
- Frequency response: 20Hz-20kHz +2dB
- FIM distortion at recommended tracking force, DIN 45.542: < 1%
- Tracking ability @ 315Hz @ recommended tracking force: 65µm
- Compliance, dynamic, lateral: 20µm/mN
- Stylus type: Elliptical
- Stylus tip radius: 0.3 x 0.7 mil
- Tracking force range: 1.5-2.0g (15-20mN)
- Tracking force, recommended: 1.75g (17.5mN)
- Color: Black

ORTOFON STYLUS FOR ORTOFON OM-5E OM5E CARTRIDGE

The Ortofon Stylus 5E needle stylus for the Ortofon OM-5E OM5E phono cartridge features a highly polished elliptical diamond for superb tracking and tracing of record grooves. It results in finer detail and harmonically complete sound quality.

If you seek further listening pleasure and improved sound quality, you can easily upgrade to a higher level of performance by replacing the Ortofon Stylus 5E stylus with an Ortofon Stylus 10, 20, 30 or 40 stylus.

Ortofon Stylus 5E Specifications
- Frequency range: 20Hz-25kHz
- Frequency response: 20Hz-20kHz +2dB
- FIM distortion at recommended tracking force, DIN 45.542: < 1%
- Tracking ability @ 315Hz @ recommended tracking force: 65µm
- Compliance, dynamic, lateral: 20µm/mN
- Stylus type: Elliptical
- Stylus tip radius: 0.3 x 0.7 mil
- Tracking force range: 1.5-2.0g (15-20mN)
- Tracking force, recommended: 1.75g (17.5mN)
- Color: Black

ORTOFON STYLUS FOR ORTOFON OM-78 OM78 CARTRIDGE

The Ortofon Stylus 78 for the Ortofon OM-78 OM78 phono cartridge features a 2.5 mil diamond for tracing 78 RPM record grooves. It results in minimal groove wear and an accurate rendition of voice and music. The stylus is made in Japan by a world-class manufacturer with a reputation for crafting musically excellent and high-quality replacement styli.

A very common misconception is that you can use an LP stylus for playing 78 RPM records. This is one quick and sure way to damage the 78 RPM record grooves. To maintain the playback fidelity of your 78 record, you really need to use a stylus designed for 78 RPM records, otherwise with just a single playing, you could ruin the fidelity of the record grooves. Moreover, the LP stylus is much narrower than the 78 RPM record groove hence the tip will slide to the bottom of the groove where debris has collected for many decades. This results in extraordinarily high-surface noise.

Ortofon Stylus 78 Specifications
- Frequency range: 20Hz-15kHz
- Frequency response: 20-12kHz +/- 2dB
- FIM distortion @ recommended tracking force, DIN 45.542: <1%
- Tracking ability @ 315Hz @ recommended tracking force: 60µm
- Compliance, dynamic, lateral: 15µm/mN
- Stylus type: Spherical
- Stylus tip radius: 2.5 mil
- Tracking force range: 1.75 - 2.25 g (17.5 - 22.5 mN)
- Tracking force, recommended: 2.0 g (20.0 mN)
- Color: Black

ORTOFON STYLUS FOR ORTOFON OMB-5E OMB5E CARTRIDGE

The Ortofon Stylus 5E needle stylus for the Ortofon OMB-5E OMB5E phono cartridge features a highly polished elliptical diamond for superb tracking and tracing of record grooves. It results in finer detail and harmonically complete sound quality.

If you seek further listening pleasure and improved sound quality, you can easily upgrade to a higher level of performance by replacing the Ortofon Stylus 5E stylus with an Ortofon Stylus 10, 20, 30 or 40 stylus.

Ortofon Stylus 5E Specifications
- Frequency range: 20Hz-25kHz
- Frequency response: 20Hz-20kHz +2dB
- FIM distortion at recommended tracking force, DIN 45.542: < 1%
- Tracking ability @ 315Hz @ recommended tracking force: 65µm
- Compliance, dynamic, lateral: 20µm/mN
- Stylus type: Elliptical
- Stylus tip radius: 0.3 x 0.7 mil
- Tracking force range: 1.5-2.0g (15-20mN)
- Tracking force, recommended: 1.75g (17.5mN)
- Color: Black

ORTOFON STYLUS FOR ORTOFON OMB-5 OMB5 CARTRIDGE

The Ortofon Stylus 5E needle stylus for the Ortofon OMB-5 OMB5 phono cartridge features a highly polished elliptical diamond for superb tracking and tracing of record grooves. It results in finer detail and harmonically complete sound quality.

If you seek further listening pleasure and improved sound quality, you can easily upgrade to a higher level of performance by replacing the Ortofon Stylus 5E stylus with an Ortofon Stylus 10, 20, 30 or 40 stylus.

Ortofon Stylus 5E Specifications
- Frequency range: 20Hz-25kHz
- Frequency response: 20Hz-20kHz +2dB
- FIM distortion at recommended tracking force, DIN 45.542: < 1%
- Tracking ability @ 315Hz @ recommended tracking force: 65µm
- Compliance, dynamic, lateral: 20µm/mN
- Stylus type: Elliptical
- Stylus tip radius: 0.3 x 0.7 mil
- Tracking force range: 1.5-2.0g (15-20mN)
- Tracking force, recommended: 1.75g (17.5mN)
- Color: Black

ORTOFON STYLUS FOR ORTOFON OMB-78 OMB78 CARTRIDGE

The Ortofon Stylus 78 for the Ortofon OMB-78 OMB78 phono cartridge features a 2.5 mil diamond for tracing 78 RPM record grooves. It results in minimal groove wear and an accurate rendition of voice and music. The stylus is made in Japan by a world-class manufacturer with a reputation for crafting musically excellent and high-quality replacement styli.

A very common misconception is that you can use an LP stylus for playing 78 RPM records. This is one quick and sure way to damage the 78 RPM record grooves. To maintain the playback fidelity of your 78 record, you really need to use a stylus designed for 78 RPM records, otherwise with just a single playing, you could ruin the fidelity of the record grooves. Moreover, the LP stylus is much narrower than the 78 RPM record groove hence the tip will slide to the bottom of the groove where debris has collected for many decades. This results in extraordinarily high-surface noise.

Ortofon Stylus 78 Specifications
- Frequency range: 20Hz-15kHz
- Frequency response: 20Hz-12kHz +/- 2dB
- FIM distortion @ recommended tracking force, DIN 45.542: <1%
- Tracking ability @ 315Hz @ recommended tracking force: 60µm
- Compliance, dynamic, lateral: 15µm/mN
- Stylus type: Spherical
- Stylus tip radius: 2.5 mil
- Tracking force range: 1.75 - 2.25 g (17.5 - 22.5 mN)
- Tracking force, recommended: 2.0 g (20.0 mN)
- Color: Black
