Half-Inch Mount Cartridges

AUDIO-TECHNICA AT-95E AT 95E AT95E PHONO CARTRIDGE

Imported and packaged by LP Tunes, the Audio-Technica AT95E phono cartridge has a very distinguished and colorful lineage. On its own, it has been a multiple recipient of Best Buy ratings in the UK. Its lineage is intertwined with the classic and musically acclaimed Linn Basik, K5 and K9 phono cartridges. Unlike these cartridges however, the AT95E is delightfully affordable and available. Since October, 2004 and up to the present, the Audio-Technica AT95E phono cartridge is included in the Stereophile Recommended Components List. It is the only inexpensive phono cartridge to be included in this highly selective recommended list! The review summarized the performance of the Audio-Technica AT95E phono cartridge with the following words: "Makes music for 50 bucks!"

Paul Szabady in Stereotimes March 2007 had this to say about the Audio-Technica AT95E phono cartridge:

"The AT95E integrates the range of the sonic bandwidth very well: no part of the spectrum sticks out at the listener. It doesnt sound bright and it doesnt sound dull at the top frequencies. Midrange is clear and detailed with no spittiness on vocals, though really cheap and inadequate analog match-ups will cause an slight upper mid-range burr."

The half-inch standard mount and dual-magnet Audio-Technica AT95E cartridge sounds clear, dynamic and richly balanced. It allows music lovers to use limited means to upgrade their turntables and thus attain a higher level of discernment and listening pleasure without the financial burden typically associated with high end cartridges. Yes it is vibrant, dynamic and rich in detail as reviewers and users say, and some users may no longer wish to upgrade further. The Audio-Technica AT95E phono cartridge has been consistently rated a "Best Buy" in the UK and we agree wholeheartedly.

Audio-Technica AT95E Phono Cartridge Details
- Output voltage @ 1kHz,5cm/sec.: 3.5mV
- Channel balance: 2dB
- Channel separation @ 1kHz: 20dB
- Frequency response: 20Hz-20kHz
- Dynamic compliance (x10-6 cm/dyne): 6.5
- Static compliance (x10-6 cm/dyne): 20
- Load resistance: 47k ohms
- Load capacitance: 100 - 200 pF
- Stylus type: 0.4 x 0.7 mil elliptical diamond
- Tracking force range: 1.5 - 2.5 g
- Tracking force recommended: 2 g (20 mN)
- Vertical tracking angle: 20
- Coil impedance at 1kHz: 2.8k ohms
- Coil inductance at 1kHz: 400 mH
- Recommended load resistance: 47k ohms
- Color: Black/Green
- Weight: 6.5 g
- Dimensions: 30.5l x 17w x 17.20h
- Stylus replacement: Audio-Technica ATN95E

Note: Details are subject to change without notice.



Awards
Stereophile Recommended Component: 2004, 2005, 2006, 2010, 2011, 2012, 2013, 2014, 2015.

AUDIO-TECHNICA CN-5625AL CN 5625AL CN5625AL PHONO CARTRIDGE

The half-inch standard mount Audio-Technica CN5625AL phono cartridge is a solid performer and a step above the ordinary entry-level cartridge. Manufactured to Audio-Technica's world class quality standards, it renders music smoothly, dynamically and cleanly. You'll discover the joy of listening to LPs.

Audio Technica CN5625AL Phono Cartridge Specifications
- Output voltage: 5.3mV
- Frequency response: 20Hz-20kHz
- Channel balance: 1.5dB
- Channel separation: 24/15 (dB at 1kHz/10kHz)
- Stylus type: Conical
- Stylus construction: Bonded round shank
- Cantilever construction: Alloy tube

AUDIO-TECHNICA VM510CB CARTRIDGE

The VM510CB conical stylus cartridge is the entry-level 500 Series model in Audio-Technica's new VM cartridge line a line that harks back to A-T's early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today's advanced technology. Like all VM cartridges, the VM510CB is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge's 0.6 mil conical bonded stylus tracks the center of the record groove for reliable performance and excellent fidelity.

Audio-Technica VM510CB cartridge specifications
- Type: VM
- Frequency response: 20 ~ 20,000 Hz
- Output voltage: 5.0 mV (1kHz, 5 cm/sec.)
- Channel separation: 25 dB (1kHz)
- Output balance: 1.5 dB (1kHz)
- Tracking force: 1.8 ~ 2.2 g (2.0 g standard)
- Coil impedance: 2.7 kΩ (1kHz)
- DC resistance: 800 ΩΩ
- Load impedance: 47 kΩ
- Load capacitance: 100 ~ 200 pF
- Coil inductance: 460 mH (1kHz)
- Static compliance: 35 10-6 cm/dyne
- Dynamic compliance: 8 10-6 cm/dyne (100Hz)
- Stylus: Bonded conical (0.6 mil)
- Cantilever: Aluminum pipe
- Vertical tracking angle: 23
- Dimensions: 17.3(H) 17.0(W) 28.2(D) mm
- Weight: 6.4 g
- Replacment stylus: VMN10CB
- Accessories: Cartridge installtion screws 5mm 2, 10 mm 2, Washer 2, Hexagon nut 2

Note: Specifications are subject to change without notice.

AUDIO-TECHNICA VM520EB CARTRIDGE

Like all VM cartridges, the VM520EB is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge's 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction.

Audio-Technica VM520EB cartridge specifications
- Type: VM
- Frequency response: 20 ~ 23,000 Hz
- Output voltage: 4.5 mV (1kHz, 5 cm/sec.)
- Channel separation: 27 dB (1kHz)
- Output balance: 1.5 dB (1kHz)
- Tracking force: 1.8 ~ 2.2 g (2.0 g standard)
- Coil impedance: 2.7 kΩ (1kHz)
- DC resistance: 800 ΩΩ
- Load impedance: 47 kΩ
- Load capacitance: 100 ~ 200 pF
- Coil inductance: 460 mH (1kHz)
- Static compliance: 35 10-6 cm/dyne
- Dynamic compliance: 8 10-6 cm/dyne (100Hz)
- Stylus: Bonded elliptical (0.3 0.7 mil)
- Cantilever: Aluminum pipe
- Vertical tracking angle: 23
- Dimensions: 17.3(H) 17.0(W) 28.2(D) mm
- Weight: 6.4 g
- Replacment stylus: VMN20EB
- Accessories: Cartridge installtion screws 5mm 2, 10 mm 2, Washer 2, Hexagon nut 2

Note: Specifications are subject to change without notice.

AUDIO-TECHNICA VM530EN CARTRIDGE

The VM530EN is a top-end elliptical stylus cartridge in Audio-Technica's new VM cartridge line a line that harks back to A-T's early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today's advanced technology. Like all VM cartridges, the VM530EN is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge's lightweight 0.3 x 0.7 mil Nude Elliptical stylus reduces the execution mass of the vibration system, enabling fuller frequency reproduction and less tracking distortion than a bonded stylus.

Audio-Technica VM530EN cartridge specifications
- Type: VM
- Frequency response: 20 ~ 25,000 Hz
- Output voltage: 4.5 mV (1kHz, 5 cm/sec.)
- Channel separation: 27 dB (1kHz)
- Output balance: 1.5 dB (1kHz)
- Tracking force: 1.8 ~ 2.2 g (2.0 g standard)
- Coil impedance: 2.7 kΩ (1kHz)
- DC resistance: 800 Ω
- Load impedance: 47 kΩ
- Load capacitance: 100 ~ 200 pF
- Coil inductance: 460 mH (1kHz)
- Static compliance: 35 10-6 cm/dyne
- Dynamic compliance: 8 10-6 cm/dyne (100Hz)
- Stylus: Nude elliptical (0.3 0.7 mil)
- Cantilever: Aluminum pipe
- Vertical tracking angle: 23
- Dimensions: 17.3(H) 17.0(W) 28.2(D) mm
- Weight: 6.4 g
- Replacment stylus: VMN30EN - Accessories: Cartridge installtion screws 5mm 2, 10 mm 2, Washer 2, Hexagon nut 2, Non-magnetic screwdriver 1, Brush 1, Lead wire set 1,

Note: Specifications are subject to change without notice.

AUDIO-TECHNICA VM540ML CARTRIDGE

Audio Technica's VM540ML cartridge improves upon and continues the highly regarded and best-buy rated lineage of the AT440ML series.

It features a MicroLine stylus which enables extremely accurate groove tracking. Distorion is low even on the inner circumference of a record because the curvature radius of the stylus tip does not alter even if the stylus becomes worn. The VM540ML is furnished with a durable low-resonance polymer housing. The VMN40ML MicroLine nude stylus has a multilevel shape for reduced wear on the stylus and individual records.

Audio-Technica VM540ML cartridge specifications
- Type: VM
- Frequency response: 20 ~ 27,000 Hz
- Output voltage: 4.0 mV (1kHz, 5 cm/sec.)
- Channel separation: 30 dB (1kHz)
- Output balance: 1.0 dB (1kHz)
- Tracking force: 1.8 ~ 2.2 g (2.0 g standard)
- Coil impedance: 2.7 kΩ (1kHz)
- DC resistance: 800 Ω
- Load impedance: 47 kΩ
- Load capacitance: 100 ~ 200 pF
- Coil inductance: 460 mH (1kHz)
- Static compliance: 40 × 10-6 cm/dyne
- Dynamic compliance: 10 × 10-6 cm/dyne (100Hz)
- Stylus: Nude Microline (2.2 × 0.12 mil)
- Cantilever: Aluminum tapered pipe
- Vertical tracking angle: 23 °
- Dimensions: 17.3(H) × 17.0(W) × 28.2(D) mm
- Weight: 6.4 g
- Replacment stylus: VMN40ML
- Accessories: Cartridge installtion screws 5mm × 2, 10 mm × 2, Washer × 2, Hexagon nut × 2, Non-magnetic screwdriver × 1, Brush × 1, Lead wire set × 1

Note: Specifications are subject to change without notice.

VM540ML AUDIO-TECHNICA CREPLACEMENT FOR AUDIO-TECHNICA (AT-440MLA AT 440MLA) AT440MLA CARTRIDGE
- AT440's Provenance of Excellence: 2013, 2014, 2015, 2016, 2017, 2018 Editors Choice Award The Absolute Sound March Issue 231, 241, 251, 261, 271, 281.

With the formidable VM540ML phono cartridge, Audio-Technica has replaced and superseded—at a more affordable price—the highly regarded AT440's (retail: $390.00) musical excellence that rightfully should be compared with moving magnets costing up to $500. Yes, it is that good. The Audio-Technica VM5440ML's excellence lies in the suitable employment of advanced designs uniquely available to Audio-Technica because of its rich technical history and production capabilities:



● Audio-Technica's Vector-Aligned Dual Magnet design, which uses two tiny magnets to achieve ideal geometry and low magnet mass, for excellent channel separation and extended frequency response.

● The Audio-Technica VMN40ML's MicroLine stylus produces more accurately rendered high frequency response with less wear and distortion than elliptical or conventional linear contact styli. The small curving rate of the MicroLine stylus enables it to track and playback the inner part of the record groove that other styli can hardly maintain. Also the curving rate of the MicroLine stylus does not change until the stylus is almost worn unlike that of conventional styli which increases as they are used. Accordingly, the MicroLine stylus has a much longer average playing life. It plays better, longer.

Audio-Technica AT440MLa Phono Cartridge Specifications
- Output voltage @ 1kHz,5cm/sec.: 4mV
- Dynamic compliance (x10-6 cm/dyne): 10
- Static compliance (x10-6 cm/dyne): 40
- Stylus type: 0.12 mil nude square micro-linear
- Tracking force range: 1.0 - 1.8 g
- Tracking force recommended: 1.4 g (14 mN)
- Vertical tracking angle: 20°
- Coil impedance @ 1kHz: 3.2k ohm
- Coil inductance @ 1kHz: 490 mH
- Recommended load resistance: 47k ohms
- Color: Black/Violet
- Weight: 6.5 g
- Dimensions (mm): H17.3 × W16 × D28.2
- Stylus replacement: Audio-Technica ATN440MLA
- Accessories included: Screwdriver, screws, nuts, headshell wires



Audio-Technica VM540ML cartridge specifications
- Type: VM
- Frequency response: 20 ~ 27,000 Hz
- Output voltage: 4.0 mV (1kHz, 5 cm/sec.)
- Channel separation: 30 dB (1kHz)
- Output balance: 1.0 dB (1kHz)
- Tracking force: 1.8 ~ 2.2 g (2.0 g standard)
- Coil impedance: 2.7 kΩ (1kHz)
- DC resistance: 800 Ω
- Load impedance: 47 kΩ
- Load capacitance: 100 ~ 200 pF
- Coil inductance: 460 mH (1kHz)
- Static compliance: 40 × 10-6 cm/dyne
- Dynamic compliance: 10 × 10-6 cm/dyne (100Hz)
- Stylus: Nude Microline (2.2 × 0.12 mil)
- Cantilever: Aluminum tapered pipe
- Vertical tracking angle: 23 °
- Dimensions: 17.3(H) × 17.0(W) × 28.2(D) mm
- Weight: 6.4 g
- Replacement stylus: VMN40ML
- Accessories: Cartridge installation screws 5mm × 2, 10 mm × 2, Washer × 2, Hexagon nut × 2, Non-magnetic screwdriver × 1, Brush × 1, Lead wire set × 1

Note: Specifications are subject to change without notice.

______________________________________

AUDIO-TECHNICA VM610MONO CARTRIDGE

With a specialized body and internal wiring dedicated to monaural sound reproduction, the VM610MONO conical stylus cartridge is designed for playing mono records. Part of the 600 Series in Audio-Technica's new VM cartridge line a line that harks back to A-T's early days as a manufacturer primarily of high-end phono cartridges the VM610MONO is equipped with dual magnets that are internally connected to reduce record noise and obtain a highly focused "center" sound image that stereo cartridges can't provide.

Audio-Technica VM610MONO cartridge specifications
- Type: VM
- Frequency response: 20 ~ 20,000 Hz
- Output voltage: 3.0 mV (1kHz, 5 cm/sec.)
- Channel separation: Not applicable
- Output balance: Not applicable
- Tracking force: 4.5 ~ 5.5 g (5.0 g standard)
- Coil impedance: 1.4 kΩ (1kHz)
- DC resistance: 400 ΩΩ
- Load impedance: 47 kΩ
- Load capacitance: 100 ~ 200 pF
- Coil inductance: 230 mH (1kHz)
- Static compliance: 35 10-6 cm/dyne
- Dynamic compliance: 8 10-6 cm/dyne (100Hz)
- Stylus: Bonded conical (0.6 mil)
- Cantilever: Aluminum pipe
- Vertical tracking angle: 23
- Dimensions: 17.3(H) 17.0(W) 28.2(D) mm
- Weight: 6.4 g
- Replacment stylus: VMN10CB - Accessories: Cartridge installtion screws 5mm 2, 10 mm 2, Washer 2, Hexagon nut 2

Note: Specifications are subject to change without notice.

AUDIO-TECHNICA VM670SP CARTRIDGE

Designed for playing 78 RPM records with the highest fidelity, the VM670SP cartridge features a specialized body and internal wiring dedicated to monaural sound reproduction, Additionally, it is equipped with dual magnets that are internally connected to reduce record noise and obtain a highly focused "center" sound image that stereo cartridges can't provide. The stylus's 3.0 mil curvature radius makes it an excellent choice for playing 78s from a wide variety of eras.

Audio-Technica VM670SP cartridge specifications
- Type: VM
- Frequency response: 20 ~ 20,000 Hz
- Output voltage: 3.0 mV (1kHz, 5 cm/sec.)
- Channel separation: Not applicable
- Output balance: Not applicable
- Tracking force: 4.5 ~ 5.5 g (5.0 g standard)
- Coil impedance: 1.4 kΩ (1kHz)
- DC resistance: 400 Ω
- Load impedance: 47 kΩ
- Load capacitance: 100 ~ 200 pF
- Coil inductance: 230 mH (1kHz)
- Static compliance: 15 10-6 cm/dyne
- Dynamic compliance: 2 10-6 cm/dyne (100Hz)
- Stylus: Bonded conical (3.0 mil)
- Cantilever: Aluminum pipe
- Vertical tracking angle: 23
- Dimensions: 17.3(H) 17.0(W) 28.2(D) mm
- Weight: 6.4 g
- Replacment stylus: VMN70SP - Accessories: Cartridge installtion screws 5mm 2, 10 mm 2, Washer 2, Hexagon nut 2

Note: Specifications are subject to change without notice.

AUDIO-TECHNICA VM740ML CARTRIDGE

Audio Technica's VM740ML phono cartridge features a MicroLine stylus which enables extremely accurate groove tracking. The VM740ML is furnished with a die-cast aluminum alloy housing which reduces vibration and parasitic resonance distortion while adding a natural electrical shield. Comparatively, the VM540ML is furnished with a durable low-resonance polymer housing. The housing difference results in a more subtle and refined presentation by the 740ML. Both the VM740ML and VM540ML are equipped with a VMN40ML MicroLine nude stylus that traces the groove with incredible accuracy, resulting in nuanced audio reproduction that elliptical and conical styli simply can't match. The stylus's multilevel shape also wears better than other styli, while reducing the wear on your records.

Audio-Technica VM740ML cartridge specifications
- Type: VM
- Frequency response: 20 ~ 27,000 Hz
- Output voltage: 4.0 mV (1kHz, 5 cm/sec.)
- Channel separation: 30 dB (1kHz)
- Output balance: 1.0 dB (1kHz)
- Tracking force: 1.8 ~ 2.2 g (2.0 g standard)
- Coil impedance: 2.7 kΩ (1kHz)
- DC resistance: 800 Ω
- Load impedance: 47 kΩ
- Load capacitance: 100 ~ 200 pF
- Coil inductance: 460 mH (1kHz)
- Static compliance: 40 × 10-6 cm/dyne
- Dynamic compliance: 10 × 10-6 cm/dyne (100Hz)
- Stylus: Nude MicroLine (2.2 × 0.12 mil)
- Cantilever: Aluminum tapered pipe
- Vertical tracking angle: 23 °
- Dimensions: 17.3(H) × 17.0(W) × 28.2(D) mm
- Weight: 8.0 g
- Replacment stylus: VMN40ML
- Accessories: Cartridge installation screws 5mm × 2, 10 mm × 2, Washer × 2, Hexagon nut × 2, Non-magnetic screwdriver × 1, Brush × 1, Lead wire set × 1,

Note: Specifications are subject to change without notice.

AUDIO-TECHNICA VM750SH CARTRIDGE

Audio Technica's VM750SH phono cartridge with its Nude Shibata stylus is ideal for reproducing rich smooth ultra-high frequencies, and full-bodied mid and low frequencies. The VM750SH is furnished with a die-cast aluminum alloy housing which reduces vibration while adding a natural electrical shield.

Audio-Technica VM750SH cartridge specifications
- Type: VM
- Frequency response: 20 ~ 27,000 Hz
- Output voltage: 4.0 mV (1kHz, 5 cm/sec.)
- Channel separation: 30 dB (1kHz)
- Output balance: 1.0 dB (1kHz)
- Tracking force: 1.8 ~ 2.2 g (2.0 g standard)
- Coil impedance: 2.7 kΩ (1kHz)
- DC resistance: 800 Ω
- Load impedance: 47 kΩ
- Load capacitance: 100 ~ 200 pF
- Coil inductance: 460 mH (1kHz)
- Static compliance: 40 10-6 cm/dyne
- Dynamic compliance: 10 10-6 cm/dyne (100Hz)
- Stylus: Nude Shibata (2.7 0.26 mil)
- Cantilever: Aluminum tapered pipe
- Vertical tracking angle: 23
- Dimensions: 17.3(H) 17.0(W) 28.2(D) mm
- Weight: 8.0 g
- Replacment stylus: VMN50SH
- Accessories: Cartridge installtion screws 5mm 2, 10 mm 2, Washer 2, Hexagon nut 2, Non-magnetic screwdriver 1, Brush 1, Lead wire set 1

Note: Specifications are subject to change without notice.

AUDIO-TECHNICA VM760SLC CARTRIDGE

The VM760SLC special line contact stylus cartridge is the flagship model in Audio-Technica's new VM cartridge line a line that harks back to A-T's early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today's advanced technology. Like all VM cartridges, the VM760SLC is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge's ultra-lightweight special line contact stylus allows it to trace the record groove with incredible accuracy and minimum abrasion, resulting in nuanced audio reproduction, low distortion and low record wear.

Audio-Technica VM760SLC cartridge specifications
- Type: VM
- Frequency response: 20 ~ 30,000 Hz
- Output voltage: 4.0 mV (1kHz, 5 cm/sec.)
- Channel separation: 30 dB (1kHz)
- Output balance: 1.0 dB (1kHz)
- Tracking force: 1.8 ~ 2.2 g (2.0 g standard)
- Coil impedance: 2.7 kΩ (1kHz)
- DC resistance: 800 Ω
- Load impedance: 47 kΩ
- Load capacitance: 100 ~ 200 pF
- Coil inductance: 460 mH (1kHz)
- Static compliance: 40 10-6 cm/dyne
- Dynamic compliance: 10 10-6 cm/dyne (100Hz)
- Stylus: Nude Special Line Contact (1.5 0.28 mil)
- Cantilever: Aluminum tapered pipe
- Vertical tracking angle: 23
- Dimensions: 17.3(H) 17.0(W) 28.2(D) mm
- Weight: 8.0 g
- Replacement stylus: VMN60SLC
- Accessories: Cartridge installation screws 5mm 2, 10 mm 2, Washer 2, Hexagon nut 2, Non-magnetic screwdriver 1, Brush 1, Lead wire set 1

Note: Specifications are subject to change without notice.

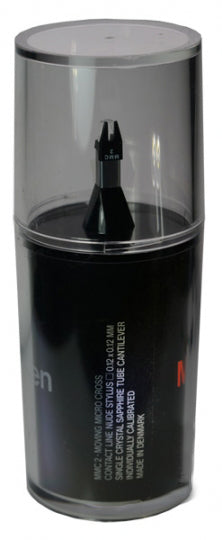

BANG & OLUFSEN MMC-2 MMC 2 MMC2 PHONO CARTRIDGE

The Bang & Olufsen MMC2 phono cartridge offers high-quality sound at an affordable price. It features a sapphire cantilever with a nude contact line diamond. The Bang & Olufsen MMC2 phono cartridge is one of the best Bang & Olufsen phono cartridges ever made and one of the best sounding phono cartridges around. Bang & Olufsen recently discontinued production of the MMC2 phono cartridge, however we still have a few units available for your listening pleasure.

Bang & Olufsen MMC2 Phono Cartridge Specifications
- Type: Moving micro cross
- Output voltage: 2.12mV
- Frequency response: 20Hz-20kHz +/- 1.5 dB
- Load impedance: 47k ohms
- Channel separation: >25dB
- Stylus Type: Contact line
- Cantilever: Sapphire tube
- Compliance: 30mm/N
- Recommended tracking force: 1 g
- Weight: 1.6 g

BANG & OLUFSEN MMC-20S MMC 20S MMC20S PHONO CARTRIDGE

The Bang & Olufsen MMC20 Series cartridges are discontinued and are no longer available. We purchased the small remaining quantity so Beogram owners can continue to enjoy their exquisite turntables using an original B&O cartridge. The MMC-20S can be used to replace the following B&O cartridges: MMC10E, MMC20S, MMC20E, MMC20EN, MMC20CL, MMC3000, MMC4000, MMC5000 and MMC6000.

BANG & OLUFSEN MMC-4 MMC 4 MMC4 PHONO CARTRIDGE

The Bang & Olufsen MMC4 phono cartridge offers high-quality sound at an affordable price. It features a Titanium-bonded elliptical diamond. It is packaged in the original Bang & Olufsen box. Bang & Olufsen recently discontinued production of the MMC4 phono cartridge, however we still have a few units available for your listening pleasure.

Bang & Olufsen MMC4 Phono Cartridge Specifications
- Type: Moving micro cross
- Output voltage: 2.12mV
- Frequency response: 20Hz-20kHz +/- 2.5 dB
- Load impedance: 47k ohms
- Channel separation: >22dB
- Stylus Type: Elliptical
- Cantilever: Tapered aluminum tube
- Compliance: 20mm/N
- Recommended tracking force: 1.2 g
- Weight: 1.6 g
