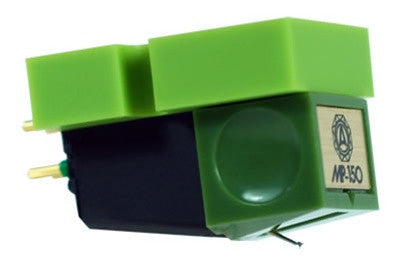

Nagaoka MP-150 MP 150 MP150 Phono Cartridge
NAGAOKA MP-150 MP 150 MP150 PHONO CARTRIDGE
The Nagaoka MP-150 phono cartridge offers superior clarity, detail and dynamic contrast.
Nagaoka MP-150 Phono Cartridge Specifications
- Type: Moving magnet
- Cantilever: Hardened, low-mass tapered
- Stylus type: Superfine elliptical diamond
- Weight: 6.5 g
- Output voltage @ 1kHz,5cm/sec: 4.5mV
- Frequency response: 20Hz-20kHz
- Channel balance @ 1kHz: > 1.5dB
- Channel separation @ 1kHz: > 24dB
- Recommended loading: 47k ohms
- Dynamic compliance: 6.0 x 10-6 cm/dyne
- Static compliance: 18 x 10-6 cm/dyne
- Tracking force range: 1.5 - 2.0 g
- Break-in period: 30 hours
- Stylus replacement: Nagaoka JN-P150
