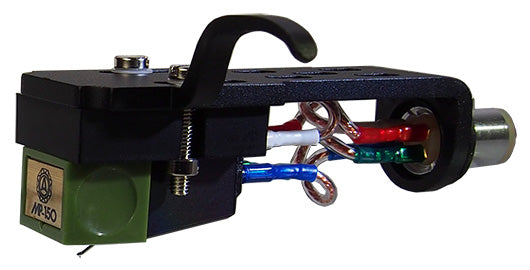

LP TUNES  NAGAOKA MP-150 PRE-MOUNT

This LP Tunes Pre-mount consists of an Nagaoka MP150 cartridge mounted onto a world-class HD headshell for your convenience.

- Aerospace alloy for tensile strength and low resonance
- Jelco gold-plated headshell wires for exceptional sound quality
- Aligned length 52 mm for use with many tonearms
- Alignment adjustable for extra precision and compatibility
- Free alignment protractor
- Total weight of 16.7g with Nagaoka MP150 cartridge is suited to more turntables and their tonearms. There is no need to change the counterweight.

Nagaoka MP-150 Phono Cartridge Specifications
- Type: Moving magnet
- Cantilever: Hardened, low-mass tapered
- Stylus type: Superfine elliptical diamond
- Weight: 6.5 g
- Output voltage @ 1kHz,5cm/sec: 4.5mV
- Frequency response: 20Hz-20kHz
- Channel balance @ 1kHz: > 1.5dB
- Channel separation @ 1kHz: > 24dB
- Recommended loading: 47k ohms
- Dynamic compliance: 6.0 x 10-6 cm/dyne
- Static compliance: 18 x 10-6 cm/dyne
- Tracking force range: 1.5 - 2.0 g
- Break-in period: 30 hours
- Stylus replacement: Nagaoka JN-P150

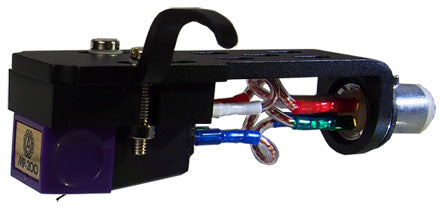

LP TUNES  NAGAOKA MP-200 PRE-MOUNT

This LP Tunes Pre-mount consists of an Nagaoka MP200 cartridge mounted onto a world-class HD headshell for your convenience.

- SOAR HD5 headshell wires for exceptional sound quality
- Aligned length 52 mm for use with many tonearms
- Alignment adjustable for extra precision and compatibility
- Free alignment protractor
- Total weight of 16.7g with Nagaoka MP200 cartridge is suited to more turntables and their tonearms. There is no need to change the counterweight.

Nagaoka MP-200 Phono Cartridge Specifications
- Type: Moving magnet
- Cantilever: High-strength Boron
- Stylus type: Superfine elliptical diamond
- Weight: 6.5 g
- Output voltage @ 1kHz,5cm/sec: 4mV
- Frequency response: 20Hz-23kHz
- Channel balance @ 1kHz: > 1.5dB
- Channel separation @ 1kHz: > 25dB
- Recommended loading: 47k ohms
- Dynamic compliance: 7.2 x 10-6 cm/dyne
- Static compliance: 20 x 10-6 cm/dyne
- Tracking force range: 1.5 - 2.0 g
- Break-in period: 30 hours
- Stylus replacement: Nagaoka JN-P200

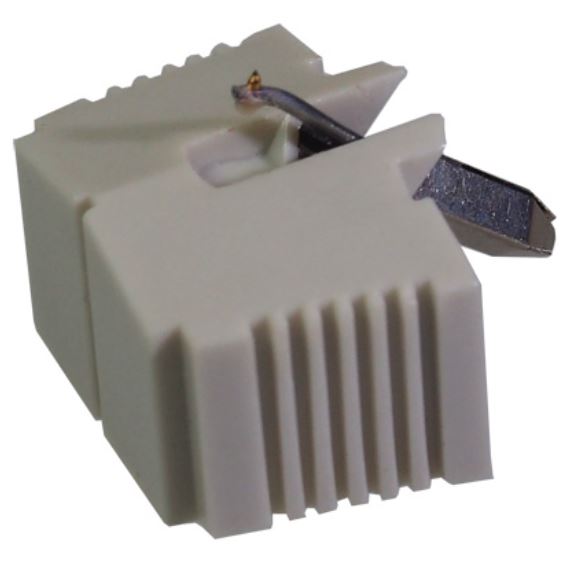

LP TUNES STYLUS FOR NAGAOKA NM-33 CARTRIDGE

The LP Gear stylus for Nagaoka NM-33 cartrudge features a highly polished conical diamond tip bonded to a hollow-core thin wall cantilever for fine musical reproduction. The stylus is made in Japan by a world-renowned maker.

The Nagaoka JN-555 stylus private labeled for Expert Super uses the same Ultra-Ex nude stylus and solid carbon black cantilever as the original Nagaoka JN-555 stylus.

The Ultra-Ex stylus offers top performance for stereo to discrete four-channel reproduction, long playing life and clear tonal sound quality. The solid carbon black cantilever with its very high rigidity and very low effective mass, faithfully transmits the most delicate movements of the stylus tip to the magnet. By combining the solid carbon black cantilever with the Ultra-Ex stylus tip, the frequency response range has been widened to cover everything from the subsonic to the supersonic.

Nagaoka JN-555 Expert Super Stylus Specifications
- Type: Stereo moving magnet
- Frequency response: 10Hz-28kHz
- Channel separation @ 1kHz: >20dB
- Output voltage @ 1kHz: 3.3mV
- Channel balance @ 1kHz: 1dB
- Recommended load: 50k ohm
- Stylus: Ultra-Ex
- Cantilever: Solid carbon black
- Dynamic compliance: 10 x 10 -6 cm/dyne/100Hz
- Static compliance: 20 x 10 - 6 cm/dyne
- Tracking force: 1.1 - 1.5 g (Optimum 1.3 g)

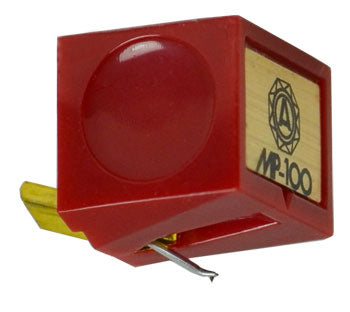

The Nagaoka JN-P100 JNP100 needle stylus for the Nagaoka MP-100 MP100 and MP-10 MP10 phono cartridges features a highly polished conical diamond for long playing life, reduced record wear and effective tracing of record grooves, thus offering clean harmonics and very good sound quality. The stylus is made in Japan by a world-class manufacturer with a reputation for crafting musically excellent and high-quality replacement styli.

Nagaoka JN-P100 Stylus Specifications
- Frequency response: 20Hz-20kHz
- Output voltage @ 1kHz: 5mV
- Channel balance @ 1kHz: 2dB
- Channel separation @ 1kHz: >22dB
- Stylus type: Conical diamond with .0006 inch radius
- Cantilever: Lightweight aluminum alloy
- Tracking force: 1.5 - 2.3g
- Break-in period: 30 hours
- Color: Red

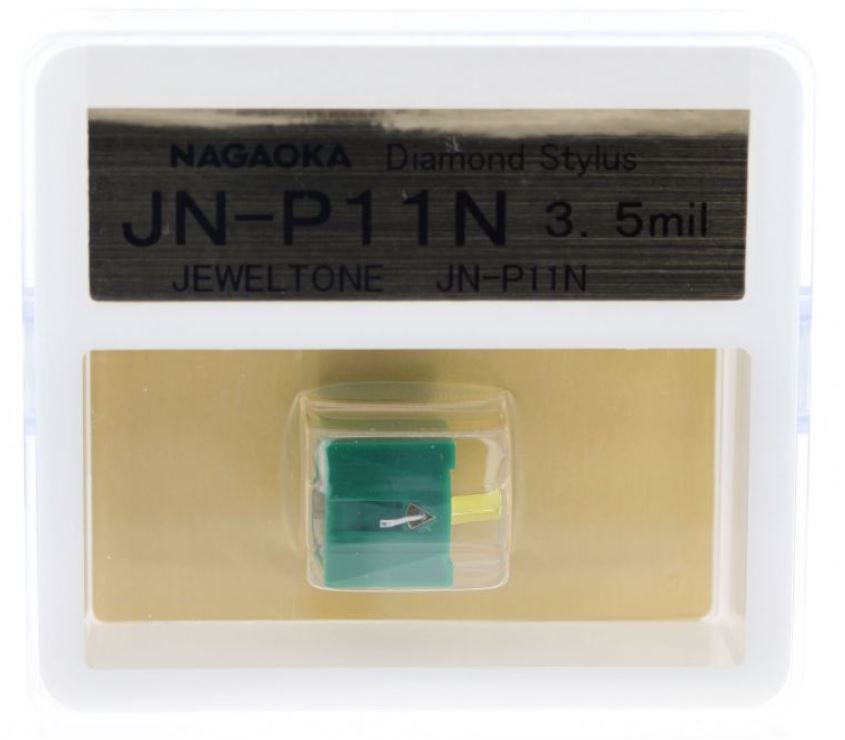

NAGAOKA JN-P11 3.5 MIL 78 RPM STYLUS FOR MP SERIES CARTRIDGES

Designed for use with worn 78RPM records which have a tad wider groove than standard as a result of frequent usage.

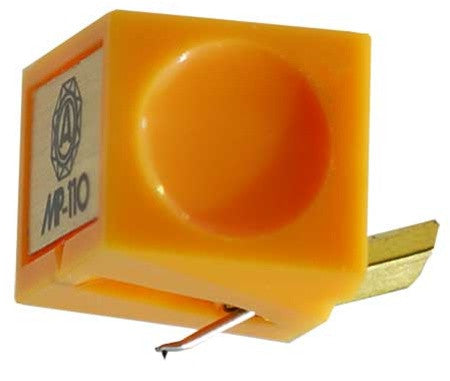

The Nagaoka JN-P110 JNP110 needle stylus for the Nagaoka MP-110 MP110 phono cartridge features a super-fine polished elliptical diamond bonded to an aluminum alloy cantilever for a firmer grip on the record grooves, resulting in better tonality, detail and air. The aluminum cantilever is more durable and longer lasting. The stylus is made in Japan by a world-class manufacturer with a reputation for crafting musically excellent and high-quality replacement styli.

Nagaoka JN-P110 Stylus Specifications
- Frequency response: 20Hz-20kHz
- Output voltage @ 1kHz: 5mV
- Channel balance @ 1kHz: 1.5dB
- Channel separation @ 1kHz: >23dB
- Stylus type: .0004 x .0007 inch super-fine polished elliptical bonded diamond
- Cantilever: Aluminum alloy
- Tracking force: 1.5 - 2.0g
- Break-in period: 30 hours
- Color: Yellow

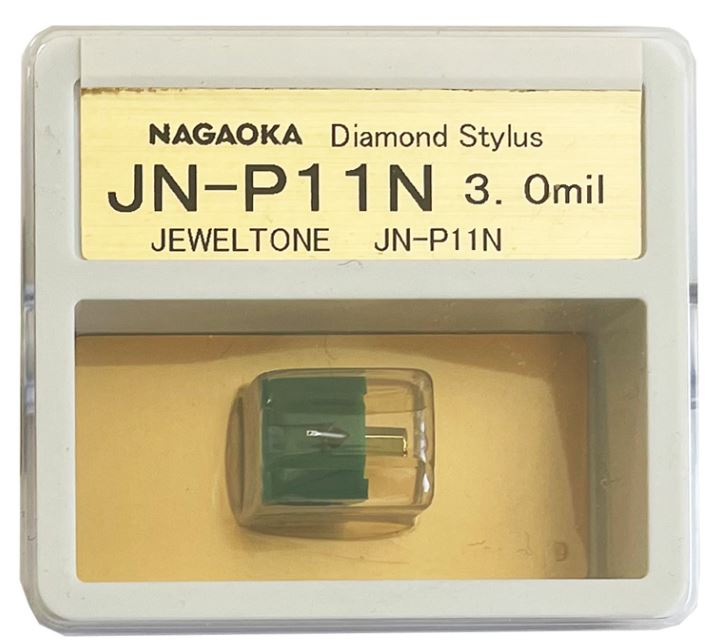

NAGAOKA JN-P11N 3.0 MIL 78RPM STYLUS FOR MP SERIES CARTRIDGES

Nagaoka 3.0 mil 78 RPM stylus for MP Series cartridges designed to correctly trace widegroove 78 RPM grooves. Playing 78RPM records with anything less could damage the integrity of the grooves and subseqient playback fidelity.

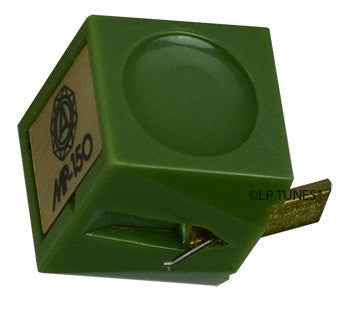

The Nagaoka JN-P150 JNP150 needle stylus for the Nagaoka MP-150 MP150 phono cartridge and its older siblings features a highly polished super-fine polished elliptical bonded diamond for long playing life and good rendition of voice and music. The stylus is made in Japan by a world-class manufacturer with a reputation for crafting musically excellent and high-quality replacement styli.

Nagaoka JN-P150 Stylus Specifications
- Frequency response: 20Hz-20kHz
- Output voltage @ 1kHz: 4.5mV
- Channel balance @ 1kHz: 1.5dB
- Channel separation @ 1kHz: >24dB
- Stylus type: .0003 x .0007 inch super-fine polished elliptical bonded diamond
- Cantilever: Hardened, low-mass tapered
- Tracking force: 1.5 - 2.0g
- Break-in period: 30 hours
- Color: Green

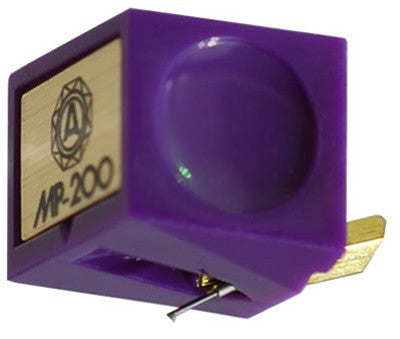

The Nagaoka JN-P200 JNP200 needle stylus for the Nagaoka MP-200 MP200 MP200 and MP-20 MP20 phono cartridges features a super-fine polished elliptical bonded diamond for long playing life, reduced record wear and effective tracing of record grooves. It offers clean harmonics and very good sound quality. The stylus is made in Japan by a world-class manufacturer with a reputation for crafting musically excellent and high-quality replacement styli.

Nagaoka JN-P200 Stylus Specifications
- Frequency response: 20Hz-23kHz
- Output voltage @ 1kHz: 4mV
- Channel balance @ 1kHz: 1.5dB
- Channel separation @ 1kHz: >25dB
- Stylus type: .0003 x .0007 inch super-fine polished elliptical bonded diamond
- Cantilever: High-strength boron
- Tracking force: 1.5 - 2.0g
- Break-in period: 30 hours
- Color: Violet

NAGAOKA JN-P200 STYLUS FOR NAGAOKA MP-11 MP11 BORON CARTRIDGE

Nagaoka recommends their JNP200 stylus as the replacement stylus for the MP11BORON cartridge. Its super-fine polished elliptical diamond bonded to a high-strength boron cantilever offers clean harmonics, solid bass and excellent rendition of detail without overhang.

Nagaoka JN-P200 Stylus Specifications
- Frequency response: 20Hz-23kHz
- Output voltage @ 1kHz: 4mV
- Channel balance @ 1kHz: 1.5dB
- Channel separation @ 1kHz: >25dB
- Stylus type: .0003 x .0007 inch super-fine polished elliptical bonded diamond
- Cantilever: High-strength boron
- Tracking force: 1.5 - 2.0g
- Break-in period: 30 hours
- Color: Violet

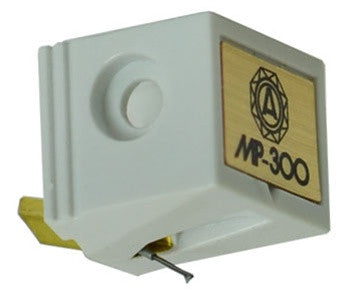

The Nagaoka JN-P300 JNP300 needle stylus for the Nagaoka MP-300 MP300 and MP-30 MP30 phono cartridges features a special elliptical diamond mounted on a boron cantilever for superior record groove retrieval. It offers harmonically accurate and excellent rendition of voice and music. The stylus is made in Japan by a world-class manufacturer with a reputation for crafting musically excellent and high-quality replacement styli.

Nagaoka JN-P300 Stylus Specifications
- Frequency response: 20Hz-25kHz
- Output voltage @ 1kHz: 5mV
- Channel balance @ 1kHz: 1dB
- Channel separation @ 1kHz: >25dB
- Stylus type: .0003 x .0007 inch super-fine polished elliptical bonded diamond
- Cantilever: High-strength boron
- Tracking force: 1.3-1.8g
- Color: White

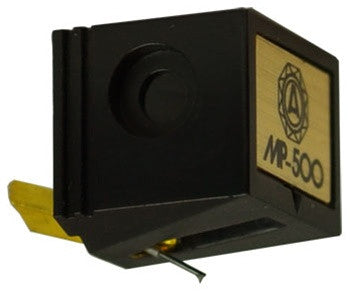

The Nagaoka JN-P500 JNP500 needle stylus for the Nagaoka MP-500 MP500 and MP-50 MP50 phono cartridges features a highly polished super-fine line contact diamond for long playing life and superb rendition of voice and music. The stylus is made in Japan by a world-class manufacturer with a reputation for crafting musically excellent and high-quality replacement styli.

Nagaoka JN-P500 Stylus Specifications
- Generating element: Moving magnet
- Frequency response: 20Hz-25kHz
- Output voltage @ 1kHz: 3mV
- Channel balance @ 1kHz: 1dB
- Channel separation @ 1kHz: >27dB
- Stylus type: super-fine line contact diamond
- Cantilever: High-strength boron
- Tracking force: 1.3-1.8g
- Color: Black

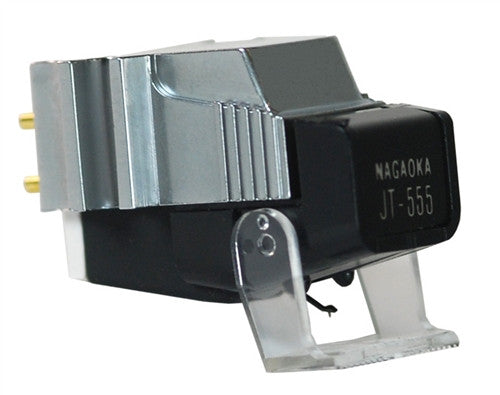

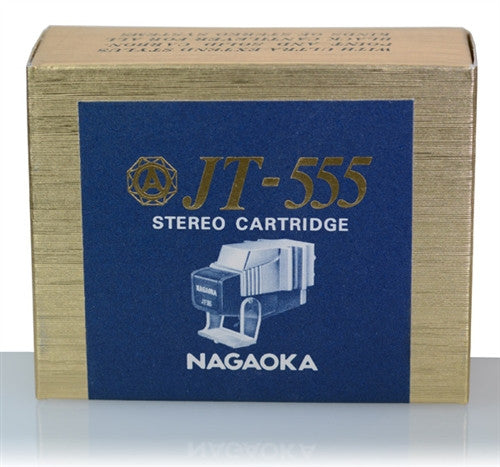

NAGAOKA JT-555 JT 555 JT555 PHONO CARTRIDGE
- latest stock is Tonar 555 same JT-555 made by Nagaoka for Tonar

A leading edge, top performance cartridge for stereo and discrete four-channel reproduction, the Nagaoka JT-555 offers long playing life and majestic tonal quality. The solid-black carbon cantilever with its very high rigidity and very low effective mass, faithfully transmits the most delicate movements of the stylus tip to the magnet. By combining the solid-black carbon cantilever with the superb Ultra-Ex stylus tip, the frequency response range has been widened to cover everything from the subsonic to the supersonic. Enjoy listening to your records again.

Nagaoka JT-555 Cartridge Specifications
- Type: Stereo moving magnet
- Material: Super permalloy shield, injection mold frame
- Frequency response: 10Hz-28kHz
- Effective mass: 0.6 mg
- Channel balance: 1dB @ 1kHz
- Channel separation @ 1kHz: > 20dB
- Output voltage @ 1kHz: 3.3mV
- Recommended load: 50k ohm
- Stylus: Ultra-Ex
- Stylus replacement: Nagaoka JN-555 expert super
- Cantilever: Solid carbon-black
- Dynamic compliance: 10 x 10 - 6 cm/dyne @ 100 Hz
- Static compliance: 20 x 10 - 6 cm/dyne
- Tracking force: 1.1 - 1.5 g (Optimum 1.3 g)
- Weight: 5.2 g - Size: 15.5 x 27 x 22 mm
- Mounting: JIS EIA (12.7 mm), 1/2 inc mount
- Accessories included: screwdriver, 2 screws and nuts

The Nagaoka MP-10 phono cartridge offers Nagaoka quality, high track ability, and musical competence at an attractive price. This is a cartridge that will soothe your ears and your wallet.

- Type: Moving magnet
- Cantilever: Aluminum alloy
- Stylus type: Conical diamond with .0006 inch radius
- Weight: 6.8 g
- Output voltage @ 1kHz,5cm/sec: 5mV
- Frequency response: 20Hz-20kHz
- Channel balance @ 1kHz: > 2dB
- Channel separation @ 1kHz: > 22dB
- Recommended loading: 47k ohms
- Dynamic compliance: 5.5 x 10-6 cm/dyne
- Static compliance: 18 x 10-6 cm/dyne
- Tracking force range: 1.5 - 2.5 g
- Break-in period: 30 hours
