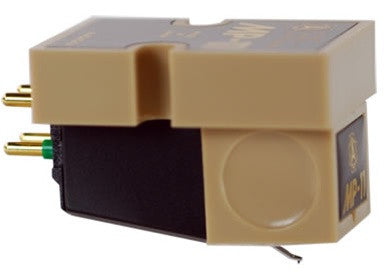

Nagaoka MP-11 MP 11 MP11 Phono Cartridge
- Discontinued. For the latest cartridge replacement, refer to Related Products.
The Nagaoka MP-11 phono cartridge is one of the most highly rated inexpensive cartridges in the world. The Nagaoka MP-11 is particularly beloved by many for its refined and gracious presentation of the musical event with a level of detail extracted from the grooves that is better than its competition. It offers amazing tracking ability. It tracks with ease even those that few can manage with confidence and undistorted performance. The Nagaoka MP-11 eschews in-your-face detail which seems to be the flavor of the day. Instead, it offers music to be savored and enjoyed as a cohesive whole. It is a proven and classic cartridge worthy of high recommendation to friends who want to again listen to their LPs. The Nagaoka MP-11 phono cartridge is sure to please the palate of discerning music listeners.
Nagaoka MP-11 Phono Cartridge Specifications
- Type: Moving magnet
- Cantilever: Aluminum alloy
- Stylus type: Polished elliptical bonded diamond with 0.3 x 0.7 mil radii
- Weight: 6.8 g
- Output voltage @ 1kHz,5cm/sec: 5mV
- Frequency response: 20Hz-20kHz
- Channel balance @ 1kHz: > 1.5dB
- Channel separation @ 1kHz: > 23dB
- Recommended loading: 47k ohms
- Dynamic compliance: 6.0 x 10-6 cm/dyne
- Static compliance: 18 x 10-6 cm/dyne
- Tracking force range: 1.8 - 2.3 g
- Break-in period: 30 hours
