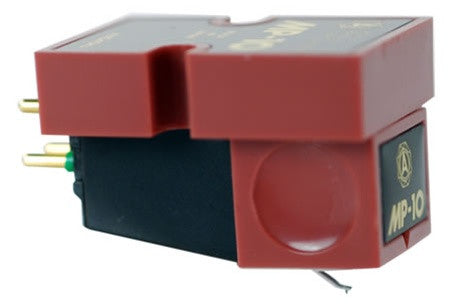

Nagaoka MP-10 MP 10 MP10 Phono Cartridge
NAGAOKA MP-10 MP 10 MP10 PHONO CARTRIDGE
The Nagaoka MP-10 phono cartridge offers Nagaoka quality, high track ability, and musical competence at an attractive price. This is a cartridge that will soothe your ears and your wallet.
Nagaoka MP-10 Phono Cartridge Specifications- Type: Moving magnet
- Cantilever: Aluminum alloy
- Stylus type: Conical diamond with .0006 inch radius
- Weight: 6.8 g
- Output voltage @ 1kHz,5cm/sec: 5mV
- Frequency response: 20Hz-20kHz
- Channel balance @ 1kHz: > 2dB
- Channel separation @ 1kHz: > 22dB
- Recommended loading: 47k ohms
- Dynamic compliance: 5.5 x 10-6 cm/dyne
- Static compliance: 18 x 10-6 cm/dyne
- Tracking force range: 1.5 - 2.5 g
- Break-in period: 30 hours
