LP Tunes PN-50 Stylus for Pioneer PL-A505 Turntable

LP TUNES PN-50 REPLACEMENT STYLUS FOR PIONEER PL-A505 PLA505 TURNTABLE

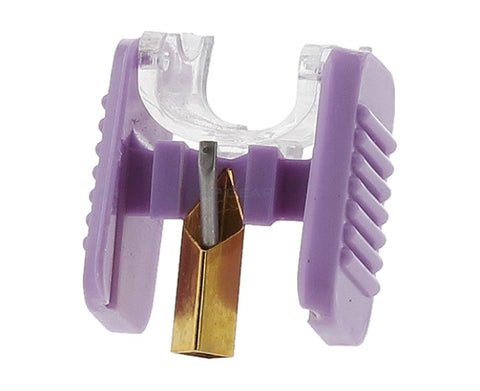

For models that were factory furnished with a cartridge, the Pioneer PL-A505 PL A505 PLA505 automatic record changer was fitted with a Pioneer PC-50 PC50 phono cartridge and a Pioneer PN-50 PN50 stylus. A photo of the stylus replacement is supplied above. The color of the stylus varies. Please verify and use this as a guide only since the cartridge and stylus may have been changed through the years.

● Finest PN-50 stylus for PC-50 cartridge fitted to Pioneer PL-A505 turntable
● Quality brings out subtleties and nuances beyond generic styli
● Crafted by Japanese shokunin for precision, quality, and performance
● Special conical diamond tip radius: 15 µm (.0006 in.) 0.6 mil
● Each stylus undergoes QC and listening test as final inspection
● LP Tunes® stylus - Above and beyond copies and generics

Do not order this stylus if it looks different from what you have. It will not fit if the original cartridge is missing or has been changed. Please contact us if you need assistance or prefer a new cartridge. If possible, provide us with the markings on the existing cartridge and stylus (look for the brand and model number). Photos will be helpful.

Upgrade Options
- For upgrades and accessories that enhance sound quality and fidelity, refer to Related Products.

Pioneer PC-50 Cartridge Specifications (for reference only)
- Type: Induced magnet
- Frequency response: 10 - 25,000 Hz
- Channel separation @ 1,000Hz: > 25 dB
- Output voltage @ 5cm/sec at 1,000Hz: 3.0 mV
- Load impedance: 50 kΩ
- Stylus: .0.5 mil diamond (PN-50)
- Compliance: 12 x 10^-6 cm/dyne at 100 Hz (dynamic); 22 x 10^-6 cm/dyne (static)
- Tracking force: 1.5 - 2.1 g
- Weight: 6.0 g
- Mounting: 12.7mm (1/2 inch)

Note: Specifications provided for reference to the original product only.
