Pioneer

ELLIPTICAL STYLUS FOR PIONEER PL-990 TURNTABLE
How to Identify Which Stylus will Work with Your Turntable


Stylus Model: Replacement for Pioneer PZ-P1004E
Used with Cartridge Model: Pioneer Phono Cartridge
Used with Turntable Model: Pioneer PL-990


FEATURES:

• Elliptical Stylus: The elliptical shape of the diamond stylus makes more contact with the grooves of your record, resulting in higher tracing accuracy with exceptional sound clarity and detail.

• Aluminum Cantilever: The aluminum cantilever allows for a firmer grip on the record groove, thus resulting in better sound quality. The cantilever is also more durable and longer lasting.

PLEASE NOTE:
The color of the stylus varies. If the stylus depicted in the picture above differs from what you have, DO NOT ORDER this stylus.
Instead, take a look at the markings on the existing cartridge and stylus and provide us with the brand name and model number. Photos will also be helpful.


UPGRADES AND ACCESSORIES
For more replacement parts and accessories that can offer improved sound quality and performance, please refer to the Related Products below.

IMPROVED REPLACEMENT FOR PIONEER PN-210 PN 210 PN210 NEEDLE STYLUS

The improved replacement for the Pioneer PN-210 PN210 needle stylus features a highly polished special conical diamond bonded to an aluminum cantilever. The aluminum cantilever allows a firmer grip on the record grooves and is also more durable and longer lasting. It results in better tonal balance, transparency and air.

For a stylus replacement that offers improved sound quality and performance, refer to the Related Products.

IMPROVED REPLACEMENT FOR PIONEER PN-230 PN 230 PN230 NEEDLE STYLUS

The improved replacement for the Pioneer PN-230 PN230 needle stylus features a highly polished special conical diamond bonded to an aluminum cantilever. The aluminum cantilever allows a firmer grip on the record grooves and is also more durable and longer lasting. It results in better tonal balance, transparency and air.

For a stylus replacement that offers improved sound quality and performance, refer to the Related Products.

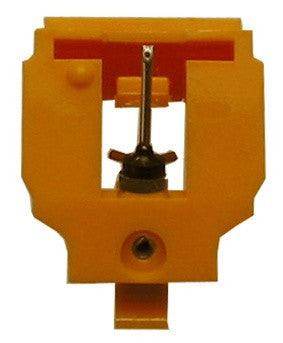

IMPROVED REPLACEMENT FOR PIONEER PN-240 PN 240 PN240 NEEDLE STYLUS

The improved replacement for the Pioneer PN-240 PN240 needle stylus features a highly polished special conical diamond bonded to an aluminum cantilever. The aluminum cantilever allows a firmer grip on the record grooves and is also more durable and longer lasting. It results in better tonal balance, transparency and air.

For a stylus replacement that offers improved sound quality and performance, refer to the Related Products.

IMPROVED REPLACEMENT FOR PIONEER PX-V1004 PX V1004 PXV1004 NEEDLE STYLUS

The improved replacement for the Pioneer PX-V1004 PXV1004 needle stylus features a highly polished special conical diamond bonded to an aluminum cantilever. The aluminum cantilever allows a firmer grip on the record grooves and is also more durable and longer lasting. It results in better tonal balance, transparency and air.

For a stylus replacement that offers improved sound quality and performance, refer to the Related Products.

IMPROVED REPLACEMENT FOR PIONEER PZ-P1004 PZ P1004 PZP1004 NEEDLE STYLUS

The improved replacement for the Pioneer PZ-P1004 PZP1004 needle stylus features a highly polished special conical diamond bonded to an aluminum cantilever. The aluminum cantilever allows a firmer grip on the record grooves and is also more durable and longer lasting. It results in better tonal balance, transparency and air.

For a stylus replacement that offers improved sound quality and performance, refer to the Related Products.

IMPROVED STYLUS FOR PIONEER PL-990 TURNTABLE

Stylus Model: Improved Replacement for Pioneer PZ-P1004
Used with Cartridge Model: Pioneer Phono Cartridge
Used with Turntable Model: Pioneer PL-990

IMPROVED STYLUS FOR PIONEER PL-Z92 TURNTABLE
How to Identify Which Stylus will Work with Your Turntable


Stylus Model: Improved Replacement for Pioneer PN-210
Used with Cartridge Model: Pioneer Phono Cartridge
Used with Turntable Model: Pioneer PL-Z92


FEATURES:

• Aluminum Cantilever: The aluminum cantilever allows for a firmer grip on the record groove, thus resulting in better sound quality. The cantilever is also more durable and longer lasting.

PLEASE NOTE:
The color of the stylus varies. If the stylus depicted in the picture above differs from what you have, DO NOT ORDER this stylus.
Instead, take a look at the markings on the existing cartridge and stylus and provide us with the brand name and model number. Photos will also be helpful.


UPGRADES AND ACCESSORIES
For a stylus upgrade, replacement parts and accessories that can offer improved sound quality and performance, please refer to the Related Products below.

IMPROVED STYLUS FOR PIONEER PL-Z93 TURNTABLE
How to Identify Which Stylus will Work with Your Turntable


Stylus Model: Improved Replacement for Pioneer PN-210
Used with Cartridge Model: Pioneer Phono Cartridge
Used with Turntable Model: Pioneer PL-Z93


FEATURES:

• Aluminum Cantilever: The aluminum cantilever allows for a firmer grip on the record groove, thus resulting in better sound quality. The cantilever is also more durable and longer lasting.

PLEASE NOTE:
The color of the stylus varies. If the stylus depicted in the picture above differs from what you have, DO NOT ORDER this stylus.
Instead, take a look at the markings on the existing cartridge and stylus and provide us with the brand name and model number. Photos will also be helpful.


UPGRADES AND ACCESSORIES
For a stylus upgrade, replacement parts and accessories that can offer improved sound quality and performance, please refer to the Related Products below.

IMPROVED STYLUS FOR PIONEER PL-Z94 TURNTABLE
How to Identify Which Stylus will Work with Your Turntable


Stylus Model: Improved Replacement for Pioneer PN-210
Used with Cartridge Model: Pioneer Phono Cartridge
Used with Turntable Model: Pioneer PL-Z94


FEATURES:

• Aluminum Cantilever: The aluminum cantilever allows for a firmer grip on the record groove, thus resulting in better sound quality. The cantilever is also more durable and longer lasting.

PLEASE NOTE:
The color of the stylus varies. If the stylus depicted in the picture above differs from what you have, DO NOT ORDER this stylus.
Instead, take a look at the markings on the existing cartridge and stylus and provide us with the brand name and model number. Photos will also be helpful.


UPGRADES AND ACCESSORIES
For a stylus upgrade, replacement parts and accessories that can offer improved sound quality and performance, please refer to the Related Products below.

IMPROVED STYLUS FOR PIONEER PL-Z95 TURNTABLE
How to Identify Which Stylus will Work with Your Turntable


Stylus Model: Improved Replacement for Pioneer PN-210
Used with Cartridge Model: Pioneer Phono Cartridge
Used with Turntable Model: Pioneer PL-Z95


FEATURES:

• Aluminum Cantilever: The aluminum cantilever allows for a firmer grip on the record groove, thus resulting in better sound quality. The cantilever is also more durable and longer lasting.

PLEASE NOTE:
The color of the stylus varies. If the stylus depicted in the picture above differs from what you have, DO NOT ORDER this stylus.
Instead, take a look at the markings on the existing cartridge and stylus and provide us with the brand name and model number. Photos will also be helpful.


UPGRADES AND ACCESSORIES
For a stylus upgrade, replacement parts and accessories that can offer improved sound quality and performance, please refer to the Related Products below.

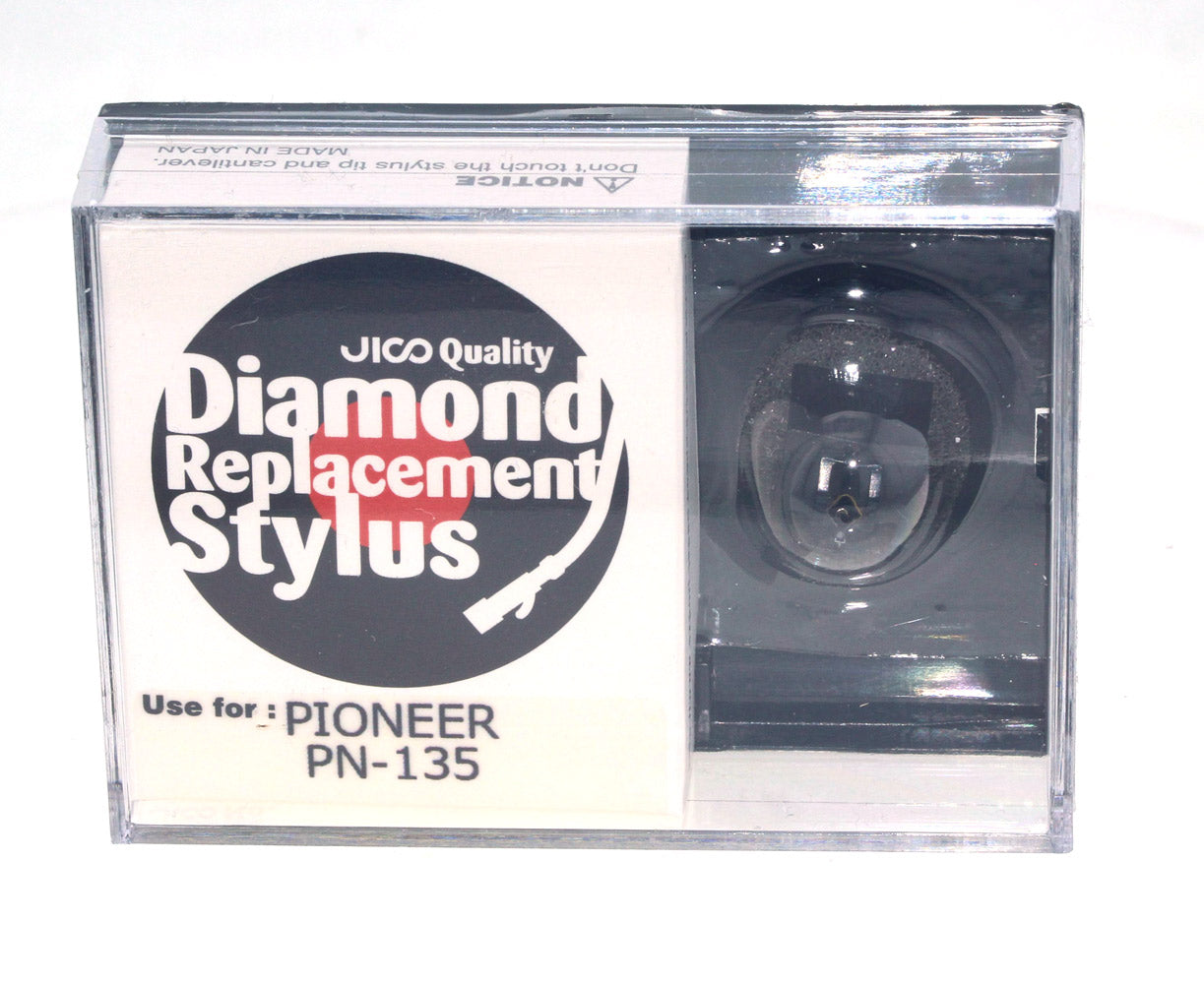

JICO PN-135 STYLUS FOR PIONEER MS 6500 MS-6500 MS6500 TURNTABLE

The Pioneer Music Centre MS6500 MS 6500 MS-6500 turntable was fitted with a Pioneer PC-135 PC135 phono cartridge and a Pioneer PN-135 PN135 needle stylus. A photo of the stylus replacement is supplied above. The color of the stylus varies.

● Finest PN135 stylus for Pioneer PC135 cartridge fitted to MS-6500 turntable
● Renews sound quality and performance of original design
● Made by Japanese shokunin seeking perfection with each stylus
● Special conical diamond tip radius: 15 µm (.0006 in.)
● Aluminum alloy cantilever for firm and responsive contact to grooves
● Each stylus undergoes QC and listening test as final inspection
● Jico stylus—Unmatched quality.

Do not order this stylus if it looks different from what you have. It will not fit if the original cartridge is missing or has been changed. Please contact us if you need assistance or prefer a new cartridge. If possible, provide us with the markings on the existing cartridge and stylus (look for the brand and model number). Photos will be helpful.

Upgrade Options
- For upgrades and accessories that enhance sound quality and fidelity, refer to Related Products.

Pioneer PC-135 Cartridge Specifications
- Type: Induced magnet
- Structure: The inside of the cartridge is shielded by Super permalloy; and outside, injection-molded.
- Frequency response: 10-25,000 Hz
- Channel separation (minimum) @ 1kHz: More than 25 dB
- Output voltage @ 1kHz,50mm/sec or 2in/s): 3.0 mV
- Channel balance @ 1kHz: within 1.5 dB
- Impedance @ 1kHz: 3.8 kΩ
- DC resistance: 850 Ω
- Inductance: 650 mH
- Replacement stylus: 0.5 mil diamond, PN-135
- Load resistance: 50 kΩ
- Tracking force: 1.5-2.3 g (proper 2 g)
- Weight: 5.4 g

Notes: (1) Life of stylus used in PC-135 is 800 to 1,000 hours. If used for longer periods, record damage or noise can occur. Replace stylus within this time or at first signs of wear.
(2) Tracking force greater than the maximum indicated should not be used.
(3) Specifications for original Pioneer cartridge provided for reference only.

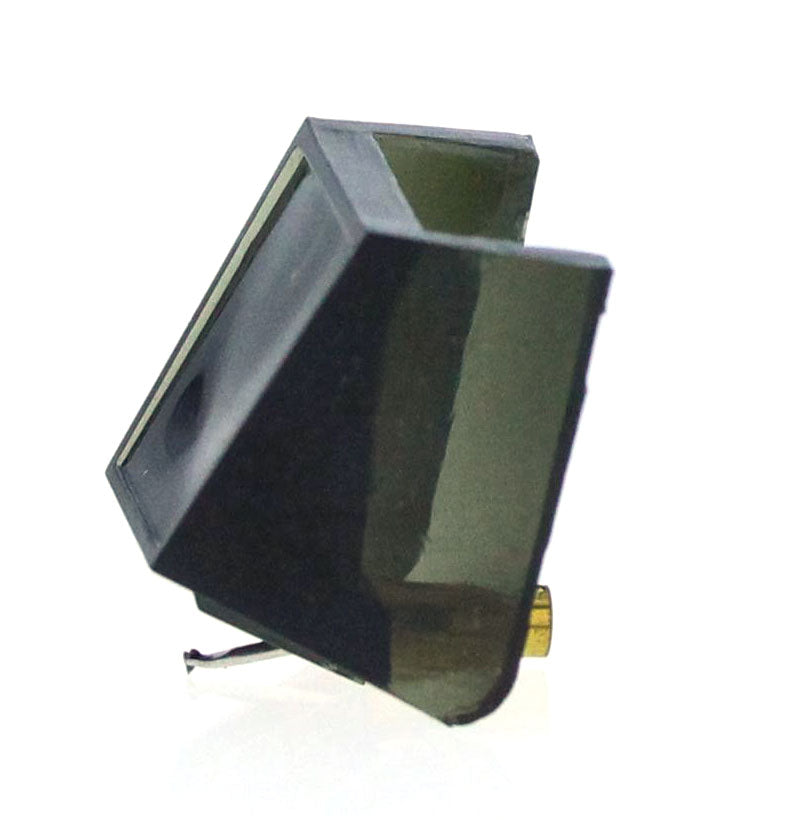

JICO REPLACEMENT FOR PIONEER PN-330 II PN 330 II PN330 II NEEDLE STYLUS

The Jico replacement for the Pioneer PN-330 II PN330 II needle stylus features a polished conical diamond for long playing life and good rendition of voice and music.

LP TUNES PN-30 REPLACEMENT STYLUS FOR PIONEER PL-A450 PLA450 TURNTABLE

For models that were factory furnished with a cartridge, the Pioneer PL-A450 PL A450 PLA450 turntable was fitted with a Pioneer PC-30 PC30 phono cartridge and a Pioneer PN-30 PN30 needle stylus. A photo of the stylus replacement is supplied above. The color of the stylus varies. Please verify and use this as a guide only since the cartridge and stylus may have been changed through the years.

● Finest PN-30 stylus for PC-30 cartridge fitted to Pioneer PL-A450 turntable
● Quality brings out subtleties and nuances beyond generic styli
● Crafted by Japanese shokunin for precision, quality, and performance
● Special conical diamond tip radius: 15 µm (.0006 in.) 0.6 mil
● Each stylus undergoes QC and listening test as final inspection
● LP TUNES® stylus - Above and beyond copies and generics

Do not order this stylus if it looks different from what you have. It will not fit if the original cartridge is missing or has been changed. Please contact us if you need assistance or prefer a new cartridge. If possible, provide us with the markings on the existing cartridge and stylus (look for the brand and model number). Photos will be helpful.

Upgrade Options
- For upgrades and accessories that enhance sound quality and fidelity, refer to Related Products.

Pioneer PC-30 Cartridge Specifications (for reference only)
- Type: Induced magnet
- Frequency response: 10 - 23,000 Hz
- Channel separation @ 1,000Hz: > 20 dB
- Output voltage @ 5cm/sec at 1,000Hz: 4.0 mV
- Load impedance: 50 kΩ
- Stylus: .0.5 mil diamond (PN-30)
- Compliance: 8 x 10^-6 cm/dyne at 100 Hz (dynamic); 18 x 10^-6 cm/dyne (static)
- Tracking force: 2.2 - 2.8 g
- Weight: 6.0 g
- Mounting: 12.7mm (1/2 inch)

Note: Specifications provided for reference to the original product only.

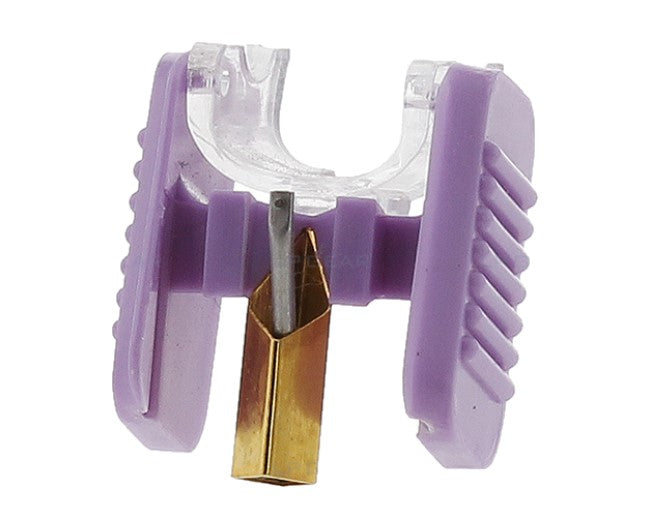

LP TUNES PN-50 REPLACEMENT STYLUS FOR PIONEER PL-A505 PLA505 TURNTABLE

For models that were factory furnished with a cartridge, the Pioneer PL-A505 PL A505 PLA505 automatic record changer was fitted with a Pioneer PC-50 PC50 phono cartridge and a Pioneer PN-50 PN50 stylus. A photo of the stylus replacement is supplied above. The color of the stylus varies. Please verify and use this as a guide only since the cartridge and stylus may have been changed through the years.

● Finest PN-50 stylus for PC-50 cartridge fitted to Pioneer PL-A505 turntable
● Quality brings out subtleties and nuances beyond generic styli
● Crafted by Japanese shokunin for precision, quality, and performance
● Special conical diamond tip radius: 15 µm (.0006 in.) 0.6 mil
● Each stylus undergoes QC and listening test as final inspection
● LP Tunes® stylus - Above and beyond copies and generics

Do not order this stylus if it looks different from what you have. It will not fit if the original cartridge is missing or has been changed. Please contact us if you need assistance or prefer a new cartridge. If possible, provide us with the markings on the existing cartridge and stylus (look for the brand and model number). Photos will be helpful.

Upgrade Options
- For upgrades and accessories that enhance sound quality and fidelity, refer to Related Products.

Pioneer PC-50 Cartridge Specifications (for reference only)
- Type: Induced magnet
- Frequency response: 10 - 25,000 Hz
- Channel separation @ 1,000Hz: > 25 dB
- Output voltage @ 5cm/sec at 1,000Hz: 3.0 mV
- Load impedance: 50 kΩ
- Stylus: .0.5 mil diamond (PN-50)
- Compliance: 12 x 10^-6 cm/dyne at 100 Hz (dynamic); 22 x 10^-6 cm/dyne (static)
- Tracking force: 1.5 - 2.1 g
- Weight: 6.0 g
- Mounting: 12.7mm (1/2 inch)

Note: Specifications provided for reference to the original product only.
