JICO PN-135 Stylus for Pioneer MS-6500 Turntable - for US Sale Only
JICO PN-135 STYLUS FOR PIONEER MS 6500 MS-6500 MS6500 TURNTABLE

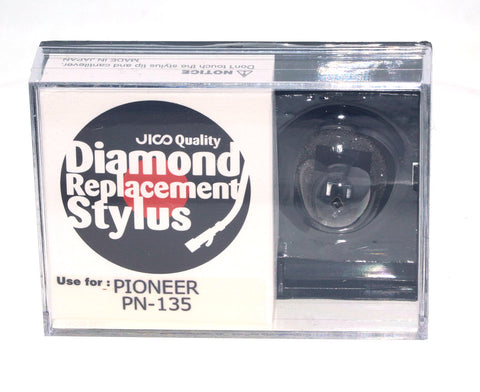

The Pioneer Music Centre MS6500 MS 6500 MS-6500 turntable was fitted with a Pioneer PC-135 PC135 phono cartridge and a Pioneer PN-135 PN135 needle stylus. A photo of the stylus replacement is supplied above. The color of the stylus varies.
● Finest PN135 stylus for Pioneer PC135 cartridge fitted to MS-6500 turntable
● Renews sound quality and performance of original design
● Made by Japanese shokunin seeking perfection with each stylus
● Special conical diamond tip radius: 15 µm (.0006 in.)
● Aluminum alloy cantilever for firm and responsive contact to grooves
● Each stylus undergoes QC and listening test as final inspection
● Jico stylus—Unmatched quality.
Do not order this stylus if it looks different from what you have. It will not fit if the original cartridge is missing or has been changed. Please contact us if you need assistance or prefer a new cartridge. If possible, provide us with the markings on the existing cartridge and stylus (look for the brand and model number). Photos will be helpful.
Upgrade Options
- For upgrades and accessories that enhance sound quality and fidelity, refer to Related Products.
Pioneer PC-135 Cartridge Specifications
- Type: Induced magnet
- Structure: The inside of the cartridge is shielded by Super permalloy; and outside, injection-molded.
- Frequency response: 10-25,000 Hz
- Channel separation (minimum) @ 1kHz: More than 25 dB
- Output voltage @ 1kHz,50mm/sec or 2in/s): 3.0 mV
- Channel balance @ 1kHz: within 1.5 dB
- Impedance @ 1kHz: 3.8 kΩ
- DC resistance: 850 Ω
- Inductance: 650 mH
- Replacement stylus: 0.5 mil diamond, PN-135
- Load resistance: 50 kΩ
- Tracking force: 1.5-2.3 g (proper 2 g)
- Weight: 5.4 g
Notes: (1) Life of stylus used in PC-135 is 800 to 1,000 hours. If used for longer periods, record damage or noise can occur. Replace stylus within this time or at first signs of wear.
(2) Tracking force greater than the maximum indicated should not be used.
(3) Specifications for original Pioneer cartridge provided for reference only.
