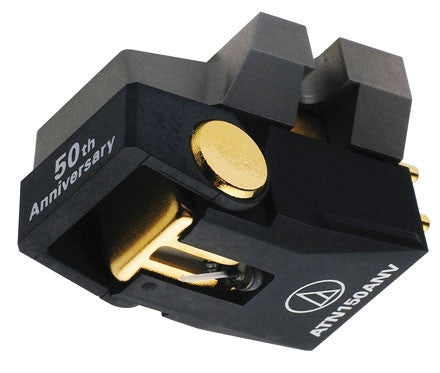

AUDIO-TECHNICA AT-150ANV AT150ANV LIMITED EDITION PHONO CARTRIDGE
- For music that just jumps from the grooves.¹

The 50th Anniversary limited-edition AT150ANV moving-magnet phono cartridge combines traditional design elements and craftsmanship with the latest technological refinements to deliver richly detailed and superbly accurate vinyl playback. The AT150ANV utilizes a Micro Linear stylus tip mounted on φ0.4mm sapphire cantilever pipe. Its pure titanium housing and Neo-fade damping material are designed to absorb unwanted parasitic resonances for rock-solid clarity and and unshakable resolution. The musical result is sure to please the most discriminating audiophiles and music lovers.

● Para-toroidal generation system and a high-performance dual magnet type system VM.
- Audio-Technica's moving magnet cartridge design delivers "practically identical to the cutter head" performance.Audio-Technica's patented Vector-Aligned Dual Magnet design positions two tiny magnets 90 degrees apart. These magnets are positioned directly in line with the two groove walls and each magnet incorporates a separate, independent coil structure. This low magnet mass and geometry allow exact translation of record groove motion into matching electrical signals, ensuring excellent channel separation, extended frequency response, and superior tracking. The power generation system adopted in the body features an extremely small magnetic loss para toroidal core without seam, resulting in higher power generation efficiency. In addition, the improved high frequency response is achieved via two laminated cores. A separate shield plate in the center of the left and right power generation systems reduces electrical crosstalk.

● Cantilever pipe φ0.4mm sapphire.
- With the sapphire cantilever, there is no high-frequency resonance of the cantilever. Excellent frequency response is maintained across the entire band.

● Pure titanium housing.
- High precision machined pure titanium housing provides a strong foundation material for the internal generation system and assists in rock-solid playback.

● Neo-fade damping material mounted internally.
By incorporating the Neo-fade damping material mounted internally, unwanted parasitic resonance are adsorbed efficiently.

● High-performance Micro Linear stylus.
- Latest and most advanced design closely resembles the cutter stylus than any previous design. This shape produces better high frequency response with less wear or distortion than with earlier configurations. The contact tip does not change shape up to the brink of obliteration.

● PCOCC wire is used for the coil.
- A technologically advanced pure copper material is used in Audio-Technica's exclusive Para-toroidal Signal Generator. Together with the laminated core structure, which minimizes loss in the high frequency region, this integrated para-toroidal signal generator achieves an efficiency greater than conventional cartridges. The use of PCOCC wire (Pure Copper by Ohno Continuous Casting) perfects the performance of the advanced para-toroidal coil design. A special high-temperature extrusion die produces copper with virtually no transverse crystal barriers to impede signal transmission or color sound. The coils of the Audio-Technica AT150ANV thus transmit distortion-free sound up to its output posts. The most subtle details are reproduced with natural purity.

● Magnetic mold reduces unnecessary movement.
- The Magnetic mold, a hard synthetic resin material blended with potassium titanate for high strength and high rigidity, secures the magnet. This reduces unnecessary movement and results in for solid sound reproduction.

Audio-Technica AT150ANV Phono Cartridge Specifications
- Type: Moving Magnet VM Dual Magnet Stereo
- Frequency response: 10 ~ 23,000 Hz
- Output voltage: 4mV (1kHz, 5 cm/sec.)
- Channel separation: 30 dB (1kHz)
- Output balance: 0.8 dB (1kHz)
- Tracking force: 1.2 ~ 1.8 g (1.5 g standard)
- Coil impedance: 2.3 kΩ (1kHz)
- DC resistance: 530 ΩΩ
- Rec. load impedance: 47 kΩ
- Coil inductance: 350 mH (1kHz)
- Static compliance: 40 10-6 cm/dyne
- Dynamic compliance: 10 10-6 cm/dyne (100Hz)
- Stylus: Micro linear (ML)
- Cantilever: φ0.4 mm Sapphire pipe
- Vertical tracking angle: 23
- Dimensions: 17.3(H) 17(W) 28.2(D) mm
- Weight: 9.5 g
- Accessories: Driver 1, non-magnetic mounting screws 5mm 2,8 mm 2, Lead wires 4, washer 2, nut 2, 1 brush.

Note: Specifications are subject to change without notice

________________________________________________

Footnote 1: Michael Fremer, "Nine Cartridges Reviewed, Compared and File Identities Revealed!", Analog Planet, August 22, 2013. The venerable reviewer found the Audio-Technica AT150ANV cartridge to be a significant step above the rest, including the Ortofon 2M Black cartridge, particularly in terms of large dynamic swings. All things considered, the AT150ANV became his favorite and easily the best sounding. It's certainly the most exciting and vital sounding. The music just jumps from the grooves.

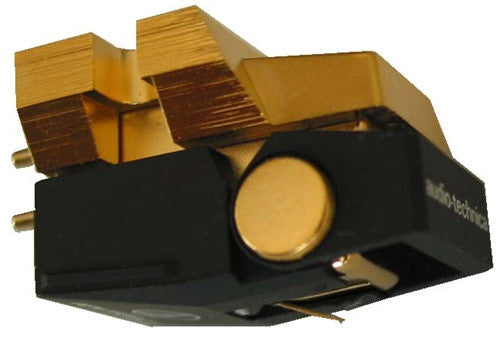

AUDIO-TECHNICA AT-150MLX AT 150MLX AT150MLX PHONO CARTRIDGE

The Audio-Technica AT150MLX reproduces subtle details faithfully, clearly, exquisitely. It is superbly accurate and musical. It lifts listening to a new level of articulation and enjoyment. This is really the characteristic that distinguishes the Audio-Technica AT150MLX phono cartridge.

"Everything points to the AT150MLX as the best moving magnet design."

- David A. Rich, The Sensible Sound, Issue 112, May/June 2007

Six technologies are harnessed to produce this extraordinary and highly accurate phono cartridge:
- Vector-Aligned phono cartridge: Patented by Audio-Technica, vector-aligned phono cartridges feature two magnetic generators arranged in the shape of a "V". These two magnets are positioned precisely to match the positions of the right and left channels in the stereo record groove. Major benefits of the Vector-Aligned cartridge include outstanding channel separation, very low distortion and superb tracking performance.

- Boron cantilever: Its tiny, gold plated boron cantilever provides an extremely rigid yet lightweight platform to which the stylus is mounted. The gold plating also acts to dampen the nano resonance that the boron may produce.

- MicroLine Stylus: The stylus used in the Audio-Technica AT150MLX is the latest and most advanced design. More closely resembling the cutter stylus than any previous design, this shape produces better high frequency response with less wear or distortion than with earlier configurations.

- PCOCC wire: A technologically advanced pure copper material is used in Audio-Technica's exclusive Paratoroidal Signal Generator. Together with the laminated core structure, which minimizes loss in the high frequency region, this integrated paratoriodal signal generator achieves an efficiency greater than conventional cartridges. The use of PCOCC wire (Pure Copper by Ohno Continuous Casting) perfects the performance of the advanced paratoroidal coil design. A special high-temperature extrusion die produces copper with virtually no transverse crystal barriers to impede signal transmission or color sound. Even the output terminals are constructed of PCOCC copper. The coils of the Audio-Technica AT150MLX thus transmit distortion-free sound up to its output posts. The most subtle details are reproduced with clarity and purity.

- Mu-metal shielding: A mu-metal shielding plate between the left and right channels in the generator system assure that the high level of channel separation achieved is preserved at the cartridge output.

- Anti-resonance ceramic mounting base: To further increase the accuracy of the AT150MLX's moving system, Audio-Technica engineers have ensured against unwanted parasitic vibration with an anti-resonance ceramic mounting base.

Audio-Technica AT150MLX Phono Cartridge Specifications
- Tonearm mount: 1/2 inch
- Type: Moving magnet
- Output voltage: 4mV
- Frequency response: 10Hz-30kHz
- Load impedance: 47k ohms
- Channel separation @ 1kHz/10kHz: 30/20dB
- Channel balance: 0.8dB
- Stylus construction: Nude square shank
- Stylus type: Microline
- Cantilever: Gold-plated boron
- Tracking force: 0.75-1.75 g
- Dynamic compliance (x 10-6 cm/dyne, 100 Hz): 10.0
- Recommended load capacitance: 100-200 pF
- Coil wiring: PCOCC
- Weight: 8.3 g
- Accessories included: User guide, mounting hardware
- Stylus replacement: Audio-Technica ATN150MLX
- Warranty: 1 year

Reviews & Resources
Audio-Technica AT150MLX Review - The Sensible Sound
Audio-Technica AT150MLX Owners Manual

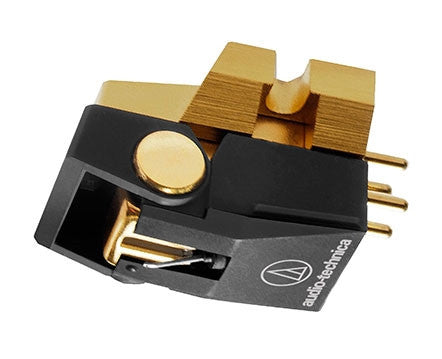

AUDIO-TECHNICA AT150SA AT-150SA AT 150SA PHONO CARTRIDGE

The AT150MLX and AT150ANV cartridges, progenitors of the new AT150SA, offer paths to exceptional accuracy and fidelity. Following in their footsteps, the AT150SA also grace its performance with sweet musicality. Featuring a Nude Shibata diamond tip, the AT150SA divines the grooves with a masterful arc of technique and affection. Compositions that connect.

Audio-Technica AT150SA Cartridge Specifications
- Type: Moving Magnet VM Dual Magnet Stereo
- Frequency response: 10 ~ 25,000 Hz
- Output voltage: 4.0 mV (1kHz, 5 cm/sec.)
- Channel separation: 30 dB (1kHz)
- Output balance: 1.0 dB (1kHz)
- Tracking force: 1.0 ~ 1.8 g (1.4 g standard)
- Coil impedance: 3.2 kΩ (1kHz)
- DC resistance: 800 Ω
- Rec. load impedance: 47 kΩ
- Coil inductance: 490 mH (1kHz)
- Static compliance: 40 10-6 cm/dyne
- Dynamic compliance: 10 10-6 cm/dyne (100Hz)
- Stylus: Solid Shibata
- Cantilever: Aluminum, taper pipe
- Vertical tracking angle: 23
- Dimensions: 17.3(H) 17.0(W) 28.2(D) mm
- Weight: 8.0 g
- Accessories: Non-magnetic driver 1, non-magnetic mounting screws 5mm 2,8 mm 2, PCOCC lead wires 4, washer 2, nut 2, Brush 1.

Note: Specifications are subject to change without notice.

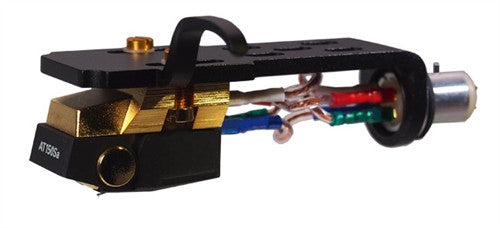

AUDIO-TECHNICA AT150SA CARTRIDGE PREMOUNT WITH HIGH DEFINITION HEADSHELL
- Audio-Technica AT150Sa cartridge premounted on world class HD Headshell

Audio-Technica AT150Sa with High Definition Headshell (HD) offers sterling sound quality and compatibility with turntables:
- LP Tunes High-Definition half-inch mount headshell
- Aerospace alloy for tensile strength and low resonance
- SOAR HD5 headshell wires for exceptional sound quality
- Aligned length 52 mm for use with many tonearms
- Alignment adjustable for extra precision and compatibility
- Free alignment protractor
- Total weight of 16.0g with Audio-Technica AT150Sa is suited to more turntables and their tonearms. There is no need to change the counterweight.

AT150Sa, AT150MLX, AT150ANV Vignette
The progenitors of the new AT150SA, the AT150MLX and AT150ANV cartridges offer exceptional accuracy and for the AT150ANV - supreme fidelity. Within their celestial universe, the AT150SA with its Nude Shibata stylus also administer delicacy. Graced with a Nude Shibata stylus on a tapered pipe aluminum cantilever, the AT150SA through technical expertise and artisanship lifts from the record grooves sublime music. Music you'll want to keep enjoying.

Audio-Technica AT150SA cartridge specifications
- Type: Moving Magnet VM Dual Magnet Stereo
- Frequency response: 10 ~ 25,000 Hz
- Output voltage: 4.0 mV (1kHz, 5 cm/sec.)
- Channel separation: 30 dB (1kHz)
- Output balance: 1.0 dB (1kHz)
- Tracking force: 1.0 ~ 1.8 g (1.4 g standard)
- Coil impedance: 3.2 kΩ (1kHz)
- DC resistance: 800 Ω
- Rec. load impedance: 47 kΩ
- Coil inductance: 490 mH (1kHz)
- Static compliance: 40 10-6 cm/dyne
- Dynamic compliance: 10 10-6 cm/dyne (100Hz)
- Stylus: Solid Shibata
- Cantilever: Aluminum, taper pipe
- Vertical tracking angle: 23
- Dimensions: 17.3(H) 17.0(W) 28.2(D) mm
- Weight: 8.0 g
- Accessories: Non-magnetic driver 1, non-magnetic mounting screws 5mm 2,8 mm 2, PCOCC lead wires 4, washer 2, nut 2, Brush 1.

Note: Specifications are subject to change without notice.

____________________________________

Music listening equipment: Graham Slee Reflex M phono preamp, Graham Slee Elevator EXP headamp, Denon AU-300LC Step-up transformer, Graham Slee Proprius mono amps, Odsssey Kismet Reference Amp, Quicksilver Silver 88 mono amps, Roadrunner Digital Turntable Tachometer, Sota Sapphire turntable, Audience SE Phono Cable, Audience Ohno speaker cables, Rogers LS3/5A speakers, Audience ClairAudient 1+1 Loudspeakers, Krell LAT 2 speakers, Yamaha NS1000M speakers, LP Tunes CF3600LE cartridge, Ortofon 2M Red cartridge, Ortofon 2M Blue cartridge, Ortofon 2M Bronze cartridge, Ortofon 2M Black cartridge, Rega Carbon cartridge, Supex SD 901 Super cartridge, Denon DL-103 cartridge, Denon DL-110 cartridge, Grace F-9E cartridge.

AUDIO-TECHNICA AT-300P AT 300P AT300P PHONO CARTRIDGE

World-class quality construction, alloy tube cantilever and a highly polished conical diamond tip are hallmarks of the Audio-Technica AT300P phono cartridge. Now, you can upgrade the performance of your turntable and hear music and voice with improved clarity and detail by simply replacing the original cartridge installed in your turntable.

Audio-Technica AT300P Phono Cartridge Specifications
- Output voltage @ 1kHz,5cm/sec: 5mV
- Channel balance: 1.5dB
- Channel separation @ 1kHz/10kHz: 26/16dB
- Frequency response: 20Hz-22kHz
- Stylus type: Conical
- Stylus construction: Bonded
- Cantilever construction: Alloy tube
- Tracking force range: 1 - 1.5 g
- Recommended load resistance: 47k ohms
- Color: Black/White
- Mounting: P-mount with a separate adapter for 1/2 inch mount

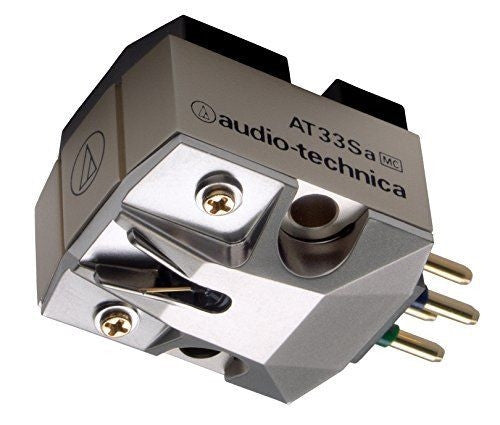

AUDIO-TECHNICA AT33SA AT-33SA PHONO CARTRIDGE

The New Audio-Technica AT33Sa - irresistible sound quality! The AT33sa features the highly acclaimed Shibata stylus. The Shibata stylus produces richly detailed, harmonically melodious and organic sound quality across the frequency spectrum. To extend performance even further, it is mounted on a boron cantilever with a double damper.

● Advanced tapered boron cantilever and reduced weight
The AT33Sa uses a tapered boron cantilever. Tapering the cantilever and revising the number of coil rotations reduce the weight, giving the cartridge better high range performance and wide range reproduction.

● Neodymium magnet with dramatically enhanced magnetic energy and permendur yoke
The model uses a neodymium magnet with maximum energy product BHmax of 50 [kJ/m3] and a permendur yoke with high saturation flux density and outstanding magnetic properties, which further enhances the concentrated magnetic field of the coil gap.

● PCOCC coil
The PCOCC coil enables purer transmission because it is not subject to grain boundaries in the direction of transmission. *PCOCC = Pure Copper by Ohno Continuous Casting process (Monocrystalline high-purity oxygen- free copper)

● High-separation, wide response dual moving coil
The basic structure is an original MC type, with separate cylindrical coils to the left and right channels. Since power is generated independently in each of the left and right channels, this structure offers truly superior separation. If the signal from the opposite channel escapes, this can cause intermodulation distortion and have a decisive impact on audio quality and how the stereo sound spreads. The structure of this product ensures a clear and smooth sound. Additionally, the two coils have a reverse-V shape which reduces effective moving mass as seen from the stylus tip, limiting unnecessary movement of the coil and further eliminating distortion.

● VC mold limits unnecessary vibration
The VC mold that affixes the coils is made with hard synthetic resin containing potassium titanate to make it highly strong and rigid. This improvement results in a lighter product, which reduces unnecessary vibration. ● Highly rigid body suppresses resonance
The cartridge's housing is made of precision-cast hard aluminum alloy. Hard synthetic resin sandwiching in the structure on the top and bottom suppresses parasitic resonance. This minimizes unnecessary noise while enhancing rigidity and the signal-to-ratio.

Audio-Technica AT33SA Specifications
- Type: Moving Coil VM Dual Magnet Stereo
- Playback frequency range: 15 ~ 50,000 Hz
- Output voltage: 0.4 mV (1kHz, 5 cm/sec.)
- Channel separation: 30 dB (1kHz)
- Output balance: 0.5 dB (1kHz)
- Tracking force: 1.8 ~ 2.2 g (2.0 g standard)
- Coil impedance: 10 Ω (1kHz)
- DC resistance: 10 Ω
- Rec. load impedance: 100 Ω or more (when head amplifier connected)
- Coil inductance: 22 μH (1kHz)
- Static compliance: 40 40-6 cm/dyne
- Dynamic compliance: 10 10-6 cm/dyne (100Hz)
- Stylus: Shibata
- Cantilever: Boron solid taper
- Vertical tracking angle: 23
- Dimensions: 16(H) 16.6(W) 26.5(D) mm
- Weight: 6.9 g
- Accessories: non-magnetic driver 1, washer 2, Protector 1, Cartridge mounting screws 13mm 2,19 mm 2, Nut 2, Brush 1, PCOCC lead set 1.

Note: Specifications are subject to change without notice.

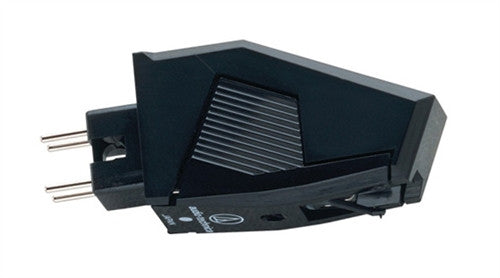

AUDIO-TECHNICA AT-3482P AT 3482P AT3482P P-MOUNT T4P CARTRIDGE

The Audio-Technica AT3482P phono cartridge is Audio-Technica's versatile entry-level cartridge for P-mount T4P turntables. It easily surpasses original equipment and generic cartridges in delivering sheer musical enjoyment.

Audio Technica AT3482P Phono Cartridge Specifications
- Output voltage: 5mV
- Frequency response: 20Hz-20kHz
- Channel balance: 1.5dB
- Channel separation @ 1kHz/10kHz: 24/15dB
- Stylus type: Conical
- Stylus construction: Bonded round shank
- Cantilever construction: Carbon fiber

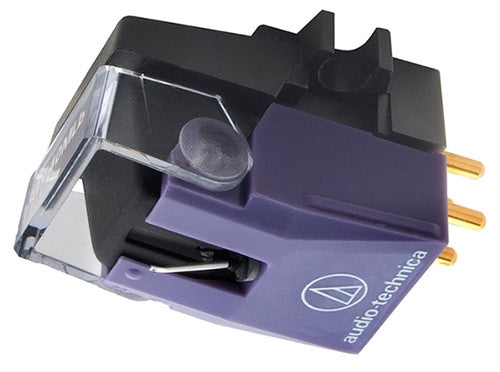

AUDIO-TECHNICA AT-440MLB AT 440MLB AT440MLB PHONO CARTRIDGE
- With improved stylus damper and contacts

With its improved stylus mechanicals, advanced generator, and Microline stylus, the very latest model of this highly regarded and multi-awarded moving magnet cartridge continues to offer top rate performance.

Audio-Technica AT440MLb Phono Cartridge Specifications
- Output voltage @ 1kHz,5cm/sec.: 4mV
- Channel balance @ 1kHz: 1.0dB
- Channel separation @ 1kHz: 28dB
- Frequency response: 20Hz-25kHz
- Dynamic compliance (x10-6 cm/dyne): 10
- Static compliance (x10-6 cm/dyne): 40
- Stylus type: 0.12 mil nude square micro-linear
- Cantilever: Aluminum tube
- Tracking force range: 1.0 - 1.8 g
- Tracking force recommended: 1.4 g (14 mN)
- Vertical tracking angle: 20
- Coil impedance @ 1kHz: 3.2k ohm
- Coil inductance @ 1kHz: 490 mH
- Load Capacitance: 100 - 200 pF
- Recommended load resistance: 47k ohms
- Color: Black/Violet
- Weight: 6.5 g
- Dimensions (mm): H17.3 x W16 x D28.2
- Stylus replacement: Audio-Technica ATN440MLb
- Accessories included: Screwdriver, screws, nuts, headshell wires

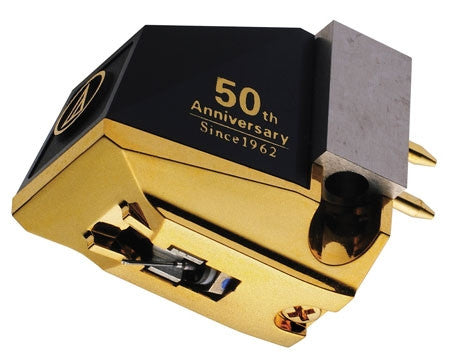

AUDIO-TECHNICA AT-50ANV AT50ANV LIMITED EDITION MC PHONO CARTRIDGE
- Conveys with unequalled purity thousands and more of harmonic notes and blank spaces

Audio-Technica has been renowned for its phono cartridges for 50 years, and the moving-coil AT50ANV exemplifies the company's distinguished excellence. The unequalled limited-edition AT50ANV has a unique air-core design that employs a non-magnetic armature for the coil frame, yielding exquisite resolution, fine musical detail and a natural, transparent, full-bodied sound quality - reproducing with purity a thousand and more harmonic notes and blank spaces so honestly glorious it connects our ears with our soul and brain. Its new magnetic proprietary circuit design and neodymium magnets deliver almost twice the output of previous cartridges for extremely low noise and improved bass response.

● Non magnetic core MC type developed as a 50th anniversary commemorative model uses a newly developed pure titanium non magnetic armature as the coil winding frame. This provides organically natural and clear sound quality and ability to express three-dimensional sound fields.

● Newly designed magnetic circuit that maximizes magnetic energy. The permendur magnetic circuit parts located around the magnet have also been newly designed to maximize the strength of the intensive magnetic field in the coil gap. This magnetic circuit increases the output voltage, and also enhances playback capability in the medium to low-frequency range.

● Special line contact stylus with tip curvature radii of 40μm 7μm and solid boron cantilever with a 0.26 mm diameter. They enable exact transfer of music signals read by the stylus tip to the magneto coil.

● Machined pure titanium base that supports the magnetic circuit and vibration system is made of precisely machined pure titanium materials. This serves as a solid base to frame a stable and wide soundstage and playback capability.

● Hybrid body that reduces unnecessary parasitic resonance. The housing is made of machined aluminum materials and the cover is made of hard plastic materials. Together they dissipate parasitic resonances that smear and create spurious harmonics. With virtually minimal resonance, you'll experience see through clarity, musical air and optimal sound quality.

● Quad hybrid lead wires with a balanced blend of gold clad, 7N-OFC, PCOCC and OFC are used in pursuit of the ideal balance with the main cartridge unit.

Audio-Technica AT50ANV Specifications
- Type: Non Magnetic Core MC
- Frequency response: 15 ~ 50,000 Hz
- Output voltage: 0.12 mV (1kHz, 3.54 cm/sec.)
- Channel separation: 30 dB (1kHz)
- Output balance: 0.5 dB (1kHz)
- Tracking force: 1.6 ~ 2.0 g (1.8 g standard)
- Coil impedance: 11.5 Ω (1kHz)
- DC resistance: 11.5 ΩΩ
- Rec. load impedance: Min. 100 Ω (when head amplifier connected)
- Coil inductance: 7 μH (1kHz)
- Static compliance: 35 10-6 cm/dyne
- Dynamic compliance: 10 10-6 cm/dyne (100Hz)
- Stylus: Special line contact stylus
- Cantilever: Diameter 0.26mm solid boron
- Vertical tracking angle: 23
- Dimensions: 17.3(H) 17(W) 25.6(L) mm
- Weight: 10.0 g
- Accessories: Driver 1 non-magnetic material, washer 2, protector 1, cartridge mounting screws (12mm 2,18 mm 2), nut 2, brush 1, line set quattro hybrid AT6106 1.

Note: Specifications are subject to change without notice.

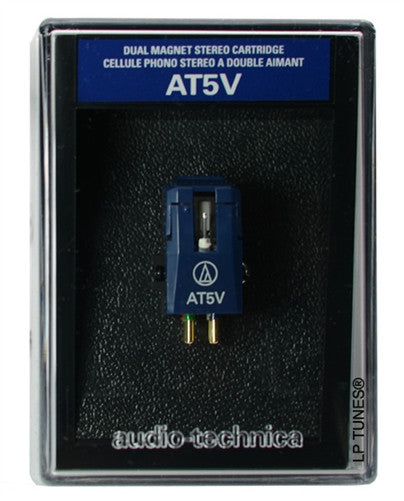

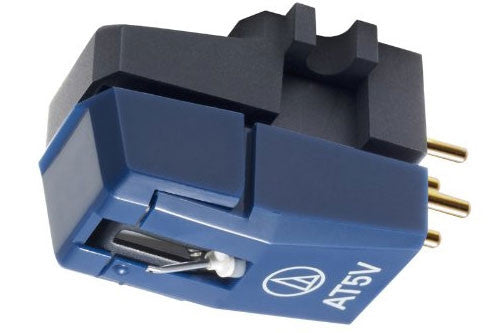

AUDIO-TECHNICA AT5V CARTRIDGE
-Rediscover how good your records really sound.

Fresh from the innovative Audio-Technica phono cartridge design team in Japan that produced world-class leading, technologically advanced and sound bending cartridges like the AT150ANV and AT50ANV, the Audio Technica AT5V phono cartridge is designed for rich musical expressiveness and very high fidelity. It reproduces the raw artistry and natural sound quality in the recorded grooves. Rediscover how good your records really sound.

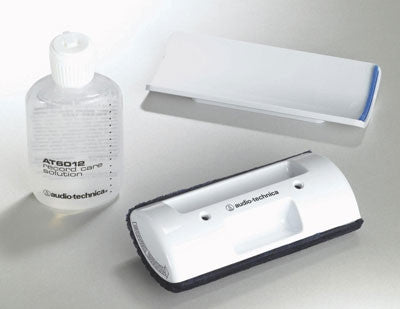

AUDIO-TECHNICA AT6012 RECORD CARE KIT FROM JAPAN

The AT6012 record care kit is very effective in many ways: One application improves tracking, fidelity of your record, musical accuracy of playback, and reduces cartridge stylus wear. The scientific formula of the AT6012 record care solution gently removes microdust and other contaminants, dissolves fingerprints and eliminates static electricity.

The ultra high quality Sonic Broom cleaning pad reaches into the record grooves. The inner reservoir within the Sonic Broom is designed to direct the AT6012 record care solution into the brush pad's leading edge. Ingenious!

Note: The AT6012 has been discontinued, and quantities are now limited.

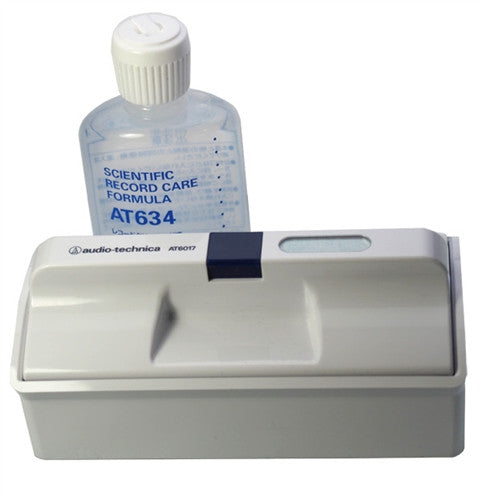

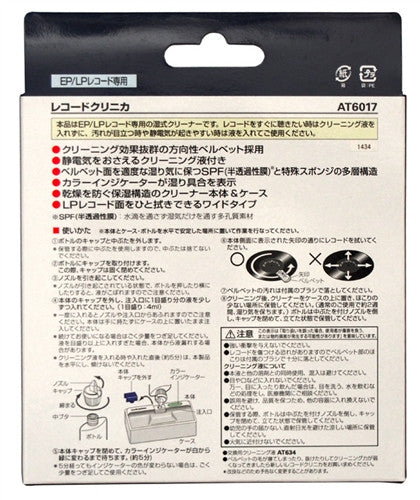

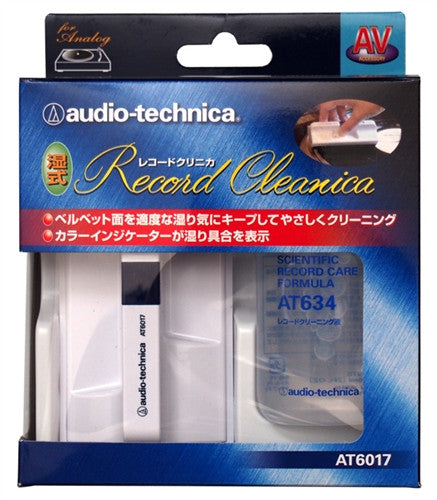

NEW AUDIO-TECHNICA AT6017 RECORD CLEANER FROM JAPAN

The AT6017 is a compact, well-designed and thoroughly engineered cleaning system for your LPs. It is peerless when compared to similar packages. The velvet material is directional for excellent cleaning. It has a wide body for quick and easy cleaning. The cleaning solution also reduces static electricity. There is a moisturizing structure and a color indicator for wetness. The body and case are designed to prevent drying. A brush is also included to clean the velvet material. As we said, nothing else compares.

Audio-Technica AT6017 Record Cleaner Features
● Direction of velvet designed for excellent cleaning results
● Wide body for easy cleaning of LP record
● Cleaning solution reduces static electricity
● Velvet face is kept moderately moist through SPF (semi permeable membrane)* and a special sponge multilayer structure
● Color indicator for wetness
● Cleaner body and case moisturizing structure to prevent drying.
* This is a porous material that allows moisture only to permeate without passing through water droplets.

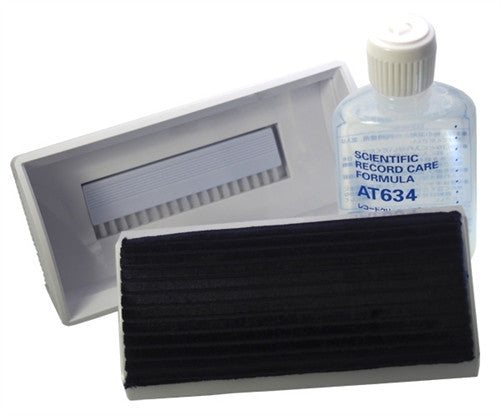

Contents: Body x 1, case x 1, brush x 1, cleaning solution (60ml) x 1

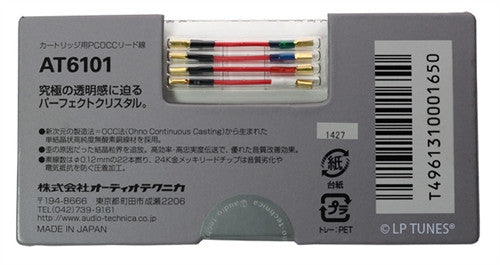

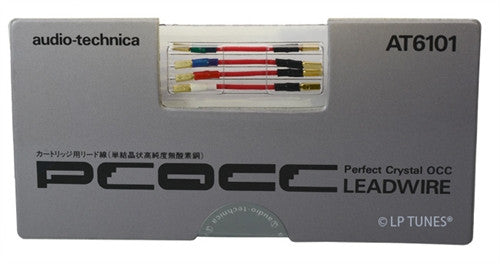

AUDIO-TECHNICA AT6101 HEADSHELL LEAD WIRES 4-PC SET
- Supreme Quality Cartridge to headshell PCOCC¹ lead wires

The first thing that electrically connects to the cartridge are the headshell lead wires hence their critical importance in the audio chain.

The Audio-Technica AT6101 lead wires are designed to transfer the millivolt output from the cartridge in one single crystal, without signal loss or distortion to sound as clearly and harmonically accurate as the cartridge itself.

Set of four supreme quality colored lead wires:
○ Perfect Crystal OCC quad wire
○ 0.12 mm x 22 mm core strand construction
○ 24K gold plated crimped lead tip
○ 1.4 inches (~ 35.6 mm) total length
○ Made in Japan

_________________________________
¹ PCOCC: Pure Copper by Ohno Continuous Casting process (single-crystal-like high purity oxygen-free copper)

AUDIO-TECHNICA AT615 PRECISION LEVEL FROM JAPAN

With the Audio-Technica AT615 you can level turntables, CD, DVD and Blu-ray players and equipment racks. It is important to level for rotational speed consistency and tracing accuracy.

Housed in a 36 mm diameter polished machined aluminum cylinder, the AT615 spirit level is both accurate and very easy to use. Place it on the center and four corners and level each shelve. Then level the equipment.

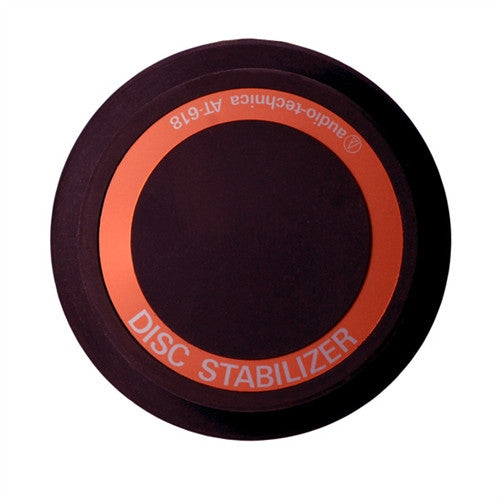

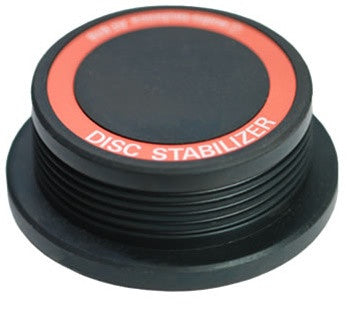

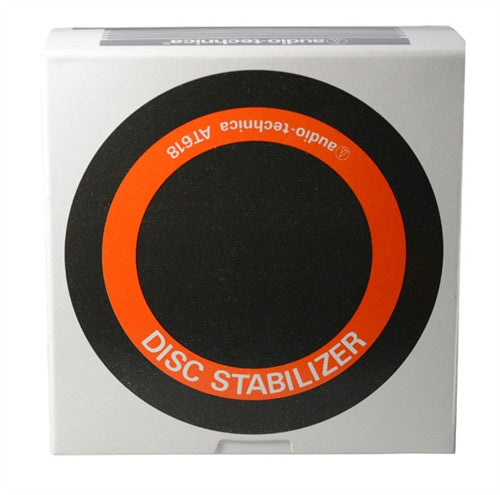

AUDIO-TECHNICA AT618 RECORD WEIGHT CLAMP DISC STABILIZER

The Audio Technica AT618 Non-resonant Record Weight Clamp Disc Stabilizer is a very useful accessory for music listeners, audio enthusiasts, and DJ's who require higher fidelity sound quality and extractive performance from their records. The AT618 stabilizer's specially inert material dampens resonance as it sits on top of the record over the turntable spindle and applies 600 grams of weight, holding the record firmly in place while stabilizing the record and improving overall sound quality. This is especially useful when playing records where bass vibration or resonance is an issue, when playing a slightly warped record or when recording your vinyl into your computer and you need a cleaner sound.

Proven in use for over four decades in audiophile turntable systems, the Audio-Technica AT618 stabilizer has in recent years been rediscovered by respected vinyl loving DJs like James Murphy (LCD Soundsystem), Prins Thomas and Jacques Renault. The Audio-Technica AT618 stabilizer covers your labels if you're concerned with people who can successfully identify obscure music a DJ plays (trainspotters). It works wonders on those records that are slightly warped.

The Audio Technica AT618 is recommended for use with high torque turntables with firm platter suspension. It will not work well with turntables that have soft suspension and weak drive systems.

Audio-Technica AT618 Non-Resonant Disc Stabilizer Specifications
- Top cylinder: 66.3 mm (2.6 inches) diameter
- Height from top to bottom: 30.6 mm (1.2 inches)
- Bottom cylinder: 80 mm (3.2 inches) diameter
- Weight: 600 g (1.3 lbs.)
- Made in Japan
