audio-technica

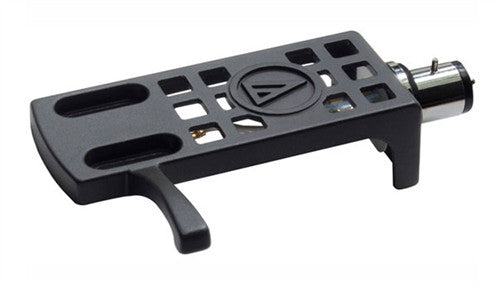

AUDIO-TECHNICA AT-HS10 BK HEADSHELL
~ AT-HS10 headshell in black

Designed for performance, the Audio-Technica ATHS10 headshell looks good too with its ridged pattern. Its aluminum die-cast body reduces vibration. The shape and design of the HS10, coupled with its lightweight construction, ensure vibraton is kept to a bare minimum.

Audio-Technica AT-HS10 Features
- 10.0 g weight for compatibility with many tonearms
- Aluminum die-cast ridged design for light weight
- Gold-plated lead wires for lossless signal transmission
- Excellent finger lift for precise lowering of stylus

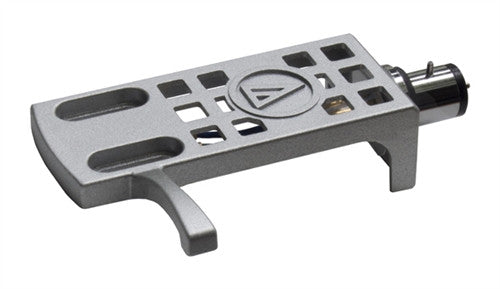

AUDIO-TECHNICA AT-HS10 SV HEADSHELL
~ AT-HS10 headshell in silver

Designed for performance, the Audio-Technica ATHS10 headshell looks good too with its ridged pattern. Its aluminum die-cast body reduces vibration. The shape and design of the HS10, coupled with its lightweight construction, ensure vibraton is kept to a bare minimum.

Audio-Technica AT-HS10 Features
- 10.0 g weight for compatibility with many tonearms
- Aluminum die-cast ridged design for light weight
- Gold-plated lead wires for lossless signal transmission
- Excellent finger lift for precise lowering of stylus

The Audio-Technica ATHW5000 AT-HW5000 headphones are considered to possess many superlatives: the most musically accurate headphones, superlative construction and superlative comfort. The ATHW5000 AT-HW5000 AT HW5000 headphones are afterall the best headphones Audio-Technica crafts. And thus when you listen with these headphones, you will hear how the recording artists wanted their music to sound.

Audio-Technica ATH-W5000 headphones have:

• Striped ebony housing that provides unparalleled acoustical characteristics
• Ear pads cushioned in leather feature Audio-Technica's ultra-comfortable total ear fitting design
• 53 mm drivers (equipped with neodymium magnet systems) designed exclusively for the ATH-W5000
• Driver unit that incorporates a Permendur magnetic circuit with exceptional magnetic characteristics
• High-quality 8N-OFC (oxygen free copper) voice coils for ultra-efficient signal transfer
• Lightweight magnesium alloy frame
• Double Air Damping System for deep bass reproduction
• 3D Wing Support provides stable, comfortable fit
• Y-cable features an elastomer sheath that helps prevent tangles
• Padded, protective hard-shell case for safe, convenient storage
• Gold-plated (6.3 mm) stereo connector provides exceptional corrosion resistance, superb conductivity, low noise

For those committed to audio excellence, here are headphones that are truly exceptional in every way.

Audio-Technica ATH-W5000 Headphones Specifications
Type	Closed-back Dynamic, Double Air Damping System
Driver Diamter	53 mm
Magnet	Neodymium
Voice Coil	OFC8N bobbin-wound voice coil Permendeur magnetic circuit
Frequency Response	5 - 45,000
Maximum Input Power	2,000 mw
Sensitivity	102 dB/mW
Impedence	40 ohms
Weight	340 g (without cord)
Cable	Elastomer sheath/OFC6N + Hi-OFC 3.0 m dual sided 4-core parellel cable
Connector	Standard 1/4" (6.3 mm) gold plated stereo plug
Accessries Included	Hard case; cable storage bag

These are customer returns that were tested and repackaged by Audio-Technica USA. They have the same as new performance at a reduced price. Available while supplies last.

The Audio-Technica ATHW5000 headphones are considered to possess many superlatives: the most musically accurate headphones, superlative construction and superlative comfort. The ATHW5000 headphones are afterall the best headphones Audio-Technica crafts. And thus when you listen with these headphones, you will hear how the recording artists wanted their music to sound.

Audio-Technica ATH-W5000 Headphones Specifications
Type	Closed-back Dynamic, Double Air Damping System
Driver Diamter	53 mm
Magnet	Neodymium
Voice Coil	OFC8N bobbin-wound voice coil Permendeur magnetic circuit
Frequency Response	5 - 45,000
Maximum Input Power	2,000 mw
Sensitivity	102 dB/mW
Impedence	40 ohms
Weight	340 g (without cord)
Cable	Elastomer sheath/OFC6N + Hi-OFC 3.0 m dual sided 4-core parellel cable
Connector	Standard 1/4" (6.3 mm) gold plated stereo plug

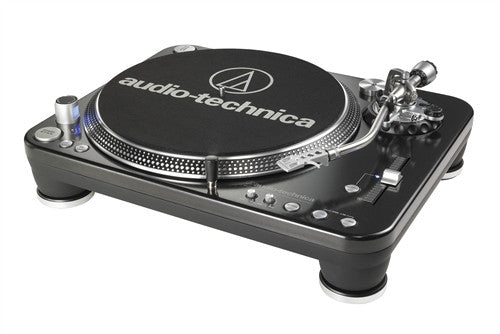

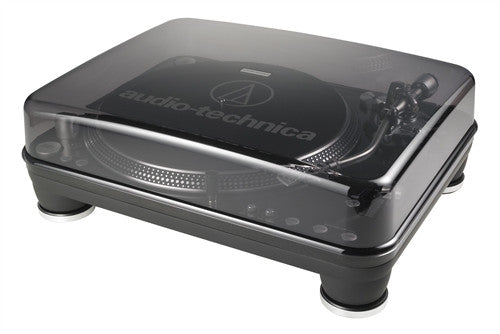

.: AUDIO-TECHNICA AT-LP240-USB DIRECT DRIVE TURNTABLE W/ USB & ANALOG OUTPUT :.

Built to deliver very high sound quality, the Audio-Technica AT-LP240-USB turntable utilizes a direct-drive high-torque 16-pole brushless DC motor for unwavering speed stability, and features a S-shaped tone arm with adjustable tracking force and anti-skate, removable cartridge mount, and a damped cast-aluminum platter with a felt slip mat. The turntables USB output allows direct connection to a computer without any special drivers, making it easy to transfer records to digital music files that can be played back on a portable audio device.

The Audio-Technica AT-LP240-USB plays back 33-1/3, 45 and 78 RPM records. Its built-in phono preamp enables the turntable to be connected to a wide variety of music and home entertainment systems, powered speakers, and to A/V receivers that do not include a dedicated phono preamp input. The turntable includes PC- and Mac-compatible Audacity software that converts the audio on a record to MP3, WAV or other format digital audio files.

.: Features
USB outputno special drivers required for direct connection to your computer
Direct drive high-torque multi-pole motor
Selectable 33/45/78 RPM speeds
Selectable internal stereo phono pre-amplifier
S-shaped tone arm assembly with:
Adjustable counterweight
Anti-skate adjustment
Tone arm height adjustment and lock
Tone arm lift with hydraulic action and lift lever
Tone arm rest with locking mechanism
Stroboscopic platter and speed accuracy indicator
Damped cast aluminum record platter with slip mat
Start/stop button
Removable stylus target light
45-RPM adapter
Adjustable feet for leveling
Removable dust cover
Dedicated ground lug for tone arm grounding

.: Details
Drive Method: Direct Drive Direct drive
Type: 3-speed, fully manual operation
Motor 16-pole, 3-phase, brushless DC motor
Speeds: 33-1/3 RPM, 45 RPM, 78 RPM
Turntable Platter: 332 mm dia. die-cast aluminum
Starting Torque: >4.5 kgf.cm
Braking System: Electronic brake
Wow and Flutter: < 0.1% WRMS (JIS WTD) with 33 RPM
Signal-to-Noise Ratio: > 55 dB (DIN-B)
Output Level Pre-amp: "PHONO": 2.5 mV nominal at 1 kHz, 5 cm/sec (HP-4005)
RIAA: 20-20kHz, +1/-3dB (In: 1.5mV 1kHz)
Pre-amp "LINE": 150 mV nominal at 1 kHz, 5 cm/sec (HP-4005)
USB Function: A/D, D/A - 16 bit 44.1 kHz or 48 kHz USB selectable;
Computer interface: USB 1.1 Compliant Windows XP or above or MAC OSX or above
Tone arm type: Static balanced S-shaped tone arm with detachable headshell
Effective arm length: 230 mm
Overhang: 15 mm
Height of tone arm adjustment range: 0-6 mm
Tracking error angle: Less than 3 degrees
Power Supply Requirements: 120V AC, 60 Hz
Power Consumption: 11W
Dimensions: 450.0 mm (17.72") W x 353.0 mm (13.90") D x 166.5 mm (6.56") H
Weight: 12.2 kg (26.9 lbs.)
Accessories Included: Slip mat; dust cover; platter; 45 RPM adapter; counterweight; headshell; power cord; USB cable; dual RCA (female) to 1/8" (3.5 mm) mini-plug (male) stereo adapter cable; dual RCA (female) to 1/8" (3.5 mm) mini-plug (female) stereo adapter cable; dual RCA (male) cable with integrated ground wire; stylus target light; Audacity software (CD)

AUDIO-TECHNICA  AT-LP2D   AT LP2D   ATLP2D TURNTABLE BELT REPLACEMENT

The AUDIO-TECHNICA AT-LP2D turntable belt replacement is designed for higher torque, smooth rotational speed, and reduced resonance transmissions into the platter.

If you are unsure if this is the correct belt, please use our free belt matching service here

For upgrades and enhancements to sound quality and fidelity please refer to the Related Products below.

AUDIO-TECHNICA AT-LP2D  AT LP2D   ATLP2D TURNTABLE BELT REPLACEMENT

The AUDIO-TECHNICA AT-LP2D USBB turntable belt replacement is designed for higher torque, smooth rotational speed, and reduced resonance transmissions into the platter.

If you are unsure if this is the correct belt, please use our free belt matching service here

For upgrades and enhancements to sound quality and fidelity please refer to the Related Products below.

Audio-Technica AT-LP2D-USB Turntable Recording System Improved by LP Tunes

With the new Audio-Technica ATLP2DUSB recording system, Audio-Technica and LP Tunes have made it much easier to digitize your records and LPs and make your recordings sound great. Youll find everything you need to transfer LPs to digital files in a single box: Audio-Technicas ATPL2DUSB stereo turntable equipped with a USB output for direct connection to your computer, a built-in switchable phono preamp, recording software - Cakewalk PYRO for PC and Audacity for MAC or PC; an audiophile-quality phono cartridge; and a USB cable and adapter cables.

Audio-Technica ATLP2DUSB Turntable Specifications

• USB output: Connects directly to computer for plug and play use
• Type: 2-speed, fully manual operation
• Speeds: 33-1/3 RPM, 45 RPM
• Turntable platter: Professional aluminum for solid weight and rotational stability
• Cartridge: Integral audiophile Dual Magnet stereo with replaceable stylus
• Tonearm: Dynamic balanced with soft damping control
• Dust cover: Removable
• Accessories included: USB cable, Dual RCA (female) to 1/8 inch mini plug (male) stereo adapter cable, Dual RCA (female) to 1/8 inch mini plug (female) stereo adapter cable, Cakewalk PYRO software,Audacity recording software

Improved Parts Provided by LP Tunes for FREE ($50.00 value)

• A new LP Tunes ATN3600DLX stylus (retail value $29.00) for customer to replace the factory installed stylus. The ATN3600DLX uses an aluminum cantilever which enables the stylus to have a firmer grip on record grooves thus resulting in better tonality, spatial detail and crystal clean sound. (Optional 78 RPM stylus is available. See Related Items below.)
• A better belt (retail value $19.95). Our ViVid replacement belt provides better torque and longevity. With the use of these improved parts you'll be playing records and recording at higher fidelity which then results in digitized material that is closer to the original with sound quality that you can enjoy listening to.

Cakewalk PYRO

• Create MP3, WAV, and WMA files and much more
• Remove clicks, pops, and crackles from noisy LPs with DeClicker
• Clean hiss, hum, and other annoyances from LPs with DeNoiser
• Design full-color CD labels and jewel case inserts

Audacity Recording Software

• Converts records and tapes into digital recordings or CDs
• Change the speed or pitch of recording...to record your 33 1/3 RPM records into Audacity at 45 rpm so you can transfer them more quickly, or you can record 78 RPM records at either 33 1/3 RPM or 45 RPM (even though the turntable does not offer 78 rpm).

Cables

• USB cable
• Dual RCA (female) to 1/8" (3.5 mm) mini-plug (male) stereo adapter cable

System Requirements

• PC or Mac with an available USB port (USB1.1 or higher)
• CD-R or CD-RW writer for burning CDs and installation
• Audacity: For PC and Mac users. (Mac: OS X 10.1 or later; PC: Windows 98 and above)
• Cakewalk PYRO:PC running Windows 2000/XP; 1 GB free disk space

Please note: PYRO is not compatible with Mac or Apple-based computers, or with Windows 98/98SE/Me/95 or NT or Vista

Resources
AT-PL2D-USB Manual
AT-LP2D-USB Software Manual

AUDIO-TECHNICA AT-LP60 AT LP60 ATPL60 TURNTABLE BELT - SUPER VIVID

The LP Tunes Super Vivid AT-LP60 USB turntable belt™ is made from a material far superior to that found in typical belts, providing a great latitude to seriously enhance the performance of your turntable. The acoustical performance increase derives from higher torque, consistently smooth rotational speed, longevity, and reduced resonance transmitted into the platter. Speed accuracy: 33.3 RPM ± 0.25%.

Note: After installation, please allow the Super Vivid belt to settle by playing it for 15 minutes. During this process, it may fluctuate and cause the pitch to warble.

AUDIO-TECHNICA AT-LP60 USB AT LP60 USB ATPL60 USB TURNTABLE BELT

The LP Tunes Super Vivid AT-LP60USB belt™ is made from a material far superior to that found in typical belts, providing a great latitude to seriously enhance the performance of your turntable. The acoustical performance increase derives from higher torque, consistently smooth rotational speed, longevity, and reduced resonance transmitted into the platter. Speed accuracy: 33.3 RPM ± 0.25%.

Note: After installation, please allow the Super Vivid belt to settle by playing it for 15 minutes. During this process, it may fluctuate and cause the pitch to warble.

AUDIO-TECHNICA AT-MONO3/LP AT MONO3/LP ATMONO3/LP CARTRIDGE - MC MONO
- True mono cartridge for true mono fidelity

Mono True Cartridge
The AT-MONO3/LP is a true mono cartridge - one of a select few in the world! A true mono cartridge is designed, wired and built only to retrieve signals from the record grooves in the horizontal plane. The groove of a monaural recording is modulated only in the horizontal plane. Stereo recordings, on the other hand, are cut into the vinyl at a forty-five degree angle with a separate channel of information on each of the grove walls, thus requiring the stylus to pick up signals in both the horizontal and vertical plane. As a stereo cartridge sums the channels internally, it picks up noise from the vertical plane of the record grooves. Interestingly, in a mono record much of the surface noise is in the vertical plane, so avoiding this plane is beneficial. By not even picking up or amplifying this information you eliminate a lot of the noise from mono records that you hear when played back through a stereo cartridge.

High Output Moving Coil Mono Cartridge
The Audio Technica AT-MONO3/LP cartridge a joy to hear. A high output moving coil cartridge of excellent production quality and wound with PCOCC coil for signal purity, it is designed to deliver excellent fidelity and superb clarity when playing monaural (mono) records. With its high output of 1.2mV, it can be used without additional pre-preamplification or a MC transformer in the signal path.

Our listening experience with this fine specimen of monophonic reproduction has been left us with a deeper appreciation and enjoyment of mono recordings. The Audio Technica AT-MONO3/LP capably renders the detail, sound stage, harmonic layering, dynamic contrast, low frequency response and musical verity that seemed lacking or constrained in others. Maybe it's because it's a Moving Coil mono cartridge? It's a distinction that is well-founded - along with its superior design and execution.

Proven in use for many years in Japan, the Audio-Technica AT-MONO3/LP cartridge in now available in the U.S. It brings back the pure joy of discovery and listening pleasure for mono record playing.

Audio-Technica AT-MONO3/LP Cartridge Specifications
- Tonearm mount: 1/2 inch
- Type: Moving coil, mono cartridge
- Frequency response: 20Hz-20kHz
- Output voltage @ 1kHz,5cm/sec: 1.2mV
- Tracking force: 1.25-2.5 g
- Recommended load: 40k - 47k ohms (determine best value by listening)
- Cantilever: Aluminum alloy
- Stylus type: Conical
- Dynamic compliance: 7 x 10-6 cm/dyne
- Static compliance: 20 x 10-6 cm/dyne
- Dimensions (mm): L26.5 x W16.6 x H16
- Weight: 6.8 g
- Accessories included: Screwdriver, screws, washers, nuts, spacer/weight, stylus brush

AUDIO-TECHNICA AT-MONO3/SP AT MONO3/SP ATMONO3/SP CARTRIDGE - MC 78RPM MONO
- True mono 78RPM cartridge for true mono fidelity

Mono True 78 RPM Cartridge
The AT-MONO3/SP is a true mono 78 RPM cartridge - one of a select few in the world! A true mono cartridge is designed, wired and built only to retrieve signals from the record grooves in the horizontal plane. The groove of a monaural recording is modulated only in the horizontal plane. Stereo recordings, on the other hand, are cut into the vinyl at a forty-five degree angle with a separate channel of information on each of the grove walls, thus requiring the stylus to pick up signals in both the horizontal and vertical plane. As a stereo cartridge sums the channels internally, it picks up noise from the vertical plane of the record grooves. Interestingly, in a mono record much of the surface noise is in the vertical plane, so avoiding this plane is beneficial. By not even picking up or amplifying this information you eliminate a lot of the noise from mono records that you hear when played back through a stereo cartridge.

High Output Moving Coil Mono Cartridge
The Audio Technica AT-MONO3/SP cartridge is special. A high output moving coil cartridge of excellent production quality and wound with PCOCC coil for signal purity, it is designed to deliver excellent fidelity and superb clarity when playing 78 RPM mono records. With its high output of 1.2mV, it can be used without additional pre-preamplification or a MC transformer.

As a Moving Coil mono cartridge of superior design and execution, the AT-MONO3/SP offers a listening experience that is close to musical truth with the detail, high frequency extension, sound stage, harmonic layering, and low frequency response that make other cartridges seem flat and constricted.

Proven in use for many years in Japan, the Audio-Technica AT-MONO3/SP 78 RPM cartridge in now available in the U.S. It brings back the pure joy of discovery and listening pleasure for 78 record playing.

Audio-Technica AT-MONO3/SP Cartridge Specifications
- Tonearm mount: 1/2 inch
- Type: Moving coil, mono 78 RPM mono cartridge
- Frequency response: 45Hz-7kHz¹
- Output voltage @ 1kHz,5cm/sec: 1.2mV
- Tracking force: 3 - 7 g (5 g standard)
- Recommended load: 40 ohms - 47K ohms (determine best value by listening)
- Cantilever: Aluminum alloy
- Stylus: Highly polished special conical 2.5 mil diamond
- Dynamic compliance: 7.0 x 10-6 cm/dyne
- Static compliance: 20.0 x 10-6 cm/dyne
- Dimensions (mm): H16.0 x W16.6 x L26.5
- Weight: 6.8 g
- Accessories included: Screwdriver, screws, washers, nuts, spacer/weight, stylus brush

_______________________________________
Footnote 1: Old 78RPM records were recorded using different equalizations (EQ) depending on the recording label. In listening, we surmise that the narrow specification possibly reflects the difficulty in publishing an accurate extended low and high frequency response range even though this cartridge has this capability.

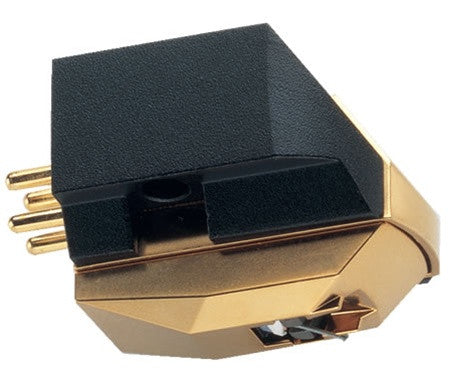

AUDIO-TECHNICA AT-OC9ML/II AT OC9ML/II ATOC9ML/II PHONO CARTRIDGE
-Musical excellence with a great balance of dynamics, natural harmonics and detail retrieval.

One of the finest cartridges ever made for the money and still in current US production, the Audio-Technica AT-OC9ML/II phono cartridge is also one of the most desirable cartridges in the world. Its musical excellence defies competition and transcends time. Its timeless quality of musical eloquence and over achievement make it a classic to be cherished and enjoyed for years and decades. It is also reliable and superbly crafted. That's why it received the Soundstage Award for Exceptional Value. To summarize its performance one review stated:

" The AT-OC9ML/II sets a standard that will be hard for any cartridge, moving magnet or moving coil, to match at its price."

At LP TUNES's special sale price which is less than half of retail it is an absolute steal! It is manufactured extremely well and is very reliable. Its performance is both world class and top class.

The Audio-Technica AT-OC9ML/II is a significant achievement in precision manufacturing with tolerances held to mere thousands of an inch. Stringent quality control assures that these tolerances, as well as performance criteria, are maintained by every Audio-Technica AT-OC9ML/II phono cartridge.

The Audio-Technica AT-OC9ML/II phono cartridge is the second generation of the highly acclaimed model. A brand new design with a gold-plated boron cantilever and MicroLine diamond tip, the Audio-Technica AT-OC9ML/II has received many accolades from music listeners and audiophiles. Moving coil cartridges are preferred by many serious audiophiles, citing clarity and transparency of tone, better defined transients, precise stereo imaging and lower distortion as reasons for their preference.

Audio-Technica AT-OC9ML/II Phono Cartridge Specifications
- Type: Moving coil
- Output voltage: 0.4mV
- Frequency range: 15Hz - 50kHz
- Recommended load impedance: 20 ohms or higher
- Channel balance @ 1 kHz: <1dB
- Channel separation @ 1kHz/10kHz: 32/21dB
- Stylus shape: Microline
- Stylus construction: Nude square shank
- Cantilever: Gold-plated solid boron
- Wire used for coils: PCOCC
- Dynamic compliance: 9 x 10-6cm/dyne
- Static compliance: 35 x 10-6cm/dyne
- Recommended tracking force: 1.25 - 1.75 g
- Dimensions: 1.01 x 0.66 x 0.68
- Color: Gold/Black
- Weight: 8.09 g
- Mounting: 1/2 inch
- Warranty: 1 year

Please note: Moving coil cartridges require receivers and pre amps with special compatible inputs. Their stylus assemblies are not user-replaceable.

Reviews
Soundstage Reviewers Choice
Audio Asylum 1, 2, 3
High-endaudio.com

AUDIO-TECHNICA AT-PL30   AT PL30   ATPL30 TURNTABLE BELT REPLACEMENT

The AUDIO-TECHNICA AT-PL30  turntable belt replacement is designed for higher torque, smooth rotational speed, and reduced resonance transmissions into the platter.

If you are unsure if this is the correct belt, please use our free belt matching service here

For upgrades and enhancements to sound quality and fidelity please refer to the Related Products below.

AUDIO-TECHNICA AT-PL300  AT PL300   ATPL300  TURNTABLE BELT REPLACEMENT

The AUDIO-TECHNICA AT-PL300  turntable belt replacement is designed for higher torque, smooth rotational speed, and reduced resonance transmissions into the platter.

If you are unsure if this is the correct belt, please use our free belt matching service here

For upgrades and enhancements to sound quality and fidelity please refer to the Related Products below.
