AUDIO-TECHNICA AT-311EP AT 311EP AT311EP PHONO CARTRIDGE

The Audio-Technica AT311EP phono cartridge offers P-mount T4P convenience, superb performance and high accuracy. It is one of the top P-mount cartridges available from Audio-Technica and a favorite by those who value sound quality and who know how to listen well. Furthermore, since the Audio-Technica AT311EP phono cartridge uses a very high quality elliptical stylus that is housed in an industry standard holder, you have assured availability of stylus replacements for many, many years.

Audio-Technica AT311EP Phono Cartridge Specifications
- Output voltage @ 1kHz,5cm/sec: 5mV
- Channel balance: 1.25dB
- Channel separation @ 1kHz/10kHz: 26/18dB
- Frequency response: 15Hz-27kHz
- Tracking force: 1 - 1.5 g
- Stylus type: .03 x .07 mil elliptical
- Cantilever construction: Thin-wall tube
- Recommended load resistance: 47k ohms
- Color: Black/White
- Mounting: P-mount with a separate adapter for 1/2 inch mount

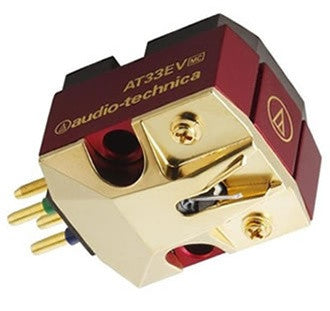

AUDIO-TECHNICA AT-33EV AT 33EV AT33EV PHONO CARTRIDGE

The Audio-Technica AT33EV cartridge super cedes the AT33ANV, a limited edition and highly rated model launched in 2006 to mark Audio-Technica's 45th anniversary. The Audio-Technica AT33EV cartridge is thoughtfully and thoroughly designed, meticulously and exquisitely crafted so that each component part enhances the cartridge's ability to reproduce signal from the record grooves accurately, perfectly as technologically possible. It is a perfectionist's cartridge.

"It brought out more of what's embedded in the grooves of my LPs than any MC in its price range."¹

Features
- Resonance damping design reduces the minutest unnecessary vibration
- Hardened duralumin tapered pipe cantilever to reproduce natural sound without distortion
- High quality nude elliptical stylus that traces the grooves and reproduces with opulence
- 10 ohms middle impedance specification to minimize signal loss due to the coil's electrical resistance
- PCOCC6N coil enables purer transmission because it is not subject to grain boundaries in the direction of transmission
- Neodymium magnet with dramatically enhanced and concentrated magnetic energy
- Coil stabilizing VC mold that affixes the coil minimizes unnecessary noise and parasitic resonance and thus enhances treble sound quality
- Internal housing anti-vibration damping material, Hanenite, suppresses unwanted vibration and allows outstanding performance of the dual moving coils to fully express itself
- Brass installation screw used to match the cartridge's high quality sound

Audio-Technica AT33EV Cartridge Specifications
- Type: MC type
- Frequency range: 15Hz-50kHz
- Output voltage @ 1kHz,3.54cm/sec: 0.3mV
- Channel separation @ 1kHz: 30dB
- Output balance @ 1kHz: 0.5dB
- Stylus pressure: 1.8-2.2g (2.0g standard)
- Coil impedance: 10 ohms (1kHz)
- Direct current resistance: 10 ohms
- Recommended load resistance: 100 ohms or more (w/ head amplifier connected)
- Coil inductance: 22 mu H (1kHz)
- Static compliance: 4010 - 6 cm/dyne
- Dynamic compliance : 1010 - 6 cm/dyne (100Hz)
- Stylus tip: 0.3 x 0.7 mil nude elliptical
- Cantilever: Duralumin tapered pipe
- Vertical tracking angle: 23
- Dimensions (mm): H16 x W16.6 x L6.5
- Weight: 6.9 g

Accessories
- Non-magnetic body screwdriver x 1
- Stylus Protector x 1
- Cartridge installation screws & nuts - 13 mm x 2, 19 mm x 2, nut x 2, washer x 2
- Stylus brush x 1

AUDIO-TECHNICA AT-3482H/U AT 3482H/U AT3482H/U PHONO CARTRIDGE

The half-inch standard and P-mount T4P compatible AT3482H/U cartridge is Audio-Technica's most versatile entry-level cartridge. It easily surpasses original equipment and generic cartridges.

Audio Technica AT3482H/U Phono Cartridge Specifications
- Output voltage: 5mV
- Frequency response: 20Hz-20kHz
- Channel balance: 1.5dB
- Channel separation @ 1kHz/10kHz: 24/15dB
- Stylus type: Conical
- Stylus construction: Bonded round shank
- Cantilever construction: Carbon fiber

AUDIO-TECHNICA AT-3600 AT 3600 AT3600 INDUSTRY STANDARD PHONO CARTRIDGE

The Audio-Technica AT3600 is probably the most ubiquitous cartridge in the world. Yet it is relatively unknown by its real model name. Why? Because it is private labeled. It is used by many turntable name brands as their cartridge of choice for a pre-installed cartridge. It's no wonder. The Audio Technica AT3600 has been time tested and proven by decades of actual use for quality, durability, cost-effectiveness and fine sound.

Audio Technica AT3600 Phono Cartridge Specifications
- Output voltage: 5.3mV
- Frequency response: 20Hz-20kHz
- Channel balance: 1.5dB
- Channel separation @ 1kHz/10kHz: 24/15dB
- Stylus type: Conical
- Stylus construction: Bonded round shank

AUDIO-TECHNICA AT-3600L AT 3600L AT3600L PHONO CARTRIDGE

The Audio-Technica AT3600L is probably the most ubiquitous cartridge in the world. It is used by many turntable name brands as their cartridge of choice for a pre-installed cartridge. It's no wonder. The Audio Technica AT3600L has been time tested and proven by decades of actual use for quality, durability, cost-effectiveness, and fine sound.

Audio Technica AT3600L Phono Cartridge Specifications
- Output voltage: 4.2mV
- Frequency response: 20Hz-20kHz
- Channel balance: 1.5dB
- Channel separation @ 1kHz/10kHz: 24/15dB
- Tracking force: 2.5 - 3.5 g
- Stylus type: Conical diamond
- Stylus construction: Bonded round shank
- Cantilever: Carbon fiber-reinforced plastic (CFRP)
- Weight: 5.7 g<br>
- Dimensions: 17,0 (H) x 16,3 (W) x 31,0 (L) mm
</p>

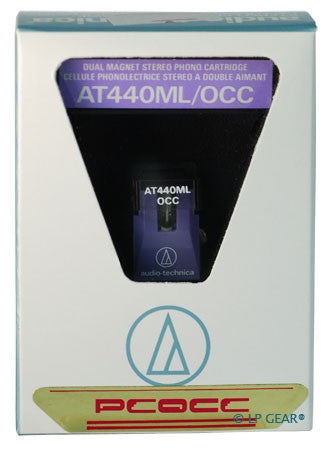

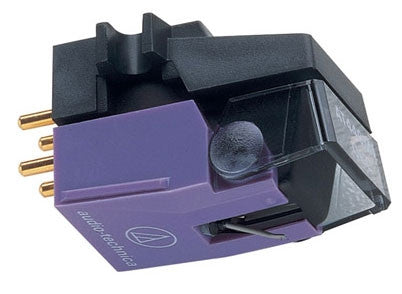

AUDIO-TECHNICA AT-440ML PHONO CARTRIDGE

Discontinued, see related products

Original AT-440ML/OCC cartridge, sound quality, extended frequency and performance

Audio-Technica is the world leader in phonograph cartridges. Its cartridges are used by many renowned companies as original installed equipment and under private label. It is one of the last manufacturers to offer a full line of phono cartridge products that meet the needs of many budget segments, turntable/tonearm requirements and performance levels.

Audio-Technica's moving magnet cartridge design is patented and delivers "Practically Identical to the Cutter Head" performance. Instead of using a single, large magnet like other cartridge manufacturers, Audio-Technica's patented Vector-Aligned Dual Magnet design positions two tiny magnets 90 degrees apart. These magnets are positioned directly in line with the two groove walls and each magnet incorporates a separate, independent coil structure. This low magnet mass and geometry allows exact translation of record groove motion into matching electrical signals, ensuring excellent channel seperation, extended frequency response and superior tracking.

Each Audio-Technica cartridge is hand-assembled with tolerances held to mere thousandths of an inch. Stringent quality control assures that tolerances and performance criteria are maintained for each product. This attention to every micro detail in design, construction and final assembly results in superior phono cartridges that are delightfully musical and musically accurate.

With the AT-440ML phono cartridge, Audio-Technica delivers musical excellence in an affordable audiophile cartridge that rightfully should be compared with moving magnets costing many times its price. The Audio-Technica AT-440ML's excellence lies in its advanced technology, design and materials uniquely available to Audio-Technica because of its deep technical history and production capabilities.

Audio-Technica AT-440ML Phono Cartridge Specifications

• Frequency Response (Hz): 5-32,000
• Output Voltage: (mV, 1kHz,5cm/sec: 5.0
• Channel Balance: (dB, 1kHz: 0.75
• Channel Separation (dB, 1kHz: 30
• Dynamic Compliance (x10-6 cm/dyne): 10
• Static Compliance (x10-6 cm/dyne): 40
• Stylus Type: 0.12 mil nude square Micro-linear
• Tracking Force Range: 1.0 - 1.8 g
• Tracking Force Recommended: 1.4 g (14 mN)
• Vertical Tracking Angle: 20
• Coil Impedance @ 1kHz: 3.2k ohm
• Coil Inductance @ 1kHz: 490 mH
• Recommended Load Resistance: 47k ohms
• Color: Black/Violet
• Weight: 6.5 g
• Dimensions: 17.3l x 16w x 28h
• Stylus Replacement: Audio-Technica ATN-440ML
• Accessories Included: Screwdriver, Screws, Nuts, Headshell Wires

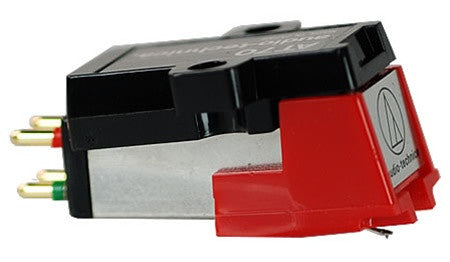

AUDIO-TECHNICA AT-70 AT 70 AT70 PHONO CARTRIDGE

The Audio-Technica AT70 phono cartridge fits half-inch and standard mount turntables. It's full body mount is screwed directly on the headshell thus minimizing structural resonances. One of the most popular cartridges in the world, it is used by many turntable manufacturers as their cartridge of choice for original equipment in their higher quality line of turntables. It is often recommended when users want to achieve a higher level of discernment. This cartridge performs well in critical applications such as recording to digital media (CD's), preservation of LP's, and for playing your better records.

Manufactured to world class quality standards, each Audio-Technica AT70 cartridge is hand assembled with tolerances held to mere thousands of an inch. Strict quality control assures that tolerances and performance criteria are maintained for each product. This attention to every micro detail in design, construction and final assembly results in superior phono cartridges that are delightfully musical and exquisite. The Audio-Technica AT70 is time proven by decades of actual use by many thousands of satisfied users.

Audio-Technica AT70 Phono Cartridge Specifications
- Output voltage @ 1kHz,5cm/sec.: 3.5mV
- Frequency response: 20Hz-20kHz
- Channel balance: 1.5dB
- Channel separation @ 1kHz/10kHz: 20/15dB
- Stylus type: Conical
- Stylus construction: Bonded round shank
- Cantilever construction: Alloy tube
- Tracking force range: 1.5-2.5 g
- Cartridge mount: Full body mount designed for full contact installation for minimal resonance

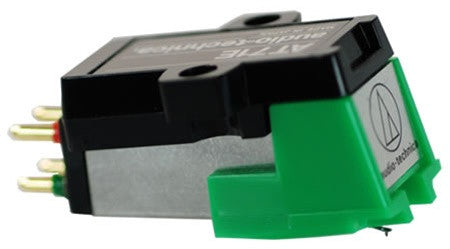

AUDIO-TECHNICA AT-71E AT 71E AT71E PHONO CARTRIDGE

The half-inch standard mount Audio-Technica AT-71E cartridge sounds rich and crystal clean. It is manufactured to Audio-Technica's world-class quality standards, the Audio-Technica AT-71E cartridge performs tirelessly with speed, delicacy and extension.

Audio-Technica AT-71E Phono Cartridge Specifications
- Output voltage @ 1kHz,5cm/sec.: 3.5mV
- Frequency response: 20Hz-22kHz
- Channel balance: 1.5dB
- Channel separation @ 1kHz/10kHz: 22/15dB
- Stylus type: 0.4 x 0.7 mil elliptical
- Stylus construction: Bonded round shank
- Tracking force range: 1.5-2 g
- Cantilever: Alloy tube

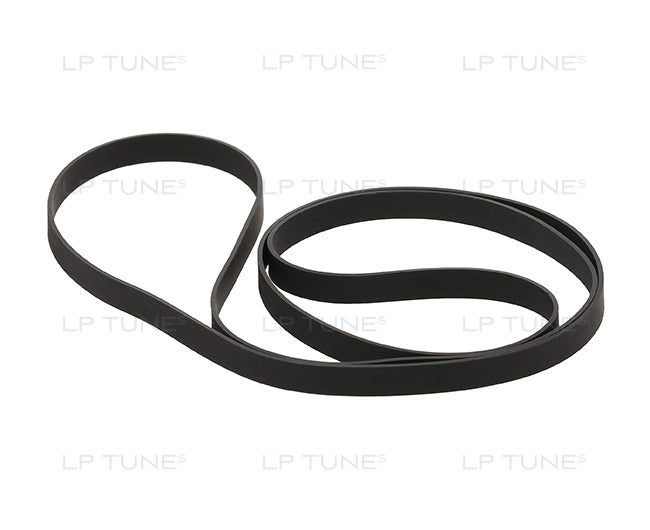

The AUDIO-TECHNICA AT-727   AT 727  AT727 SOUND BERGER TURNTABLE BELT REPLACEMENT SET

The AUDIO-TECHNICA At-727 SOUND BERGER turntable belt replacement is designed for higher torque, smooth rotational speed, and reduced resonance transmissions into the platter.

If you are unsure if this is the correct belt, please use our free belt matching service here

For upgrades and enhancements to sound quality and fidelity please refer to the Related Products below.

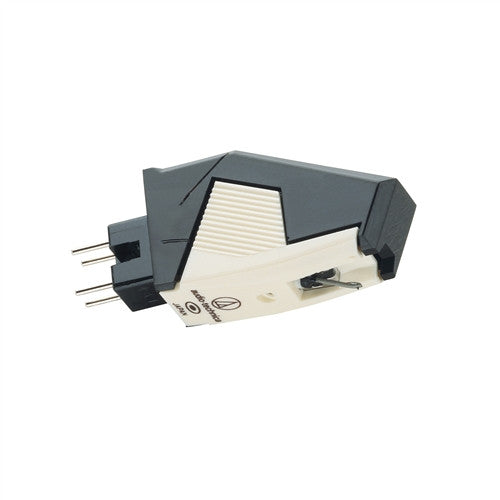

AUDIO-TECHNICA AT-92ECD CARTRIDGE - UNIVERSAL MOUNT

From the manufacturer: This .3 x .7 elliptical cartridge fits both Half-inch and P-Mount turntables. The AT-92E employs a special elliptical stylus with a smaller contact radius. This allows the cartridge to reproduce the highest frequencies with lower distortion for cleaner, more lifelike sound.

Audio-Technica AT-92ECD Cartridge Specifications
Frequency Response: 15-27,000 Hz
Channel Separation: 29/18 (dB at 1kHz/10 kHz
Vertical Tracking Force: 1.0-1.5 grams
Stylus Construction: Bonded round shank
Recommended Load Impedance: 47,000 ohms
Output: 3.5 (mV at 1 kHz, 5 cm/sec)
Channel Balance: 1.25 dB
Stylus Shape: 0.3 x 0.7 mil elliptical
Cantilever: Alloy tube
Mount: Universal

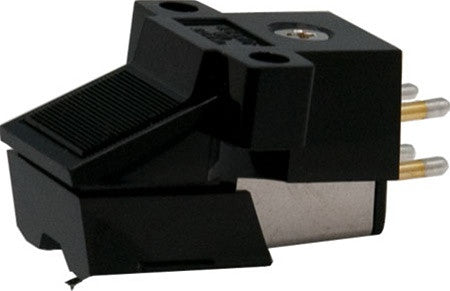

AUDIO-TECHNICA AT-95B AT 95B AT95B CARTRIDGE
- The world-class AT-95E with Black stylus

The legacy of excellence continues. The Audio-Technica AT-95B phono cartridge, the black version of the AT-95E, was named one of the industry's best products by the Editors of Stereophile.¹ Previously, the Audio-Technica AT-95E phono cartridge received the same high recommendation: Stereophile Recommended Component October 2004, 2005 and April 2006 (Vol. 27 No.10, Vol. 28 No.10 and Vol. 29 No.4). Packaged by LP Tunes, the Audio-Technica AT-95B is the only inexpensive cartridge included in the Stereophile Recommended List. All the other cartridges range from $200 - $17,000! Stereotimes.com March 2007 rated the Audio-Technica AT-95E phono cartridge Highly Recommended.

The Audio-Technica AT-95E phono cartridge has a very distinguished and colorful lineage. On its own, it has been a multiple recipient of Best Buy ratings in the UK. Its lineage is intertwined with the classic and musically acclaimed Linn Basik, K5 and K9 phono cartridges. Unlike these cartridges however, the AT-95E is delightfully affordable and available. Since October, 2004 and up to the present, the Audio-Technica AT-95E phono cartridge is included in the Stereophile Recommended Components List. It is the only inexpensive phono cartridge to be included in this highly selective recommended list! The review summarized the performance of the Audio-Technica AT-95E phono cartridge with the following words: "Makes music for 50 bucks!"

Paul Szabady in Stereotimes March 2007 had this to say about the Audio-Technica AT95E phono cartridge:

"The AT-95E integrates the range of the sonic bandwidth very well: no part of the spectrum sticks out at the listener. It doesn’t sound bright and it doesn’t sound dull at the top frequencies. Midrange is clear and detailed with no spittiness on vocals, though really cheap and inadequate analog match-ups will cause an slight upper mid-range burr."

The half-inch standard mount and dual-magnet Audio-Technica AT-95E cartridge sounds clear, dynamic and richly balanced. It allows music lovers to use limited means to upgrade their turntables and thus attain a higher level of discernment and listening pleasure without the financial burden typically associated with high end cartridges. Yes it is vibrant, dynamic and rich in detail as reviewers and users say, and some users may no longer wish to upgrade further. The Audio-Technica AT-95E phono cartridge has been consistently rated a "Best Buy" in the UK and we agree wholeheartedly.

Audio-Technica AT-95E Phono Cartridge Specifications
- Output voltage @ 1kHz, 5cm/sec.: 3.5mV
- Channel balance: Within 2dB
- Channel separation @ 1kHz: > 20dB
- Frequency response: 20Hz-20kHz
- Load resistance: 47k ohms
- Load capacitance: 100 - 200 pF
- Stylus type: Highly polished elliptical diamond stylus, 0.4 x 0.7 mil
- Tracking force range: 1.5 - 2.5 g
- Tracking force, recommended: 2.0 g (20 mN)
- Vertical tracking angle: 20°
- Coil impedance @ 1kHz: 2.8k ohms
- Coil inductance@ 1kHz: 400 mH
- Recommended load resistance: 47k ohms
- Color: Black
- Weight: 6.6 g
- Dimensions (mm): L 30.5 x W 17.0 x H 17.20
- Stylus replacement: Audio-Technica ATN95EB

¹ Michael Fremer et al, "Recommended Components: Editors Top Picks For The Industry's Best Products," Stereophile, Vol.34 No.4 (April 2011): 66.

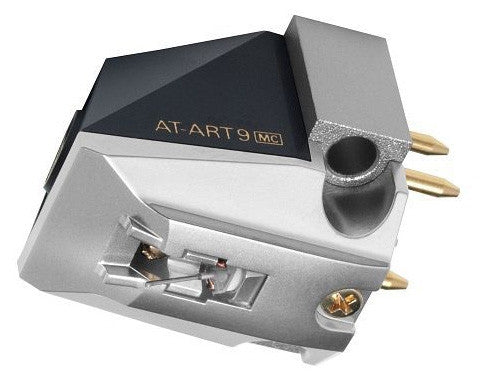

AUDIO-TECHNICA AT-ART9 MC PHONO CARTRIDGE 0.5 mV
- Hearing a thousand glorious notes and blank spaces

The AT-ART9 is Audio-Technica's flagship moving-coil cartridge. Combining the craftsmanship, artistry and leading-edge engineering derived from the AT50ANV, AT-ART7 and AT-OC9/III cartridges, the AT-ART9 employs a vibration system and magnetic circuit that are the best-ever within the series thus resulting in exquisitely transparent and naturally complete sound quality. It is so startlingly honest that your ears convey to your right brain and it comes to a singularly quick conclusion - this is real music at its best. Just like the body knows real sugar from processed substitute. Still, it will throw you off - until your left brain processes this truth, logically, deductively and empirically.



● Its new magnetic circuit design adopts permendur yoke and neodymium magnet for dramatically increased magnetic energy, extremely low noise and improved bass response.

● Special line contact stylus with tip curvature radii of 40μm 7μm adopted in AT50ANV and solid boron cantilever with a 0.26 mm diameter allow accurate transfer of music signals from the stylus tip to the generating coil.

● Dual moving coil for high separation and wide response.

● Hybrid body inherited from the AT-ART7 cartridge design to suppress unwanted parasitic and deleterious resonances. The housing is made of machined aluminum materials to dissipate parasitic resonances for unimpeded sound quality and clarity.

● PCOCC coil wiring for direct and pure signal transmission

● High-quality brass screws for headshell attachment offers the best match for optimal sound quality.

Audio-Technica AT-ART9 Specifications
- Type: Moving Coil VM Dual Magnet Stereo
- Playback frequency range: 15 ~ 50,000 Hz
- Output voltage: 0.5 mV (1kHz, 5 cm/sec.)
- Channel separation: 30 dB (1kHz)
- Output balance: 0.5 dB (1kHz)
- Tracking force: 1.6 ~ 2.0 g (1.8 g standard)
- Coil impedance: 12 Ω (1kHz)
- DC resistance: 12 Ω
- Rec. load impedance: 100 Ω or more (when head amplifier connected)
- Coil inductance: 25 μH (1kHz)
- Static compliance: 35 10-6 cm/dyne
- Dynamic compliance: 18 10-6 cm/dyne (100Hz)
- Stylus: Special line contact stylus with tip radii curvature of 40μm 7μm
- Cantilever: Diameter 0.26mm solid boron
- Vertical tracking angle: 23
- Dimensions: 17.3(H) 17(W) 25.6(L) mm
- Weight: 8.5 g
- Accessories: non-magnetic driver 1, washer 2, Protector 1, Cartridge mounting screws 12mm 2,18 mm 2, Nut 2, Brush 1, PCOCC lead set 1.

Note: Specifications are subject to change without notice.

Reviews & Discussions
- "New ART-9 up and running..."



_______________________________________
Music listening equipment: Graham Slee Reflex M phono preamp, Graham Slee Elevator EXP headamp, Denon AU-300LC Step-up transformer, Graham Slee Proprius mono amps, Quicksilver Silver 88 mono amps, Sota Sapphire turntable, Audience SE Phono Cable, Audience Ohno speaker cables, Rogers LS3/5A speakers, Audience ClairAudient 1+1 Loudspeakers, Krell LAT 2 speakers, Yamaha NS1000M speakers.

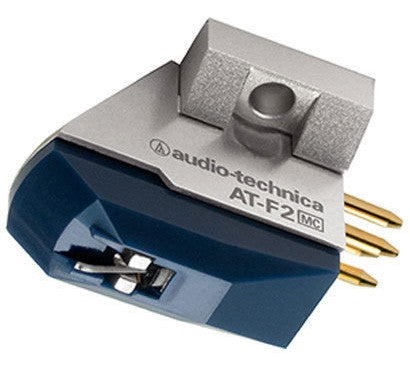

AUDIO-TECHNICA AT-F2 AT F2 ATF2 PHONO CARTRIDGE

The new Audio-Technica AT-F2 stereo moving coil cartridge offers unheard of musical achievement and value. It is an excellent example of Audio-Technica's latest leap and advancement in technical expertise, unique technological knowledge, and employment of hybrid materials to engineer MC cartridges of optimal and world-class performance. In this instance, its high achievement is fulfilled through a balance of material use and technical implementations each contributing to the AT-F2's musical rightness - the reverse V-shaped dual left and right coil design, special elliptical stylus, aluminum pipe cantilever, PCOCC coil, Neodymium magnet, and precision crafted sturdy aluminum base.

Audio-Technica AT-F2 Phono Cartridge Specifications
- Tonearm mount: 1/2 inch
- Type: Moving coil
- Frequency response: 15Hz-30kHz
- Output voltage @ 1kHz,5cm/sec: 0.32mV
- Tracking force: 1.8-2.2 g (2.0 g standard)
- Recommended load impedance: Minimum 100 ohms
- Coil impedance: 12 ohms (1kHz)
- DC resistance: 12 ohms
- Channel separation @ 1kHz: 25dB
- Channel balance @ 1kHz: >1.5dB
- Dynamic compliance: 9.0 x 10^-6cm/dyne (100Hz)
- Static compliance: 35 x 10^-6cm/dyne
- Stylus: Elliptical 0.3 0.7 mil
- Vertical tracking angle: 23
- Dimensions: 17.3"h x 16.8"w x 25.4"l
- Weight: 5.0 g
- Accessories included: Stylus protector (x 1), nuts (x 2), washers (x 2), cartridge mounting screws 5 mm (x 2), 9 mm (x 2)

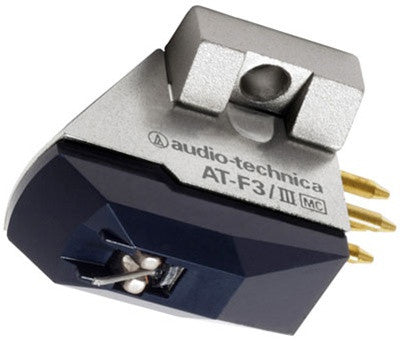

AUDIO-TECHNICA AT-F3/III AT F3/III ATF3/III PHONO CARTRIDGE

The Audio-Technica AT-F3/III stereo moving coil cartridge lets the music flow naturally from the grooves. This is achieved through a combination of special technical features each designed to capture more from the record grooves: the dual moving coil design, elliptical stylus, aluminum pipe cantilever and the vertical stabilizer mechanism.

Features
- Neodymium magnet for dramatically increased magnetic energy
- PCOCC used for coils and terminal pins for pure transmissions
- Dual moving coils for high separation and wide response
- Durable construction dedicated to achieving increased rigidity for improved signal-to-noise ratio

Audio-Technica AT-F3/III Phono Cartridge Specifications
- Tonearm mount: 1/2 inch
- Type: Moving coil
- Frequency response: 15Hz-50kHz
- Output voltage @ 1kHz,5cm/sec: 0.35mV
- Tracking force: 1.8-2.2 g (2 g standard)
- Recommended load impedance: Minimum 100 ohms
- Coil impedance: 12 ohms (1kHz)
- DC resistance: 12 ohms
- Channel separation @ 1kHz: 27dB
- Channel balance @ 1kHz: >1.5dB
- Dynamic compliance: 9.0 x 10^-6cm/dyne (100Hz)
- Static compliance: 35 x 10^-6cm/dyne
- Stylus type: 0.2 × 0.7 mil elliptical
- Suspension wires: Stainless
- Vertical tracking angle: 23°
- Dimensions (mm): H17.3 x W18.8 x L25.4
- Weight: 5 g
- Accessories included: Screwdriver, stylus protector, screws, nuts, washers

Reviews & Feedback
Just wanted to let you know that I received the AT-F3/III Wednesday and got it up and running. I mounted it on my REGA P3-24 using the Denneson Soundtractor, tracking at 2 grams and using a 2mm spacer under the arm. All I can say is WOW! A-T really improved on the original AT-F3/II. Sound is so much smoother and the shift to medium compliance is a HUGE +. It does very well on the RB-301 arm and is an unbelievable bargain at it's price...which I'm sure won't last long...

I have to tell you that I had an ORTO Salsa prior to the AT and I have to say that the AT is really a better cartridge...even though the Orto is twice as expensive. The Orto is just to HOT and in-you-face. Also, it tended to wobble a tad similar to the Grado dance. The AT just let's the music flow and makes you forget all the technical aspects and headaches you just suffered in tonearm/cart setup... This one's a WINNER!

Thanks for making this available,
JA
10-23-2010

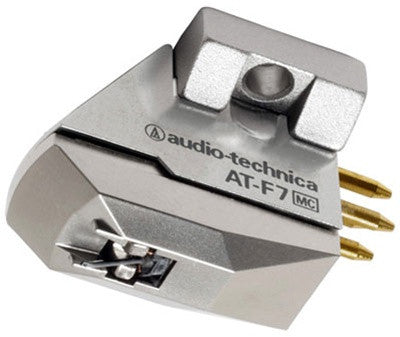

AUDIO-TECHNICA AT-F7 AT F7 ATF7 PHONO CARTRIDGE

The new Audio-Technica AT-F7 stereo moving coil cartridge lets the listener immerse and experience the music. This is achieved through the combination of design features each uplifting the musical experience - the celebrated dual coil design, nude elliptical stylus, aluminum pipe cantilever and uses a 0.07 mil stainless suspension wire which serves as a fulcrum point for audio signal transfer for class leading sound quality and reliability. The Audio-Technica AT-F7 cartridge provides outstanding clarity and transparency of tone along with improved frequency response and precise stereo imaging.

Audio-Technica AT-F7 Phono Cartridge Specifications
- Tonearm mount: 1/2 inch
- Type: Moving coil
- Frequency response: 15Hz-50kHz
- Output voltage @ 1kHz,5cm/sec: 0.35mV
- Tracking force: 1.8-2.2 g (2.0 g standard)
- Recommended load impedance: Minimum 100 ohms
- Coil impedance: 12 ohms (1kHz)
- DC resistance: 12 ohms
- Channel separation @ 1kHz: 27dB
- Channel balance @ 1kHz: >1.5dB
- Dynamic compliance: 9.0 x 10^-6cm/dyne (100Hz)
- Static compliance: 35 x 10^-6cm/dyne
- Stylus: Nude elliptical 0.2 0.7 mil
- Suspension wires: Stainless - Vertical tracking angle: 23
- Dimensions: 17.3"h x 18.8"w x 25.4"l
- Weight: 5 g
- Accessories included: Screwdriver, stylus protector, screws, nuts, washers, stylus brush, PCOCC lead wire set
