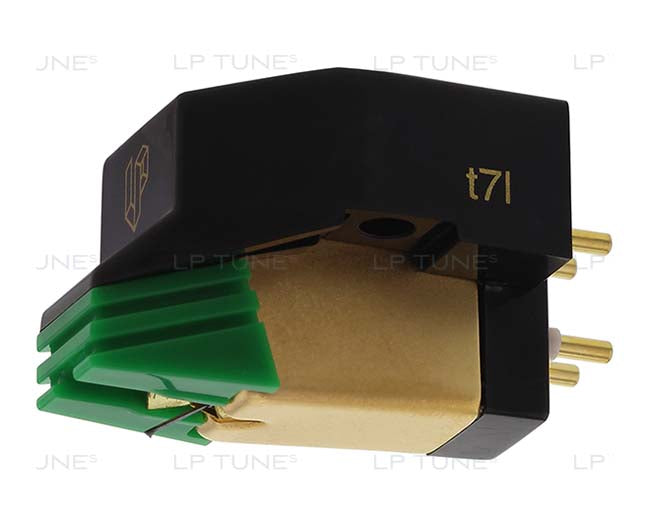

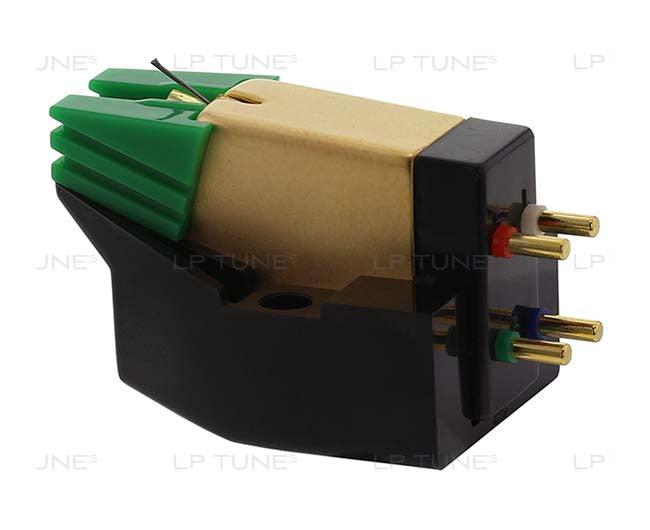

The Vessel B3SS Phono Cartridge
THE VESSEL B3SS CARTRIDGE
- So much more than just music.
Special High Grade Boron exceeding those used previously by other manufacturers offers superb sensitivity and prismatic tonal expressions. In combination with its Super Shibata diamond, the B3SS delivers rare experiences with your LPs — music rendered with grace, swiftness, liquidity and luminosity. It is breathtaking in its contradictions and counterpoints.
The Vessel B3SS Cartridge Specifications
- Type: Moving Magnet
- Frequency range: 20-30,000 Hz
- Output voltage @ 1kHz: 2.5 mV
- Channel balance @ 1kHz: <1.0dB
- Channel separation @ 1kHz: 23dB
- Dynamic compliance (100Hz): 9 × 10-6 cm/dyne
- Tracking ability at 2.0g : >60 µm
- Cantilever: Special High Grade Boron
- Stylus type: Nude Super Shibata
- Stylus tip radius: .00016 x .0028 inch
- Tracking force: 2.0 g
- Internal impedance @ 1kHz: 670 ohms
- Internal inductance: 270 mH
- Recommended load resistance: 47 kOhm
- Cartridge color, body/stylus: Black/Gold/Green
- Weight: 6.0 g
- Mounting hardware included: 4 × Screws, 2 × Nuts
- Stylus replacement: B3SS stylus
