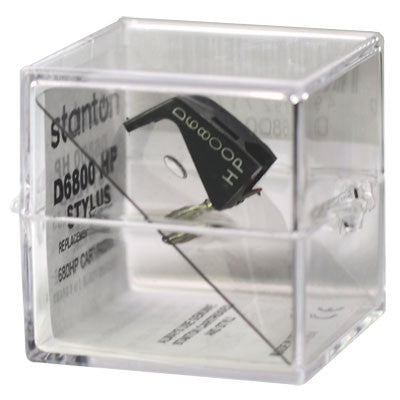

Stanton stylus for Stanton 680HP cartridge
Genuine Stanton D-6800 HP D6800 HP D6800HP stylus provisioned for the Stanton 680HP cartridge. The Stanton D6800 HP stylus comes with a highly polished and precision profile spherical diamond for long playing life, reduced record wear and good reproduction of recorded music.
Stanton's 680 HP cartridge has been trusted and sought after by club DJs for many years. It offers high-energy record playback with the extra punch needed to quake the dance floor. The 680HP delivers a loud, full sound - rich in detail, robust bass and silky smooth highs, along with precise stylus tracking and backcueing performance. The 680 HP was recently improved, giving it a spherical stylus which is better for scratching. It was also given a higher output and a sturdier suspension for the stylus. In terms of construction, the D6800 HP stylus is known for its durability and built for heavy use.
Stanton D6800HP Stylus Specifications
- Frequency response: 20-20khz
- Output @ 1kHz: 8.0mV
- Channel separation: >30dB
- Channel balance: within 2dB
- Tracking force: 2-5 grams
- Stylus tip: Spherical 0.7 mil high-polish
- DC resistance (approx.): 1300 Ohms
- Inductance (approx.): 930 mH
- Recommended load: 275pF-47k Ohms
- Tracking ability: 90u @ 2 grams
Upgrade Options
For upgrades and accessories that enhance sound quality and fidelity, refer to Related Products.
