Stanton D-71EE D71EE Stylus - View Details
STANTON D-71EE D 71EE D71EE STYLUS
Discontinued. See Stylus Alternatives below and in Related Products section.

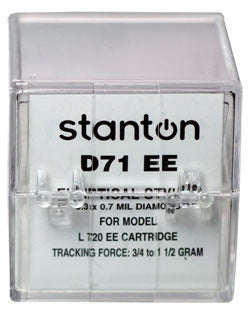

The genuine Stanton D-71EE D71EE stylus is typically used with the Stanton L 720 EE phono cartridge and as an upgrade high fidelity stylus for the Stanton 500 (its many versions) and Pickering V-15 and XV-15 phono cartridges. The stylus features a highly polished special elliptical diamond with .0003 x .0007 inch scanning and tracing radii for precision tracing of record grooves, long playing life and vividly rich rendition of voice and music. The stylus is packaged in the original Stanton plastic cube box.
For an alternative stylus replacement, refer to the Related Products.
Stanton D-71EE Stylus Specifications
- Frequency Response: 10Hz-20kHz
- Output @ 1kHz: 3.2mV
- Channel Separation @ 1 kHz: 35dB
- Channel Balance @ 1 kHz: within 2dB
- Tracking Force: 0.75 to 1.5 grams
- Stylus Tip: Elliptical 0.3 x 0.7 mil
- DC Resistance: 535 ohms
- Inductance: 400 mH.
- Cartridge Weight: 0.6 grams
- Recommended Load: 47k ohms
Stylus Alternatives
- Entry Stylus: LP Tunes Conical Stylus Replacement for Stanton D71EE, D71-2E, & Others
- Superior Stylus: NSS/E Nude Elliptical Upgrade Stylus Replacement for Stanton D71EE, D71-2E, & Others
- Premier Stylus: LP Tunes Vivid Line D71VL Upgrade Stylus Replacement for Stanton D71EE, D71-2E, & Others
