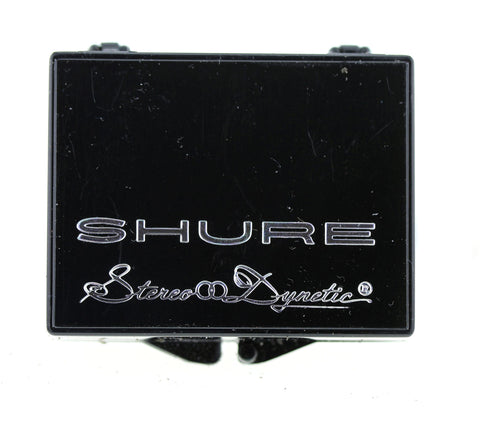

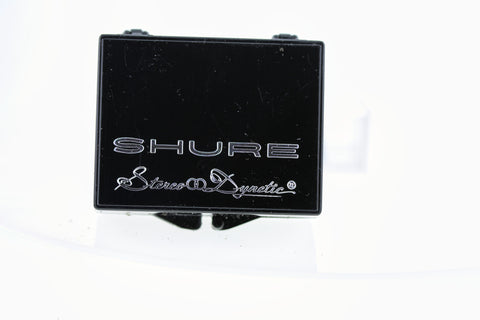

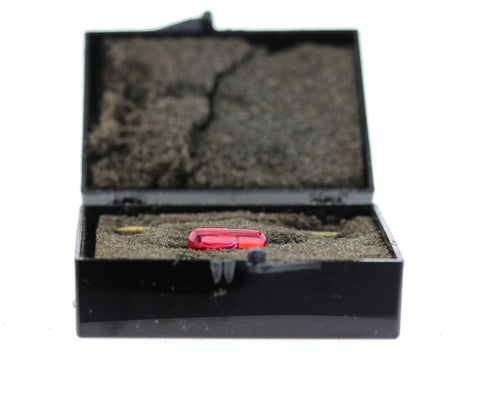

Shure N3D Stylus - Original in Capsule and Plastic Case
SHURE N3D STYLUS - NEW OLD STOCK PURCAHASED FROM SHURE SERVICE DEPT.
SHURE N3D STYLUS Specfications
- Frequency Response: 20 to 15,000 Hz
- Output (1,000 Hz at 5 cm/sec peak recorded velocity): 7.5 rnV per channel
- Channel Separation (minimum): 20 dB at 1,000 Hz
- Stylus: rModel N3D, Spherical, Radius 18 n~icrons LO007 in.)
- Tracking Force: 3 to 6 grams (Tracking forces greater than maximum
- Optimum Load: 47,000 ohms
- Inductance: 420 millihenries
- DC Resistnce: 280 ohms
- Static Comopliance { 4xlO-" cm per dyne)
