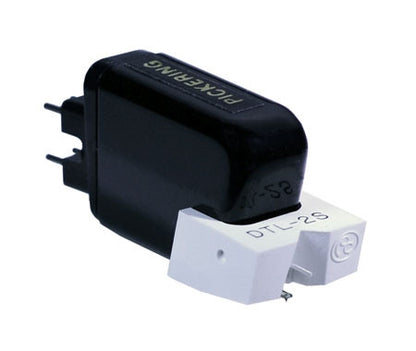

Pickering XL-33U Phono Cartridge
PICKERING XL-33U XL33U CARTRIDGE
- With Pickering DTL-2S stylus with Stereohedron diamond tip and half-inch mount adaptor
- With Pickering DTL-2S stylus with Stereohedron diamond tip and half-inch mount adaptor
Pickering XL-33U Phono Cartridge Specifications
- Output voltage at 1000 Hz, 5.5cm/sec.: 4.4 mV
- Frequency response: 10-22,000 Hz
- Channel separation: 32dB
- Internal impedance, DC resistance: 1,300 Ohm
- Internal inductance: 900 mH
- Recommended load resistance: 47 kOhm
- Stylus type: Stereohedron
- Tracking force range: 1.0-1.5g
- Cartridge colour, body/stylus: Black/White
- Cartridge weight without screws: 6.0 g
- Replacement stylus unit: DTL2S

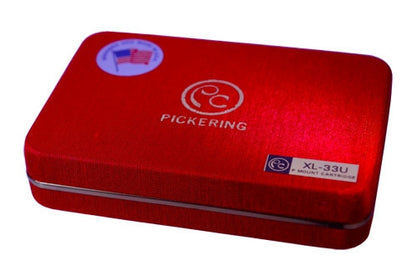

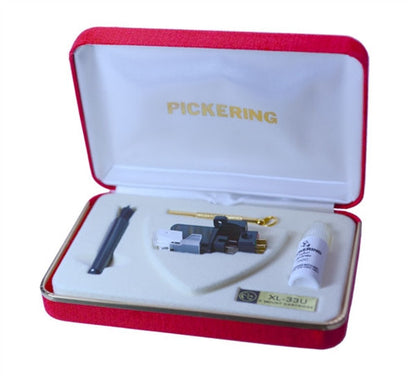

- Accessories included: 1 Case, 1 Stylus brush, 1 Screwdriver, 1 Half-inch adaptor, 5 Screws, 3 nuts, 2 spacers, 1 Pickering SC4 stylus cleaner, 2 Mounting instructions.
