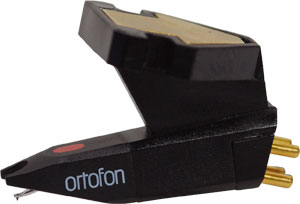

Ortofon OMB 30 Phono Cartridge
SKU:OMB30
$393.00
Product Description
ORTOFON OMB 30 PHONO CARTRIDGE
The Ortofon OMB30 cartridge with stylus feature the genuine Ortofon OMB cartridge body with the Ortofon Stylus 30 with the Nude Fine Line tip.
Specifications:
Channel balance at 1 kHz: 1 dB
Output voltage at 1 kHz, 5cm/sec: 3.5 mV
Channel separation at 1 kHz: 25 dB
Channel seperation at 15 kHz: 15dB
Frequency response Hz: 20 - 27,000
FIM distortion at recommended tracking force, DIN 45.542: < 1%
Tracking ability at 315 Hz: 90 µm
Compliance, dynamic, lateral: 35 µm/mN
Cantilever material: Aluminium
Stylus type: Nude Fine Line
Stylus tip radius: r/R 8/40 µm
Coil system: OFC Wire
Equivalent stylus tip mass: 0.3 mg
Tracking force range:1.25-1.75 g (12.5-17.5 mN)
Tracking force, recommended: 1.5 g
Tracking angle: 20°
Internal impedance, DC resistance: 800 Ohm
Cartridge colour: Black/Black
Cartridge weight: incl. extra weight: 5 g, excl. extra weight: 2.5 g
Recommended load resistance: 47 kOhm
Internal inductance: 600 mH
Recommended load capacitance: 200-500 pF
Replacement stylus: Stylus 30
