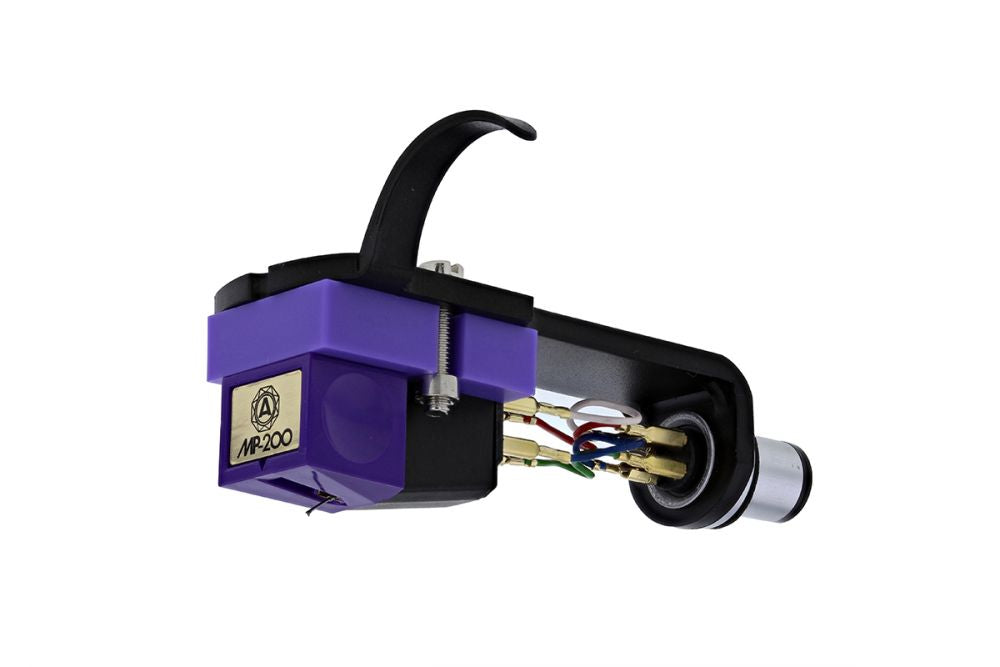

Nagaoka MP-200H Stereo Cartridge & Stylus with Headshell
NAGAOKA MP-200H PHONOGRAPH CARTRIDGE & STYLUS IN HEADSHELL
- Nagaoka MP200 cartridge premounted on Nagaoka headshell
The Genuine premounted Nagaoka MP200 cartridge with Nagaoka Headshell offers excellence in sound quality and compatibility with turntables:
- Nagaoka half-inch mount headshell
- Precision processed 2.4 mm high rigidity aluminum
- gold -plated headshell wires for exceptional sound quality
- Aligned length 50 mm for use with many tonearms
- Alignment adjustable for extra precision and compatibility
- Free alignment protractor
- Total weight of 16.8g with Nagaoka MP200 cartridge is suited to many turntables and their tonearms. There is no need to change the counterweight.
Nagaoka MP-110 Phono Cartridge Specifications
- Type: Moving magnet
- Cantilever: High-strength Boron
- Stylus type: Superfine elliptical diamond
- Weight: 6.5 g
- Output voltage @ 1kHz,5cm/sec: 4mV
- Frequency response: 20Hz-23kHz
- Channel balance @ 1kHz: > 1.5dB
- Channel separation @ 1kHz: > 25dB
- Recommended loading: 47k ohms
- Dynamic compliance: 7.2 x 10-6 cm/dyne
- Static compliance: 20 x 10-6 cm/dyne
- Tracking force range: 1.5 - 2.0 g
- Break-in period: 30 hours
- Stylus replacement: Nagaoka JN-P200
