GRADO STYLUS FOR GRADO 8MZ CARTRIDGE

Ships to US only

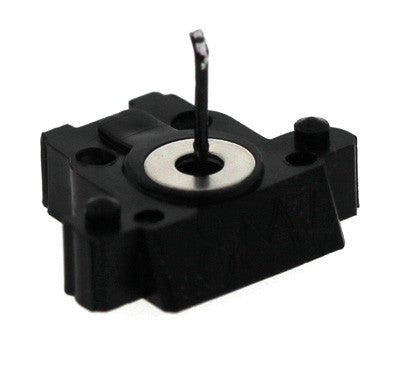

The Grado stylus made specifically for the highly regarded Joseph Grado Signature 8MZ phono cartridge is a brand new production by Grado.

Original Grado Stylus Specifications
- Output: 3.5mV @ 3.5 CMV (45 degrees)
- Controlled frequency response: 10Hz-50kHz
- Channel separation: Average 25dB, 10Hz-50kHz
- Stylus: Diamond, twin tip
- Input load: 47k Hz
- Inductance: 45 mH
- Resistance: 475 ohms
- Tracking force: 1.5 g
- Pick-up weight: 5.5 g
- Capacitance: Non-sensitive to capacitive load

Note: Provided for reference only. Specifications are subject to change without notice.

Resources
How to replace and install Grado stylus (PDF)
How to replace and install Grado stylus (JPG)
