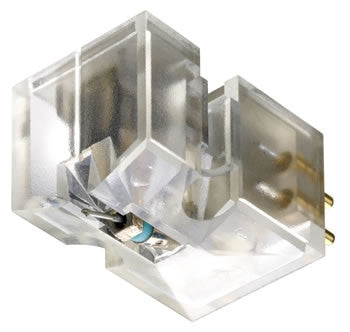

Denon 100th Anniversary DL-A100 DL A100 DLA100 Phono Cartridge 0.3mV
The Denon DL-A100 cartridge was developed by precisely reproducing the original engineering reference model of the high-performance Japanese standard cartridge DL-103 and elevating its performance, accuracy and musicality by using the latest tuning technologies. All of the coils are hand-wound, with more time taken for the Anniversary model.
In his Stereophile review of the Denon DL-A100 cartridge, Art Dudley found the DL-A100 to be naturally detailed without brightness and imbued with excellent musical flow. In comparison with the DL-103, his experience is that the DL-103 was tubbier in the bass region while the DL-A100 is cleaner down there; the Denon DL-A100 also offered better micro-detail dynamics and resolution. 1
● Signatures of Excellence

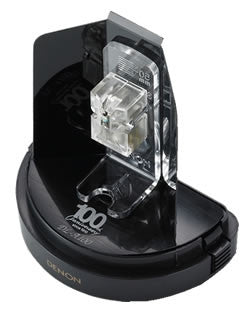

The DL-A100 features the 100th anniversary special case, and comes with a 5-year
warranty and a signed certificate of authenticity from the chief production
engineer who had crafted the product. Also included is a beautiful Denon "brand
book" that explores the history of one of the leading names in the audio-visual
field.
Denon DL-A100 Phono Cartridge Specifications
- Cabinet: Clear type mold
- Type: Moving coil (MC)
- Output: 0.3mV
- Channel balance @ 1kHz: 1dB
- Channel separation @ 1kHz: 25dB
- Output impedance: 40 ohms ± 20%
- Suggested loading: 100 ohms min.
- Stylus: 0.2 mm square solid diamond
- Frequency response: 20Hz-45kHz
- Tracking force: 2.5g ± 0.3g
- Compliance: 5 x 10-6 cm/dyne
- Accessories included:
Mount screws (Length: Approx 17 mm) - 2 pcs; Mount screws (Length: Approx 11
mm) - 2 pcs; Mount nuts - 2 pcs; Washer - 2 pcs; Stylus cover - 1 pc; Stylus
cleaning brush - 1 pc; Stylus position adjustment gauge - 1 pc; Owner's manual
- 1 pc; Data sheet - 1 pc; Denon Service Network list
______________________________________
1Art Dudley, "Listening: Denon's Direct Drive at 40," Stereophile, Vol.34 No.11 (December 2011): 41.
