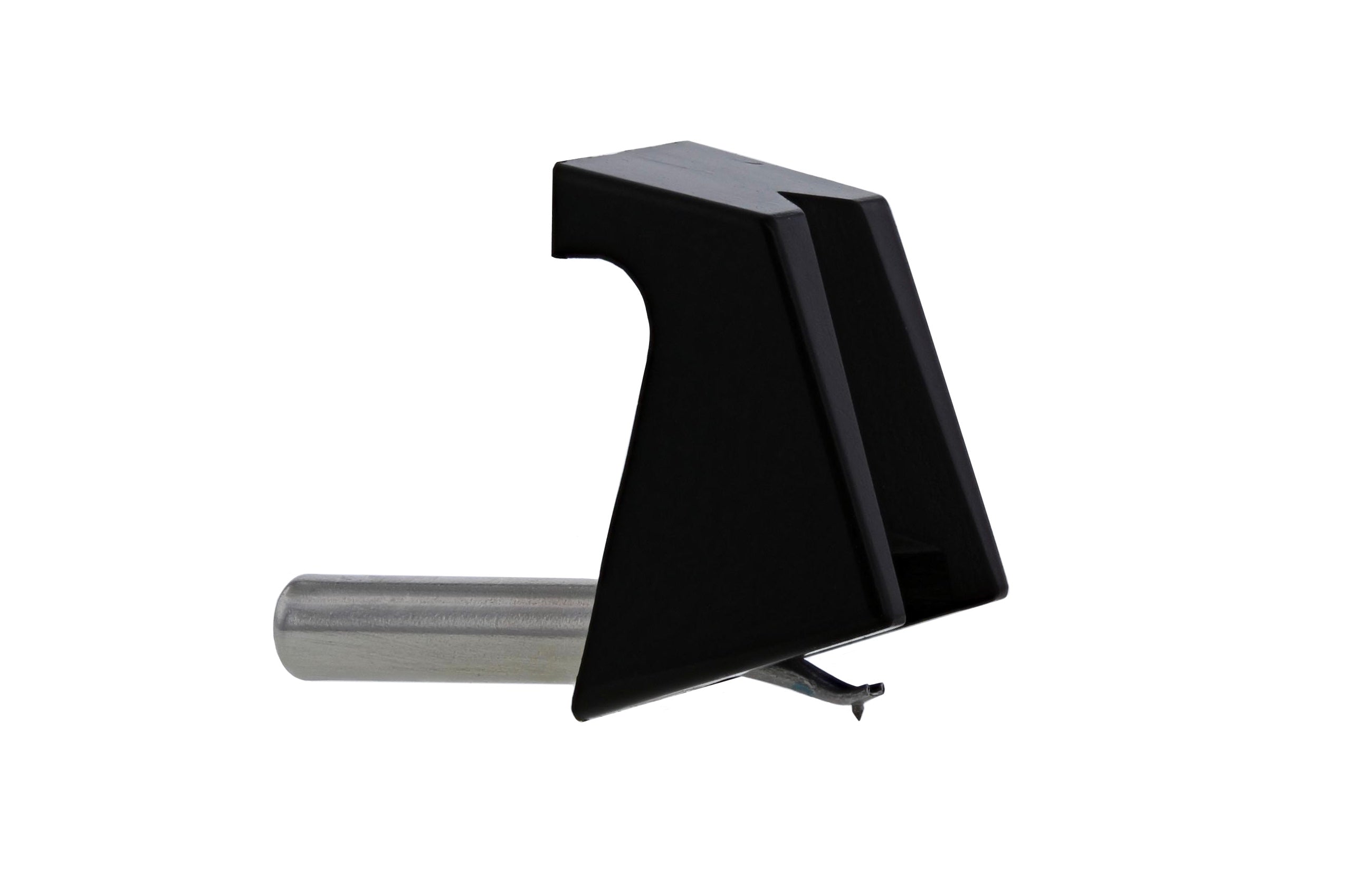

LP Tunes D71EE-N
● Higher quality stylus replacement for Stanton D71EE stylus
● Made in Japan for highest fidelity and sound quality
● Nude Special Elliptical diamond tip for excellent tracing accuracy
● Traces the subtlest contours of the grooves with sentient accuracy
● Diamond tip r/R radii: 6/75 µm (.0002 × .0030 inch)
● Made by select artisans, very skilled stylus craftsmen
● Genuine, unsurpassed 100% original LP GEAR® stylus
D71EE-N UPGRADE FOR STANTON D71EE STYLUS
The D71EE-N extends the musical prowess of the Stanton L720 cartridge formerly limited by the D71EE stylus and its subrdinate descendants and copies. It offers new musical notes and air formerly masked. The nude special elliptical stylus D71EE-N stylus, custom thin-wall aluminum alloy cantilever traces the suble contours of the
grooves with scntillating accuracy for natural sound quality and harmonic eloquence.
The color of the stylus may vary.
Original Stanton L720EE cartridge Specifications
- Stylus Type: Elliptical 0.3 x 0.7 mil Frequency Response: 10 to 17 kHz
- Nominal Output @ 1kHz: 3.2mV per Channel
- Separation @ 1 kHz: 28dB
- Channel Balance @ 1 kHz: within 2dB
- Tracking Force: .75 to 1.5 grams
- DC Resistance: 535 ohms nom.
- Inductance: 400 mH
- Cartridge Weight: 6.0 g
- Tracking Ability: 80µ @ 3 grams
- Recommended Load: 47k ohms and 275 pF
- Replacement Stylus: D71EE
Note: specifications provided for reference only to original Stanton Cartridge
