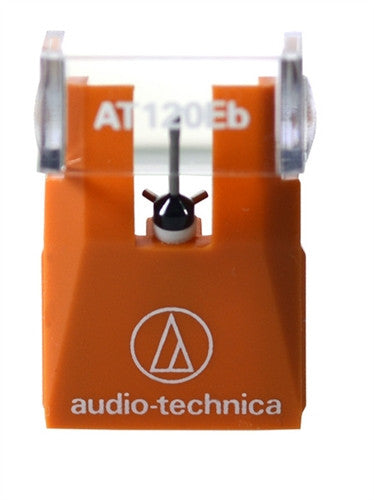

Audio-Technica ATN120Eb stylus
AUDIO-TECHNICA ATN120EB STYLUS FOR AUDIO-TECHNICA AT120E & AT120Eb CARTRIDGE
Audio-Technica ATN120Eb stylus for the Audio-Technica AT120E & AT120Eb cartridge.
Audio Technica ATN120EB Stylus Specifications
- Type: Dual Magnet stereo stylus - Output voltage: 4mV
- Frequency response: 20 ~ 25,000Hz
- Channel balance @ 1kHz: 1.0dB
- Channel separation @ 1kHz/10kHz: 28/20dB
- Tracking Force: 1.0 - 1.8g (1.4g standard)
- Static Compliance: 35 x 10-6cm/dyne
- Dynamic Compliance: 10 x 10-6cm/dyne (100Hz)
- Stylus shape: 0.3 x 0.7 mil Nude Elliptical diamond
- Stylus construction: Nude round shank
- Cantilever: Aluminum pipe
- Vertical Tacking Angle: 20°
