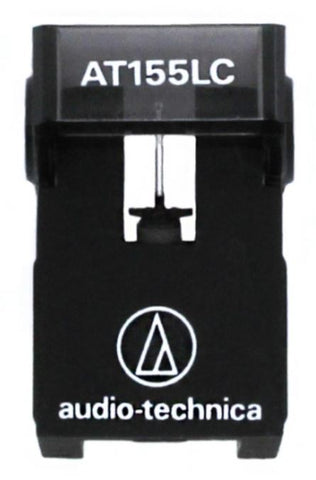

Audio-Technica ATN155LC Stylus

AUDIO-TECHNICA ATN155LC STYLUS

Discontinued, please see the 100% compatible LP Tunes ATN150SS

Genuine Audio-Technica ATN-155LC stylus with beryllium cantilever and Nude Square shank Line Contact diamond tip designed specifically for use with the Audio-Technica AT155LC cartridge.

Upgrade Options
- For upgrade stylus and essentials that enhance sound quality and fidelity, refer to Related Products.

Audio-Technica AT155LC Cartridge Specifications
- Type: Moving Magnet VM Dual Magnet Stereo
- Frequency response: 5 - 35,000 Hz
- Output voltage: 5.0 mV (1kHz, 5 cm/sec.)
- Channel separation (dB at 1 kHz/10 kHz): 32/21
- Channel balance (dB): 0.5 dB
- Vertical Tracking force range, VTF (grams): 0.8 - 1.6
- Tracking ability (microns): 80 - 90
- Coil impedance: 2.3 kΩ (1kHz)
- Load impedance: 47 kΩ
- Load capacitance (pF): 100 - 200
- Stylus: Line Contact (LC)
- Stylus construction: Nude square
- Cantilever: Beryllium
- Vertical tracking angle: 20 °
- Weight (grams): 8.3
- Dimensions: 17.3(H) × 17.0(W) × 29.0(D) mm
- Replacement stylus: ATN155LC

Note: Specifications are subject to change without notice and are provided for reference only.
