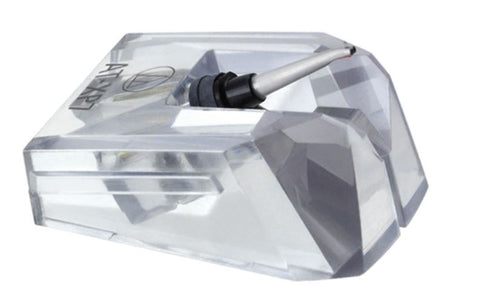

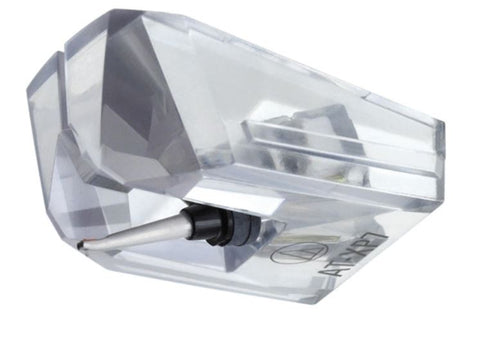

Audio-Technica ATN-XP7 Stylus
AUDIO-TECHNICA ATN-XP7 STYLUS
The ATN-XP7 stylus brings back the high accuracy for outstanding audio reproduction of the Audio-Technica AT-XP7 cartridge. Always have one as back-up.
Audio-Technica AT-XP5 DJ Cartridge Specifications
- Frequency response: 20-20,000 Hz
- Channel separation: 22 (dB at 1 kHz)
- Vertical tracking force: 2.0-4.0 g (3.0 g standard)
- Stylus construction: Bonded round shank
- Recommended load impedance: 47 kΩ
- Output: 6.0 mV (1 kHz, 5 cm/sec.)
- Channel balance: 2.0 dB (1 kHz)

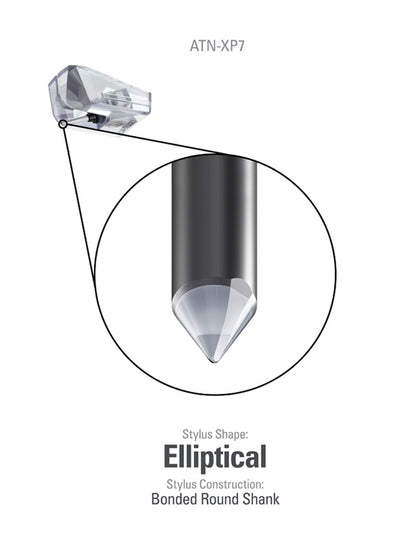

- Stylus shape: 0.3 × 0.7 mil elliptical
- Cantilever: Aluminum tapered pipe
- Mount: Half-inch
- Replacement stylus: ATN-XP7
- Coil impedance: 6.7 kΩ (1 kHz)
- DC resistance: 990 Ω
- Recommended load capacitance: 100 to 200 pF
- Coil inductance: 1.0 H (1 kHz)
- Vertical tracking angle: 20°
- Dimensions: 17.2 mm (0.68") H × 17.8 mm (0.67") W × 28.3 mm (1.20") D
- Weight: 6.2 g (0.22 oz)
