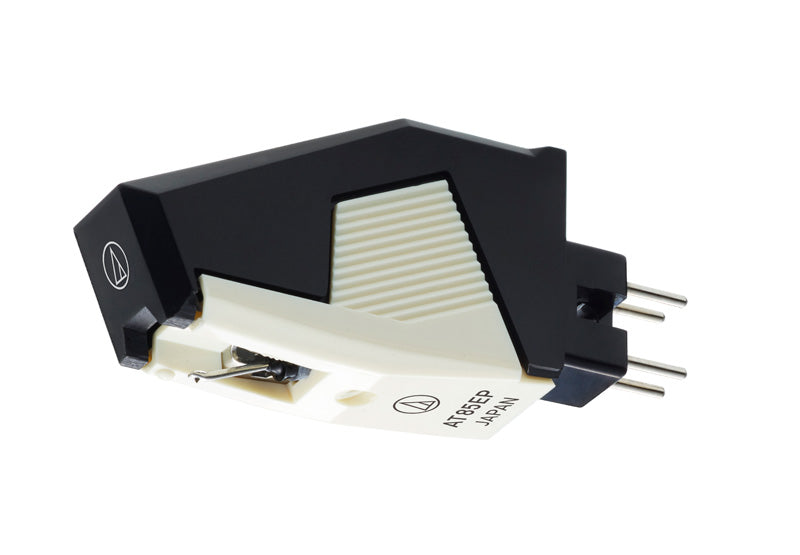

Audio-Technica AT85EP cartridge
The latest iteration of Audio-Technica's highly regarded AT3472 P-mount T4P cartridge, the AT85EP features a 0.3 × 0.7 mil diamond stylus, topflight precision engineering and craftsmanship other manufacturers can only envy. Its sound quality is pristine.
Note: Headshell mounting hardware and T4P P-mount Cartridge Screw and Nut are not included (sold seprately.)Audio-Technica AT85EP Cartridge Specifications
- Frequency response: 20-20,000 Hz
- Channel separation: 20 (dB at 1 kHz)
- Vertical tracking force: 1.0-1.5 g (1.25 g standard)
- Stylus construction: Bonded round shank
- Recommended load impedance: 47,000 ohms
- Output: 3.5 mV (1 kHz, 5 cm/sec.)
- Channel balance: 2.0 dB (1 kHz)
- Stylus shape: 0.3 × 0.7 mil elliptical
- Cantilever: Aluminum pipe
- Mount: P-mount
- Replacement stylus: ATN85EP (ATN3472)
- Coil impedance: 2.8 k ohms (1 kHz)
- DC resistance: 410 ohms
- Recommended load capacitance: 100 to 200 pF
- Coil inductance: 400 mH (1 kHz)
- Vertical tracking angle: 20°
- Dimensions: 15.3 mm (0.60") H × 10.0 mm (0.39") W × 35.1 mm (1.38") D
- Weight: 6.0 g (0.21 oz)
