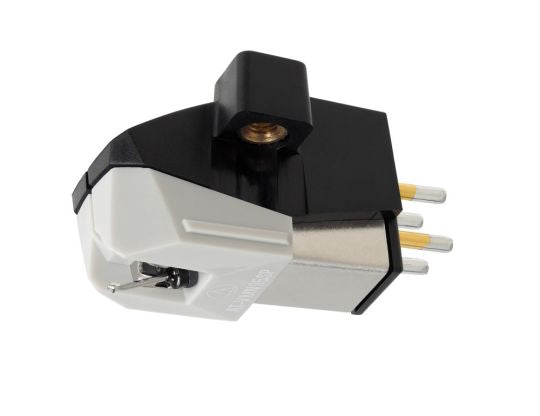

Audio-Technica AT-VM95SP cartridge for 78RPM record playing
● VM95 dual magnet cartridge with 3.0 mil conical stylus for 78 RPM records
● Aluminum alloy cantilever
● Durable low-resonance polymer housing
● Threaded inserts in cartridge body mount to headshell with just 2 screws
● Simple installation - no nuts or washers required
● Compatible with all six interchangeable AT-VMN95 replacement styli
AUDIO-TECHNICA AT-VM95SP CARTRIDGE FOR 78RPM RECORD-PLAYING
This VM95SP cartridge with 3.0 mil conical stylus fits half-inch mount turntables and is designed to play 78 RPM mono records. it is, nevertheless, a stereo cartridge, allowing users to choose between the left and right channels, which can be especially helpful in archiving applications to minimize noise and distortion. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.
Audio-Technica AT-VM95SP Specifications
Frequency Response: 20-20,000 Hz
Channel Separation: NA
Vertical Tracking Force 4.5-5.5 g (5.0 g standard)
Stylus Construction: Bonded round shank
Recommended Load Impedance: 47KΩ
Output: 2.7 mV (1 kHz, 5 cm/sec.)
Channel Balance: 1.5 dB (1 kHz)
Stylus Shape: 3.0 mil conical
Cantilever: Aluminum pipe
Mount: Half-inch
Replacement Stylus: AT-VMN95SP
Coil Impedance: 3.3 k Ω (1 kHz)
DC Resistance: 485 Ω
Load Capacitance: 100 to 200 pF
Coil Inductance: 550 mH (1 kHz)
Static Compliance: 12 x 10-6 cm/dyne
Dynamic Compliance: 2 x 10-6 cm/dyne (100 Hz)
Vertical Tracking Angle: 23°
Dimensions: 17.2 mm (0.68") H × 18.9 mm (0.74") W × 28.3 mm (1.20") D
Weight: 6.1 g (0.22 oz)
Accessories Included: Two 11 mm installation screws, two 8 mm installation screws, two washers
