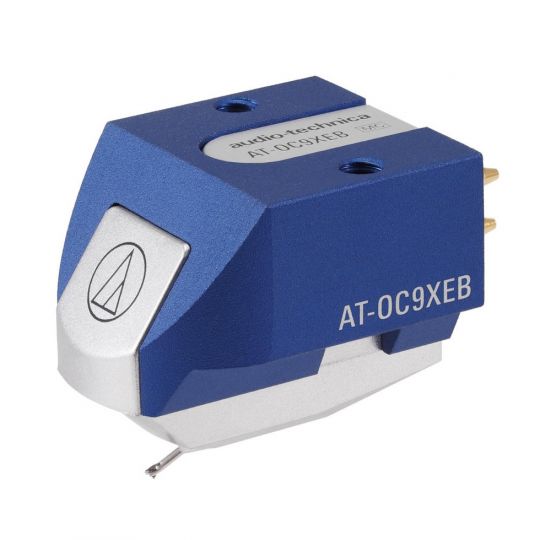

Audio-Technica AT-OC9XEB Moving Coil Cartridge

Audio-Technica AT-OC9XEB Moving Coil Cartridge

SKU: ATOC9XEB

  • $279.00

 Dual Moving Coils for left and right channels offer outstanding channel separation
 V-shaped aligned formation reduces pressure on stylus thus minimizing distortion
 Pre-threaded cartridge body enables mounting with just two screws – no nuts required
 Nude Line Contact tip and boron cantilever for accurate tracing and transient response
 Neodymium magnet and permendur yoke for significantly increased magnetic energy
 Aluminum body for reduced resonance and superior audio reproduction
 Pure Copper by Ohno Continuous Casting process (PCOCC) coils transmit pure signal

Product Info Specifications

AUDIO-TECHNICA AT-OC9XEB MOVING COIL CARTRIDGE

Since their introduction more than 30 years ago, Audio-Technica’s AT-OC9 Series moving coil (MC) phono cartridges have been acclaimed by listeners and reviewers worldwide for their exceptional sound quality and musical transparency. At HIGH-END Munich 2019, Audio-Technica is introducing its AT-OC9X Series, the fourth generation of this legendary range of cartridges.

"When the first AT-OC9 cartridge was introduced in 1987 it integrated previously unavailable engineering innovations with carefully chosen materials to achieve a breakthrough in sound quality," said Yosuke Koizumi, Chief Engineer of Cartridges at Audio-Technica Japan. "Since then, we have continued to improve the cartridges. Our latest AT-OC9X Series embodies the culmination of over 50 years of cartridge manufacturing experience to deliver new levels of record-playback quality and musical enjoyment." Since their introduction more than 30 years ago, Audio-Technica’s AT-OC9 Series moving coil (MC) phono cartridges have been acclaimed by listeners and reviewers worldwide for their exceptional sound quality and musical transparency. At HIGH-END Munich 2019, Audio-Technica is introducing its AT-OC9X Series, the fourth generation of this legendary range of cartridges.

Each OC9X model features a host of improvements including a new Dual Moving Coil structure, which enables the audio information in the record grooves to be separated to the left and right channels with pinpoint accuracy. This improved channel separation results in a more precise stereo image and wider frequency response. Since their introduction more than 30 years ago, Audio-Technica’s AT-OC9 Series moving coil phono cartridges have been acclaimed by listeners and reviewers worldwide for their exceptional sound quality and musical transparency. At HIGH-END Munich 2019, Audio-Technica is introducing its AT-OC9X Series, the fourth generation of this legendary range of cartridges.

AT-OC9X Series cartridges are available with a choice of stylus types including Special Line Contact (AT-OC9XSL), Shibata (AT-OC9XSH), microlinear (AT-OC9XML), nude elliptical (AT-OC9XEN) and bonded elliptical (AT- OC9XEB). The Special Line Contact, microlinear, and Shibata stylus models have been upgraded with a boron cantilever, while the nude elliptical and elliptical cartridges feature an aluminum cantilever. These materials were carefully selected to keep unwanted vibrations to a minimum and to reduce internal resonances for clearer, more detailed audio reproduction.

Audio-Technica AT-OC9XEB Specifications
- Type: Moving Coil Dual Magnet Stereo
- Body Material: Aluminum
- Mounting feature: Threaded inserts
- Frequency range: 20 ~ 30,000 Hz
- Channel separation: 25 dB (1kHz)
- Output Channel Balance: 1.5 dB (at 1kHz)
- Channel separation: 30 dB (1kHz)
- Output balance: 0.5 dB (1kHz)
- Output Voltage: 0.32mV (1kHz)
- Vertical Tracking Force Range: 1.8 ~ 2.2 g (2.0 g standard)
- Stylus Shape: Elliptical Bonded
- Stylus Curvature Radius: 0.3 x 0.7 mil
- Stylus Construction: Bonded round shank
- Cantilever: Aluminum pipe
- Static compliance: 35 × 10-6 cm/dyne
- Dynamic compliance: 9 × 10-6 cm/dyne (100Hz)
- Wire used for Coil: PCCOCC
- Terminal Pins: Brass
- Rec. load impedance: Min 100 Ω
- Coil impedance: 12 Ω (1kHz)
- DC Resistance: 12 Ω
