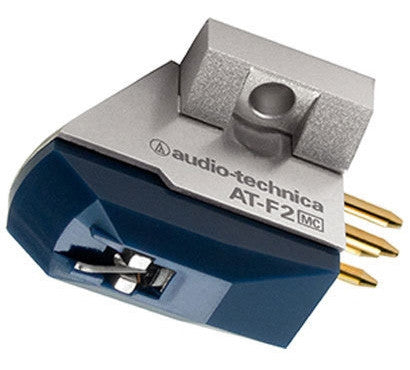

Audio-Technica AT-F2 (ATF2 AT F2) Phono Cartridge
The new Audio-Technica AT-F2 stereo moving coil cartridge offers unheard of musical achievement and value. It is an excellent example of Audio-Technica's latest leap and advancement in technical expertise, unique technological knowledge, and employment of hybrid materials to engineer MC cartridges of optimal and world-class performance. In this instance, its high achievement is fulfilled through a balance of material use and technical implementations each contributing to the AT-F2's musical rightness - the reverse V-shaped dual left and right coil design, special elliptical stylus, aluminum pipe cantilever, PCOCC coil, Neodymium magnet, and precision crafted sturdy aluminum base.
- Tonearm mount: 1/2 inch
- Type: Moving coil
- Frequency response: 15Hz-30kHz
- Output voltage @ 1kHz,5cm/sec: 0.32mV
- Tracking force: 1.8-2.2 g (2.0 g standard)
- Recommended load impedance: Minimum 100 ohms
- Coil impedance: 12 ohms (1kHz)
- DC resistance: 12 ohms
- Channel separation @ 1kHz: 25dB
- Channel balance @ 1kHz: >1.5dB
- Dynamic compliance: 9.0 x 10-6cm/dyne (100Hz)
- Static compliance: 35 x 10-6cm/dyne
- Stylus: Elliptical 0.3 0.7 mil
- Vertical tracking angle: 23
- Dimensions: 17.3"h x 16.8"w x 25.4"l
- Weight: 5.0 g
- Accessories included: Stylus protector (x 1), nuts (x 2), washers (x 2), cartridge mounting screws 5 mm (x 2), 9 mm (x 2)
