JVC

JVC L-T11 L T11 LT11 turntable belt replacement

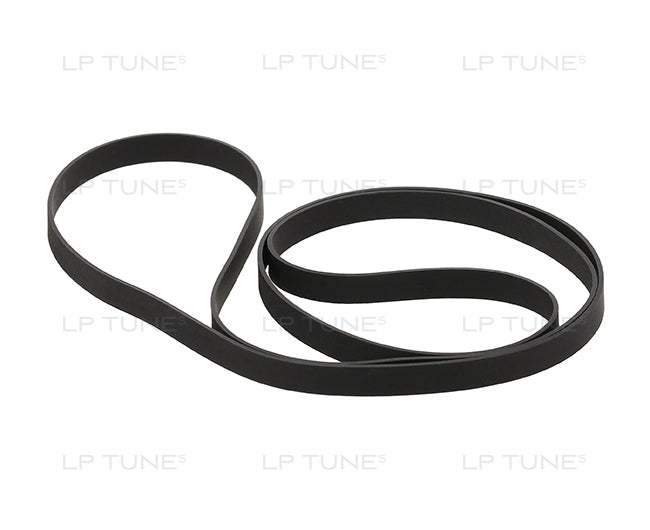

JVC MF-1845R MF 1845R MF1845R turntable belt replacement

JVC QL-G901 QL G901 QLG901 turntable belt replacement

JVC QL-G90B QL G90B QLG90B turntable belt replacement

JVC QL-L2 QL L2 QLL2 turntable belt replacement

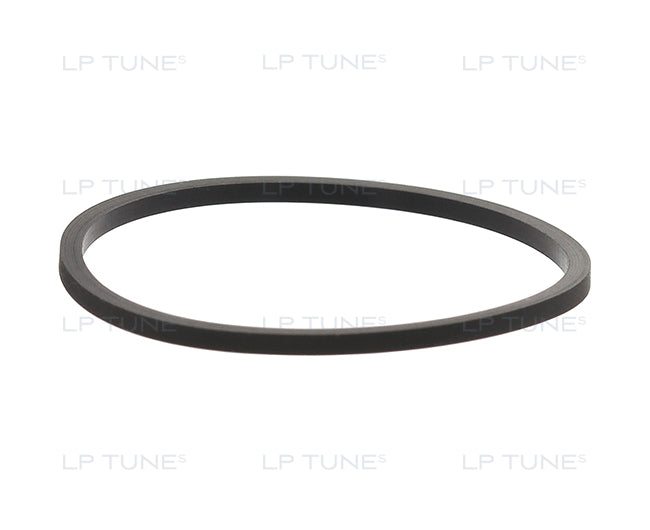

JVC QL-L2 QL L2 QLL2 turntable tonearm belt replacement

JVC QL-L20 QL L20 QLL20 turntable belt replacement

JVC QL-L20B QL L20B QLL20B turntable belt replacement

JVC SRP-473E SRP 473E SRP473E turntable belt replacement

JVC SRP-B30E/5230 SRP B30E/5230 SRPB30E/5230 turntable belt replacement

JVC VC-9 VC 9 VC9 turntable belt replacement

JVC VL-5 VL 5 VL5 turntable belt replacement

JVC VL-8 VL 8 VL8 turntable belt replacement

STYLUS FOR JVC MF-1845L SYSTEM TURNTABLE

The JVC MF-1845L MF 1845L MF1845L stereo system turntable was fitted with a JVC MD-1016 MD1016 phono cartridge and a JVC DT-33H DT33H stylus. A photo of the stylus replacement is supplied above. The color of the stylus varies.

● DT-33H stylus for JVC MD-1016 cartridge fitted to MF-1845L turntable
● Restores fidelity and sound quality to its core competencies
● Special conical diamond tip radius: 15 µm (.0006 in.) 0.6 mil
● Low-mass aluminum alloy cantilever for tracing accuracy and fidelity
● LP TUNES® stylus - Above and beyond copies and generics

Do not order this stylus if it looks different from what you have. It will not fit if the original cartridge is missing or has been changed. Please contact us if you need assistance or prefer a new cartridge. If possible, provide us with the markings on the existing cartridge and stylus (look for the brand and model number). Photos will be helpful.

Upgrade Options
- For upgrades and accessories that enhance sound quality and fidelity, refer to Related Products.

LP TUNES DT-35 STYLUS FOR JVC MD-1029 CARTRIDGE

The LP Tunes DT-35 DR35 stylus is specified for the JVC MD1029 cartridge. IT features a highly polished 0.6 mil conical diamond tip for long playing life, reduced record waer and good rendition of voice and music. This stylus can grace the listener with the enjoyment of fine detail, clarity and harmonically rich sound quality. Its fine craftsmanship reflects the high sound quality of this stylus. The color of the stylus may vary./

● Finest quality DT-35 stylus for JVC MD-1029 cartridge
● Special precision polished conical diamond tip for high fidelity
● .0006 inch radii for tracing accuracy and reduced record wear
● High strength aluminum alloy cantilever for firm contact with LP grooves
● Optimum Tracking force: 1.5 to 2.5g
● Genuine, unsurpassed 100% original LP TUNES® stylus

Upgrade Options
- For upgrade stylus and essentials that enhance sound quality and fidelity, refer to Related Products.

JVC MD-1029 cartridge specifications
- Type: Moving Magnet VM Dual Magnet Stereo
- Frequency response: 10 ~ 25,000 Hz
- Output voltage: 2.5 mV (1kHz, 5 cm/sec.)
- Channel separation: Better than 25 dB (1kHz)
- Output balance: 0.8 dB (1kHz)
- Optimum Tracking force: 1.3 ~ 1.5 g (1.5 g standard)
- Rec. load resistance: 47 kΩ
- Coil inductance: 350 mH (1kHz)
- Static compliance: 22 × 10-6 cm/dyne
- Dynamic compliance: 7 × 10-6 cm/dyne (100Hz)
- Stylus: Conical, 0.6 mil diamond tip
- Stylus Replacement: DT-35

Note: Specifications are subject to change without notice.
