Pickering

The Pickering D-AME-3 D AME 3 needle stylus is used with the Pickering V-15/AME-3 phono cartridge and other V-15 Magnetic phono cartridges. It also substitutes for the Pickering D-1500-AME3 and D6EE needle styli. The stylus features a highly polished special elliptical diamond for superb tracing characteristics, extraordinary accuracy and very high fidelity. It has a tracking force range between 1 to 3 grams. The stylus is designed and made in the USA.

PICKERING D-AT-2 D AT 2 NEEDLE STYLUS REPLACVEMENT

The Pickering D-AT-2 D AT 2 needle stylus features a highly polished spherical diamond tip for long playing life and good rendition of voice and music. Its tracking force is between 2 to 5 grams. This genuine LP Tunes stylus comes in a clear protective plastic box.

The Pickering D-ATE-3 D ATE 3 needle stylus features a highly polished special elliptical diamond for superb tracing characteristics and results in extraordinary accuracy and very high fidelity. The stylus comes in an original Pickering plastic cube case.

For an alternative stylus replacement, refer to the Related Products.

The Pickering D-IV-ATE D IV ATE needle stylus is used with the Pickering V-15/IV-ATE phono cartridge and as an upgrade stylus for the Pickering V-15/IV-AC, V-15/IV-AM, V-15/IV-ACE, and V-15/IV-AME phono cartridges. The stylus features a highly polished special elliptical diamond for superb tracing characteristics, extraordinary accuracy, naturally clean tone and very high fidelity.

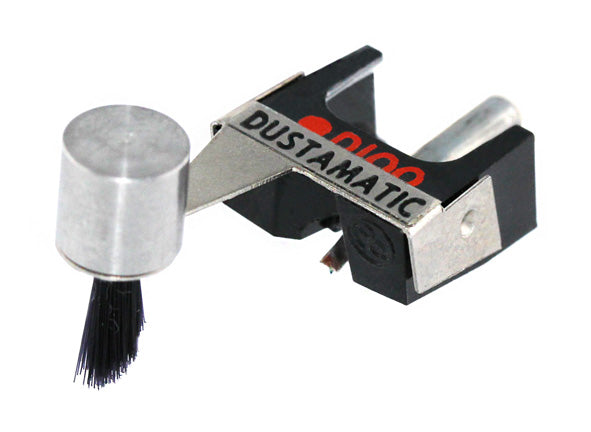

PICKERING D100 STYLUS
- Genuine, original Pickering stylus

Out of stock. Please see the 100% compatible LP Tunes Replacement for Pickering D-100 D100 Stylus ($23.95).

PICKERING DE NEEDLE STYLUS

Discontinued. Replaced by the 100% compatible LP Tunes D71EE Replacement. See Stylus Alternatives below and in Related Products section.

The Pickering DE floating stylus features a highly polished elliptical diamond with .0004 x .0007 inch scanning radii for superb tracking and tracing of record grooves thus resulting in finer detail and harmonically natural sound quality. The DE Pickering stylus is used with the Pickering V-15/TE, TE-15 TE15 and other fine Pickering and Stanton cartridges. Tracking force range 0.75 - 1.5g. Output voltage 4.4 mV, Made in USA.

Stylus Alternatives
- Entry Stylus: LP Tunes Conical Stylus Replacement for Stanton D71EE, D71-2E, & Others
- Superior Stylus: NSS/E Nude Elliptical Upgrade Stylus Replacement for Stanton D71EE, D71-2E, & Others
- Premier Stylus: LP Tunes Vivid Line D71VL Upgrade Stylus Replacement for Stanton D71EE, D71-2E, & Others

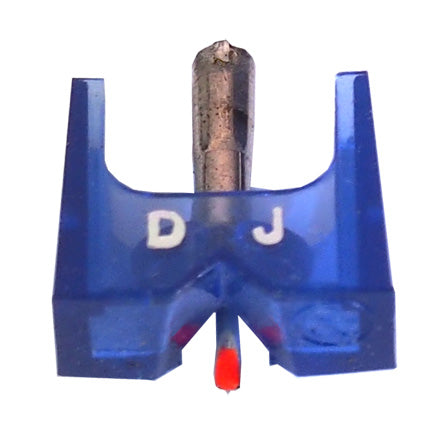

PICKERING DJ STYLUS
- Genuine Pickering stylus for XV-15/625-DJ

Out of stock. Please see the 100% compatible LP Tunes Elliptical Replacement for Pickering DJ Stylus ($82.00).

Pickering DJ stylus ruggedized for Pickering XV15/625-DJ XV-15/625DJ cartridge designed for high level of sound excellence in the "live" environment of back cueing, slip cueing, heavy tracking forces, vibration and potential for mishandling.

Don't use anti-skating bias if you are back cueing.

Pickering 625-DJ Cartridge Specifications
- Frequency response: 20Hz-20kHz ± 1.5 dB
- Output voltage: 0.8 mV/cm/sec
- Channel balance @ 1kHz: 1.5dB
- Channel separation @ 1kHz: 30dB
- Stylus shape: 0.3 x 0.7 mil Elliptical diamond
- Stylus construction: Bonded
- Cantilever: Thin-wall alloy tube
- Tracking force: 1-4 g
- Weight: 5.5g
- Stylus replacement: DJ (White or Blue with DJ mark)
- Stylus replacement for Mono: 4510
- Stylus replacement for 78 RPM: 4527

Note: Specifications provided only for informative reference and subject to change without notice. presented styli.

Upgrade Options
- For upgrades and accessories that enhance sound quality and fidelity, refer to Related Products.

PICKERING DL-2E STYLUS FOR PICKERING TLE TYPE 2 CARTRIDGE

Discontinued. Replaced by the 100% compatible LP Tunes D71EE Replacement. See Stylus Alternatives below and in Related Products section.

The Pickering DL-2E DL2E stylus is specified for the Pickering TLE Type 2 phono cartridge. The stylus features a highly polished elliptical diamond for superb tracking and tracing of record grooves thus resulting in finer detail and harmonically superb sound quality.

Pickering TLE Type 2 Cartridge Specifications
- Frequency response: 10Hz-20KHz
- Output voltage @ 1kHz,5cm/sec: 3.0mV
- Channel balance @ 1kHz: within 2dB
- Channel separation @ 1kHz: 28dB
- Tracking force: 0.75 - 1.5 g
- Stylus tip: 0.4 x 0.7 mil, special elliptical
- DC Resistance: 535 ohms
- Inductance: 400 mH
- Weight: 5.9 g
- Load resistance: 47k ohms

Stylus Alternatives
- Entry Stylus: LP Tunes Conical Stylus Replacement for Stanton D71EE, D71-2E, & Others
- Superior Stylus: NSS/E Nude Elliptical Upgrade Stylus Replacement for Stanton D71EE, D71-2E, & Others
- Premier Stylus: LP Tunes Vivid Line D71VL Upgrade Stylus Replacement for Stanton D71EE, D71-2E, & Others

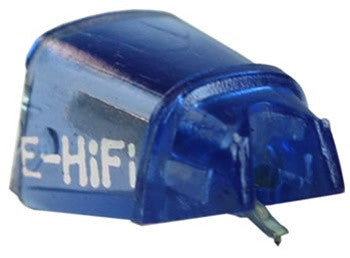

The Pickering E-HiFi needle stylus is designed for the Pickering EP-HiFi and Stanton Epoch II phono cartridges. The stylus features a highly polished diamond for superb tracking and tracing of record grooves. It results in finer detail and harmonically complete sound quality. The stylus is packaged in its original Pickering plastic cube case.

Stanton has reintroduced the Pickering NP/AC cartridge. When you order the NP/AC cartridge, you will instead receive the Stanton 400.V3 cartridge.

The NP/AC cartridge is Pickering's "mouse that roared" with a whopping 10mV output level. It's durable, cost-effective, and the loudest cartridge on earth! It can be used in varied applications such as high fidelity home listening, recording to CD, and for jukebox. In addition, when used with the optional D1527 stylus, the NP/AC metamorphoses into a superior 78 RPM phono cartridge.

Pickering NP/AC Phono Cartridge Specifications
- Stylus type: 0.7 mil spherical
- Tracking force: 3 - 7 g
- Frequency response: 20Hz-15kHz
- Output voltage: 10mV
- Weight: 5.5 g
- DC resistance: 535 ohms nominal
- Channel separation @ 1kHz: 20dB
- Inductance: 400 mH nominal

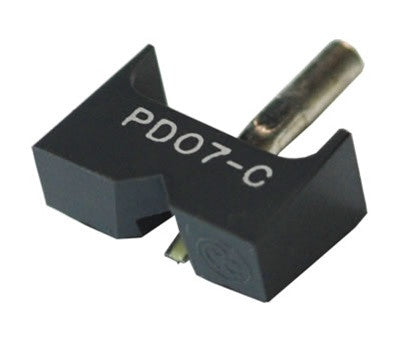

The Pickering PD07-C PD07C stylus features a highly polished spherical diamond for long playing life, reduced record wear and good rendition of voice and music. Its tracking force is between 3 to 7 grams. This genuine stylus comes in the original Pickering plastic cube packaging.

The Pickering E-HiFi needle stylus for the Pickering EP-HiFi phono cartridge features a highly polished diamond for superb tracking and tracing of record grooves. It results in finer detail and harmonically complete sound quality. The stylus is packaged in its original Pickering plastic cube case.

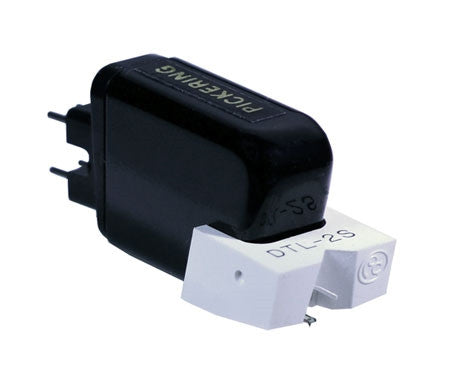

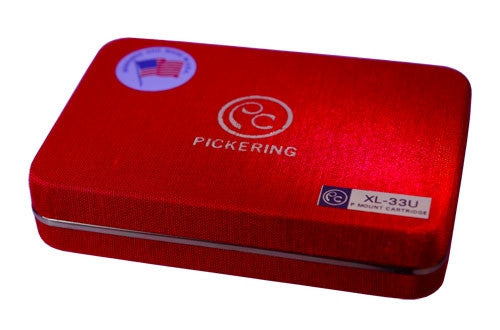

Pickering XL-33U Phono Cartridge Specifications
- Output voltage at 1000 Hz, 5.5cm/sec.: 4.4 mV
- Frequency response: 10-22,000 Hz
- Channel separation: 32dB
- Internal impedance, DC resistance: 1,300 Ohm
- Internal inductance: 900 mH
- Recommended load resistance: 47 kOhm
- Stylus type: Stereohedron
- Tracking force range: 1.0-1.5g
- Cartridge colour, body/stylus: Black/White
- Cartridge weight without screws: 6.0 g
- Replacement stylus unit: DTL2S

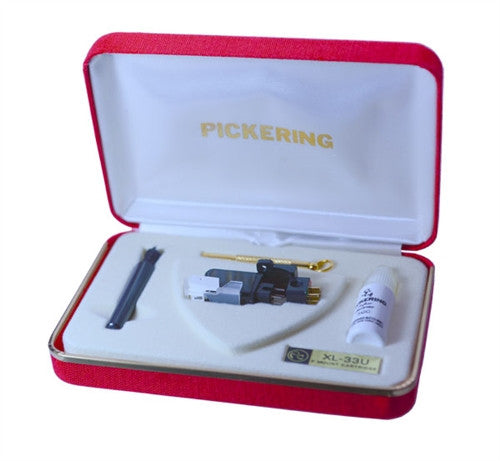

- Accessories included: 1 Case, 1 Stylus brush, 1 Screwdriver, 1 Half-inch adaptor, 5 Screws, 3 nuts, 2 spacers, 1 Pickering SC4 stylus cleaner, 2 Mounting instructions.
