Audio-Technica

AUDIO-TECHNICA STYLUS FOR AUDIO-TECHNICA AT-9V AT9V CARTRIDGE

The Audio-Technica ATN-7V ATN7V needle stylus is a substitute stylus for the Audio-Technica AT-9V AT9V phono cartridge. The stylus features a highly polished grain-oriented, square-shank nude special elliptical diamond with a 0.2 x 0.7 mil tracing radii. It is mounted on a tapered aluminum alloy cantilever for natural sound reproduction, long playing life, very high fidelity, dynamics and very high resolution. The stylus is made in Japan by Audio-Technica.

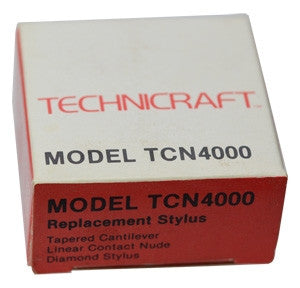

AUDIO-TECHNICA TECHNICRAFT TCN-4000 TCN 4000 TCN4000 STYLUS

The Audio-Technica Technicraft TCN-4000 TCN4000 needle stylus is used with the Audio-Technica Technicraft TC-4000 TC4000 phono cartridge. It can also be used to upgrade the performance of the Technicraft TC1000, TC2000 and TC3000 phono cartridges to the level of the TC4000 phono cartridge. The stylus features a highly polished and shaped linear contact nude natural diamond bonded to tapered cantilever for pinnacle tracking and tracing performance and musical reproduction. The Audio-Technica Technicraft TCN-4000 TCN4000 is the best stylus created for the Technicraft series. The stylus is made in Japan by Audio-Technica.

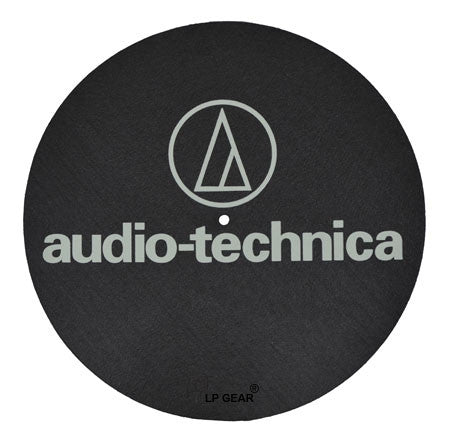

AUDIO-TECHNICA TURNTABLE FELT MAT

The Audio-Technica Turntable Felt Mat is designed for clear and live sound quality. Its special material, thickness and size mitigates motor, plinth and airborne vibration and resonance.

Audio-Technica Record Mat Features

• Material: Special Felt
• Thickness: 2.70 mm
• Diameter: 292 mm

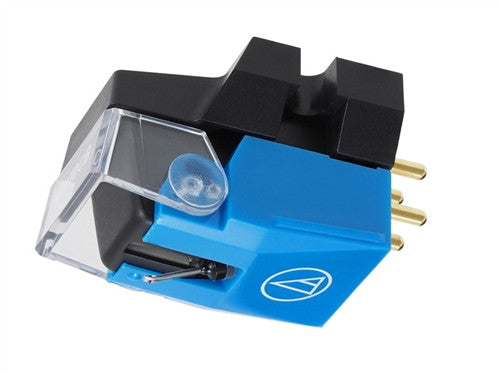

AUDIO-TECHNICA VM510CB CARTRIDGE

The VM510CB conical stylus cartridge is the entry-level 500 Series model in Audio-Technica's new VM cartridge line a line that harks back to A-T's early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today's advanced technology. Like all VM cartridges, the VM510CB is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge's 0.6 mil conical bonded stylus tracks the center of the record groove for reliable performance and excellent fidelity.

Audio-Technica VM510CB cartridge specifications
- Type: VM
- Frequency response: 20 ~ 20,000 Hz
- Output voltage: 5.0 mV (1kHz, 5 cm/sec.)
- Channel separation: 25 dB (1kHz)
- Output balance: 1.5 dB (1kHz)
- Tracking force: 1.8 ~ 2.2 g (2.0 g standard)
- Coil impedance: 2.7 kΩ (1kHz)
- DC resistance: 800 ΩΩ
- Load impedance: 47 kΩ
- Load capacitance: 100 ~ 200 pF
- Coil inductance: 460 mH (1kHz)
- Static compliance: 35 10-6 cm/dyne
- Dynamic compliance: 8 10-6 cm/dyne (100Hz)
- Stylus: Bonded conical (0.6 mil)
- Cantilever: Aluminum pipe
- Vertical tracking angle: 23
- Dimensions: 17.3(H) 17.0(W) 28.2(D) mm
- Weight: 6.4 g
- Replacment stylus: VMN10CB
- Accessories: Cartridge installtion screws 5mm 2, 10 mm 2, Washer 2, Hexagon nut 2

Note: Specifications are subject to change without notice.

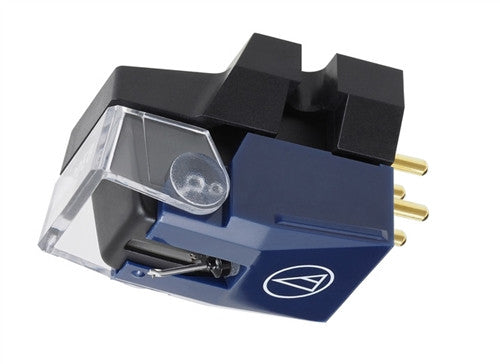

AUDIO-TECHNICA VM520EB CARTRIDGE

Like all VM cartridges, the VM520EB is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge's 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction.

Audio-Technica VM520EB cartridge specifications
- Type: VM
- Frequency response: 20 ~ 23,000 Hz
- Output voltage: 4.5 mV (1kHz, 5 cm/sec.)
- Channel separation: 27 dB (1kHz)
- Output balance: 1.5 dB (1kHz)
- Tracking force: 1.8 ~ 2.2 g (2.0 g standard)
- Coil impedance: 2.7 kΩ (1kHz)
- DC resistance: 800 ΩΩ
- Load impedance: 47 kΩ
- Load capacitance: 100 ~ 200 pF
- Coil inductance: 460 mH (1kHz)
- Static compliance: 35 10-6 cm/dyne
- Dynamic compliance: 8 10-6 cm/dyne (100Hz)
- Stylus: Bonded elliptical (0.3 0.7 mil)
- Cantilever: Aluminum pipe
- Vertical tracking angle: 23
- Dimensions: 17.3(H) 17.0(W) 28.2(D) mm
- Weight: 6.4 g
- Replacment stylus: VMN20EB
- Accessories: Cartridge installtion screws 5mm 2, 10 mm 2, Washer 2, Hexagon nut 2

Note: Specifications are subject to change without notice.

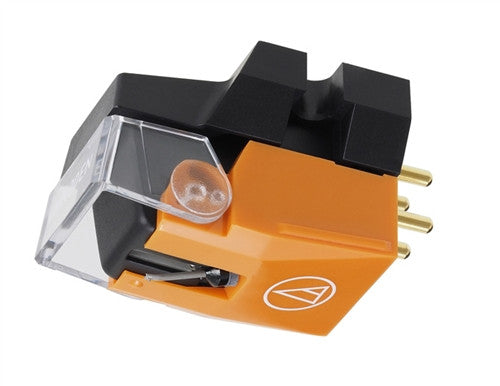

AUDIO-TECHNICA VM530EN CARTRIDGE

The VM530EN is a top-end elliptical stylus cartridge in Audio-Technica's new VM cartridge line a line that harks back to A-T's early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today's advanced technology. Like all VM cartridges, the VM530EN is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge's lightweight 0.3 x 0.7 mil Nude Elliptical stylus reduces the execution mass of the vibration system, enabling fuller frequency reproduction and less tracking distortion than a bonded stylus.

Audio-Technica VM530EN cartridge specifications
- Type: VM
- Frequency response: 20 ~ 25,000 Hz
- Output voltage: 4.5 mV (1kHz, 5 cm/sec.)
- Channel separation: 27 dB (1kHz)
- Output balance: 1.5 dB (1kHz)
- Tracking force: 1.8 ~ 2.2 g (2.0 g standard)
- Coil impedance: 2.7 kΩ (1kHz)
- DC resistance: 800 Ω
- Load impedance: 47 kΩ
- Load capacitance: 100 ~ 200 pF
- Coil inductance: 460 mH (1kHz)
- Static compliance: 35 10-6 cm/dyne
- Dynamic compliance: 8 10-6 cm/dyne (100Hz)
- Stylus: Nude elliptical (0.3 0.7 mil)
- Cantilever: Aluminum pipe
- Vertical tracking angle: 23
- Dimensions: 17.3(H) 17.0(W) 28.2(D) mm
- Weight: 6.4 g
- Replacment stylus: VMN30EN - Accessories: Cartridge installtion screws 5mm 2, 10 mm 2, Washer 2, Hexagon nut 2, Non-magnetic screwdriver 1, Brush 1, Lead wire set 1,

Note: Specifications are subject to change without notice.

AUDIO-TECHNICA VM540ML CARTRIDGE

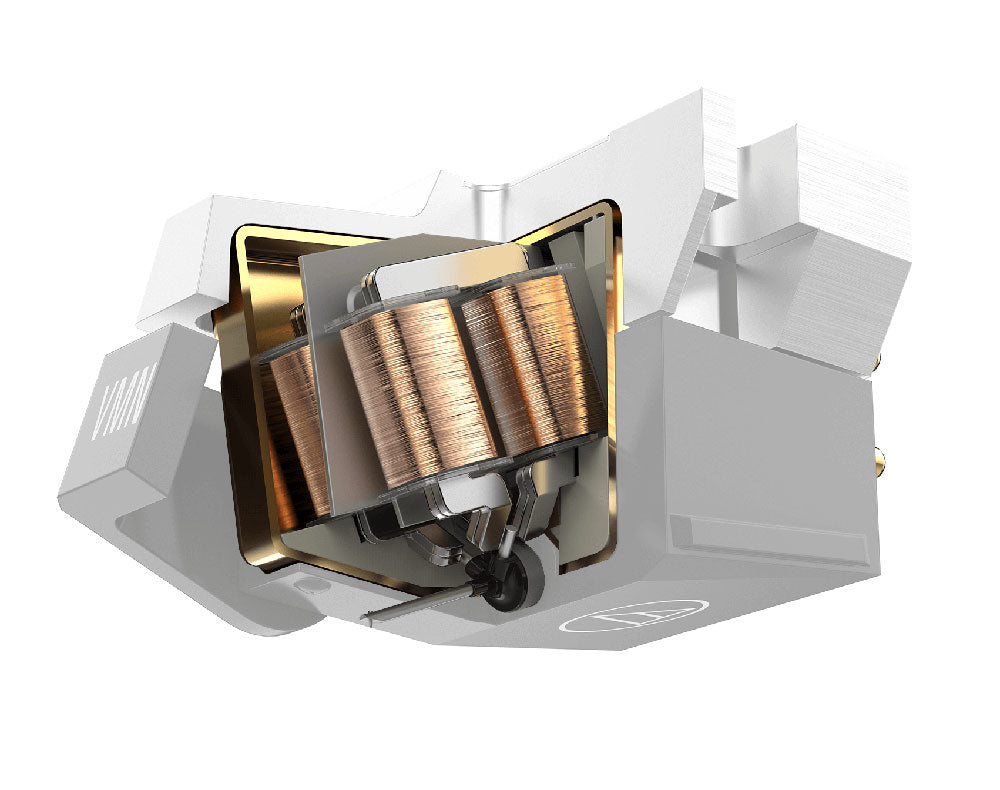

Audio Technica's VM540ML cartridge improves upon and continues the highly regarded and best-buy rated lineage of the AT440ML series.

It features a MicroLine stylus which enables extremely accurate groove tracking. Distorion is low even on the inner circumference of a record because the curvature radius of the stylus tip does not alter even if the stylus becomes worn. The VM540ML is furnished with a durable low-resonance polymer housing. The VMN40ML MicroLine nude stylus has a multilevel shape for reduced wear on the stylus and individual records.

Audio-Technica VM540ML cartridge specifications
- Type: VM
- Frequency response: 20 ~ 27,000 Hz
- Output voltage: 4.0 mV (1kHz, 5 cm/sec.)
- Channel separation: 30 dB (1kHz)
- Output balance: 1.0 dB (1kHz)
- Tracking force: 1.8 ~ 2.2 g (2.0 g standard)
- Coil impedance: 2.7 kΩ (1kHz)
- DC resistance: 800 Ω
- Load impedance: 47 kΩ
- Load capacitance: 100 ~ 200 pF
- Coil inductance: 460 mH (1kHz)
- Static compliance: 40 × 10-6 cm/dyne
- Dynamic compliance: 10 × 10-6 cm/dyne (100Hz)
- Stylus: Nude Microline (2.2 × 0.12 mil)
- Cantilever: Aluminum tapered pipe
- Vertical tracking angle: 23 °
- Dimensions: 17.3(H) × 17.0(W) × 28.2(D) mm
- Weight: 6.4 g
- Replacment stylus: VMN40ML
- Accessories: Cartridge installtion screws 5mm × 2, 10 mm × 2, Washer × 2, Hexagon nut × 2, Non-magnetic screwdriver × 1, Brush × 1, Lead wire set × 1

Note: Specifications are subject to change without notice.

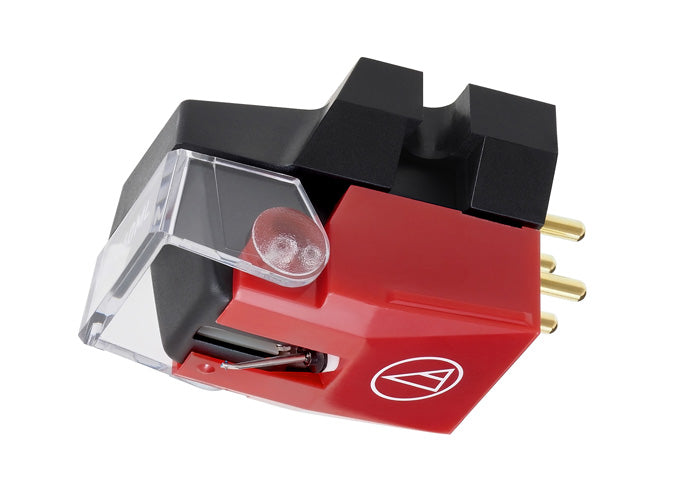

VM540ML AUDIO-TECHNICA CREPLACEMENT FOR AUDIO-TECHNICA (AT-440MLA AT 440MLA) AT440MLA CARTRIDGE
- AT440's Provenance of Excellence: 2013, 2014, 2015, 2016, 2017, 2018 Editors Choice Award The Absolute Sound March Issue 231, 241, 251, 261, 271, 281.

With the formidable VM540ML phono cartridge, Audio-Technica has replaced and superseded—at a more affordable price—the highly regarded AT440's (retail: $390.00) musical excellence that rightfully should be compared with moving magnets costing up to $500. Yes, it is that good. The Audio-Technica VM5440ML's excellence lies in the suitable employment of advanced designs uniquely available to Audio-Technica because of its rich technical history and production capabilities:



● Audio-Technica's Vector-Aligned Dual Magnet design, which uses two tiny magnets to achieve ideal geometry and low magnet mass, for excellent channel separation and extended frequency response.

● The Audio-Technica VMN40ML's MicroLine stylus produces more accurately rendered high frequency response with less wear and distortion than elliptical or conventional linear contact styli. The small curving rate of the MicroLine stylus enables it to track and playback the inner part of the record groove that other styli can hardly maintain. Also the curving rate of the MicroLine stylus does not change until the stylus is almost worn unlike that of conventional styli which increases as they are used. Accordingly, the MicroLine stylus has a much longer average playing life. It plays better, longer.

Audio-Technica AT440MLa Phono Cartridge Specifications
- Output voltage @ 1kHz,5cm/sec.: 4mV
- Dynamic compliance (x10-6 cm/dyne): 10
- Static compliance (x10-6 cm/dyne): 40
- Stylus type: 0.12 mil nude square micro-linear
- Tracking force range: 1.0 - 1.8 g
- Tracking force recommended: 1.4 g (14 mN)
- Vertical tracking angle: 20°
- Coil impedance @ 1kHz: 3.2k ohm
- Coil inductance @ 1kHz: 490 mH
- Recommended load resistance: 47k ohms
- Color: Black/Violet
- Weight: 6.5 g
- Dimensions (mm): H17.3 × W16 × D28.2
- Stylus replacement: Audio-Technica ATN440MLA
- Accessories included: Screwdriver, screws, nuts, headshell wires



Audio-Technica VM540ML cartridge specifications
- Type: VM
- Frequency response: 20 ~ 27,000 Hz
- Output voltage: 4.0 mV (1kHz, 5 cm/sec.)
- Channel separation: 30 dB (1kHz)
- Output balance: 1.0 dB (1kHz)
- Tracking force: 1.8 ~ 2.2 g (2.0 g standard)
- Coil impedance: 2.7 kΩ (1kHz)
- DC resistance: 800 Ω
- Load impedance: 47 kΩ
- Load capacitance: 100 ~ 200 pF
- Coil inductance: 460 mH (1kHz)
- Static compliance: 40 × 10-6 cm/dyne
- Dynamic compliance: 10 × 10-6 cm/dyne (100Hz)
- Stylus: Nude Microline (2.2 × 0.12 mil)
- Cantilever: Aluminum tapered pipe
- Vertical tracking angle: 23 °
- Dimensions: 17.3(H) × 17.0(W) × 28.2(D) mm
- Weight: 6.4 g
- Replacement stylus: VMN40ML
- Accessories: Cartridge installation screws 5mm × 2, 10 mm × 2, Washer × 2, Hexagon nut × 2, Non-magnetic screwdriver × 1, Brush × 1, Lead wire set × 1

Note: Specifications are subject to change without notice.

______________________________________

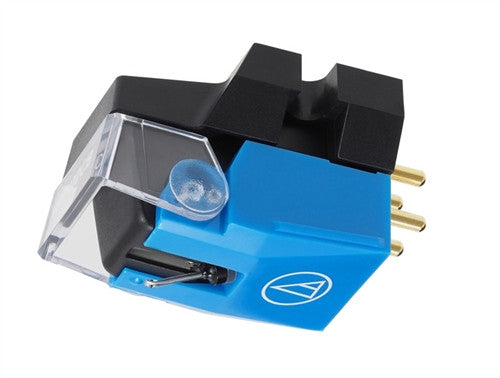

AUDIO-TECHNICA VM610MONO CARTRIDGE

With a specialized body and internal wiring dedicated to monaural sound reproduction, the VM610MONO conical stylus cartridge is designed for playing mono records. Part of the 600 Series in Audio-Technica's new VM cartridge line a line that harks back to A-T's early days as a manufacturer primarily of high-end phono cartridges the VM610MONO is equipped with dual magnets that are internally connected to reduce record noise and obtain a highly focused "center" sound image that stereo cartridges can't provide.

Audio-Technica VM610MONO cartridge specifications
- Type: VM
- Frequency response: 20 ~ 20,000 Hz
- Output voltage: 3.0 mV (1kHz, 5 cm/sec.)
- Channel separation: Not applicable
- Output balance: Not applicable
- Tracking force: 4.5 ~ 5.5 g (5.0 g standard)
- Coil impedance: 1.4 kΩ (1kHz)
- DC resistance: 400 ΩΩ
- Load impedance: 47 kΩ
- Load capacitance: 100 ~ 200 pF
- Coil inductance: 230 mH (1kHz)
- Static compliance: 35 10-6 cm/dyne
- Dynamic compliance: 8 10-6 cm/dyne (100Hz)
- Stylus: Bonded conical (0.6 mil)
- Cantilever: Aluminum pipe
- Vertical tracking angle: 23
- Dimensions: 17.3(H) 17.0(W) 28.2(D) mm
- Weight: 6.4 g
- Replacment stylus: VMN10CB - Accessories: Cartridge installtion screws 5mm 2, 10 mm 2, Washer 2, Hexagon nut 2

Note: Specifications are subject to change without notice.

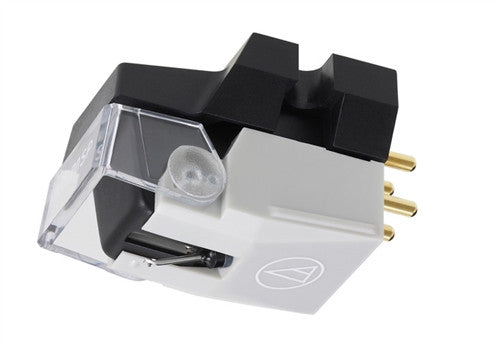

AUDIO-TECHNICA VM670SP CARTRIDGE

Designed for playing 78 RPM records with the highest fidelity, the VM670SP cartridge features a specialized body and internal wiring dedicated to monaural sound reproduction, Additionally, it is equipped with dual magnets that are internally connected to reduce record noise and obtain a highly focused "center" sound image that stereo cartridges can't provide. The stylus's 3.0 mil curvature radius makes it an excellent choice for playing 78s from a wide variety of eras.

Audio-Technica VM670SP cartridge specifications
- Type: VM
- Frequency response: 20 ~ 20,000 Hz
- Output voltage: 3.0 mV (1kHz, 5 cm/sec.)
- Channel separation: Not applicable
- Output balance: Not applicable
- Tracking force: 4.5 ~ 5.5 g (5.0 g standard)
- Coil impedance: 1.4 kΩ (1kHz)
- DC resistance: 400 Ω
- Load impedance: 47 kΩ
- Load capacitance: 100 ~ 200 pF
- Coil inductance: 230 mH (1kHz)
- Static compliance: 15 10-6 cm/dyne
- Dynamic compliance: 2 10-6 cm/dyne (100Hz)
- Stylus: Bonded conical (3.0 mil)
- Cantilever: Aluminum pipe
- Vertical tracking angle: 23
- Dimensions: 17.3(H) 17.0(W) 28.2(D) mm
- Weight: 6.4 g
- Replacment stylus: VMN70SP - Accessories: Cartridge installtion screws 5mm 2, 10 mm 2, Washer 2, Hexagon nut 2

Note: Specifications are subject to change without notice.

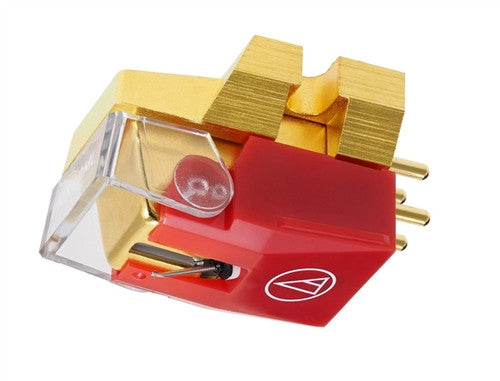

AUDIO-TECHNICA VM740ML CARTRIDGE

Audio Technica's VM740ML phono cartridge features a MicroLine stylus which enables extremely accurate groove tracking. The VM740ML is furnished with a die-cast aluminum alloy housing which reduces vibration and parasitic resonance distortion while adding a natural electrical shield. Comparatively, the VM540ML is furnished with a durable low-resonance polymer housing. The housing difference results in a more subtle and refined presentation by the 740ML. Both the VM740ML and VM540ML are equipped with a VMN40ML MicroLine nude stylus that traces the groove with incredible accuracy, resulting in nuanced audio reproduction that elliptical and conical styli simply can't match. The stylus's multilevel shape also wears better than other styli, while reducing the wear on your records.

Audio-Technica VM740ML cartridge specifications
- Type: VM
- Frequency response: 20 ~ 27,000 Hz
- Output voltage: 4.0 mV (1kHz, 5 cm/sec.)
- Channel separation: 30 dB (1kHz)
- Output balance: 1.0 dB (1kHz)
- Tracking force: 1.8 ~ 2.2 g (2.0 g standard)
- Coil impedance: 2.7 kΩ (1kHz)
- DC resistance: 800 Ω
- Load impedance: 47 kΩ
- Load capacitance: 100 ~ 200 pF
- Coil inductance: 460 mH (1kHz)
- Static compliance: 40 × 10-6 cm/dyne
- Dynamic compliance: 10 × 10-6 cm/dyne (100Hz)
- Stylus: Nude MicroLine (2.2 × 0.12 mil)
- Cantilever: Aluminum tapered pipe
- Vertical tracking angle: 23 °
- Dimensions: 17.3(H) × 17.0(W) × 28.2(D) mm
- Weight: 8.0 g
- Replacment stylus: VMN40ML
- Accessories: Cartridge installation screws 5mm × 2, 10 mm × 2, Washer × 2, Hexagon nut × 2, Non-magnetic screwdriver × 1, Brush × 1, Lead wire set × 1,

Note: Specifications are subject to change without notice.

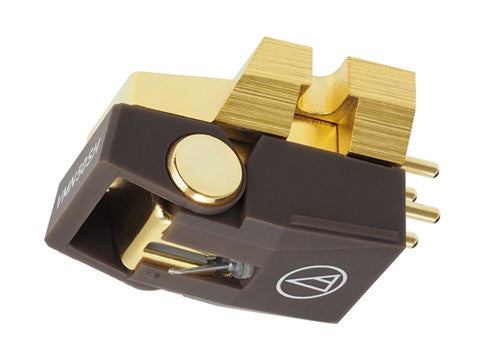

AUDIO-TECHNICA VM750SH CARTRIDGE

Audio Technica's VM750SH phono cartridge with its Nude Shibata stylus is ideal for reproducing rich smooth ultra-high frequencies, and full-bodied mid and low frequencies. The VM750SH is furnished with a die-cast aluminum alloy housing which reduces vibration while adding a natural electrical shield.

Audio-Technica VM750SH cartridge specifications
- Type: VM
- Frequency response: 20 ~ 27,000 Hz
- Output voltage: 4.0 mV (1kHz, 5 cm/sec.)
- Channel separation: 30 dB (1kHz)
- Output balance: 1.0 dB (1kHz)
- Tracking force: 1.8 ~ 2.2 g (2.0 g standard)
- Coil impedance: 2.7 kΩ (1kHz)
- DC resistance: 800 Ω
- Load impedance: 47 kΩ
- Load capacitance: 100 ~ 200 pF
- Coil inductance: 460 mH (1kHz)
- Static compliance: 40 10-6 cm/dyne
- Dynamic compliance: 10 10-6 cm/dyne (100Hz)
- Stylus: Nude Shibata (2.7 0.26 mil)
- Cantilever: Aluminum tapered pipe
- Vertical tracking angle: 23
- Dimensions: 17.3(H) 17.0(W) 28.2(D) mm
- Weight: 8.0 g
- Replacment stylus: VMN50SH
- Accessories: Cartridge installtion screws 5mm 2, 10 mm 2, Washer 2, Hexagon nut 2, Non-magnetic screwdriver 1, Brush 1, Lead wire set 1

Note: Specifications are subject to change without notice.

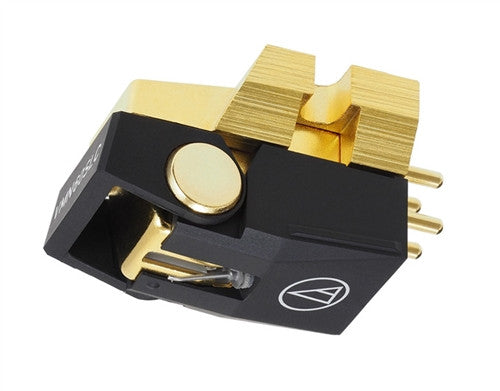

AUDIO-TECHNICA VM760SLC CARTRIDGE

The VM760SLC special line contact stylus cartridge is the flagship model in Audio-Technica's new VM cartridge line a line that harks back to A-T's early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today's advanced technology. Like all VM cartridges, the VM760SLC is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge's ultra-lightweight special line contact stylus allows it to trace the record groove with incredible accuracy and minimum abrasion, resulting in nuanced audio reproduction, low distortion and low record wear.

Audio-Technica VM760SLC cartridge specifications
- Type: VM
- Frequency response: 20 ~ 30,000 Hz
- Output voltage: 4.0 mV (1kHz, 5 cm/sec.)
- Channel separation: 30 dB (1kHz)
- Output balance: 1.0 dB (1kHz)
- Tracking force: 1.8 ~ 2.2 g (2.0 g standard)
- Coil impedance: 2.7 kΩ (1kHz)
- DC resistance: 800 Ω
- Load impedance: 47 kΩ
- Load capacitance: 100 ~ 200 pF
- Coil inductance: 460 mH (1kHz)
- Static compliance: 40 10-6 cm/dyne
- Dynamic compliance: 10 10-6 cm/dyne (100Hz)
- Stylus: Nude Special Line Contact (1.5 0.28 mil)
- Cantilever: Aluminum tapered pipe
- Vertical tracking angle: 23
- Dimensions: 17.3(H) 17.0(W) 28.2(D) mm
- Weight: 8.0 g
- Replacement stylus: VMN60SLC
- Accessories: Cartridge installation screws 5mm 2, 10 mm 2, Washer 2, Hexagon nut 2, Non-magnetic screwdriver 1, Brush 1, Lead wire set 1

Note: Specifications are subject to change without notice.

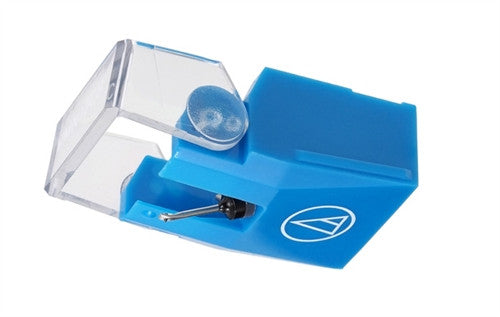

AUDIO-TECHNICA VMN10CB STYLUS
- Genuine, unsurpassed original, 100% authentic stylus by Audio-Technica

Audio Technicas VMN10CB stylus for the Audio Technica VM510CB phono cartridge features a 0.6 mil conical bonded stylus which follows the record grooves with reliable performance and exceptional fidelity.

Audio-Technica VMN10CB Stylus Specifications
- Frequency response: 20Hz-20kHz
- Output voltage @ 1kHz,5cm/sec.: 5.0mV
- Channel balance: 1.5dB
- Channel separation @ 1kHz: 25dB
- Stylus type: 0.6mil Bonded Conical
- Cantilever: Aluminum pipe
- Tracking force range: 1.8-2.2g
- Tracking force recommended: 2.0g
- Color: Blue

Note: Specifications are subject to change without notice.

AUDIO-TECHNICA VMN20EB STYLUS
- Genuine, unsurpassed original, 100% authentic stylus by Audio-Technica

Audio Technicas VMN20EB stylus for the Audio Technica VM520EB phono cartridge features a 0.3 x 0.7 mil elliptical bonded stylus which follows the record grooves with more precision while providing lower distortion.

Audio-Technica VMN20EB Stylus Specifications
- Frequency response: 20Hz-23kHz
- Output voltage @ 1kHz,5cm/sec.: 4.5mV
- Channel balance: 1.5dB
- Channel separation @ 1kHz: 27dB
- Stylus type: 0.3x0.7mil Bonded Elliptical
- Cantilever: Aluminum pipe
- Tracking force range: 1.8-2.2g
- Tracking force recommended: 2.0g
- Color: Blue

Note: Specifications are subject to change without notice.
