grado

GRADO MC+ PHONO CARTRIDGE

The Grado Mono cartridges are designed for excellent replaying of monophonic recorded material - with less noise and more music. Each cartridge can be used for either archival or high fidelity listening.

The Grado MC+ cartridge uses a three-piece OTL cantilever technology, oxygen free wire in the coils and a specially designed, highly polished elliptical diamond mounted in a brass bushing.

Grado MC+ Phono Cartridge Specifications
- Type: Moving magnet
- Output voltage: 5mV
- Frequency response: 10Hz-50kHz
- Load impedance: 47k ohms
- Stylus type: Special elliptical diamond
- Stylus replacement: User replaceable
- Stylus part no.: Mono
- Recommended tracking force: 1.5 g
- Weight: 5.5 g

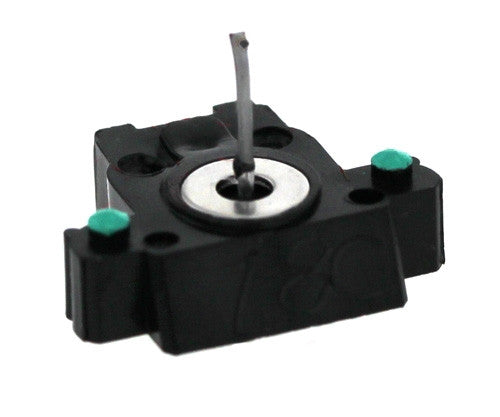

GRADO MC + STYLUS (MONO STYLUS)

Ships to US only

The Grado MC+ stylus is specifically designed for the Grado MC+ mono phono cartridge.

Resources
How to replace and install Grado stylus (PDF)
How to replace and install Grado stylus (JPG)

GRADO MCZ STYLUS

The Grado MCZ stylus for the highly regarded Joseph Grado Signature MCZ phono cartridge is a brand new production by Grado for LP Gear. It fits all previous Signature and Prestige models and can be used to improve their performance.

● Latest production Grado MCZ stylus
● Designed for Signature MCZ cartridge
● Fits and improves other Grado Prestige cartridges

The current Signature replacement styli are identified by the model inscribed on the top of the plastic housing. The stylus is packaged in Grado's small plastic box with MCZ handwritten on the back.

Original Grado MCZ Stylus Specifications
- Output: 1.57mV @ 3.5 CMV (45 degrees)
- Controlled frequency response: 10Hz-50kHz
- Channel separation: Average 25dB, 10Hz-50kHz
- Stylus: Diamond, twin tip
- Input load: 47k Hz
- Inductance: 9 mH
- Resistance: 70 ohms
- Tracking force: 1.5 g
- Pick-up weight: 5.5 g
- Capacitance: Non-sensitive to capacitive load

Note: Provided for reference only. Specifications are subject to change without notice.

GRADO MCZ STYLUS FOR GRADO MCX CARTRIDGE

The Grado MCZ stylus for the highly regarded Joseph Grado Signature MCX phono cartridge is a brand new production by Grado for LP Gear. It fits all previous Signature and Prestige models and can be used to improve their performance.

The current Signature replacement styli are identified by the model inscribed on the top of the plastic housing. The stylus is packaged in Grado's small plastic box with MCZ handwritten on the back.

Original Grado MCZ Stylus Specifications
- Output: 1.57mV @ 3.5 CMV (45 degrees)
- Controlled frequency response: 10Hz-50kHz
- Channel separation: Average 25dB, 10Hz-50kHz
- Stylus: Diamond, twin tip
- Input load: 47k Hz
- Inductance: 9 mH
- Resistance: 70 ohms
- Tracking force: 1.5 g
- Pick-up weight: 5.5 g
- Capacitance: Non-sensitive to capacitive load

Note: Provided for reference only. Specifications are subject to change without notice.

GRADO ME+ PHONO CARTRIDGE

The Grado Mono cartridges are designed for excellent replaying of monophonic recorded material - with less noise and more music. Each cartridge can be used for either archival or high fidelity listening.

The Grado ME+ cartridge uses a modified four-piece OTL cantilever technology, oxygen free wire in the coils and a specially designed, highly polished elliptical diamond mounted in a brass bushing.

Grado ME+ Phono Cartridge Specifications
- Type: Moving magnet
- Output voltage: 5mV
- Frequency response: 10Hz-50kHz
- Load impedance: 47k ohms
- Stylus type: Special elliptical diamond
- Stylus replacement: User replaceable
- Stylus part no.: Mono
- Recommended tracking force: 1.5 g
- Weight: 5.5 g

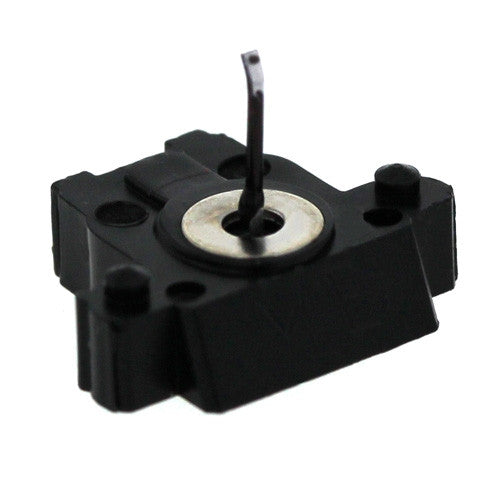

GRADO ME+ STYLUS (MONO STYLUS)

Ships to US only

The Grado ME+ stylus is specifically designed for the Grado ME+ mono phono cartridge.

Resources
How to replace and install Grado stylus (PDF)
How to replace and install Grado stylus (JPG)

GRADO MINI ADAPTER CABLE

Ships to US only

Constructed of the same high quality wire as their headphone cable, the Grado mini plug adapter cable converts a 1/4 inch (6.3mm) plug to 1/8 inch (3.5mm) plug. The mini adapter cable has a 1/8 inch (3.5mm) plug then 8 inches (20cm) of cable connected to a 1/4 inch (6.3mm) jack. The 8 inches (20cm) of cable eliminates added leverage on the output circuit board of the source. Grado guarantees no degradation of sonic quality with Grado headphones while using their mini adapter cable.

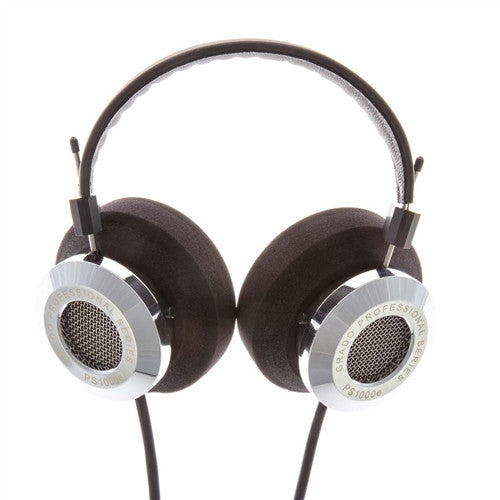

Grado PS1000e headphones

Transducer Type: Dynamic
Operating Principle: Open Air
Frequency Response: 5 - 50,000 hz
SPL 1mW: 99.8 dB
Normal Impedance: 32 ohms
Driver Matched dB: .05 dB

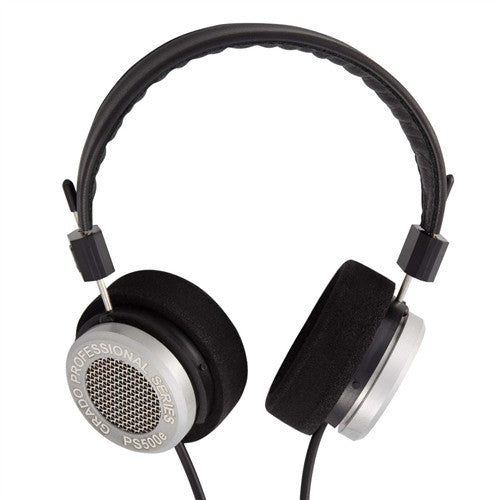

Grado PS500e headphones

Transducer Type: Dynamic
Operating Principle: Open Air
Frequency Response: 14 - 29,000 hz
SPL 1mW: 99.8 dB
Normal Impedance: 32 ohms
Driver Matched dB: .05 dB

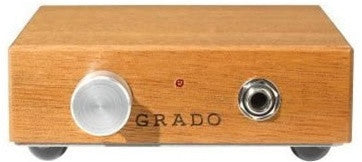

GRADO RA-1 HEADPHONE AMPLIFIER - A/C POWERED

Ships to US only

The Absolute Sound 2005, 2006, 2007 & 2008 Editor's Choice Award Winner

The A/C powered Grado Reference RA-1 Headphone Amp is designed for state-of-the-art performance specifically to play Grados. It will allow you to hear your Grado headphones like never before. Machined from a solid block of mahogany and measures 5" wide, 5 1/2" deep and 1 1/2" tall and weighing 12 oz, the RA-1 is compact and looks great. Just like all Grados, the RA-1 sounds warm, smooth, full-bodied, rich and non-fatiguing.

Now you can really hear your Grado headphones.

Features:
100-230 VAC input voltage
Solid Mahogany body
Compact size: HWD 1.5 x 5 x 5.5 inches
Weight: 12 oz
Inputs: RCA (Pr)
Outputs: 1/4" Headphone Jack
Input Impedance: 100kΩ
Output Impedance: 32Ω
Output Power: 300mW
Exquisite Grado sound quality
One-year manufacturer's warranty.

What people say about the Grado RA-1 headphone amp

"With a tube-like rendering of timbre and a sweet, relaxed sound, the Grado RA-1 makes extended headphone listening a joy. Although battery-driven, the RA-1 is more at home in your equipment rack or on your desk than out on the road. A beautiful wooden case finishes off this gem."
- Reviewed By Robert Harley / The Absolute Sound

"With the Grado Reference RA1 handling the amplification, music was rendered truer, clearer, and more life-like than I had ever imagined was possible." Willie Gluckstern, Audio Magazine

"This is such a nice job of product engineering by John Grado, I think it earns a nomination for "Dudely Product of the Year Award."" Charles (His Dudeliness) Hollander, Positive Feedback

"Listening to my RS1's through the Grado RA1 headphone amp is like listening to a live performance, it puts you right there." Mark Rivera, Saxophonist with the Billy Joel Band

GRADO RED 1 RED1 PHONO CARTRIDGE

Ships to US only

Grado cartridges are acclaimed worldwide by experts as virtually the finest pickups at their price points. The Grado Prestige series of cartridges are designed output and excellent stability under for high the most demanding conditions. All of the range uses Grado's patented Optimized Transmission Line (OTL) technology which makes your records sound quieter, improve the height, width and depth of the sound stage and offer more detail than previously achievable. Grado's OTL technology is all about delivering more music, more performance.

Grado Red 1 Phono Cartridge Specifications
- Type: Moving magnet
- Output voltage: 5mV
- Frequency response: 10Hz-55kHz
- Load impedance: 47k ohms
- Channel separation: 30dB
- Stylus type: Elliptical
- Stylus replacement: User replaceable
- Compliance: 20mm/N
- Tracking force: 1.0 - 2.0 g
- Recommended tracking force: 1.5 g
- Weight: 5.5 g

For stylus replacements, refer to Related Products:
- Standard stylus: Grado Red Stylus
- Downgrade stylus: Grado Blue Stylus

GRADO RED 3 RED3 P-MOUNT T4P PHONO CARTRIDGE

Ships to US only

Grado P-mount T4P phono cartridges are acclaimed worldwide by experts as virtually the finest pickups at their price points. The Grado Prestige series of P-mount T4P cartridges are designed for high output and excellent stability under the most demanding conditions. All of the range uses Grado's patented Optimized Transmission Line (OTL) technology which makes your records sound quieter, improve the height, width and depth of the sound stage and offer more detail than previously achievable. Grado's OTL technology is all about delivering more music, more performance.

Grado Red 3 P-Mount T4P Phono Cartridge Specifications
- Type: Moving magnet
- Output voltage: 5mV
- Frequency response: 10Hz-55kHz
- Load impedance: 47k ohms
- Channel separation: 30dB
- Stylus type: Elliptical
- Stylus replacement: User replaceable
- Compliance: 20mm/N
- Tracking force: 1.0 - 2.0 g
- Recommended tracking force: 1.5 g
- Weight: 5.5 g

For stylus replacements, refer to Related Products:
- Standard stylus: Grado Red Stylus
- Downgrade stylus: Grado Blue Stylus

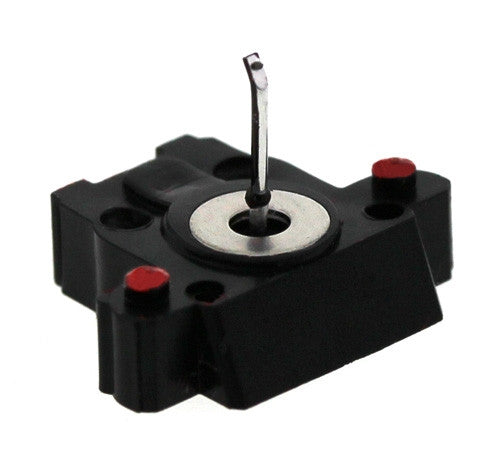

GRADO RED STYLUS

Ships to US only

The Grado Red stylus is designed for the Grado Red phono cartridge and equivalent Grado phono cartridge models. The Grado Red stylus elevates the Grado Blue phono cartridge to the fidelity and sound quality of the Grado Red phono cartridge.

Resources
How to replace and install Grado stylus (PDF)
How to replace and install Grado stylus (JPG)

GRADO REFERENCE MASTER 1 MASTER1 PHONO CARTRIDGE 5.0mV

Ships to US only

The Grado Reference Master 1 Phono cartridge is a fixed coil design, handcrafted at Grado Labs from specially selected species of mahogany. Unlike the Grado Prestige series, the Grado Reference cartridges have a generator/stylus module that is not replaceable thus allowing a redesigned one-piece magnetic circuit and a reduction of chassis resonances. The Grado Reference phono cartridges utilize manufacturing and assembly techniques of superlative accuracy and precision. The result is virtual perfection - the finest phono cartridges in the world! To hear the celestial performance of the Grado Reference cartridges, we recommend that they be used with the finest equipment.

The Grado Reference Master 1 phono cartridge features a specially designed nude elliptical diamond mounted on a brass bushing and a modified five-piece OTL cantilever technology achieving an additional 5% tip mass reduction over the Grado Reference Platinum and Grado Reference Sonata cartridges. The coils are wound with ultra-high purity long crystal oxygen free copper wire.

Grado Reference Master 1 Phono Cartridge Specifications
- Type: Moving magnet
- Output voltage: 5mV
- Frequency response: 10Hz-60kHz
- Load impedance: 47k ohms
- Channel separation: 40dB
- Stylus type: Elliptical
- Stylus replacement: Factory replaceable
- Mounting: 1/2 inch
- Compliance: 20mm/N
- Tracking force: .075-2.0 g
- Recommended tracking force: 1.5 g
- Weight: 6.5 g

GRADO REFERENCE PLATINUM 1 PLATINUM1 PHONO CARTRIDGE

The newly redesigned Grado Platinum 1 cartridge offers four improvements over its predecessor. The coil design has been reconfigured. The size of the coils were reduced, cutting back on the number of turns, for improved sound quality. Grado Labs has developed a new process of potting the coils which helps control internal resonance in the coils which then lowers the noise floor even more than before. Also, the effective moving mass of their generating system has been reduced by 17%, thus allowing for a quicker and more accurate reproduction of music. All this is hand-assembled within a machined, new processed, Australian Jarrah wood housing. The wood enclosure has been changed from Mahogany to Australian Jarrah, which is a much harder and denser, thus adding greater stability to the cartridge as a generating device.

Grado Reference Platinum 1 Phono Cartridge Specifications
- Type: Moving Iron
- Output voltage: 5mV
- Frequency response: 10Hz-60kHz
- Load impedance: 47k ohms
- Channel separation: 40dB
- Stylus type: Special elliptical
- Stylus replacement: Factory replaceable
- Mounting: 1/2 inch
- Compliance: 20mm/N
- Tracking force: .075-2.0 g
- Recommended tracking force: 1.5 g
- Weight: 6.5 g
