Denon

DENON DP-29F     DP 29F    DP29F TURNTABLE BELT REPLACEMENT

The DENON DP-29F turntable belt replacement is designed for higher torque, smooth rotational speed, and reduced resonance transmissions into the platter.

If you are unsure if this is the correct belt, please use our free belt matching service here

For upgrades and enhancements to sound quality and fidelity please refer to the Related Products below.

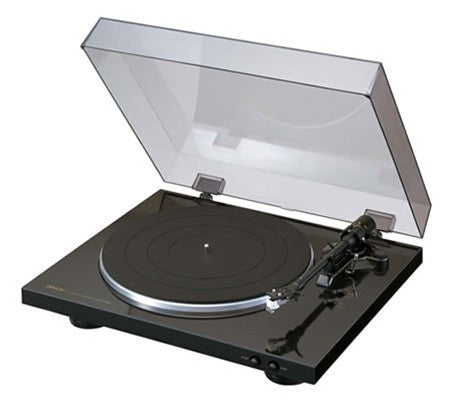

DENON DP-300F DP 300F DP300F TURNTABLE IMPROVED
- Improvements transform the DP-300F from good to golden, extract more music from record grooves and elevate sound quality.

Listed below are the Denon DP-300F turntable's main features:



Complete Ready-To-Play Turntable		The Denon DP-300F turntable comes complete with an installed phono cartridge and built-in switchable on/off phono preamp. It is ready for serious playing. Only minor set-up is required (about 15-20 minutes).
Refined External Design		The Denon DP-300F's 4mm thick cabinet wall offers strength, high density and beauty with its glossy black coating. The straight tonearm and aluminum diecast platter have been formed into a slim, attractive desogn. With a body width of 434mm, the Denon DP-300F combines elegantly with full-sized systems.
Fully Automatic Turntable		When the 30cm or 17cm record size is selected, the tonearm automatically moves and plays the record and then returns when the playback ends.
Highly Capable Straight Tonearm		The DP-300F's straight tonearm with fine adjustments for anti-skating and zero balance brings out the maximum performance of cartridges with superior tracing capabilities. The supplied tonearm can be replaced with different cartridges weighing 5.0 - 10g.
Diecast Aluminum Platter		The DP300F's platter is made of diecast aluminum to achieve high inertial mass for stable rotation.
Belt Drive System		The belt isolates the motor from the platter while providing rotational accuracy.
Manual Arm Lifter		The DP-300F turntable is also equipped with an arm lifter mechanism to facilitate manual operation. The arm lifter makes it easy to place or remove the stylus from any location on the record.
Built-in Phono Preamp		The DP-300F turntable includes a built-in Phono Preamp so that it can be directly connected to a component (receiver, mini system, computer sound card, integrated amp) that does not have a phono preamp. The built-in Phono Preamp is switchable on/off.

Denon DP-300F Improved by LP Tunes Extracts More Music From the Grooves
We elevated the performance of the Denon DP-300F turntable for enhanced music listening and fidelity for recording your LPs to Digital. The Denon DP-300F begins its ascent in sound quality when you replace the factory installed stylus with our LP Tunes DSN-85E stylus. You'll hear more defined detail, sparkle, air and micro-dynamics. No, it is not impeccableeven turntables costing 50 times more aren't sonically perfect. But the integration of these special parts to the Denon DP-300F enables the turntable to play music beyond expectations.

We are providing for FREE a new LP Tunes DSN-85E DSN85E elliptical stylus (retail value $34.95) for you to install as replacement of the factory supplied stylus.

The improvement in sound quality is priceless!



Denon DP-300F Turntable Improved
Motor Section
	Drive System	Belt drive
	Speed	33 1/2, 45 rpm
	Wow & flutter	0.10% (WRMS)
	Turntable platter	Diecast aluminum
Tonearm
	Type	Straight
	Effective length	221.5 mm, 8.72 inch
	Overhang	19 mm, 0.75 inch
	Tracking error	Within 3 (degrees)
	Stylus pressure range	0 - 4.0g (0.1g increments)
	Compatible cartridge weight	5.0 - 10.0g (excluding headshell)
Cartridge
	Type	Moving Magnet
	Appropriate tracking force	2.0g
	Cartridge weight	5g
	Replacement stylus	LP Tunes DSN-85E
	Supplied heashell weight	10g
General
	Power supply	AC 120V, 60 Hz
	Power consumption	2W
	Dimensions	434 (W) x 122 (H) x 381 (D) mm 17.1 (W) x 4.8 (H) x 15.0 (D) inch (including feet)
	Weight	5.5 kg, 12.13 lbs.

* Design and specifications are subject to change without notice.

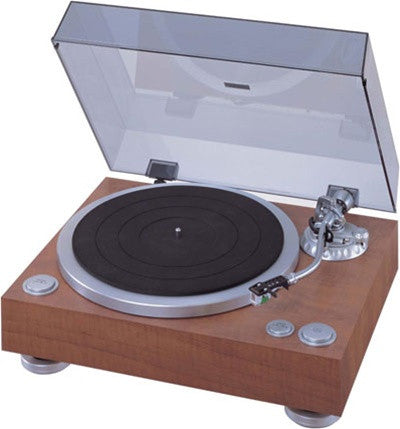

DENON DP-500M TURNTABLE
- Discontinued and unavailable, we do not know if and when this will again be available. For alternative replacements, refer to the Related Products.

The Denon DP-500M DP500M turntable, direct drive and meticulously optimized for sound quality.

The Denon DP-500M turntable is unique in the constellation of current production, high quality record playback systems built and designed for sound quality. It is a direct drive turntable. If you will note, there are no other high-end turntables that are direct drive — not anymore. Everything is belt drive.

Denon has been manufacturing high quality direct drive turntables for over 25 years. It's their legacy like their renowned DL-103 moving coil phono cartridge. Building high quality direct drive turntables is one of Denon's many strengths, a technical advantage that has evolved and grown over time. No other existing manufacturer has their expertise. With this in mind, consider the design elements that make the Denon DP-500M turntable an excellent record playback system.

Direct Drive with Encoder and High-Torque Motor
The Denon DP-500M turntable uses a quartz lock servo that controls platter rotation via intervals of optical pulses passing through a slit. This control system ensures accurate rotation with no deviation from the center. The development of a high-torque motor (4.5 kg-cm) has boosted start-up speed to 0.3 second, providing quick operation and stable rotation.

Large 13 inch Turntable with Minimized Resonance
Silicon rubber, a deadening material, has been applied over the entire reverse side of the large diecast aluminum platter to minimize resonance. Hologram vibration analysis was used to improve the ability of the supplied platter mat to "hold" the record. The supplied platter mat is specially designed with a slight cone-shaped taper to improve record adhesion.

High-end Quality and Highly Sensitive Tonearm
The DP-500M's tonearm has been designed for optimum sound quality through the use of diecast parts throughout to boost rigidity and carefully placed deadening material to minimize vibration. This universal-type tonearm accommodates a wide variety of moving magnet and moving coil phono cartridges. The removable diecast aluminum headshell allows covenient replacement and use of different cartridges.

Strong, Compact Cabinet Made of MDF (Medium Density Fiberboard)
The cabinet has been constructed in a compact size despite the large platter size to improve rigidity and minimize howling. The MDF material offers performance close to natural wood, while also imparting a soft finish and elegant appearance.

Large Insulating Feet
Four large specially-made insulators for the Denon DP-500M are used to eliminate externally induced mechanical and airborne vibration that could distort sound quality.

RCA Pin-type Output
RCA pin-type output has been used for the Denon DP-500M, providing flexibility and ease when changing RCA cables to match sound quality or cartridge impedance.

A phono cartridge is not included.

We would be happy to assist you with best pricing and phono cartridge recommendations.

Downloads

• Denon DP-500M Product Sheet
• Download Denon DP-500M Owner's Manual

Denon DP-500M turntable specifications

ITEM	Denon DP-500M
Phono Motor Section
Drive System	Quartz lock servo control direct drive manual operation
Speed	33-1/3 and 45 rpm
Speed Deviation	0.002% or less
Wow & Flutter	0.1% or less (wrms)
Rotational Stability Time	0.3 second or less to reach normal speed
Turntable Platter	Aluminum diecast, 331 mm treated with silicon rubber on the reverse side to absorb vibration
Load Characteristics	0% (under stylus pressure 80g)
Tonearm Section
Type	Static balance type, light weight S-shaped tonearm
Effective Length	230 mm, 9.06 inch
Overhang	15 mm, 0.6 inch
Tracking Error	Within 3°
Stylus Pressure Range	0 - 4.0 g (0.25 g increments)
Acceptable Cartridge Weight	5.0 - 11.0 g (including screws & nuts)
Headshell Weight	9.0 g
General Section
Power Supply	120 VAC, 60 Hz
Power Consumption	10W
Dimensions	450 (W) x 170 (H) x 370 (D) mm incl. feet
Weight	10.1 kg, 22.2 lbs.

Denon DP-F2      DP F2      DPF2  TURNTABLE BELT REPLACEMENT

The Denon DP-F2   turntable belt replacement is designed for higher torque, smooth rotational speed, and reduced resonance transmissions into the platter.

If you are unsure if this is the correct belt, please use our free belt matching service here

For upgrades and enhancements to sound quality and fidelity please refer to the Related Products below.

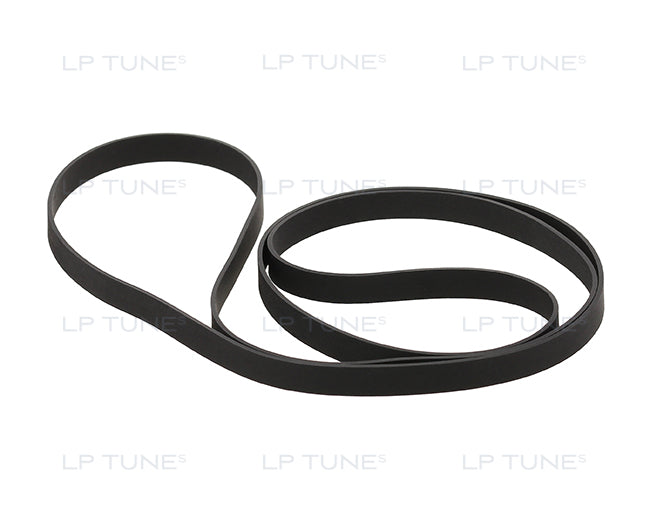

LP TUNES REPLACEMENT BELT FOR DENON DP-300F DP 300F DP300F

"I think you would like to know that I received the belts for the Denon DP-300F today. What difference can a new belt make! Thank you.
Regards,
-Takeo (from Japan)

"...I have your upgrade belt and extra headshell and I can say the belt made a BIG difference."
- Steve, customer

The LP Tunes enhanced 9410008800 turntable belt for the Denon DP-300F DP 300F DP300F turntable offers longer playing life, better grip and torque thus enabling rotational accuracy and improved flywheel effect.

The LP Tunes Super Vivid turntable belt is made from a material far superior to that found in typical belts, providing a great latitude to seriously enhance the performance of your turntable. The acoustical performance increase derives from higher torque, consistently smooth rotational speed, longevity, and reduced resonance transmitted into the platter, record, cartridge and stylus. Speed accuracy is 33.3 RPM ± 0.25%.

Note: After installation, please allow the Super Vivid belt to settle by playing it for 10-15 minutes. During this process, it may fluctuate and cause the pitch to warble.



DENON PCL-310BK PCL 310BK PCL310BK HEADSHELL

The Denon PCL-310BK PCL 310BK PCL310BK headshell for the Denon DP-300F DP 300F DP300F turntable comes complete with high-quality lead wires.

Denon SL-5A TURNTABLE BELT REPLACEMENT

The Denon SL-5A turntable belt replacement is designed for higher torque, smooth rotational speed, and reduced resonance transmissions into the platter.

If you are unsure if this is the correct belt, please use our free belt matching service here

For upgrades and enhancements to sound quality and fidelity please refer to the Related Products below.

DENON 9410008800  TURNTABLE BELT REPLACEMENT

The DENON 9410008800  turntable belt replacement is designed for higher torque, smooth rotational speed, and reduced resonance transmissions into the platter.

If you are unsure if this is the correct belt, please use our free belt matching service here

For upgrades and enhancements to sound quality and fidelity please refer to the Related Products below.

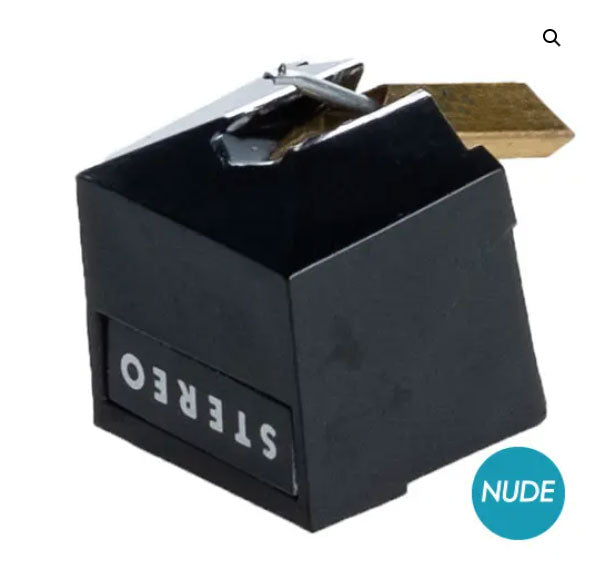

DSN-42 NUDE JICO STYLUS REPLACEMENT FOR DENON DSN-42 STYLUS

For superior fidelity, a NUDE Tip is used for this product: The entire tip of a NUDE Stylus is composed of diamond, as opposed to bonded tips.

- Cantilever: Aluminum
- Cartridge number: Denon DL-8A
- Color: BLACK
- Tip: NUDE Conical Stylus
- Tracking Force: 1.7 – 2.3 g
- Type: Moving Magnet

REPLACEMENT FOR DENON DSN-60 DSN 60 DSN60 NEEDLE STYLUS

The replacement for the Denon DSN-60 DSN60 needle stylus is used with the Denon DL-60 DL60 phono cartridge. The stylus features a highly polished special elliptical diamond with a .0003 x .0007 inch scanning radii. It offers long playing life, reduced record wear and accurate rendition of voice and music. The latest color is white. Made in Japan.

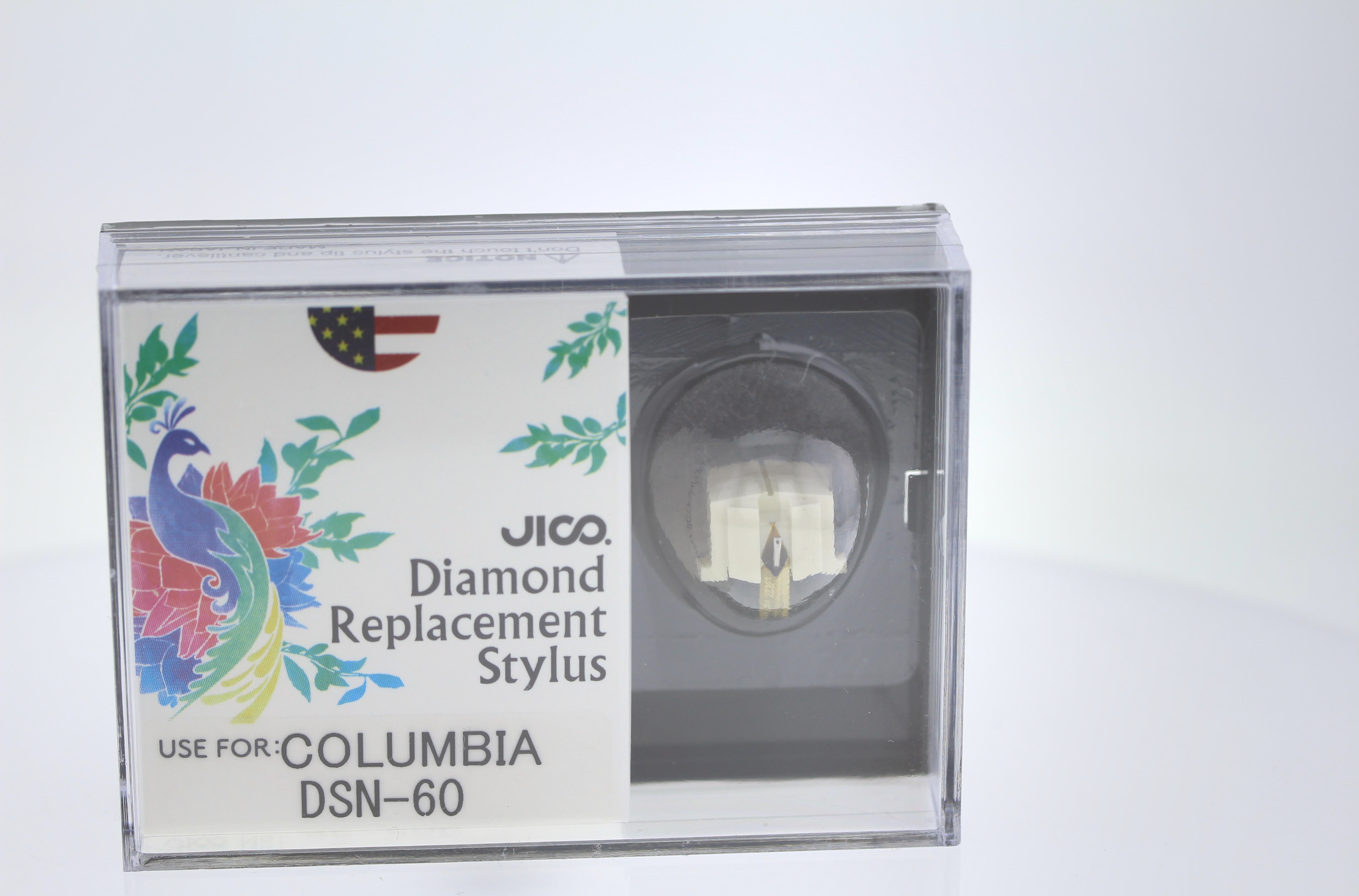

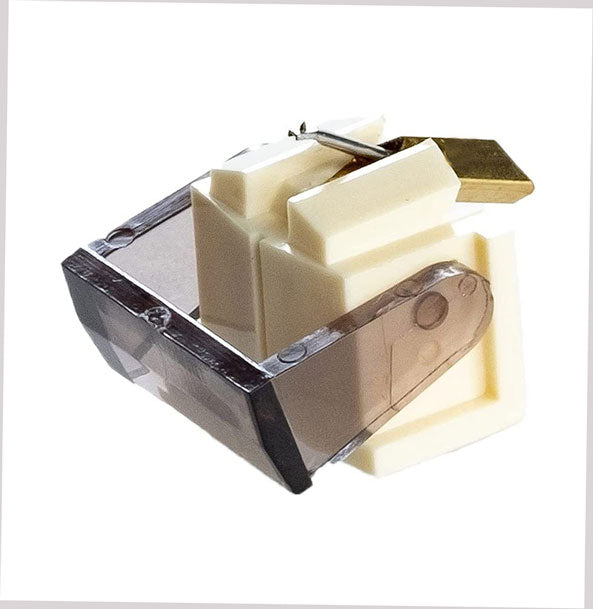

DSN-60 JICO STYLUS REPLACEMENT DSN DENON DSN-60


REPLACEMENT FOR DENON DSN-60E DSN60E STYLUS

Out of stock, see the 100% compatible JICO DSN65 Elliptical Stylus

The LP Tunes replacement for the Denon DSN60 DSN 60E DSN-60E needle stylus is used with the Denon DL-60 DL60 and DL-65 DL65 phono cartridge. The stylus features a highly polished special elliptical diamond tip with a .3 × .7 mil scanning radii. It offers long playing life, reduced record wear and accurate rendition of voice and music.

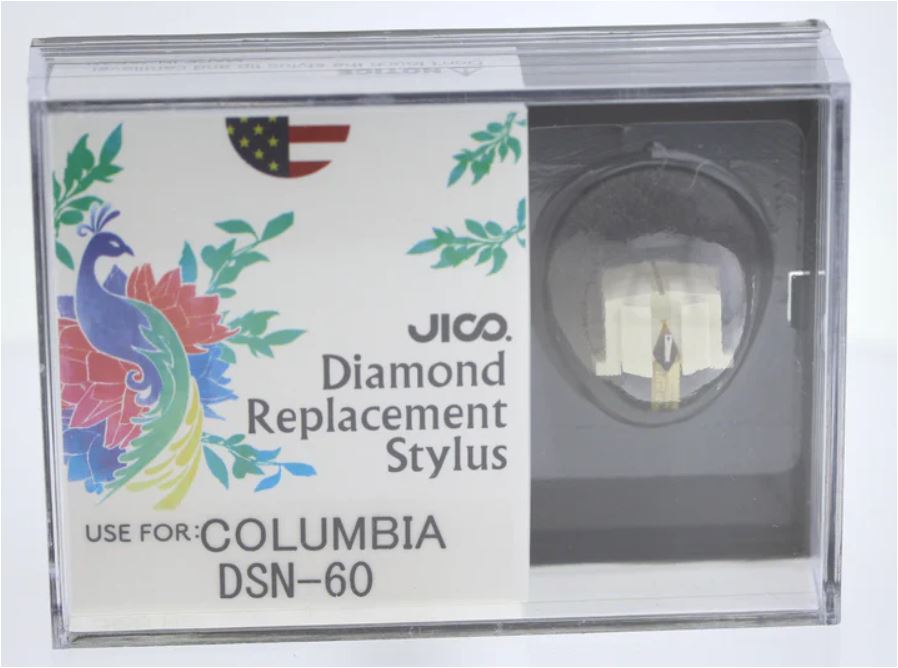

DSN60E JICO REPLACEMENT FOR DENON DSN60E STYLUS

Discontinued, see the 100% compatible JICO DSN65 Elliptical Stylus

Equipped with a special bonded elliptical diamond tip, the DSN60E extracts music from the grooves missed by lower quality styli.

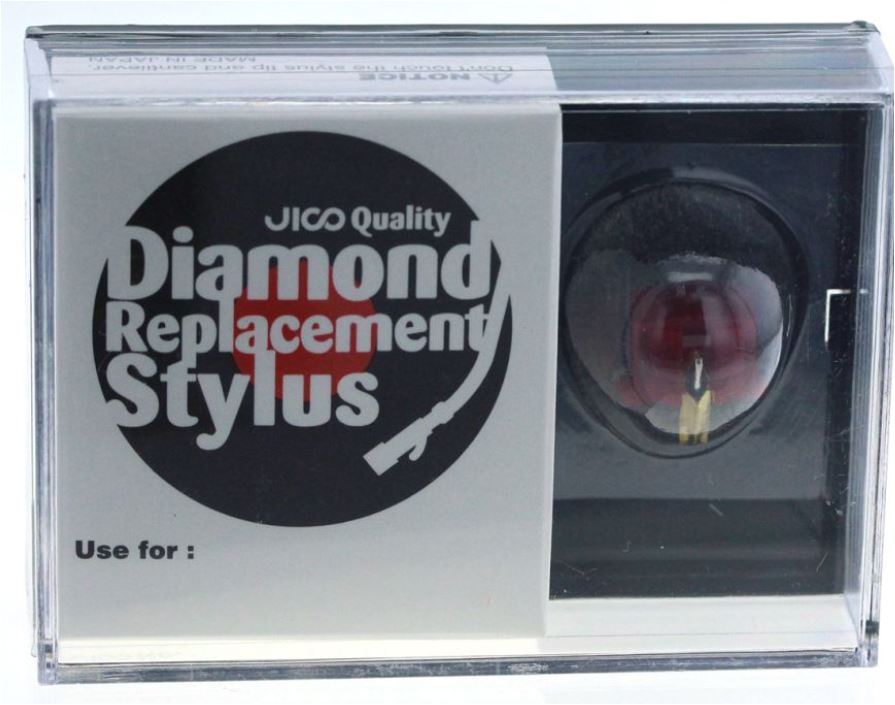

DSN65 JICO REPLACEMENT FOR DENON DSN60E STYLUS

The DSN65 DSN 65 DSN-65 JICO stylus is used with the Denon DL-60 DL60 and DL-65 DL65 phono cartridge. The stylus features a highly polished special elliptical diamond tip with 0.3 x 0.7 mil scanning radii with a tracking force of 2.0g. It offers long playing life, reduced record wear and accurate rendition of voice and music.

DSN65 LP TUNES REPLACEMENT FOR DENON DSN65 STYLUS

The DSN65 DSN 65 DSN-65 LP Tunes stylus is used with the Denon DL-60 DL60 and DL-65 DL65 phono cartridge. The stylus features a highly polished special conical diamond tip with a 0.7 mil scanning radius. It offers long playing life, reduced record wear and accurate rendition of voice and music.
