Cartridges - HiFi

DENON AU-S1 AU S1 AUS1 STEP UP TRANSFORMER FOR MOVING COIL CARTRIDGE

We apologize, but this item has been discontinued and we're not sure if and when we will receive more.

Considered one of the best step-up MC transformers in the world at any price, the Denon AU-S1 also continues to be affordable. Made from high rigidity, non-magnetic aluminum for isolation and non-resonance, the Left and Right channels are independent from the unit's hollow structure. Large-sized 78 perm-alloy cores are used for near zero magnetostriction and highest fidelity. The Denon AU-S1 is optimal for 3 - 40 ohms correspondence.

Denon AU-S1 MC Step-up Transformer Specifications
- Boosting ratio: 1:13
- Load impedance: 47k ohms
- Frequency range: 10Hz-80kHz
- Size: W150 x H70 x D175mm
- Weight: 3.2 kg (7.1 lbs.)

BANG & OLUFSEN MMC3000, 4000, 5000, 6000 PHONO CARTRIDGES

The Bang & Olufsen MMC3000, 4000, 5000 and 6000 phono cartridges are discontinued and are no longer available. The Bang & Olufsen MMC-20 series cartridges are replacements for all of these phono cartridges. We have a small quantity of MMC-20EN and MMC-20CL phono cartridges so that Beogram owners can continue to enjoy their exquisite turntables using an original Bang & Olufsen cartridge.

BANG & OLUFSEN MMC-20EN MMC 20EN MMC20EN CARTRIDGE

The B&O MC-20EN MMC 20EN MMC20EN phono cartridge comes in its original plastic case as shown, brand new and unused. The B&O MMC-20EN phono cartridge features a nude elliptical diamond stylus mounted on a thin-wall, tapered cantilever. The performance of the MMC-20EN is excellent and highly rated by B&O and vinyl enthusiasts. We have very limited supply.

AUDIO-TECHNICA VM750SH CARTRIDGE

Audio Technica's VM750SH phono cartridge with its Nude Shibata stylus is ideal for reproducing rich smooth ultra-high frequencies, and full-bodied mid and low frequencies. The VM750SH is furnished with a die-cast aluminum alloy housing which reduces vibration while adding a natural electrical shield.

Audio-Technica VM750SH cartridge specifications
- Type: VM
- Frequency response: 20 ~ 27,000 Hz
- Output voltage: 4.0 mV (1kHz, 5 cm/sec.)
- Channel separation: 30 dB (1kHz)
- Output balance: 1.0 dB (1kHz)
- Tracking force: 1.8 ~ 2.2 g (2.0 g standard)
- Coil impedance: 2.7 kΩ (1kHz)
- DC resistance: 800 Ω
- Load impedance: 47 kΩ
- Load capacitance: 100 ~ 200 pF
- Coil inductance: 460 mH (1kHz)
- Static compliance: 40 10-6 cm/dyne
- Dynamic compliance: 10 10-6 cm/dyne (100Hz)
- Stylus: Nude Shibata (2.7 0.26 mil)
- Cantilever: Aluminum tapered pipe
- Vertical tracking angle: 23
- Dimensions: 17.3(H) 17.0(W) 28.2(D) mm
- Weight: 8.0 g
- Replacment stylus: VMN50SH
- Accessories: Cartridge installtion screws 5mm 2, 10 mm 2, Washer 2, Hexagon nut 2, Non-magnetic screwdriver 1, Brush 1, Lead wire set 1

Note: Specifications are subject to change without notice.

AUDIO-TECHNICA VM740ML CARTRIDGE

Audio Technica's VM740ML phono cartridge features a MicroLine stylus which enables extremely accurate groove tracking. The VM740ML is furnished with a die-cast aluminum alloy housing which reduces vibration and parasitic resonance distortion while adding a natural electrical shield. Comparatively, the VM540ML is furnished with a durable low-resonance polymer housing. The housing difference results in a more subtle and refined presentation by the 740ML. Both the VM740ML and VM540ML are equipped with a VMN40ML MicroLine nude stylus that traces the groove with incredible accuracy, resulting in nuanced audio reproduction that elliptical and conical styli simply can't match. The stylus's multilevel shape also wears better than other styli, while reducing the wear on your records.

Audio-Technica VM740ML cartridge specifications
- Type: VM
- Frequency response: 20 ~ 27,000 Hz
- Output voltage: 4.0 mV (1kHz, 5 cm/sec.)
- Channel separation: 30 dB (1kHz)
- Output balance: 1.0 dB (1kHz)
- Tracking force: 1.8 ~ 2.2 g (2.0 g standard)
- Coil impedance: 2.7 kΩ (1kHz)
- DC resistance: 800 Ω
- Load impedance: 47 kΩ
- Load capacitance: 100 ~ 200 pF
- Coil inductance: 460 mH (1kHz)
- Static compliance: 40 × 10-6 cm/dyne
- Dynamic compliance: 10 × 10-6 cm/dyne (100Hz)
- Stylus: Nude MicroLine (2.2 × 0.12 mil)
- Cantilever: Aluminum tapered pipe
- Vertical tracking angle: 23 °
- Dimensions: 17.3(H) × 17.0(W) × 28.2(D) mm
- Weight: 8.0 g
- Replacment stylus: VMN40ML
- Accessories: Cartridge installation screws 5mm × 2, 10 mm × 2, Washer × 2, Hexagon nut × 2, Non-magnetic screwdriver × 1, Brush × 1, Lead wire set × 1,

Note: Specifications are subject to change without notice.

AUDIO-TECHNICA VM510CB CARTRIDGE

The VM510CB conical stylus cartridge is the entry-level 500 Series model in Audio-Technica's new VM cartridge line a line that harks back to A-T's early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today's advanced technology. Like all VM cartridges, the VM510CB is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge's 0.6 mil conical bonded stylus tracks the center of the record groove for reliable performance and excellent fidelity.

Audio-Technica VM510CB cartridge specifications
- Type: VM
- Frequency response: 20 ~ 20,000 Hz
- Output voltage: 5.0 mV (1kHz, 5 cm/sec.)
- Channel separation: 25 dB (1kHz)
- Output balance: 1.5 dB (1kHz)
- Tracking force: 1.8 ~ 2.2 g (2.0 g standard)
- Coil impedance: 2.7 kΩ (1kHz)
- DC resistance: 800 ΩΩ
- Load impedance: 47 kΩ
- Load capacitance: 100 ~ 200 pF
- Coil inductance: 460 mH (1kHz)
- Static compliance: 35 10-6 cm/dyne
- Dynamic compliance: 8 10-6 cm/dyne (100Hz)
- Stylus: Bonded conical (0.6 mil)
- Cantilever: Aluminum pipe
- Vertical tracking angle: 23
- Dimensions: 17.3(H) 17.0(W) 28.2(D) mm
- Weight: 6.4 g
- Replacment stylus: VMN10CB
- Accessories: Cartridge installtion screws 5mm 2, 10 mm 2, Washer 2, Hexagon nut 2

Note: Specifications are subject to change without notice.

AUDIO-TECHNICA AT-150ANV AT150ANV LIMITED EDITION PHONO CARTRIDGE
- For music that just jumps from the grooves.¹

The 50th Anniversary limited-edition AT150ANV moving-magnet phono cartridge combines traditional design elements and craftsmanship with the latest technological refinements to deliver richly detailed and superbly accurate vinyl playback. The AT150ANV utilizes a Micro Linear stylus tip mounted on φ0.4mm sapphire cantilever pipe. Its pure titanium housing and Neo-fade damping material are designed to absorb unwanted parasitic resonances for rock-solid clarity and and unshakable resolution. The musical result is sure to please the most discriminating audiophiles and music lovers.

● Para-toroidal generation system and a high-performance dual magnet type system VM.
- Audio-Technica's moving magnet cartridge design delivers "practically identical to the cutter head" performance.Audio-Technica's patented Vector-Aligned Dual Magnet design positions two tiny magnets 90 degrees apart. These magnets are positioned directly in line with the two groove walls and each magnet incorporates a separate, independent coil structure. This low magnet mass and geometry allow exact translation of record groove motion into matching electrical signals, ensuring excellent channel separation, extended frequency response, and superior tracking. The power generation system adopted in the body features an extremely small magnetic loss para toroidal core without seam, resulting in higher power generation efficiency. In addition, the improved high frequency response is achieved via two laminated cores. A separate shield plate in the center of the left and right power generation systems reduces electrical crosstalk.

● Cantilever pipe φ0.4mm sapphire.
- With the sapphire cantilever, there is no high-frequency resonance of the cantilever. Excellent frequency response is maintained across the entire band.

● Pure titanium housing.
- High precision machined pure titanium housing provides a strong foundation material for the internal generation system and assists in rock-solid playback.

● Neo-fade damping material mounted internally.
By incorporating the Neo-fade damping material mounted internally, unwanted parasitic resonance are adsorbed efficiently.

● High-performance Micro Linear stylus.
- Latest and most advanced design closely resembles the cutter stylus than any previous design. This shape produces better high frequency response with less wear or distortion than with earlier configurations. The contact tip does not change shape up to the brink of obliteration.

● PCOCC wire is used for the coil.
- A technologically advanced pure copper material is used in Audio-Technica's exclusive Para-toroidal Signal Generator. Together with the laminated core structure, which minimizes loss in the high frequency region, this integrated para-toroidal signal generator achieves an efficiency greater than conventional cartridges. The use of PCOCC wire (Pure Copper by Ohno Continuous Casting) perfects the performance of the advanced para-toroidal coil design. A special high-temperature extrusion die produces copper with virtually no transverse crystal barriers to impede signal transmission or color sound. The coils of the Audio-Technica AT150ANV thus transmit distortion-free sound up to its output posts. The most subtle details are reproduced with natural purity.

● Magnetic mold reduces unnecessary movement.
- The Magnetic mold, a hard synthetic resin material blended with potassium titanate for high strength and high rigidity, secures the magnet. This reduces unnecessary movement and results in for solid sound reproduction.

Audio-Technica AT150ANV Phono Cartridge Specifications
- Type: Moving Magnet VM Dual Magnet Stereo
- Frequency response: 10 ~ 23,000 Hz
- Output voltage: 4mV (1kHz, 5 cm/sec.)
- Channel separation: 30 dB (1kHz)
- Output balance: 0.8 dB (1kHz)
- Tracking force: 1.2 ~ 1.8 g (1.5 g standard)
- Coil impedance: 2.3 kΩ (1kHz)
- DC resistance: 530 ΩΩ
- Rec. load impedance: 47 kΩ
- Coil inductance: 350 mH (1kHz)
- Static compliance: 40 10-6 cm/dyne
- Dynamic compliance: 10 10-6 cm/dyne (100Hz)
- Stylus: Micro linear (ML)
- Cantilever: φ0.4 mm Sapphire pipe
- Vertical tracking angle: 23
- Dimensions: 17.3(H) 17(W) 28.2(D) mm
- Weight: 9.5 g
- Accessories: Driver 1, non-magnetic mounting screws 5mm 2,8 mm 2, Lead wires 4, washer 2, nut 2, 1 brush.

Note: Specifications are subject to change without notice

________________________________________________

Footnote 1: Michael Fremer, "Nine Cartridges Reviewed, Compared and File Identities Revealed!", Analog Planet, August 22, 2013. The venerable reviewer found the Audio-Technica AT150ANV cartridge to be a significant step above the rest, including the Ortofon 2M Black cartridge, particularly in terms of large dynamic swings. All things considered, the AT150ANV became his favorite and easily the best sounding. It's certainly the most exciting and vital sounding. The music just jumps from the grooves.

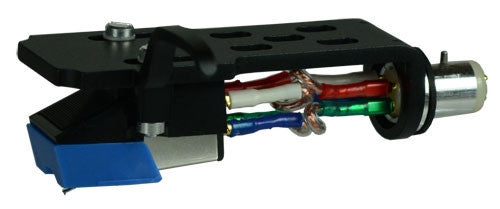

LP GEAR AT95VL Pre-mount

This LP Gear Pre-mount consists of an AT95VL cartridge mounted onto a world-class HD headshell for your convenience.

• LP Tunes High-Definition half-inch mount headshell
• Aerospace alloy for tensile strength and low resonance
• SOAR HD5 headshell wires for exceptional sound quality
• Aligned length ~52 mm for use with many tonearms
• Alignment adjustable for extra precision and compatibility
• Free alignment protractor
• 16.7g weight with mounted AT95VL cartridge

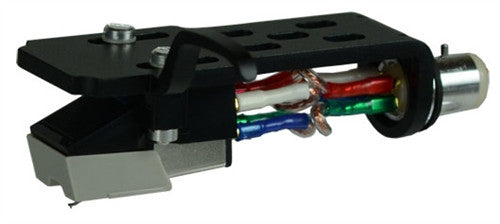

LP Tunes AT95SA Pre-mount

This LP Tunes Pre-mount consists of an AT95SA cartridge mounted onto a world-class HD headshell for your convenience.

• LP Tunes High-Definition inch mount headshell
• Aerospace alloy for tensile strength and low resonance
• SOAR HD5 headshell wires for exceptional sound quality
• Aligned length ~52 mm for use with many tonearms
• Alignment adjustable for extra precision and compatibility
• Free alignment protractor
• 16.7g weight with mounted AT95SA cartridge

AUDIO-TECHNICA AT33SA AT-33SA PHONO CARTRIDGE

The New Audio-Technica AT33Sa - irresistible sound quality! The AT33sa features the highly acclaimed Shibata stylus. The Shibata stylus produces richly detailed, harmonically melodious and organic sound quality across the frequency spectrum. To extend performance even further, it is mounted on a boron cantilever with a double damper.

● Advanced tapered boron cantilever and reduced weight
The AT33Sa uses a tapered boron cantilever. Tapering the cantilever and revising the number of coil rotations reduce the weight, giving the cartridge better high range performance and wide range reproduction.

● Neodymium magnet with dramatically enhanced magnetic energy and permendur yoke
The model uses a neodymium magnet with maximum energy product BHmax of 50 [kJ/m3] and a permendur yoke with high saturation flux density and outstanding magnetic properties, which further enhances the concentrated magnetic field of the coil gap.

● PCOCC coil
The PCOCC coil enables purer transmission because it is not subject to grain boundaries in the direction of transmission. *PCOCC = Pure Copper by Ohno Continuous Casting process (Monocrystalline high-purity oxygen- free copper)

● High-separation, wide response dual moving coil
The basic structure is an original MC type, with separate cylindrical coils to the left and right channels. Since power is generated independently in each of the left and right channels, this structure offers truly superior separation. If the signal from the opposite channel escapes, this can cause intermodulation distortion and have a decisive impact on audio quality and how the stereo sound spreads. The structure of this product ensures a clear and smooth sound. Additionally, the two coils have a reverse-V shape which reduces effective moving mass as seen from the stylus tip, limiting unnecessary movement of the coil and further eliminating distortion.

● VC mold limits unnecessary vibration
The VC mold that affixes the coils is made with hard synthetic resin containing potassium titanate to make it highly strong and rigid. This improvement results in a lighter product, which reduces unnecessary vibration. ● Highly rigid body suppresses resonance
The cartridge's housing is made of precision-cast hard aluminum alloy. Hard synthetic resin sandwiching in the structure on the top and bottom suppresses parasitic resonance. This minimizes unnecessary noise while enhancing rigidity and the signal-to-ratio.

Audio-Technica AT33SA Specifications
- Type: Moving Coil VM Dual Magnet Stereo
- Playback frequency range: 15 ~ 50,000 Hz
- Output voltage: 0.4 mV (1kHz, 5 cm/sec.)
- Channel separation: 30 dB (1kHz)
- Output balance: 0.5 dB (1kHz)
- Tracking force: 1.8 ~ 2.2 g (2.0 g standard)
- Coil impedance: 10 Ω (1kHz)
- DC resistance: 10 Ω
- Rec. load impedance: 100 Ω or more (when head amplifier connected)
- Coil inductance: 22 μH (1kHz)
- Static compliance: 40 40-6 cm/dyne
- Dynamic compliance: 10 10-6 cm/dyne (100Hz)
- Stylus: Shibata
- Cantilever: Boron solid taper
- Vertical tracking angle: 23
- Dimensions: 16(H) 16.6(W) 26.5(D) mm
- Weight: 6.9 g
- Accessories: non-magnetic driver 1, washer 2, Protector 1, Cartridge mounting screws 13mm 2,19 mm 2, Nut 2, Brush 1, PCOCC lead set 1.

Note: Specifications are subject to change without notice.

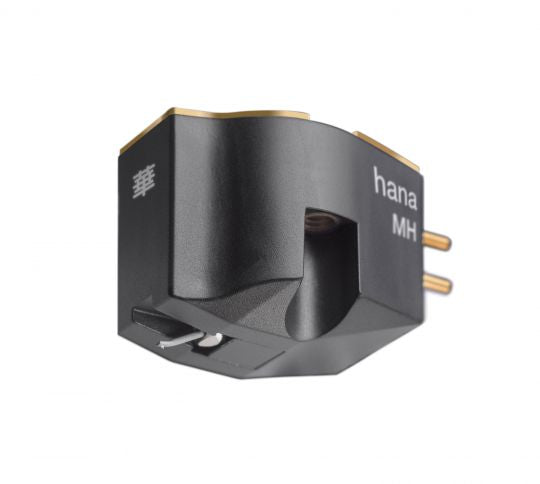

HANA MH MICROLINE MC CARTRIDGE 2mV OUTPUT
- The sound of excellence afforfably priced.

The MH is Hana's flagship MC cartridge, combining Excel Sound's old-world expertise, craftsmanship and precision engineering. Excel Sound manufactures all the major components, thus enabling the production of affordable cartridges with unparalleled sound excellence and sound quality.

● Nude Microline stylus
The MH uses a Nude Microline stylus that almost exactly duplicates the shape of the cutting stylus used to produce the original master disc from which records are made. This enables it to track portions of the groove other styli simply cannot reach and fit more precisely into the contours of the vinyl groove. This enhances tracking to capture the most delicate musical details with better frequency reproduction, stereo imaging, and nuanced resolution.

● High-purity copper wire
High-purity copper wire is used for winding its moving coils, offering clarion and nuanced clarity of sound. The ML also features a new low impedance generator for optimized performance with a broader range of phono preamps

● Delrin© cartridge body
The MH cartridge body is injection molded from Delrin©, a special polymer with improved mechanical characteristics for better resonance damping, to reveal more low level information and enhance dynamic range.

● Cryogenic Processing
Cryogenic processing is Cold Annealing at near absolute zero temperature, It restructures metals at the molecular level. Especially important in the Alnico-based magnetic electro-motive circuit (cartridge signal generator). The MH parts treated include the front yoke as well as center and rear components. The result is a more precise and controlled magnetic flux field for greater linearity and musical sound quality.

● Threaded fittings and Brass Cap
Built into the M Series Delrin© cartridge body are metal threaded fittings for headshell mounting hardware, offering easier attachment and a superior mechanical interface for better bass and dynamics

.

With these features, Hana has reached a new and higher trajectory of excellence!

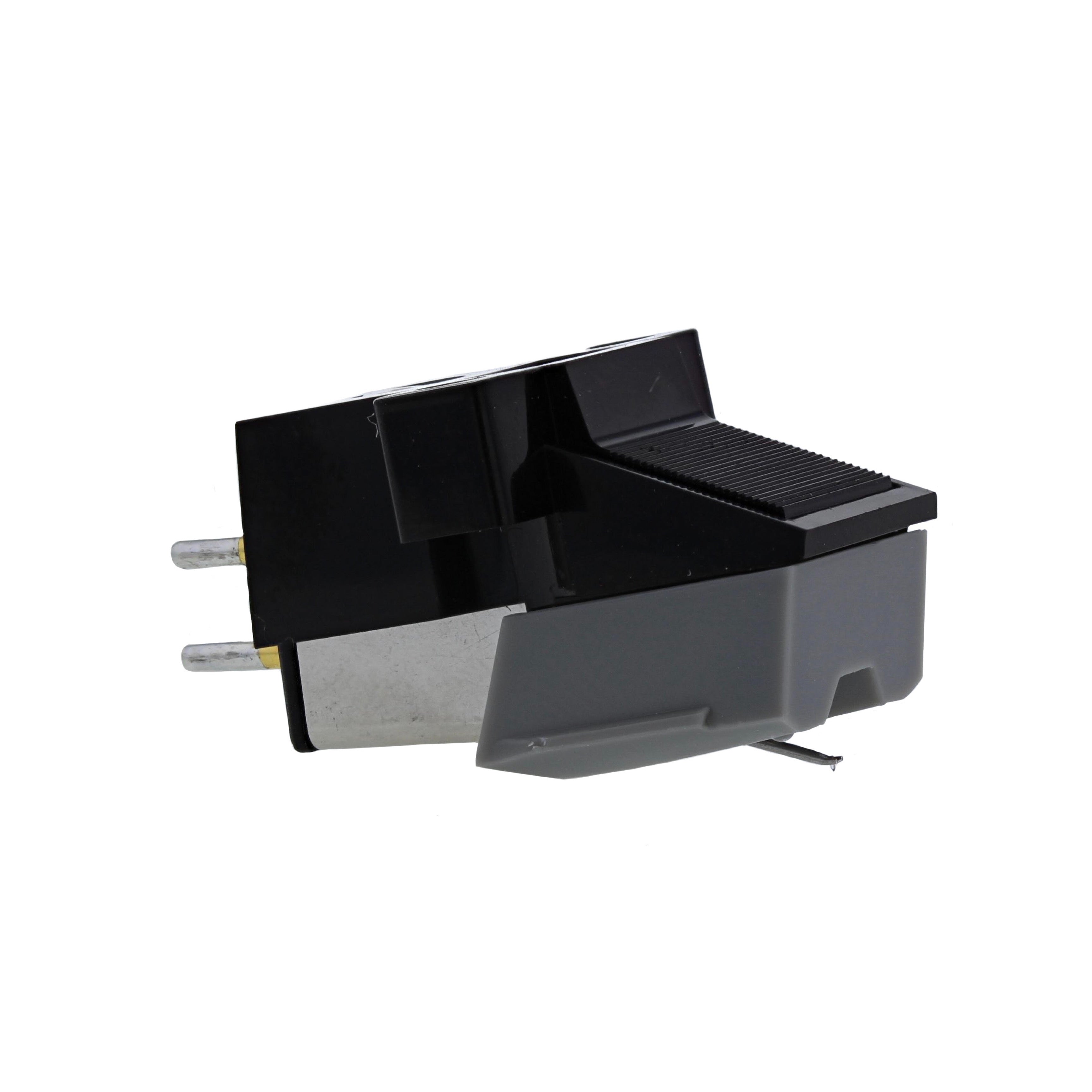

LP GEAR AT95SS (AT-95SS) CARTRIDGE
- with Nude Super Shibata diamond super tip

Non-amplified music does not sound shrill with shards that are painful to hear. With the AT95SS, you'll hear music rendered in opulent detail, acoustiic dimension and space in between the instruments and feel the cavity and vocal timbre of singers. It's a delicate and exhilirating experience, one not easy to forget.

In developing the AT95SS, we brought together best-selling and world-class stylus engineers and talented technicians to create the best Shibata stylus for the AT95E cartridge. The results have been nothing short of miraculous and very musically rewarding. Listen and have a salubrious time. You'll love it.

THE VESSEL A3SS CARTRIDGE

Music is expressed manifold with the elegance and grace of the A3SS cartridge. Its Super Shibata stylus delivers complex texture and dynamism with stellar liquidity and transparency.

The Vessel A3SS Cartridge Specifications
- Type: Moving Magnet
- Frequency range: 20-30,000 Hz
- Output voltage @ 1kHz: 2.5 mV
- Channel balance @ 1kHz: <1.0dB
- Channel separation @ 1kHz: 23dB
- Dynamic compliance (100Hz): 10 10-6 cm/dyne
- Tracking ability at 2.0 g : 70 m
- Cantilever: Special type aluminum pipe
- Stylus type: Nude Super Shibata
- Stylus tip radius: .00016 x .0028 inch
- Tracking force: 2.0 g
- Internal impedance @ 1kHz: 670 ohms
- Internal inductance: 285 mH
- Recommended load resistance: 47 kOhm
- Cartridge color, body/stylus: Black/Gold/Green
- Weight: 6.0 g
- Mounting hardware included: 2 Screws, 2 Nuts
- Stylus replacement: A3SS stylus

SHURE M75E TYPE 2 PHONO CARTRIDGE
- Discontinued, contact us for replacement.

The Shure M75E Type 2 phono cartridge offers high tracking capability and musical accuracy. Made in the USA and long considered a historical standard, we are delighted to offer these very few and desirable pieces for reference and listening enjoyment. Many stylus replacement types are available thus making it an ideal cartridge to own and grow with.

Shure M75E Type 2 Cartridge Specifications
- Type: Moving magnet
- Tonearm mount: 1/2 inch
- Output voltage: 5mV
- Frequency response: 20Hz-20kHz
- Channel separation: > 25dB
- Recommended load impedance: 47k ohms
- Inductance: 720 mH
- DC resistance: 630 ohms
- Weight: 6 g
- Terminals: 4
- Accessories included: User guide, mounting hardware

PICKERING XL-33U XL33U CARTRIDGE
- With Pickering DTL-2S stylus with Stereohedron diamond tip and half-inch mount adaptor



Pickering XL-33U Phono Cartridge Specifications
- Output voltage at 1000 Hz, 5.5cm/sec.: 4.4 mV
- Frequency response: 10-22,000 Hz
- Channel separation: 32dB
- Internal impedance, DC resistance: 1,300 Ohm
- Internal inductance: 900 mH
- Recommended load resistance: 47 kOhm
- Stylus type: Stereohedron
- Tracking force range: 1.0-1.5g
- Cartridge colour, body/stylus: Black/White
- Cartridge weight without screws: 6.0 g
- Replacement stylus unit: DTL2S
- Accessories included: 1 Case, 1 Stylus brush, 1 Screwdriver, 1 Half-inch adaptor, 5 Screws, 3 nuts, 2 spacers, 1 Pickering SC4 stylus cleaner, 2 Mounting instructions.
