LP Tunes AT95E Pre-mount
LP Tunes AT95E Pre-mount

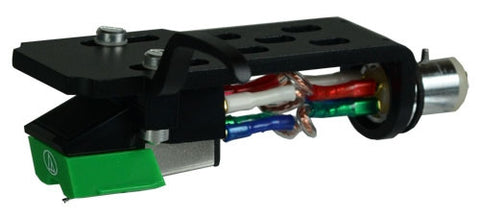

The LP Tunes AT95E Pre-mount is an AT95E cartridge mounted onto a world-class HD headshell for your convenience.
- LP Tunes High-Definition inch mount headshell
- Aerospace alloy for tensile strength and low resonance
- SOAR HD5 headshell wires for exceptional sound quality
- Aligned length ~52 mm for use with many tonearms
- Alignment adjustable for extra precision and compatibility
- Free alignment protractor
- 16.7g weight with mounted AT95E cartridge
Audio-Technica AT95E Phono Cartridge Specifications
- Output voltage @ 1kHz,5cm/sec.: 3.5mV
- Channel balance: 2dB
- Channel separation @ 1kHz: 20dB
- Frequency response: 20Hz-20kHz
- Dynamic compliance (x10-6 cm/dyne): 6.5
- Static compliance (x10-6 cm/dyne): 20
- Load resistance: 47k ohms
- Load capacitance: 100 - 200 pF
- Stylus type: 0.4 x 0.7 mil elliptical diamond
- Tracking force range: 1.5 - 2.5 g
- Tracking force recommended: 2 g (20 mN)
- Vertical tracking angle: 20
- Coil impedance at 1kHz: 2.8k ohms
- Coil inductance at 1kHz: 400 mH
- Recommended load resistance: 47k ohms
- Color: Black/Green
- Weight: 6.5 g
- Dimensions: 30.5l x 17w x 17.20h
- Stylus replacement: Audio-Technica ATN95E
