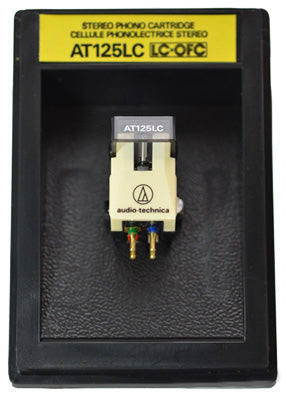

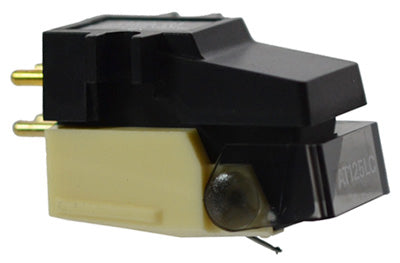

Audio-Technica AT-125LC Phono Cartridge
AUDIO-TECHNICA AT-125LC CARTRIDGE
The Audio-Technica AT-125LC is one of the most desirable cartridges. The VM type AT-125LC dual magnet vibration and generation systems has been highly regarded all over the world. We chanced upon a batch of new old stock AT-125LC phono cartridges and are thus able to offer this in a very limited quantity to collectors and very discriminating listeners.
LC-OFC Wire for High-Efficiency, High Linearity Signal Transfer
The Audio-Technica AT-125LC cartridge is fitted with LC-OFC lead wires. LC-OFC (Linear-Crystal Oxygen-Free Copper) is a highly refined copper material free of oxidizing agents and other impurities. A special process is used to elongate the lattice structure of the of the material to minimize the number of crystals in a given length of wire. For example, in standard copper there are more than 150,000 crystal boundaries for every meter length of wire. The LC-OFC reduces this number to 20 (less than 1/7500). The result is a startling drop in transmission losses and distortion across these boundaries. Signal transfer efficiency is improved and linearity is maintained even for extremely low signal levels. The use of LC-OFC wires assures that the fidelity of the signal reproduced by the Audio-Technica AT-125LC cartridge is transferred to the amplifier stage without modification.
Audio-Technica AT-125LC Phono Cartridge Specifications
- Output Voltage: 5.0 mV
- Frequency Response: 10Hz-28kHz: 29/20 dB
- Channel Balance: 1.0dB
- Channel Separation @ 1kHz/10kHz: 29/20 dB
- Tracking Force: 1.0 - 1.8 g
- Recommended Load Impedance: 47 ΩΩ
- Load Capacitance: 100 - 200 pF
- Stylus Shape: Highly Polished and Shaped Titanium Bonded Linear Contact Diamond
- Cantilever: Tapered Tube
- Vertical Tracking Angle: 20
- Weight: 6.5g
- Accessories Included: Screwdriver, Cartridge Installation Tools, Washers, Screws, Nuts, Stylus Brush
