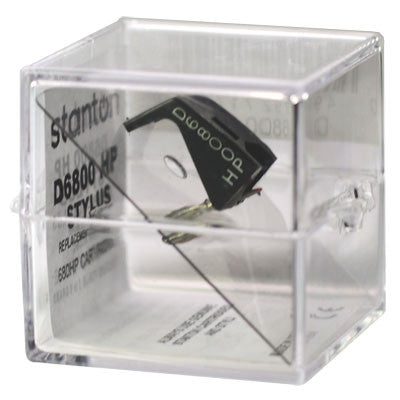

Stanton D6800HP D6800 HP stylus
Genuine Stanton D-6800 HP D6800 HP D6800HP stylus provisioned with a highly polished and precision profiled 0.7 mil spherical diamond for long playing life, reduced record wear and good reproduction of recorded music.
The D6800HP's spherical stylus is superb for scratching given its higher output and a sturdier suspension. In terms of construction, the D6800 HP stylus is known for its durability and design for heavy use.
Stanton D6800HP Stylus Specifications
- Frequency response: 20-20khz
- Output @ 1kHz: 8.0mV
- Channel separation: >30dB
- Channel balance: within 2dB
- Tracking force: 2-5 grams
- Stylus tip: Spherical 0.7 mil high-polish
- DC resistance (approx.): 1300 Ohms
- Inductance (approx.): 930 mH
- Recommended load: 275pF-47k Ohms
- Tracking ability: 90u @ 2 grams
